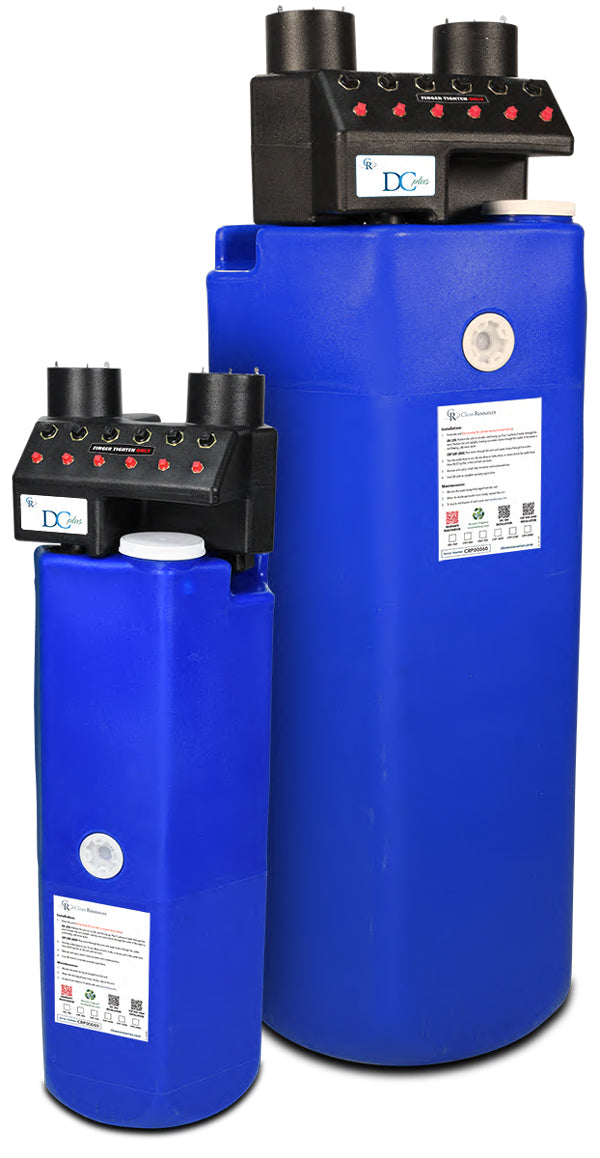

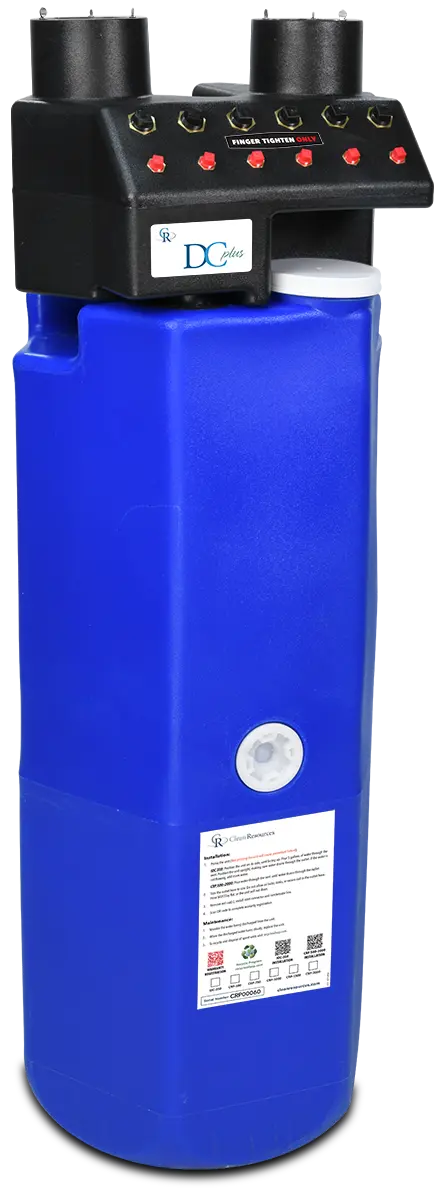

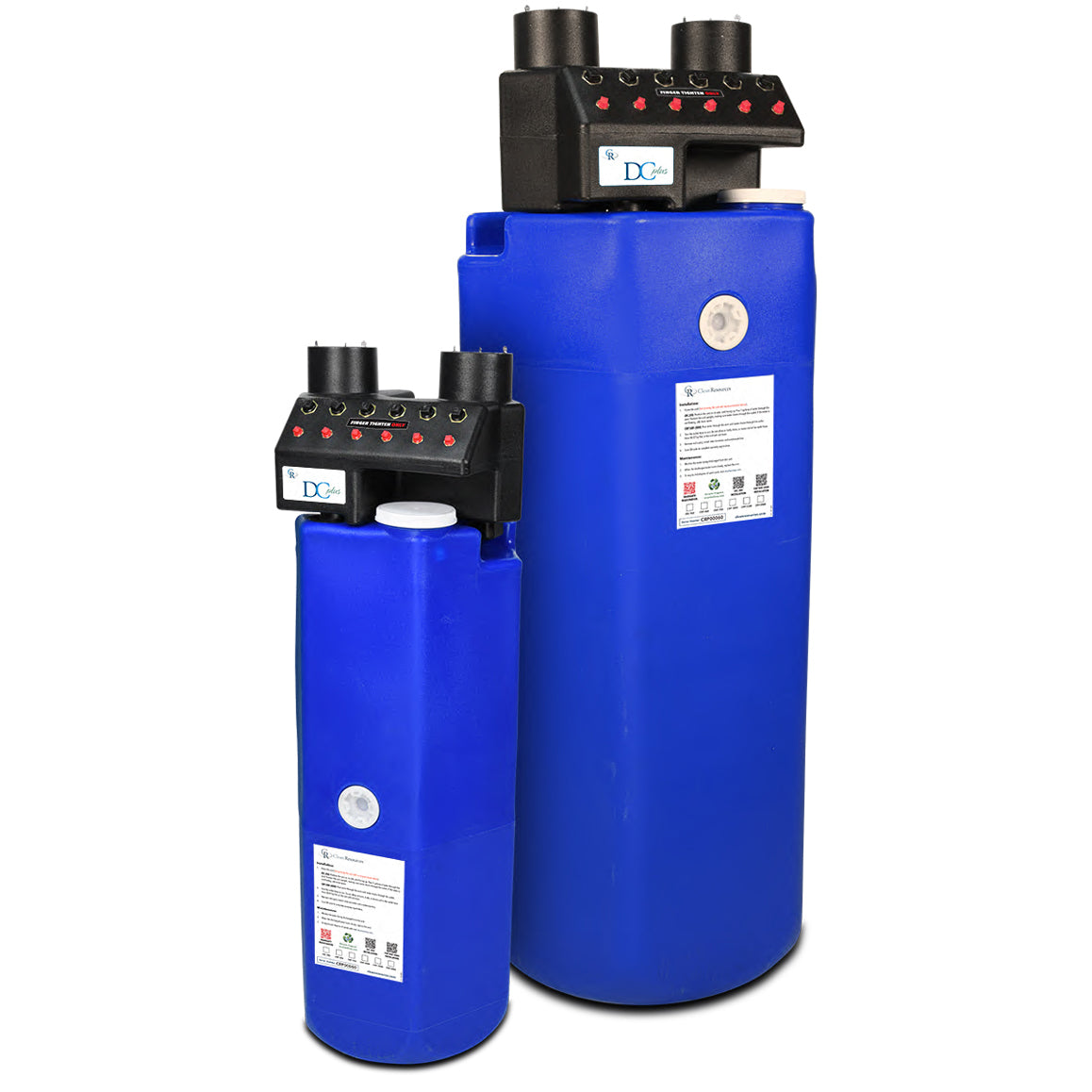

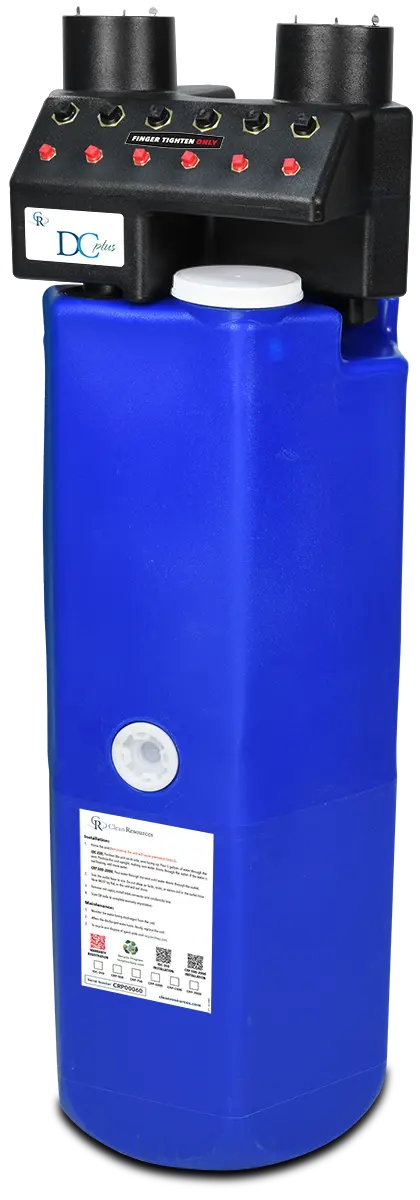

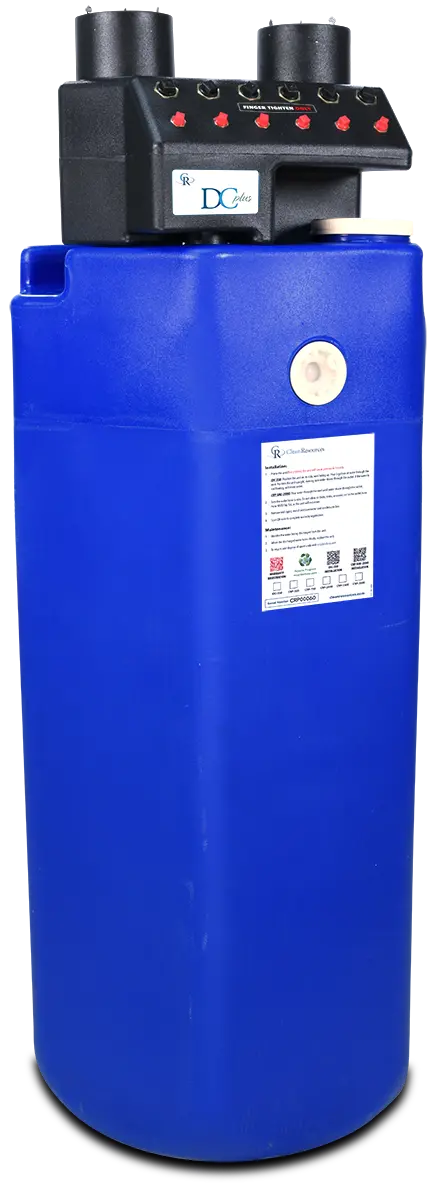

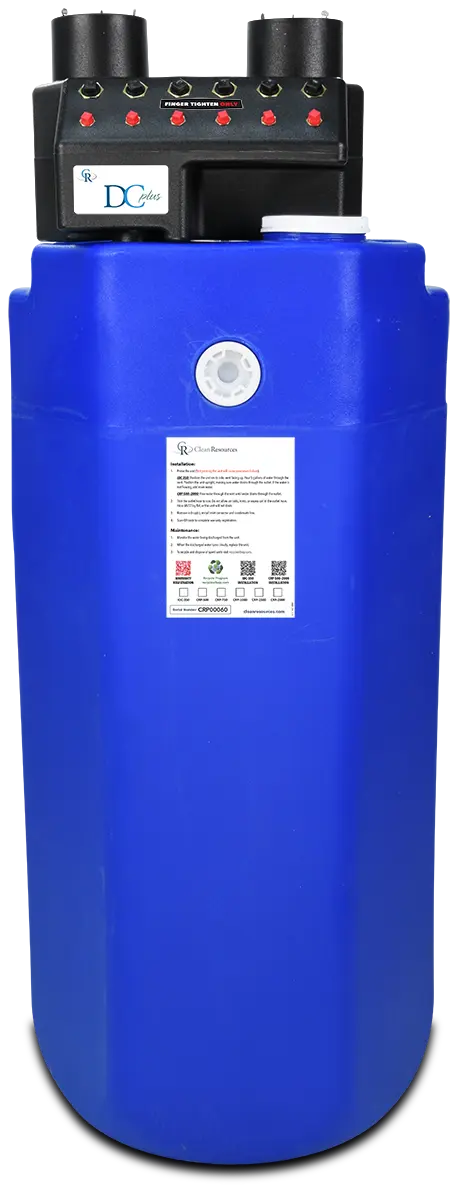

Clean Resources CRP Series-Assembled With Manifold Oil and Water Separator

CRP 500 – 2000

CRP-PAKs provide a convenient and cost-effective method to keep your compressor room EPA-compliant. The innovative CRP-PAK is maintenance-free and mold resistant.

The CRP-PAKs are our most advanced line of Oil-Water Separators. These feature several upgrades to the previous generation of the IDC series. The base unit is still the same as the IDC, but the CRP-PAKs include an external manifold that is compression fit to the container and now accepts 12 inlet lines, six more than previous systems—six ¼” and six ½.”

Built into the manifold is a pre-plumbed timer drain that generates a burst of air every twelve hours to improve the free flow of condensate through the alumina silicate substrate media bed.

CPR-PAKs also feature a discharge hub redesigned to include an antimicrobial puck to sanitize the discharge fluid. This addition inhibits mold and algae growth, keeping the discharge hose clean and free from flow restrictions.

The manifold can be easily removed from the spent container and reattached to new containers with fresh media beds. All registered units qualify for free recycling, or the units can be disposed of as non-hazardous special waste in accordance with state and local regulations. To recycle, enter the unit serial number and fill in the form at recycleoilsep.com.

"EPA & Clean Water Act Compliant Oil-Water Separators for Air Compressor Condensate”

What Makes the CRP Series Unique?

Installation Instructions:

Unmatched Performance
Clean Resources CRP oil-water separators are our best-selling units for a good reason. The proprietary alumina silicate substrate media bed adsorbs ALL compressor-based lubricants, including silicone, polyalkylene glycol (PAGs), and food grade. Clean Resources backs this claim with independent third-party testing data.

Have more than one compressor using different types of lubricants? No problem. Each CRP series unit supports up to 12 simultaneously connected compressors or downstream devices in just one unit. Whether you’re running 15 HP or 600 HP, there’s a CRP oil-water
separator to match your medium to large compressed air system.

Premium Features

1. Manifold - Detaches from base for quick separator interval replacement.
2. Condensate Inlet Hub - Replace red and black caps with push-to-connect fittings (finger tighten ONLY) and insert compressor lines.

3. Carbon-filtered Vent - Pressure is decompressed and vented through two replaceable carbon-filled cartridges, removing VOCs and reducing any oily mist expelled from the manifold.

4. Timer Drain - Sends a burst of air through the unit every 12 hours to prevent the formation of a sludge mat. Flashing LEDs and audible sound to alert unit replacement.

5. Antimicrobial Cavity - Insert an antimicrobial puck to sanitize the discharge hose and prevent algae growth.

6. Outlet - 10 ppm or less of filtered condensate exits to sanitary or floor drain.
