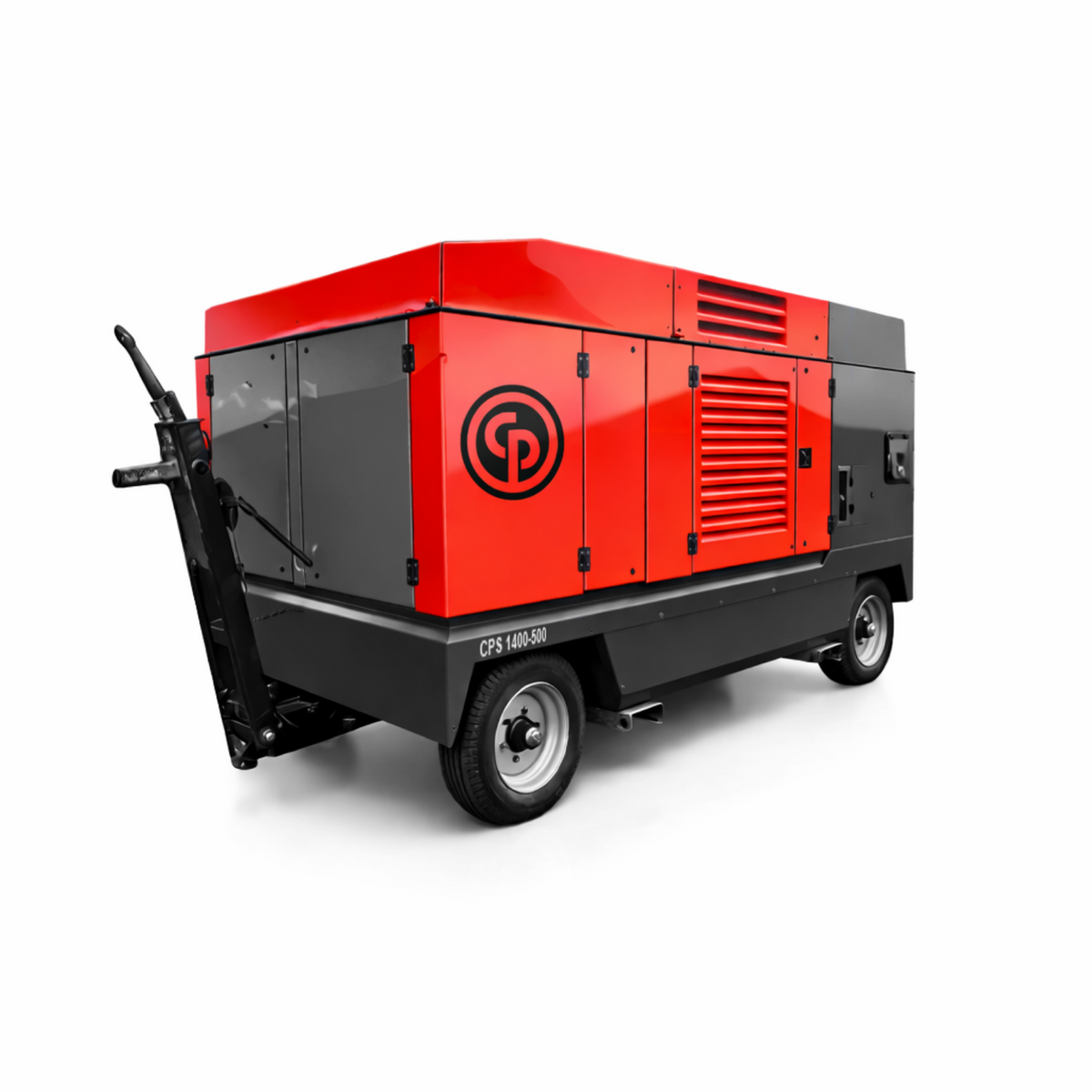

Chicago Pneumatic CPS 1400-500 High-Pressure Towable Air Compressor: 1,377 CFM @ 320 PSI, 1,228 CFM @ 508 PSI, 641 HP Scania
The Chicago Pneumatic CPS 1400-500 is a high-pressure towable two-stage rotary screw diesel air compressor in the 500 PSI class, engineered for deep drilling, high-pressure cable jetting, large-scale abrasive blasting and mining work that needs both very high pressure and very high volume from one mobile package.
Key specifications
| Specification | Value |
|---|---|
| CP part number | 8162070185 |
| Free air delivery | 1,377 CFM @ 320 PSI, 1,228 CFM @ 508 PSI (switchable dual pressure) |
| Working pressure range | 319 to 508 PSI |
| Engine | Scania DC16 V8 diesel, 641 HP, EPA Tier 4 Final with SCR (no DPF) |
| Compressor | Two-stage oil-injected rotary screw |
| Air treatment | Integrated aftercooler and water separator standard |
| Controller | CP Xc4004 with dual-pressure switch and diagnostics |
| Oil system | Oiltronix oil temperature control, synthetic compressor oil, thermostatic bypass valve |
| Fuel system | 3-step fuel filtration, diesel pre-heater, heavy-duty battery |
| Chassis | Wagon-style trailer, 3-layer corrosion protection, 110% spill-free containment |
Typical applications
Deep water-well, geothermal and mineral exploration drilling, high-pressure pipeline cleaning and cable jetting, multi-nozzle abrasive blasting, and quarry or mining support where 500 PSI class air is specified.
Order, ship and warranty
The CPS 1400-500 ships by lowboy and is quoted per destination; call (888) 229-9904 with your delivery zip and we will add freight to the order. Warthog Air Compressor Store is an authorized Chicago Pneumatic dealer and every unit ships with the manufacturer warranty registered in your name. Equipment financing is available.
NOTE: Actual product may be different from pictured!
