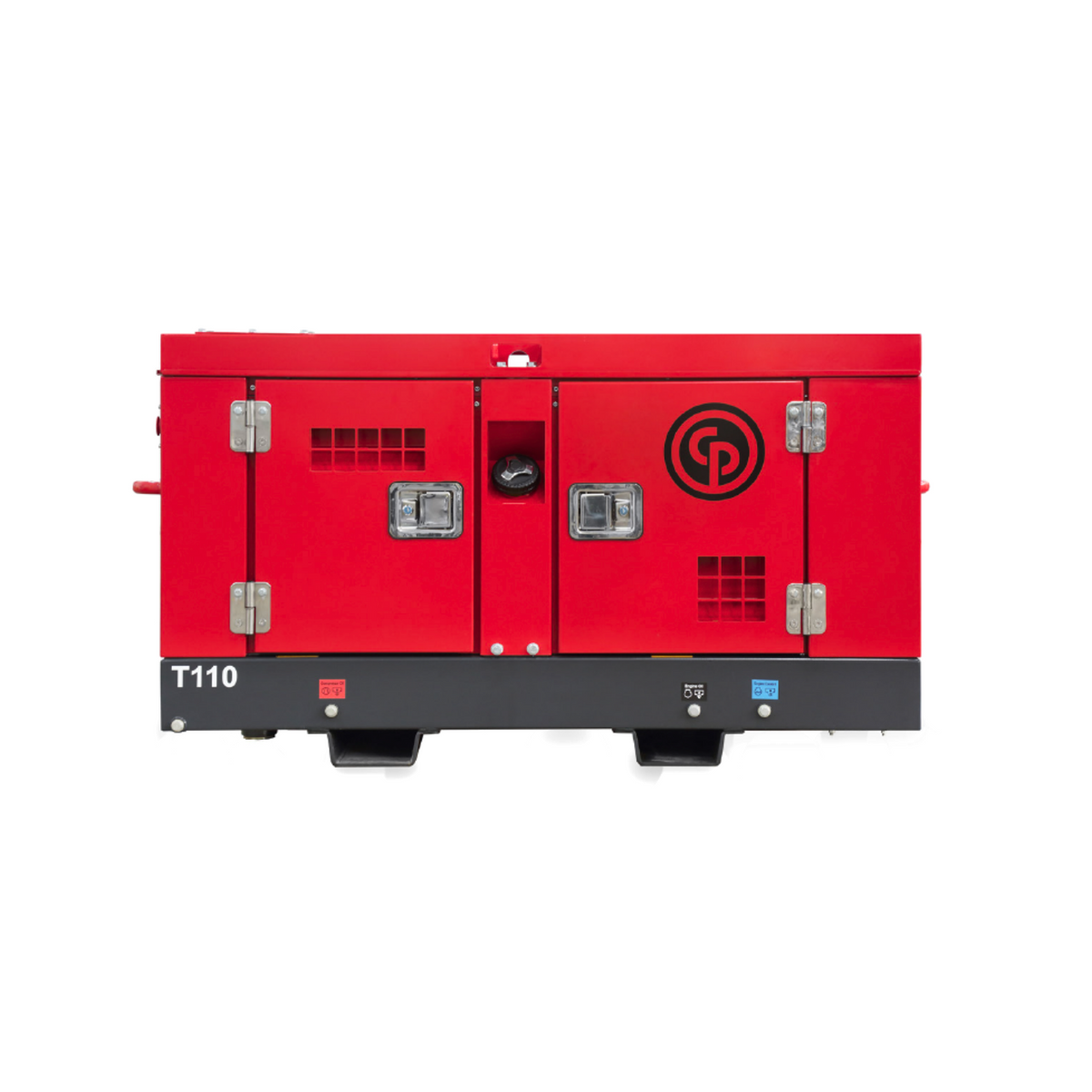

Chicago Pneumatic T110 KD8 Silenced Box Air Compressor: 95 CFM @ 100 PSI, 25 HP Kubota, Aftercooler and Water Separator

The Chicago Pneumatic T110 KD8 CS AFF (part number 8162104543) is a silenced box style diesel air compressor that delivers 95 cfm (51.9 l/s, 3.1 m3/min) at 7 bar / 100 psi from a compact skid mounted package. Instead of a trailer, the T110 sits on a base frame with built in forklift slots, so it drops onto a truck bed, a flatbed, a service trailer, or a shop floor and goes to work. An aftercooler (AFT) and water separator (WS) come standard, so the air leaving the outlet is cooler and drier than raw compressor discharge, which matters for breakers, sandblast pots, paint prep, and any tool or process that does not like water in the line.

Built as a Quiet Utility Box Unit

The T110 is the box version of Chicago Pneumatic's small diesel compressor family. The towable trailer version of this class is the CPS 110 KD8 towable air compressor. Choose the T110 when you already have a truck or trailer to carry it, when you need a compressor that lives permanently on a utility body, or when the work is indoors or in a noise sensitive area where a fully enclosed, silenced canopy is a real advantage. The utility metal canopy is finished in a 3 layer anti corrosion paint system for long service life in rental yards and on job sites, and the compact 62 x 29 x 33 inch footprint keeps it out of the way.

Kubota Tier 4 Final Power

Power comes from a Kubota D902 three cylinder mechanical diesel rated at 25 hp and certified to EPA Tier 4 Final. Because it is a mechanical engine with a muffler only exhaust, there is no diesel particulate filter, no DEF tank, and no aftertreatment regeneration cycle to manage. Full load speed is 3600 rpm and unload speed is 2000 rpm, so the engine backs off when air demand drops to save fuel and reduce noise. Starter protection prevents accidental engagement while the engine is running, and a thermostatic bypass valve brings the compressor oil up to temperature quickly for clean operation in cold weather. An anti airlock fuel system and an electrical shutoff switch complete the engine package.

This configuration includes the cold start (CS) package and an additional fuel filter (AFF). The standard minimum start temperature is 14 F, and the cold start aid extends that down to minus 4 F. Maximum ambient operating temperature is 122 F.

Clean Air and Spill Free Containment

The standard aftercooler drops the discharge air temperature and the water separator pulls out the condensed moisture before it reaches your hose. The frame is designed for 110 percent spill free containment with remote drains, so engine oil, compressor oil, coolant, and fuel stay inside the unit if a leak ever develops. That is a meaningful advantage for environmentally sensitive sites, indoor work, and rental fleets that need to meet spill prevention requirements.

Specifications

Model	Chicago Pneumatic T110 KD8 CS AFF
Part number	8162104543
Free air delivery	95 cfm (51.9 l/s, 3.1 m3/min)
Working pressure	7 bar / 100 psi
Engine	Kubota D902, 3 cylinder mechanical diesel, 25 hp, EPA Tier 4 Final, muffler only
Engine speed	3600 rpm full load, 2000 rpm unload
Air treatment	Aftercooler (AFT) and water separator (WS) standard
Containment	110 percent spill free frame with remote drains
Ambient range	Max 122 F; min start 14 F (minus 4 F with cold start aid)
Engine oil capacity	0.8 gal
Compressor oil capacity	1.3 gal
Fuel tank	5.3 gal, plus optional 2.6 gal extended tank
Canopy	Utility metal canopy, 3 layer anti corrosion paint
Mounting	Base frame with built in forklift slots (skid, not towable)
Dimensions (L x W x H)	62 x 29 x 33 in
Weight	1102 lb
Included options	Cold start (CS), additional fuel filter (AFF)

Typical Applications

• Utility and service trucks that need a permanently mounted compressor for breakers, impact tools, and tire work
• Rental yards that want a compact, forklift ready diesel compressor for short term jobs
• Indoor demolition, plant maintenance, and noise sensitive urban, hospital, and campus sites
• Light sandblasting, paint prep, and pipeline work where cool, dry air is required

Frequently Asked Questions

Is the T110 towable?

No. The T110 is a box style skid unit on a base frame with forklift slots. It is meant to ride on a truck bed, utility body, or trailer. If you need a road ready trailer with its own axle and hitch, see the CPS 110 KD8 towable model.

Does this unit require DEF or a particulate filter?

No. The Kubota D902 is a 25 hp mechanical diesel that meets Tier 4 Final with a muffler only exhaust. There is no DEF tank and no DPF to service.

What does the aftercooler and water separator do for me?

The aftercooler cools the compressed air and the water separator removes the condensed moisture before it leaves the machine. The result is drier air at the tool, less water in hoses and sandblast pots, and cleaner results for paint prep and finishing work.

How is the T110 shipped?

The T110 weighs 1102 lb and ships by freight carrier on a pallet or skid. Warthog Air Compressor Store is an authorized Chicago Pneumatic dealer and ships nationwide. Call (888) 229-9904 for a freight quote, financing options, or help choosing between the T110 box unit and the CPS 110 towable.
