Chicago Pneumatic CP 0030 Air-Operated Diaphragm Pump: 111 GPM, 194 ft Head, 2-1/2 in Outlet
| Specifications (As Configured) | |
|---|---|
 Vendor |
Chicago Pneumatic
|
 SKU |
8900004036
|
| Dimensions | |
 Weight |
68.0 lb
|

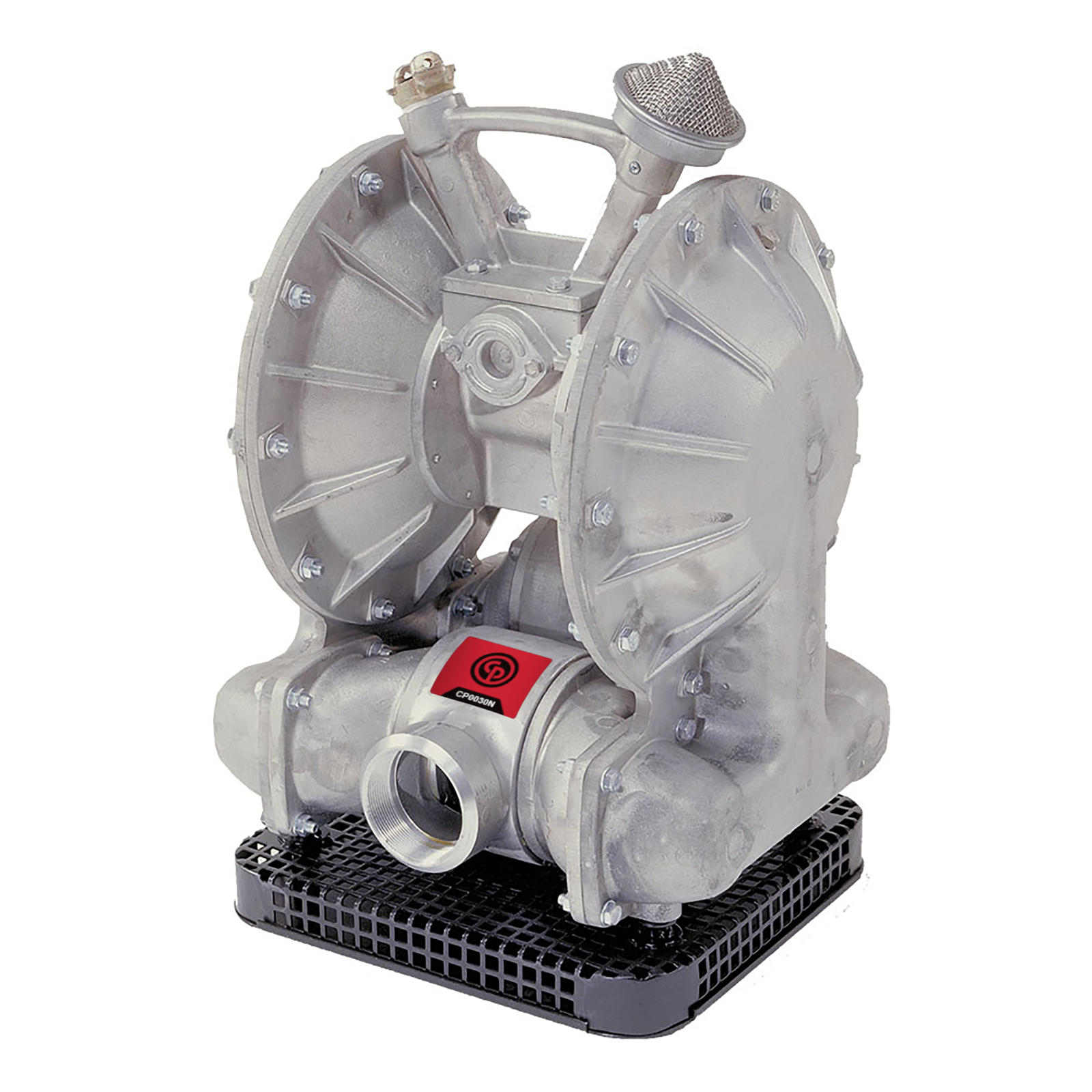

The Chicago Pneumatic CP 0030 is an air-operated diaphragm pump built for the dirtiest, thickest and most abrasive fluids on construction, mining and industrial sites. It runs on jobsite compressed air, so there is no motor to burn out and no electrical hazard in a flooded excavation, and it will pass slurry, sand and debris that would stall a centrifugal sump pump.
Specifications
| Specification | Value |
|---|---|
| Model | CP 0030 |
| CP part number | 8900004036 |
| Maximum flow | 111 gpm |
| Maximum head | 194 ft |
| Air consumption at 90 psi | 100 cfm |
| Maximum air requirement | 72 cfm continuous |
| Fluid outlet | G 2-1/2 in |
| Air inlet | G 3/4 in |
| Dimensions | 15.4 x 13.0 x 23.0 in |
| Weight | 68 lb |
Where it fits against the CP sump pumps
The CP 0010 and CP 0020 are submersible centrifugal sump pumps for clean to moderately dirty water at high volume. The CP 0030 diaphragm pump moves less volume but handles mud, slurry, sludge and abrasive solids, and it self primes and runs dry without damage. Pick the 0030 when the fluid is thick or full of solids; pick a 0010 or 0020 when you need to move a lot of water fast.
Typical applications
- Dewatering muddy trenches, pits and cofferdams
- Pumping drilling mud and slurry
- Mining and tunneling sumps with abrasive fines
- Industrial waste and sludge transfer
- Any site where compressed air is available and electric pumps are impractical
Not for flammable fluids. Pair it with any 100 cfm class compressor such as the CPS 110 or larger. Warthog Air Compressor Store is an authorized Chicago Pneumatic dealer; call (888) 229-9904 with questions on sizing or freight.
NOTE: Actual product may be different from pictured!
