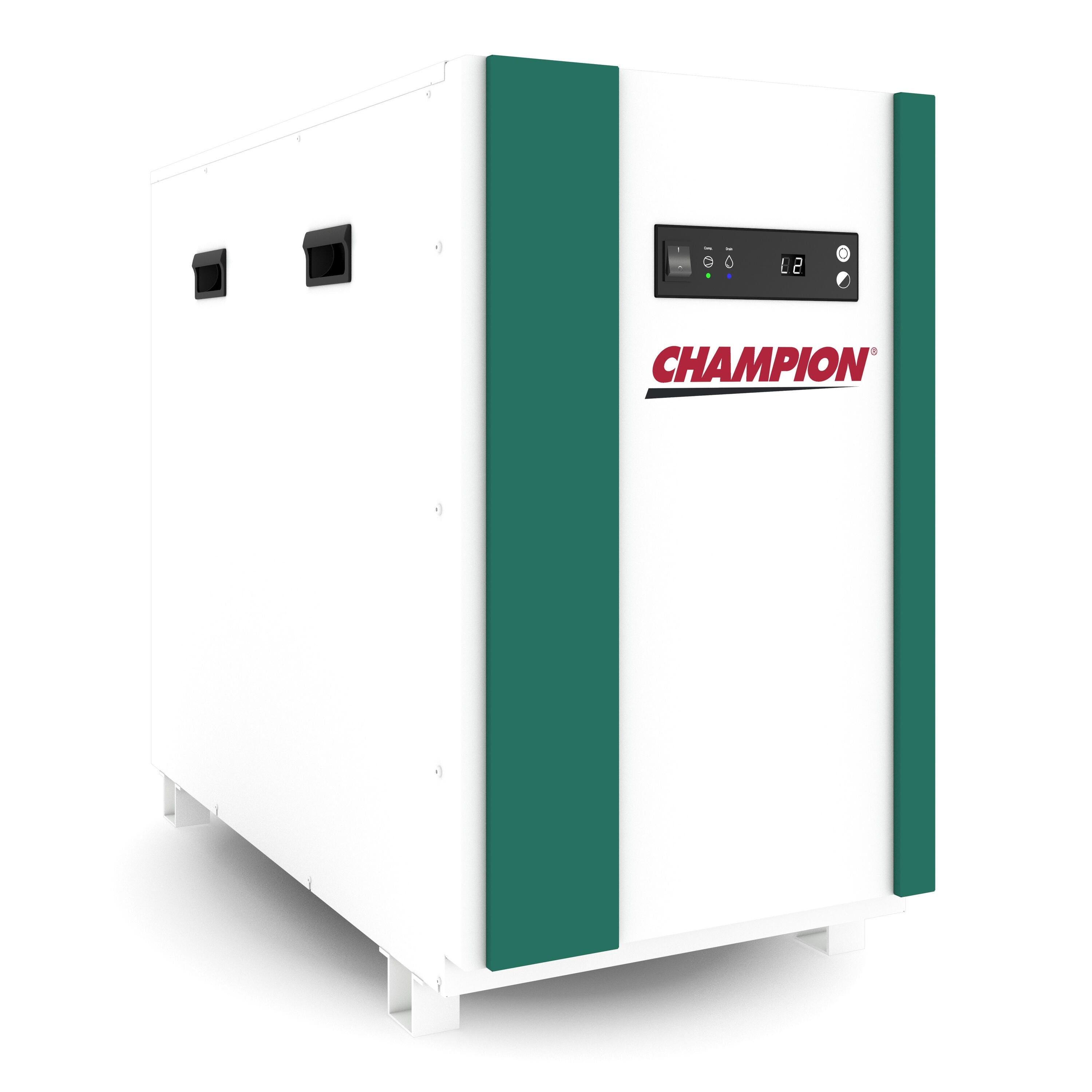

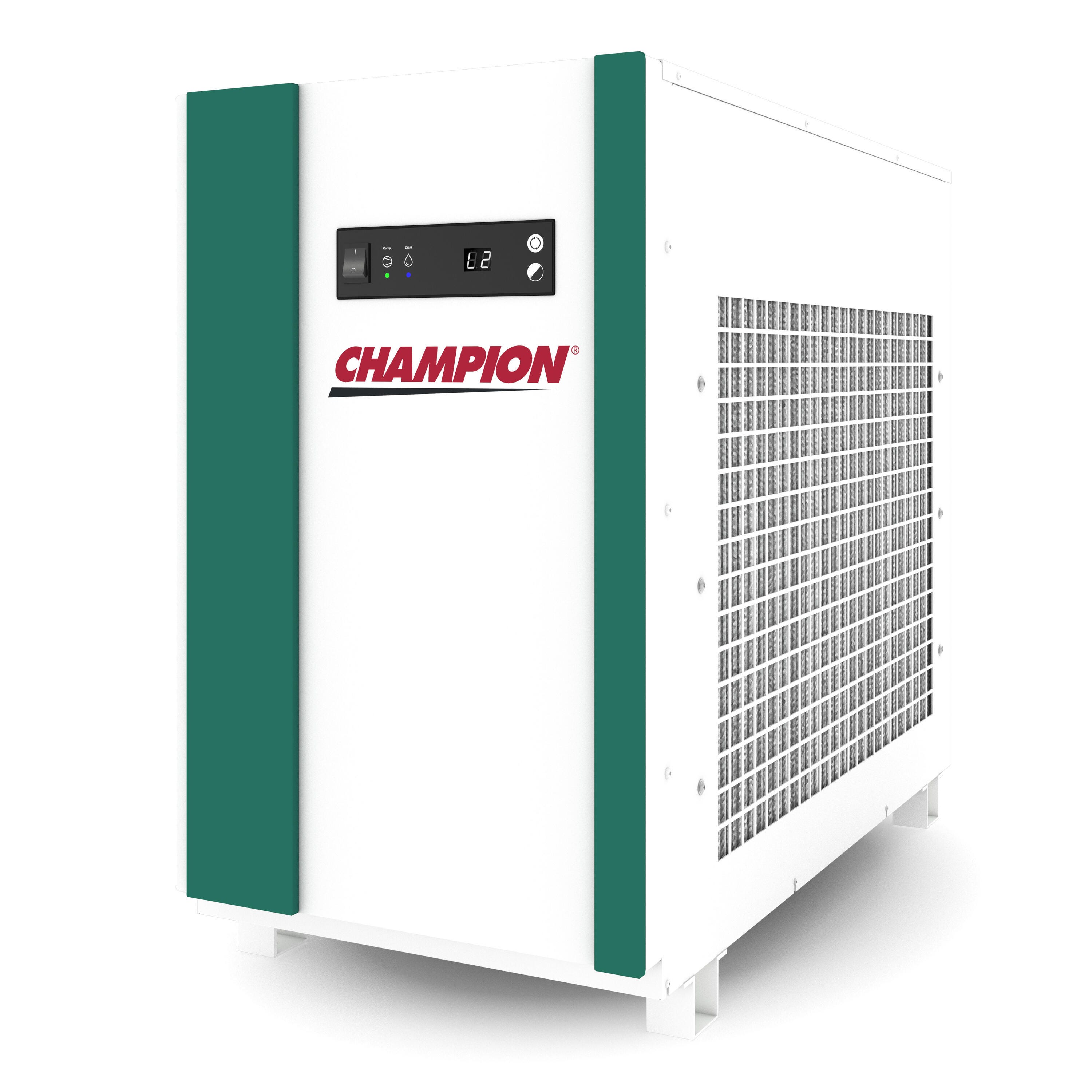

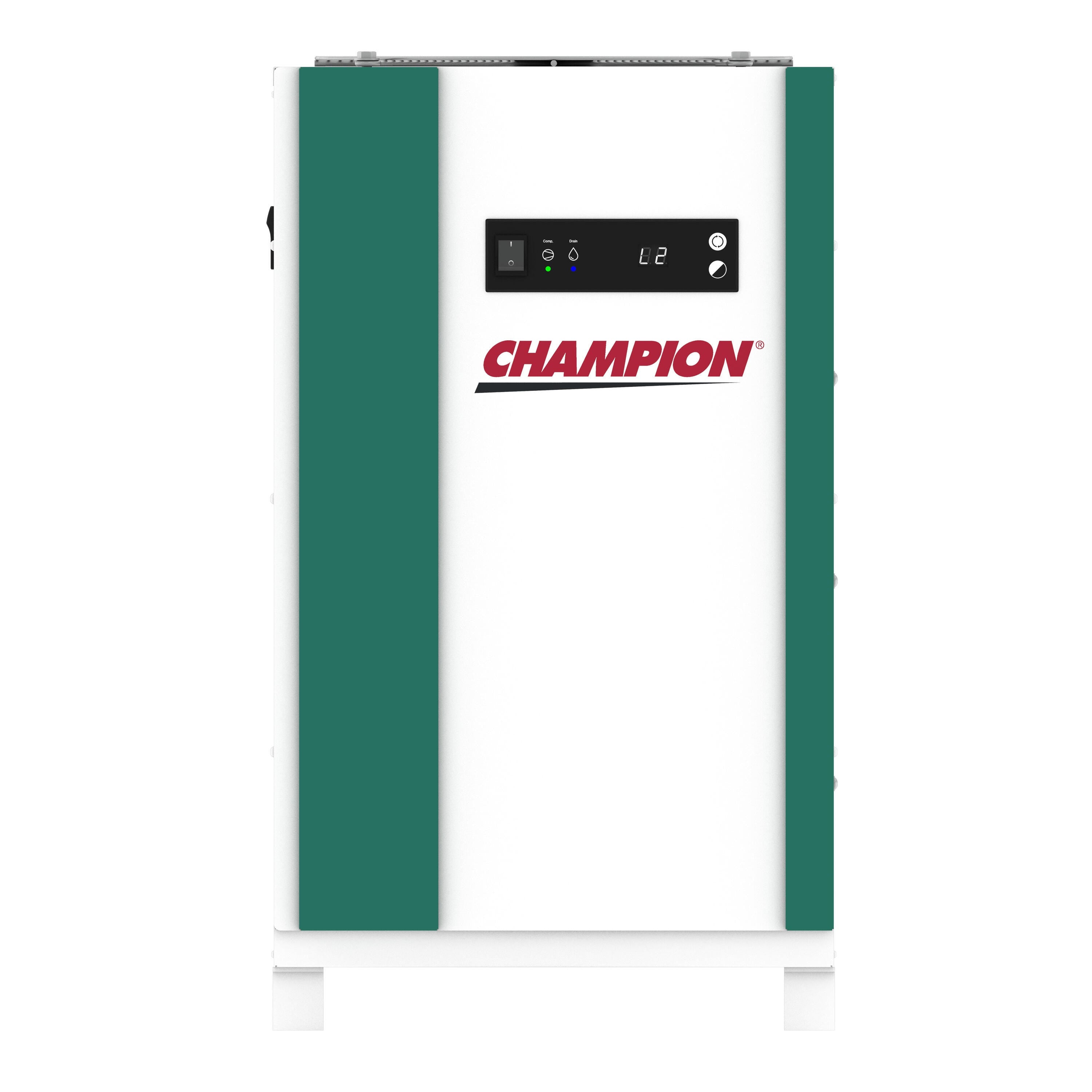

Champion CRPCA Series Water-Cooled Cycling Refrigerated Air Dryer with Filter Package
| Specifications (As Configured) | |
|---|---|
 Vendor |
Champion
|
 SKU |
CRPCA800W4FP
|
The Champion CRPCA Series water-cooled cycling refrigerated compressed air dryers cover 800–1250 SCFM with an integrated pre- and after-filter package for particulate and coalescing (oil-aerosol) removal. Cycling (thermal-mass) operation stores cooling energy and switches the refrigeration circuit off during partial or no-load periods, cutting power consumption while holding a stable pressure dew point. A stainless steel brazed-plate heat exchanger and low-GWP R454C refrigerant deliver efficient, reliable moisture removal that protects downstream tools, controls, and processes.
Key features
- Factory-matched filter package included — pre-filter and after-filter sized to the dryer
- Water-cooled condenser — ideal for high ambient temperatures or where fan heat rejection is undesirable
- Energy-saving cycling (thermal-mass) operation reduces power use at partial and no load

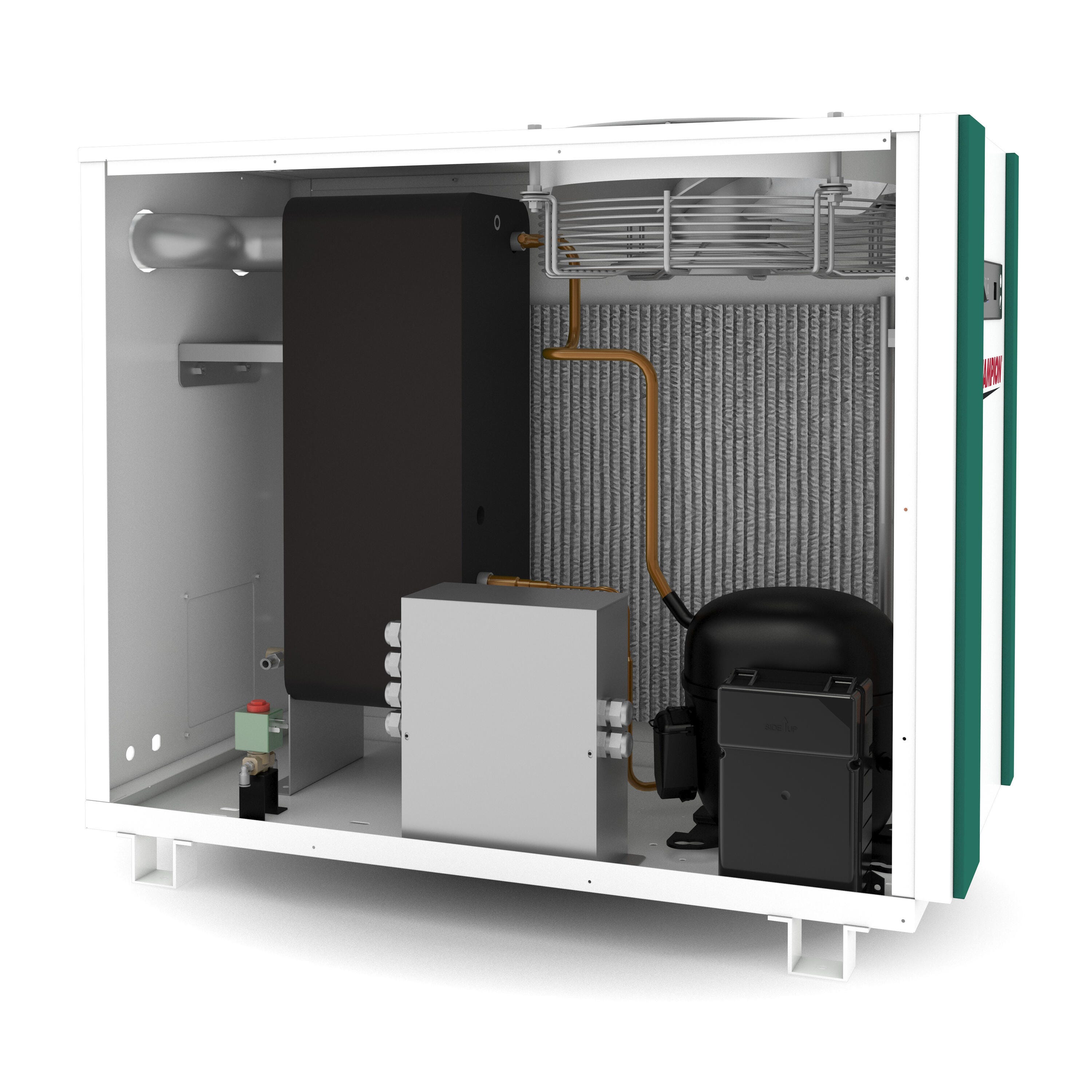

- Stainless steel brazed-plate heat exchanger for efficient, durable heat transfer
- Low-GWP R454C refrigerant for reduced environmental impact
- User interface with dew point display and operating indicators
- UL and CSA certified; built in the USA
Specifications by model
| Model | Inlet Flow (SCFM) | Pressure Drop (PSID) | Voltage (V/Ph/Hz) | Connection | Power (kW) | Refrigerant | W × D × H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| CRPCA800W4FP | 800 | 4.4 | 460/3/60 | 3" FLG | 3.5 | R454C | 58.3 × 27.6 × 53.5 | 1014 |
| CRPCA1000W4FP | 1000 | 4.3 | 460/3/60 | 3" FLG | 4.2 | R454C | 58.3 × 27.6 × 53.5 | 1149 |
| CRPCA1250W4FP | 1250 | 4.6 | 460/3/60 | 4" FLG | 6.1 | R454C | 58.3 × 27.6 × 59.4 | 1296 |
Typical applications
Ideal for protecting reciprocating and rotary screw compressed air systems in manufacturing, automotive service, woodworking, machine shops, packaging, food and beverage, and general plant air — anywhere clean, dry air is needed to prevent rust, freeze-ups, and contamination in air tools, cylinders, valves, and instrumentation.
Backed by Champion Pneumatic's century of compressed-air engineering, the CRPCA Series pairs proven refrigerated-drying technology with modern low-GWP refrigerants. Select your inlet flow above; every model ships ready to install with the matched filter package and factory settings for reliable, low-maintenance moisture control.
NOTE: Actual product may be different from pictured!
