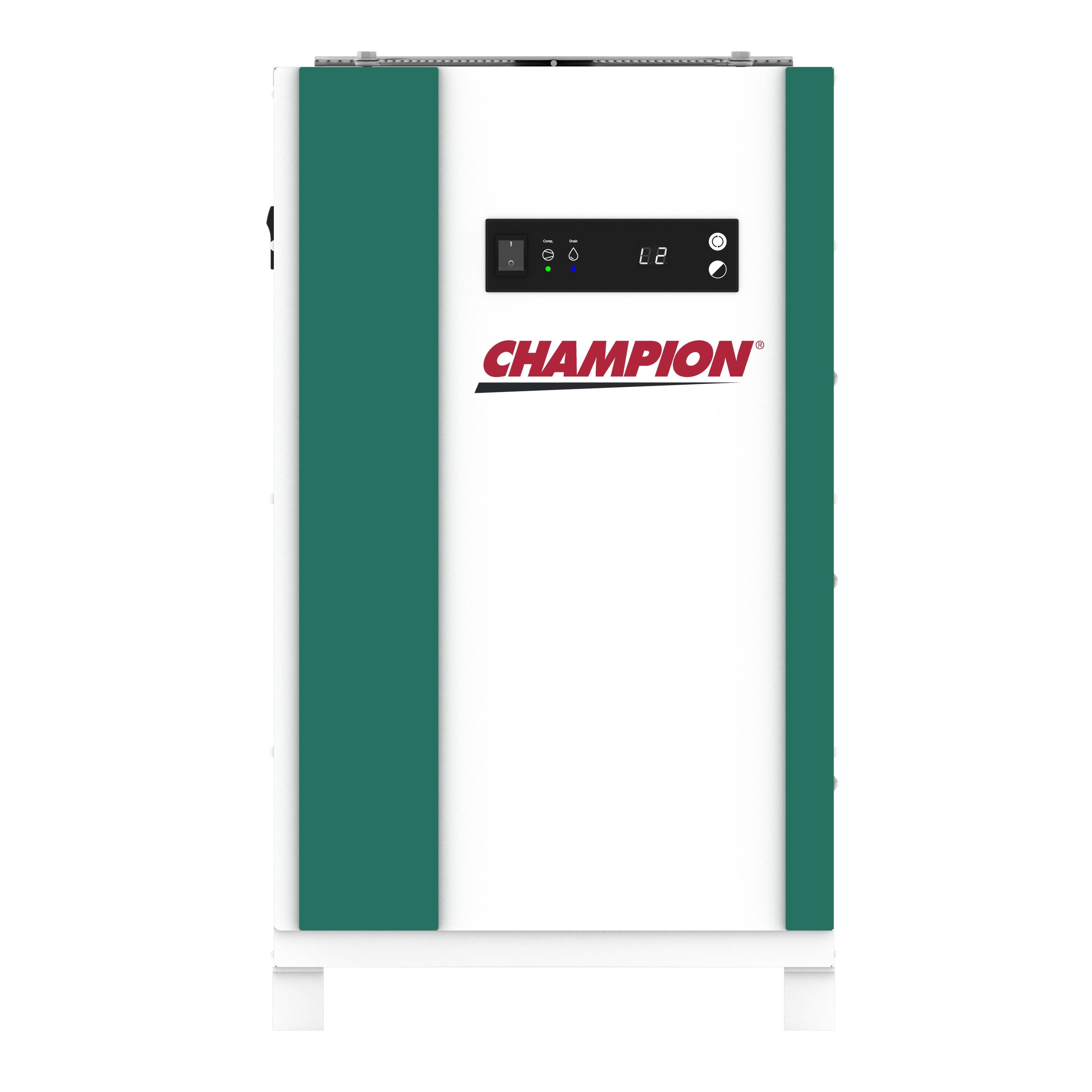

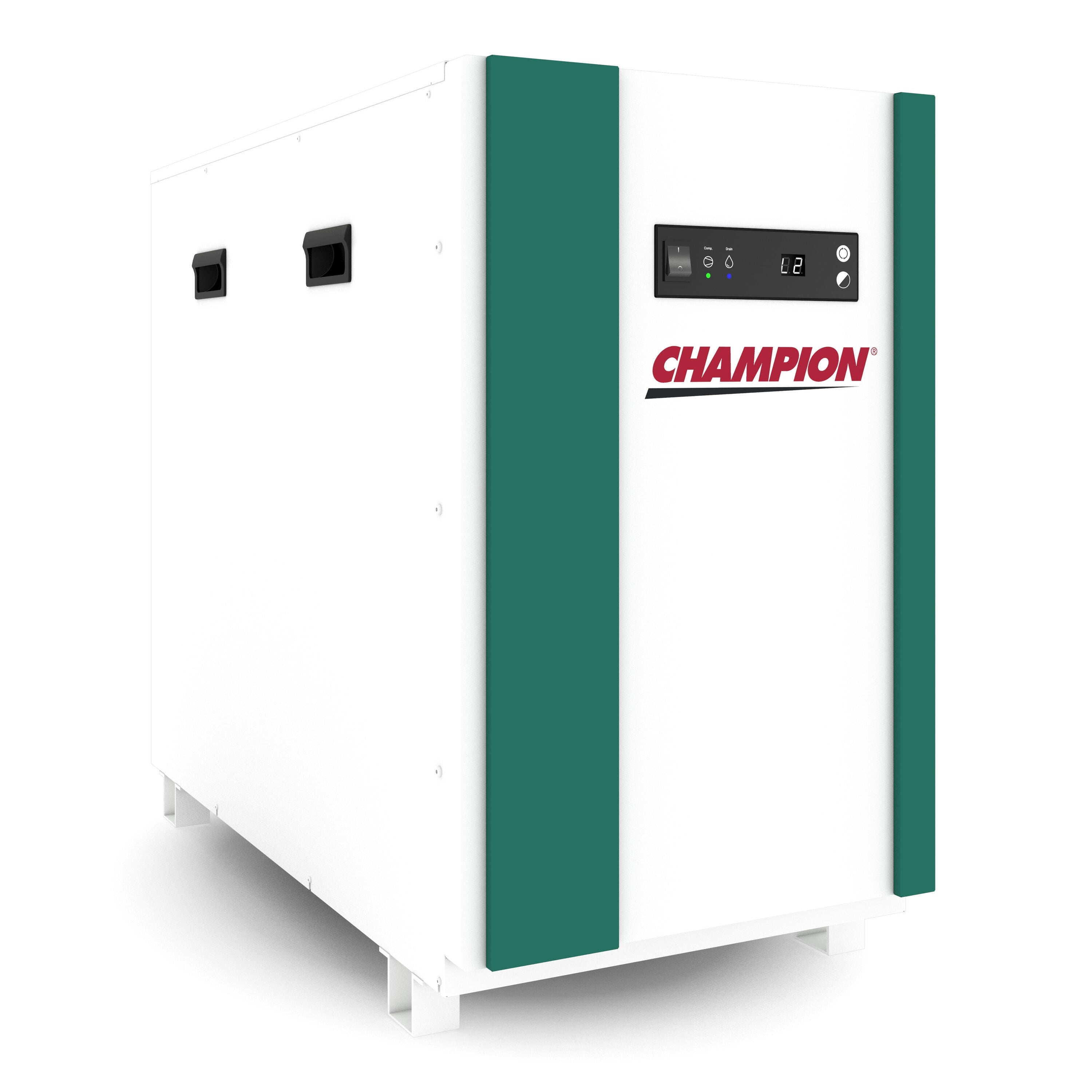

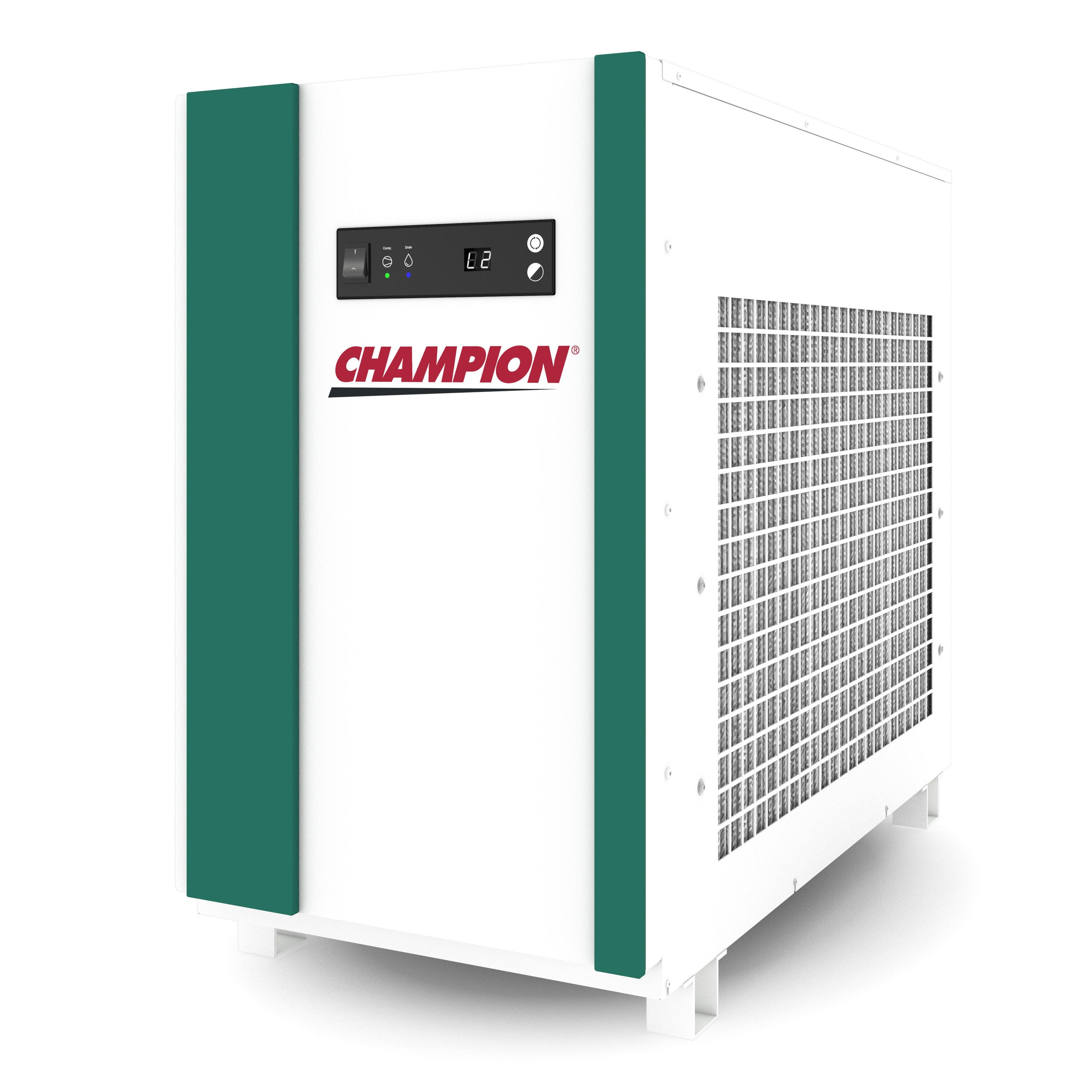

Champion CRPCA Series Cycling Refrigerated Air Dryer
| Specifications (As Configured) | |
|---|---|
 Vendor |
Champion
|
 SKU |
CRPCA75A1
|
The Champion CRPCA Series is a line of cycling refrigerated compressed air dryers covering 75–1250 SCFM. Cycling (thermal-mass) operation stores cooling energy and switches the refrigeration circuit off during partial or no-load periods, cutting power consumption while holding a stable pressure dew point. A stainless steel brazed-plate heat exchanger and low-GWP refrigerant deliver efficient, reliable moisture removal that protects downstream tools, controls, and processes.
Key features
- Energy-saving cycling (thermal-mass) operation reduces power use at partial and no load

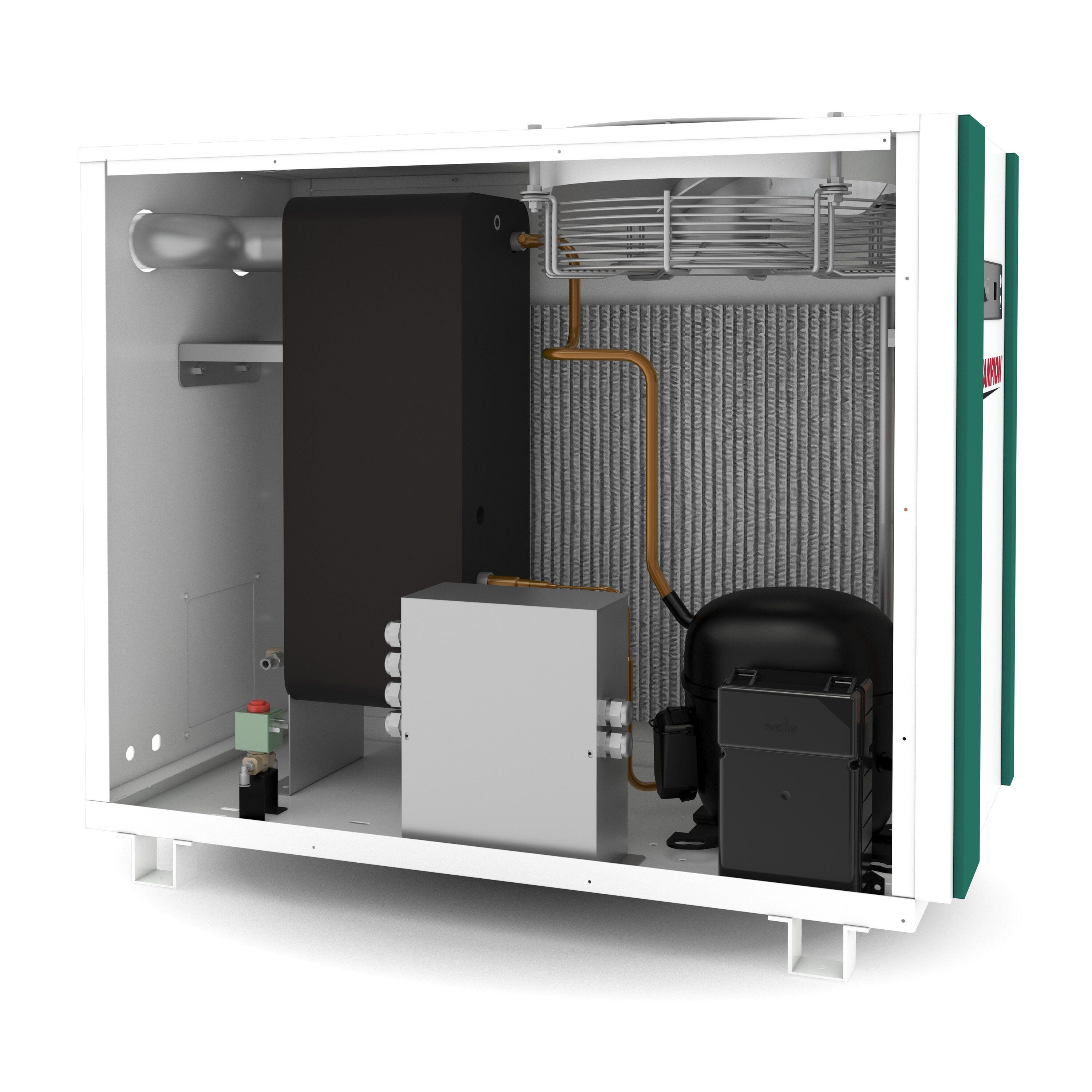

- Stainless steel brazed-plate heat exchanger for efficient, durable heat transfer
- Low-GWP refrigerant (R513A on 75–550 SCFM, R454C on 800–1250 SCFM)
- User interface with dew point display and operating indicators
- UL and CSA certified; built in the USA
Specifications by model
| Model | Inlet Flow (SCFM) | Pressure Drop (PSID) | Voltage (V/Ph/Hz) | Connection | Power (kW) | Refrigerant | W × D × H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| CRPCA75A1 | 75 | 3.4 | 115/1/60 | 1" NPT | 0.48 | R513A | 18.5 × 27.9 × 32.3 | 148 |
| CRPCA100A1 | 100 | 2.9 | 115/1/60 | 1" NPT | 0.6 | R513A | 18.5 × 34.6 × 35 | 168 |
| CRPCA150A1 | 150 | 1.8 | 115/1/60 | 2" NPT | 1.11 | R513A | 21.7 × 40.6 × 36.6 | 240 |
| CRPCA200A4 | 200 | 2.3 | 460/3/60 | 2" NPT | 1.28 | R513A | 21.7 × 42.9 × 36.6 | 269 |
| CRPCA300A4 | 300 | 2.1 | 460/3/60 | 2" NPT | 1.86 | R513A | 23.6 × 48.8 × 42.5 | 353 |
| CRPCA450A4 | 450 | 3.0 | 460/3/60 | 2" NPT | 2.75 | R513A | 23.6 × 54.3 × 47.2 | 443 |
| CRPCA550A4 | 550 | 3.3 | 460/3/60 | 2" NPT | 2.91 | R513A | 23.6 × 54.3 × 47.2 | 474 |
| CRPCA800A4 | 800 | 4.4 | 460/3/60 | 3" FLG | 4.9 | R454C | 63.5 × 27.6 × 53.5 | 1012 |
| CRPCA1000A4 | 1000 | 4.3 | 460/3/60 | 3" FLG | 5.7 | R454C | 63.5 × 27.6 × 53.5 | 1135 |
| CRPCA1250A4 | 1250 | 4.6 | 460/3/60 | 4" FLG | 7.6 | R454C | 63.5 × 27.6 × 59.4 | 1290 |
Typical applications
Ideal for protecting reciprocating and rotary screw compressed air systems in manufacturing, automotive service, woodworking, machine shops, packaging, food and beverage, and general plant air — anywhere clean, dry air is needed to prevent rust, freeze-ups, and contamination in air tools, cylinders, valves, and instrumentation.
Backed by Champion Pneumatic's century of compressed-air engineering, the CRPCA Series pairs proven refrigerated-drying technology with modern low-GWP refrigerants. Select your inlet flow above; every model ships ready to install with factory settings for reliable, low-maintenance moisture control.
NOTE: Actual product may be different from pictured!
