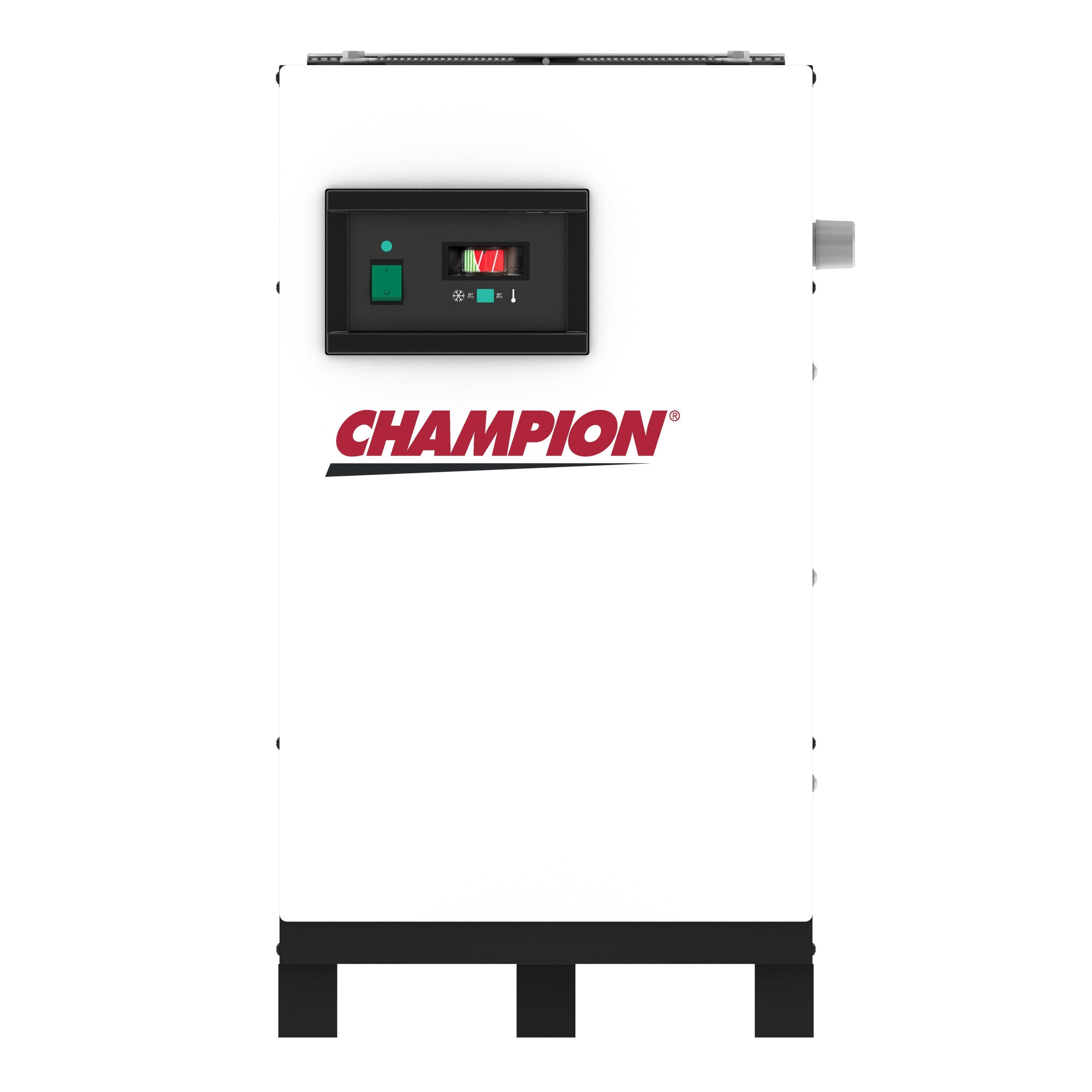

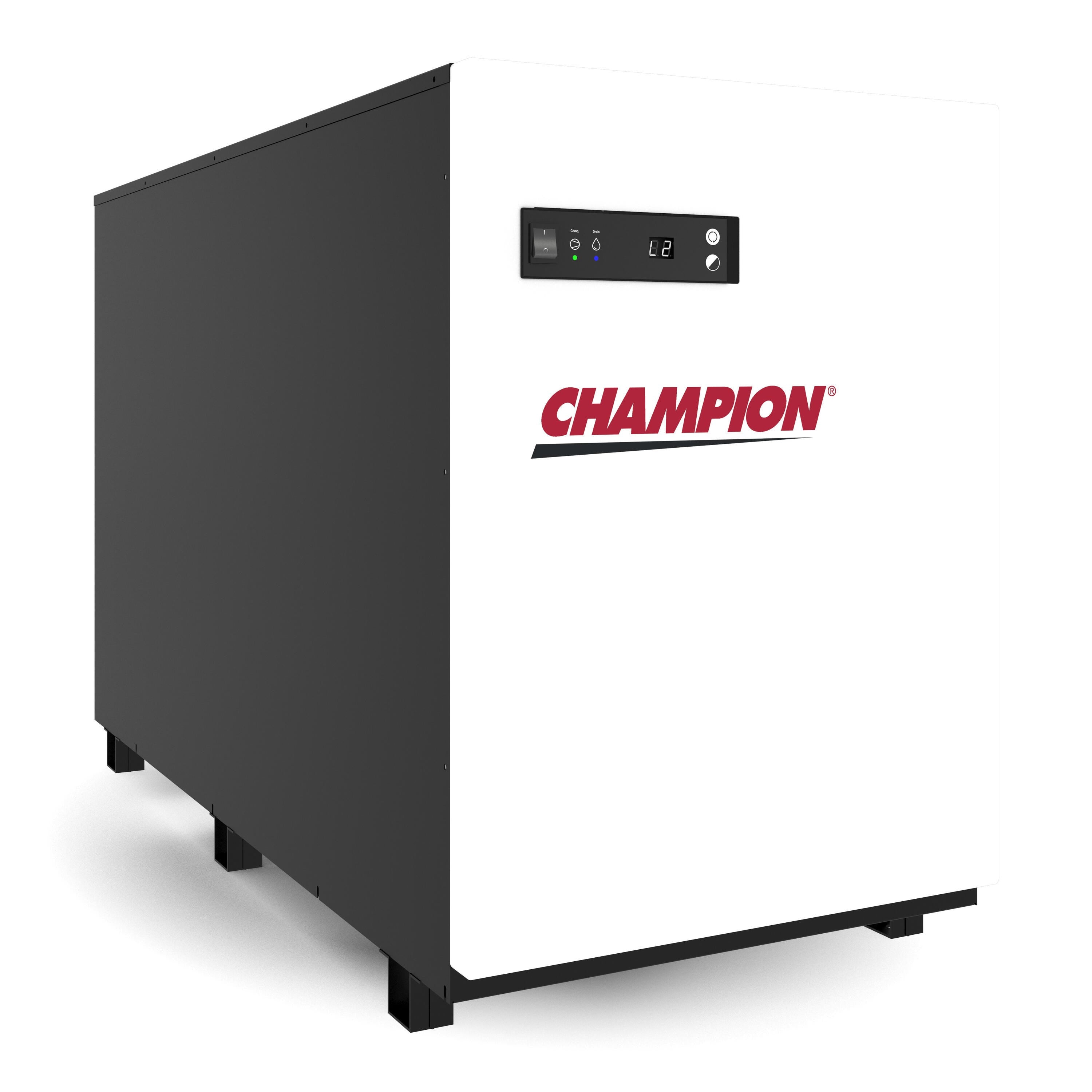

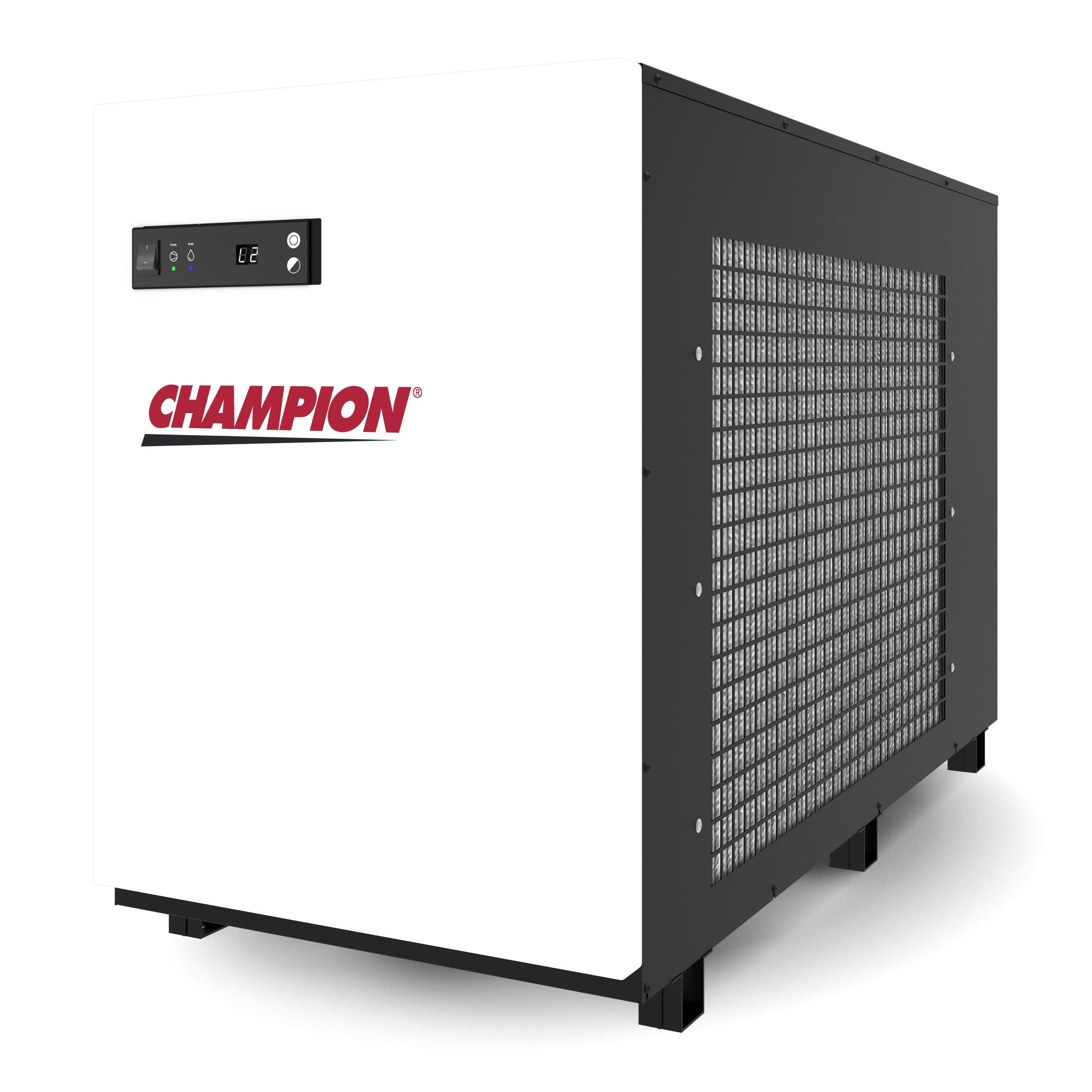

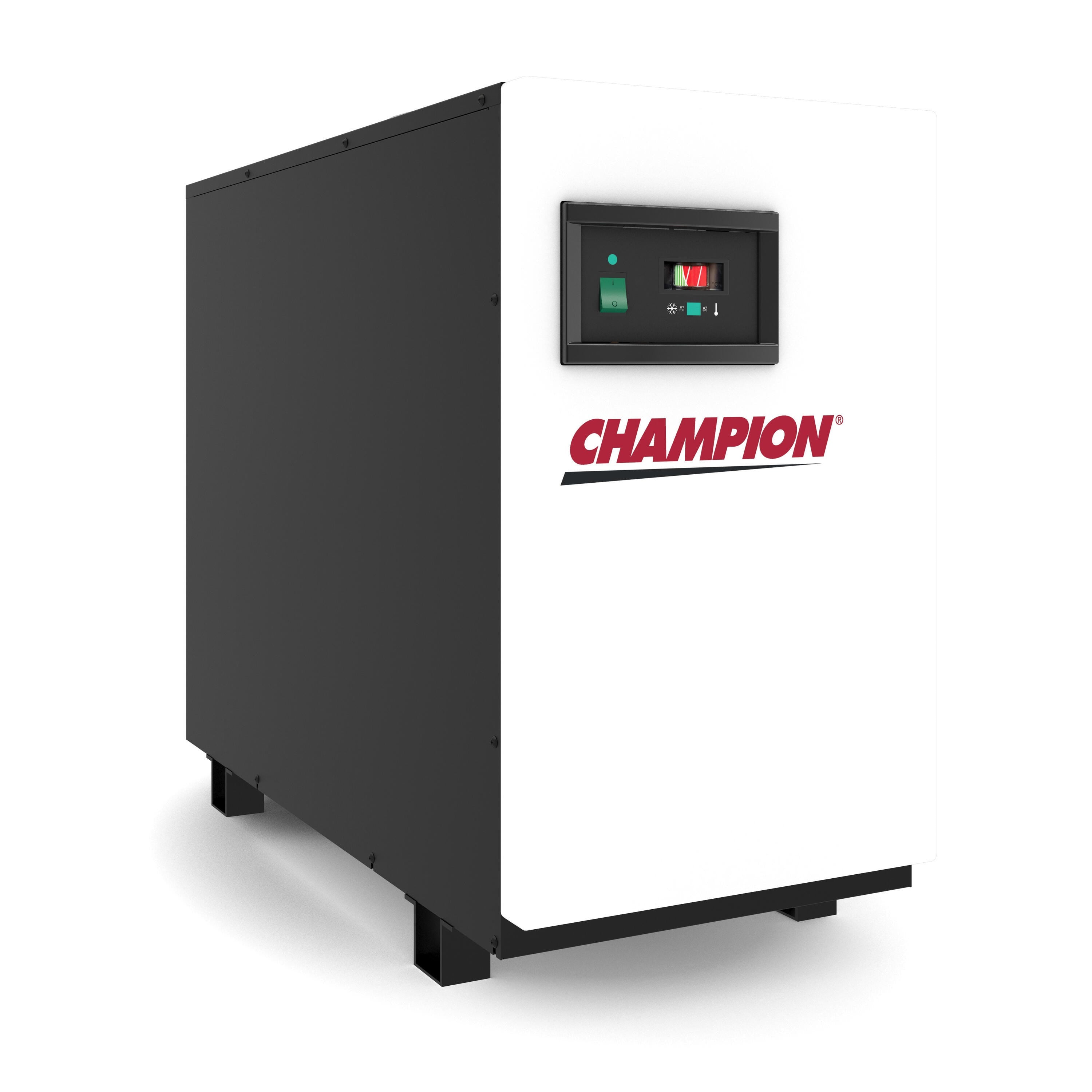

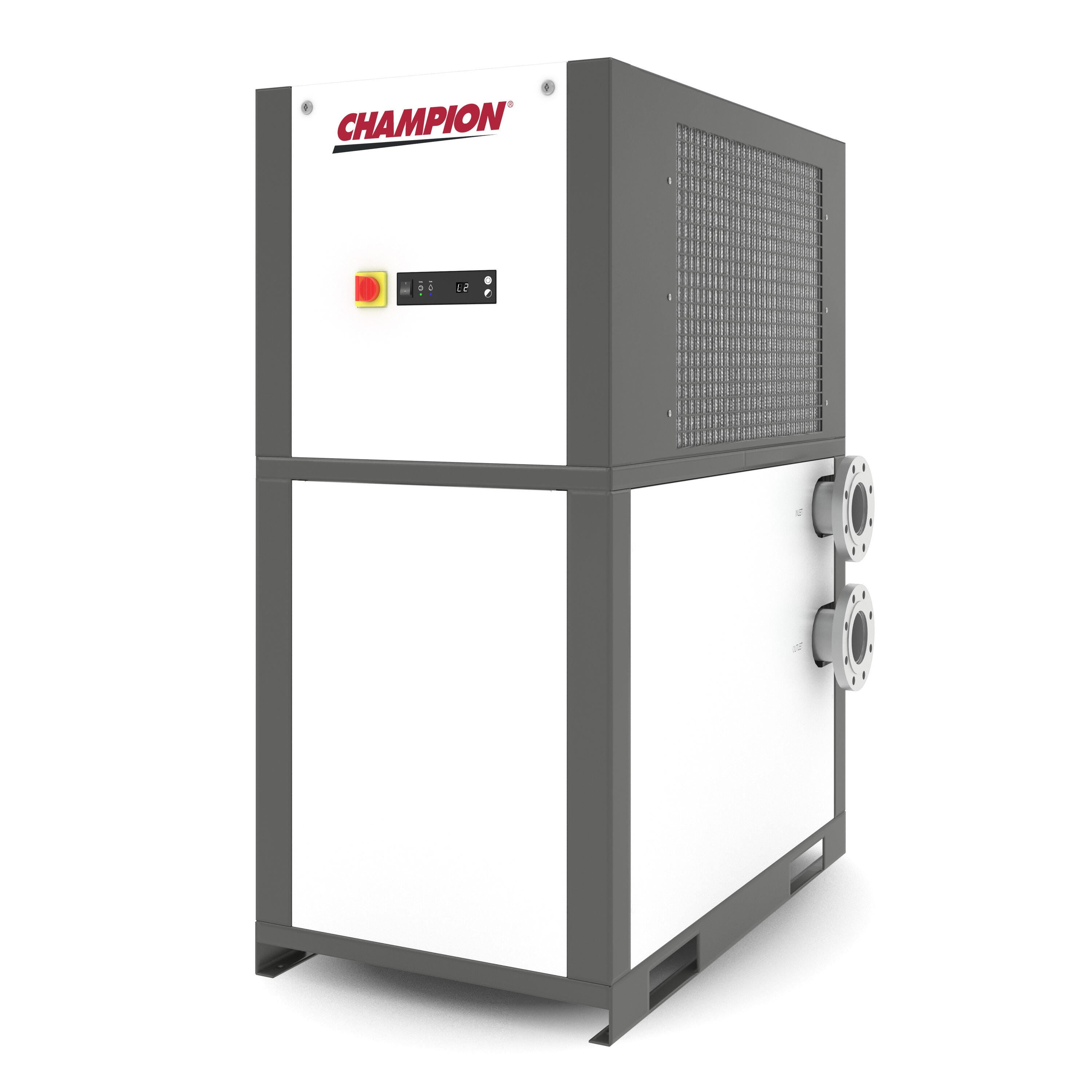

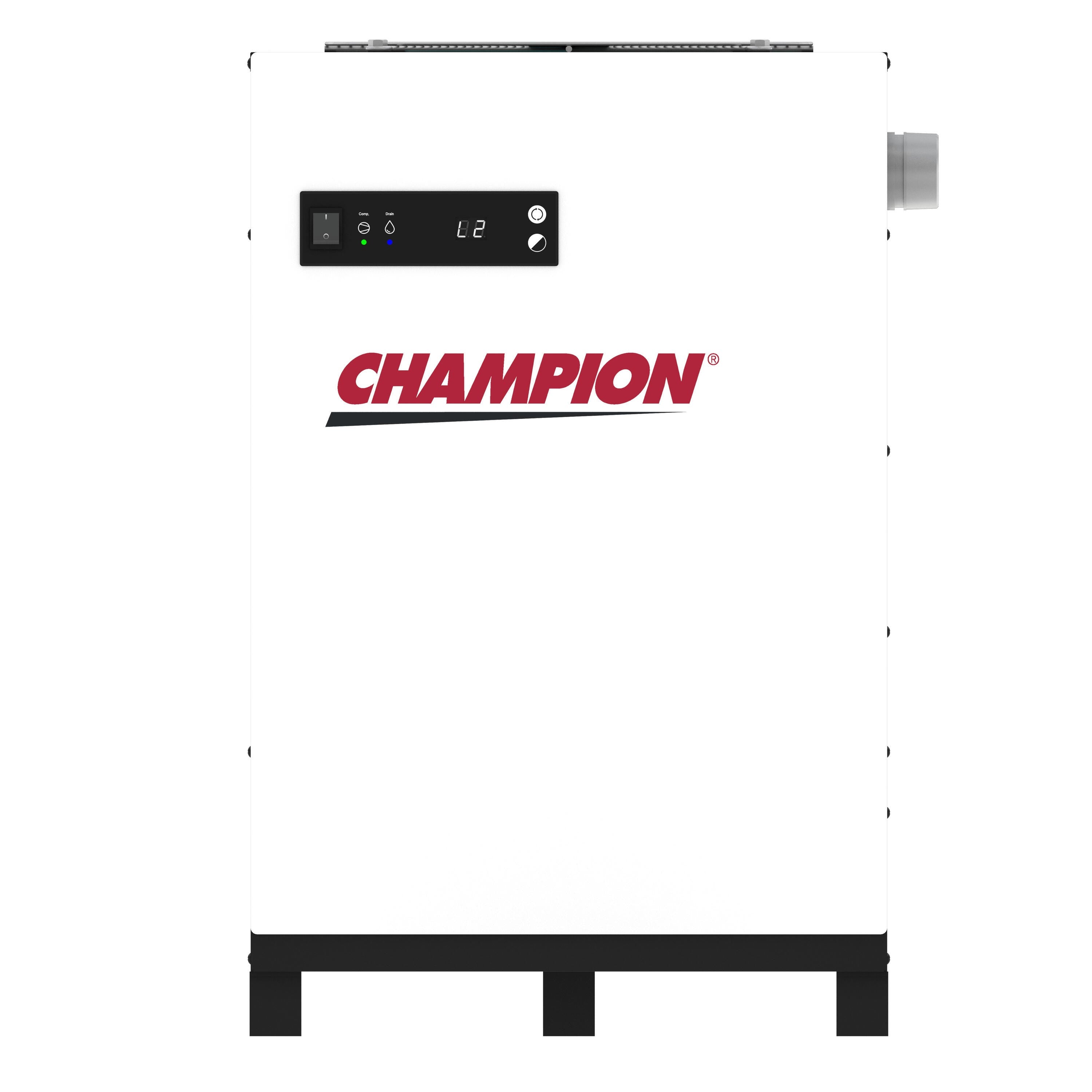

Champion CGDA Series Non-Cycling Refrigerated Air Dryer
| Specifications (As Configured) | |
|---|---|
 Vendor |
Champion
|
 SKU |
CGDA75A1
|
The Champion CGDA Series is a line of non-cycling refrigerated compressed air dryers covering 75–1200 SCFM. Delivering ISO 8573-1 Class 5–6 pressure dew point with eco-friendly R513A refrigerant, the CGDA uses a constant-pressure valve for stable operation and a low-pressure-drop design that keeps energy use and operating costs down. Durable stainless steel cross-flow heat exchangers give long service life while removing moisture that would otherwise damage air tools, valves, and instrumentation.
Key features
- Reliable non-cycling refrigeration with constant-pressure valve for steady dew point
- ISO 8573-1 Class 5–6 pressure dew point performance
- Eco-friendly R513A refrigerant with low Global Warming Potential (GWP)
- Stainless steel cross-flow heat exchanger for extended service life
- Low pressure drop design lowers energy consumption
- ETL certified to UL 60335-1 & 60335-2-40; built in the USA
Specifications by model
| Model | Inlet Flow (SCFM) | Voltage (V/Ph/Hz) | Connection | Power (kW) | Refrigerant | W × D × H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|

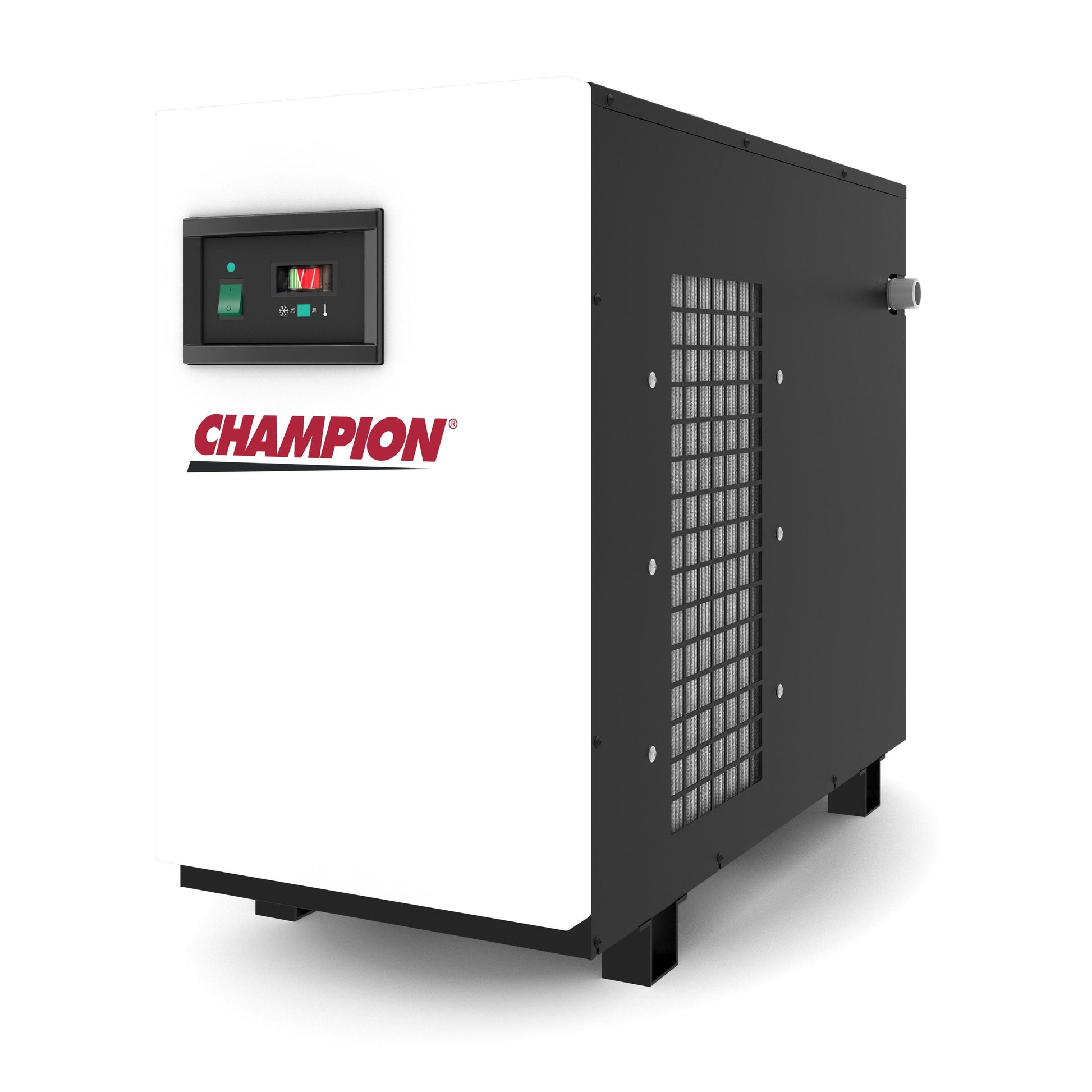

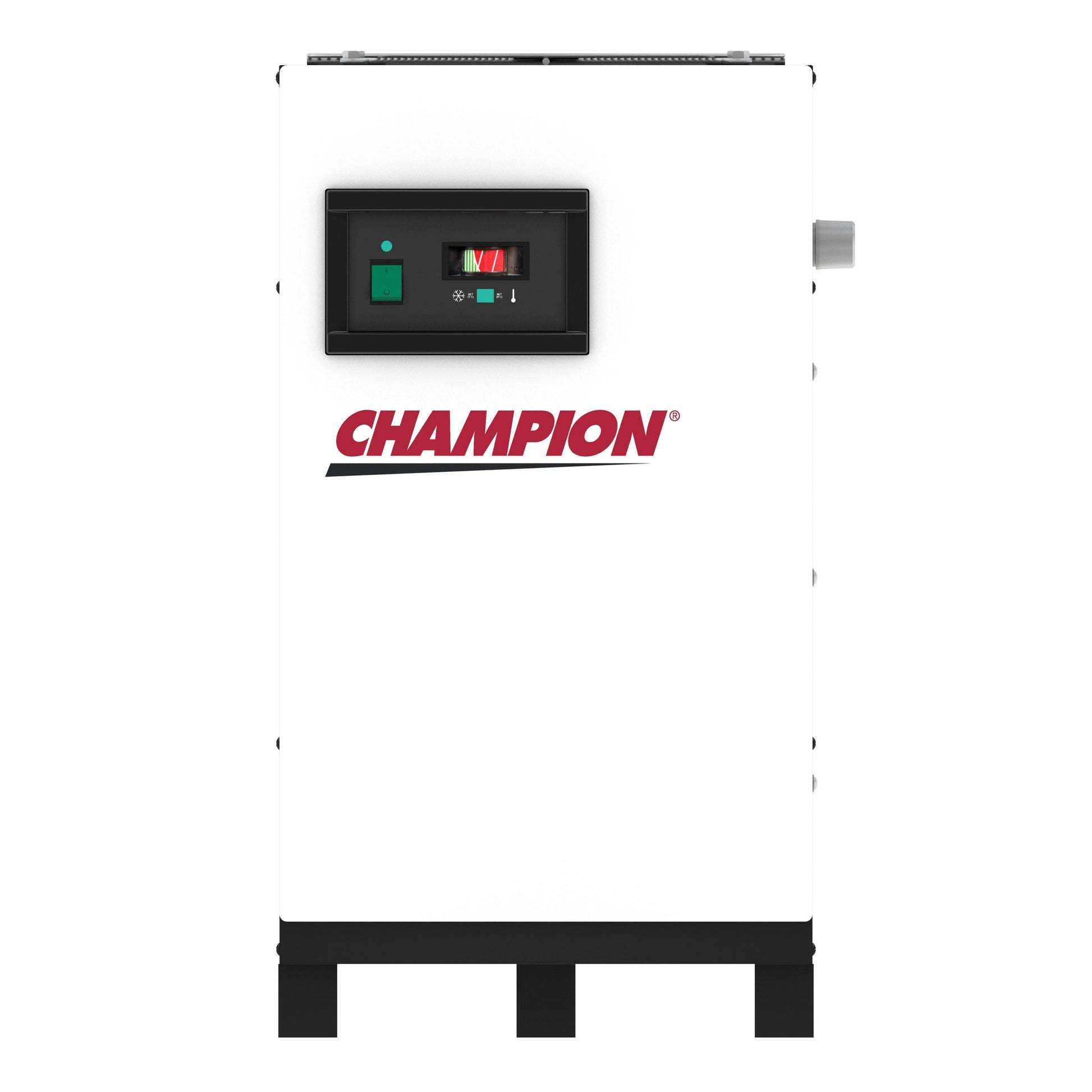

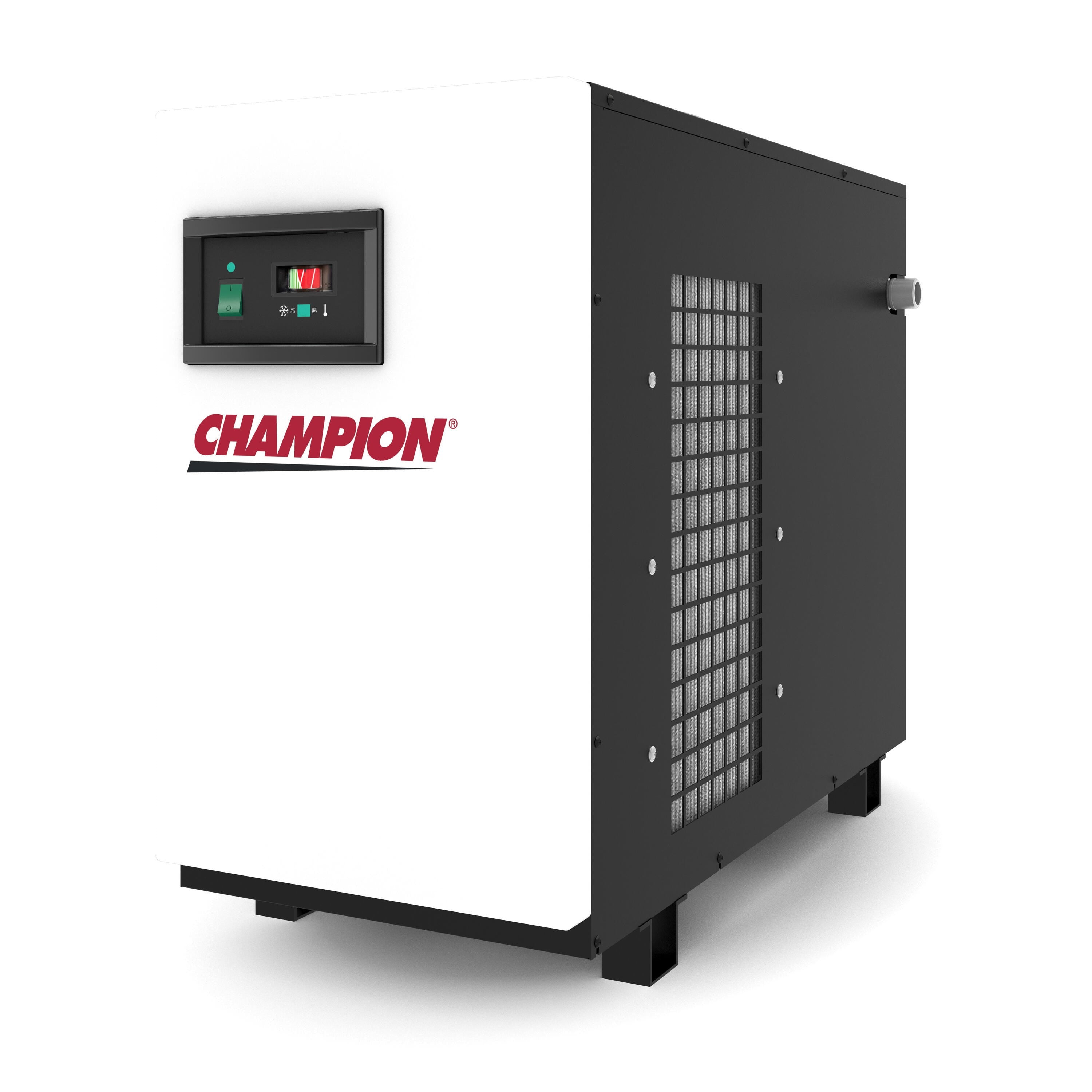

| CGDA75A1 | 75 | 115/1/60 | 1" NPT | 0.48 | R513A | 19.3 × 37.2 × 32.3 | 123 |
| CGDA100A1 | 100 | 115/1/60 | 1" NPT | 0.61 | R513A | 19.3 × 37.2 × 32.3 | 129 |
| CGDA125A1 | 125 | 115/1/60 | 1" NPT | 0.97 | R513A | 19.3 × 37.2 × 32.3 | 135 |
| CGDA150A1 | 150 | 115/1/60 | 1" NPT | 1.12 | R513A | 19.3 × 37.2 × 32.3 | 152 |

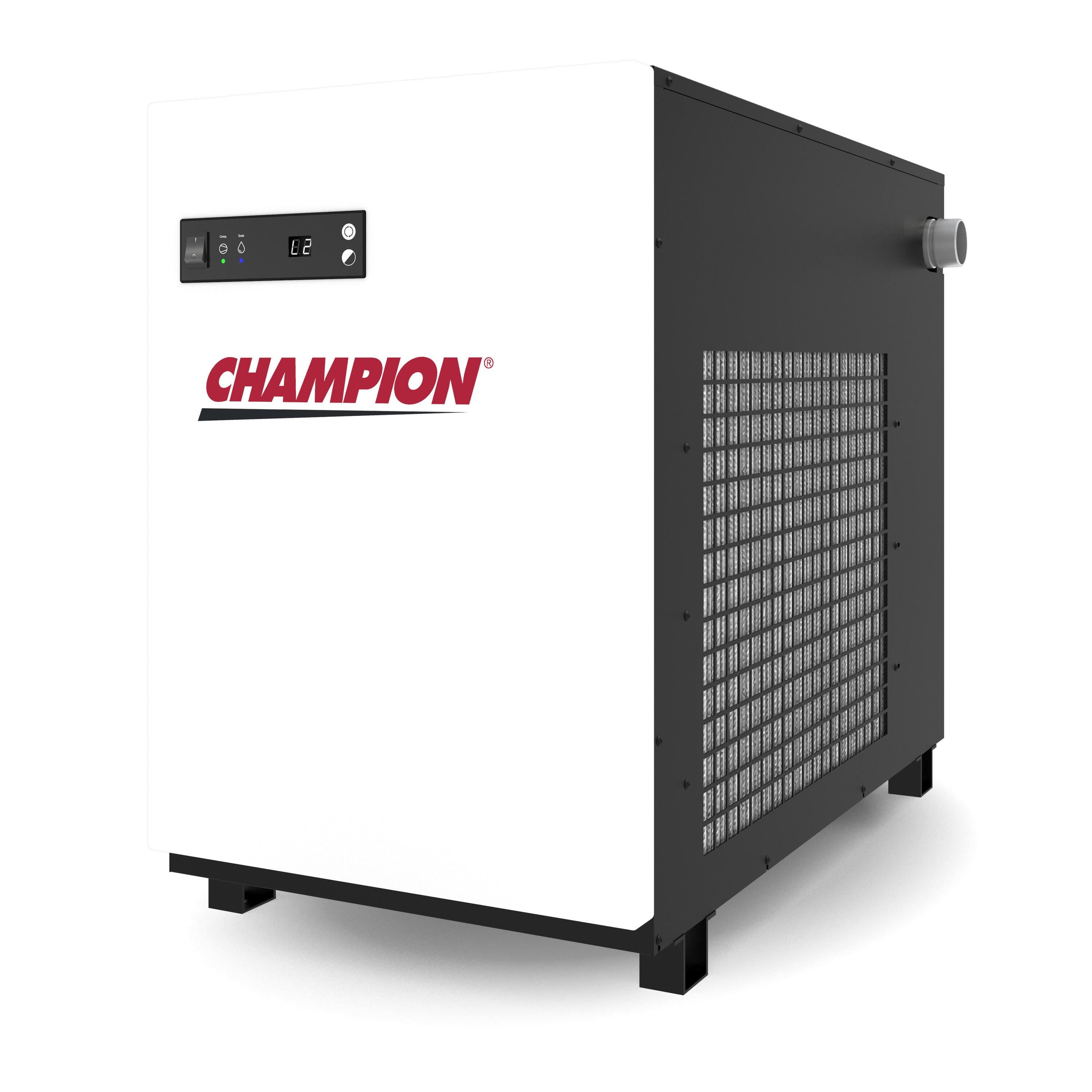

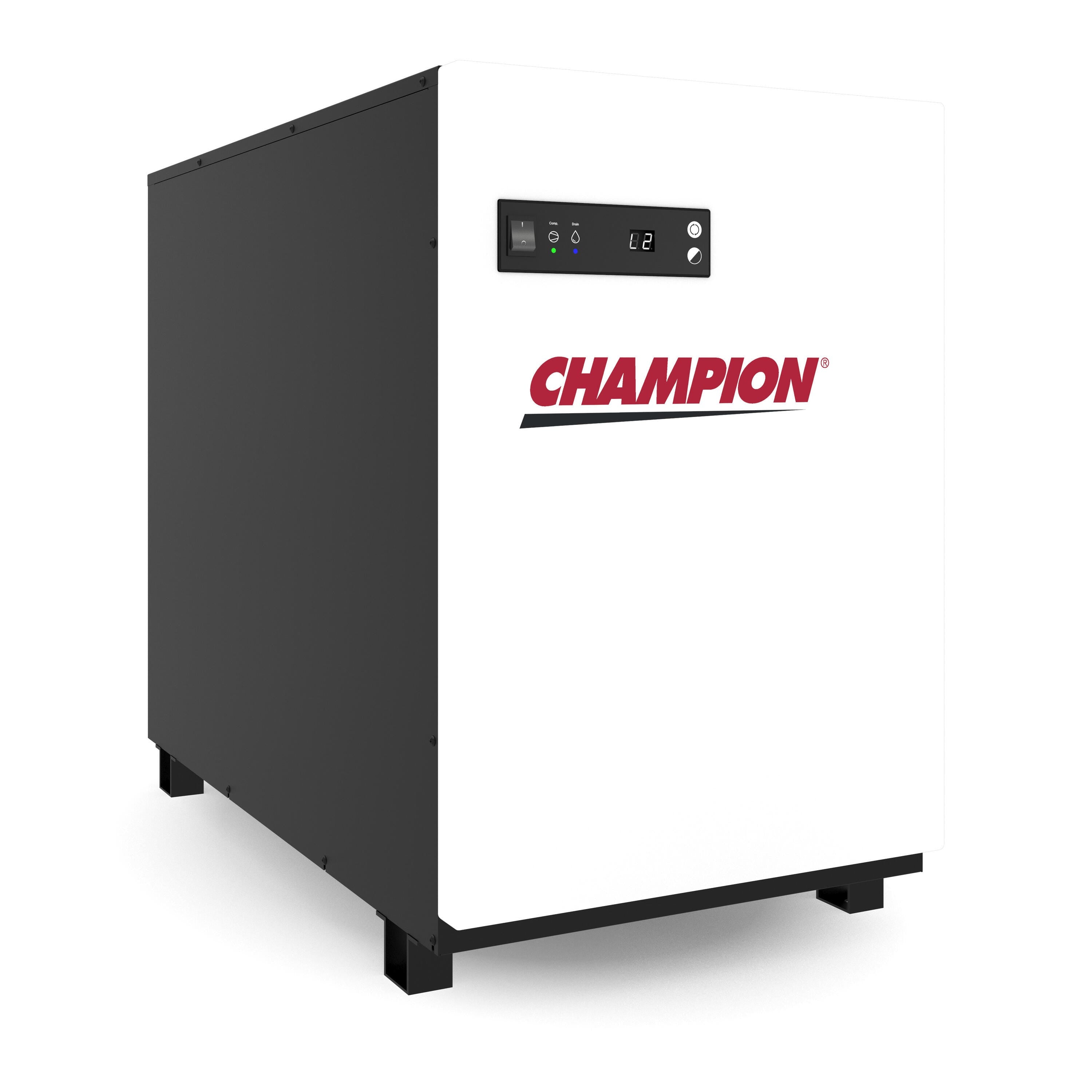

| CGDA200A4 | 200 | 460/3/60 | 2" NPT | 1.49 | R513A | 24.4 × 41.5 × 36.3 | 196 |
| CGDA250A4 | 250 | 460/3/60 | 2" NPT | 1.51 | R513A | 24.4 × 41.5 × 36.3 | 204 |
| CGDA300A4 | 300 | 460/3/60 | 2" NPT | 1.87 | R513A | 24.4 × 48.7 × 38.2 | 252 |
| CGDA400A4 | 400 | 460/3/60 | 2" NPT | 1.99 | R513A | 24.4 × 48.7 × 38.2 | 279 |
| CGDA500A4 | 500 | 460/3/60 | 2" NPT | 2.7 | R513A | 24.4 × 48.7 × 38.2 | 328 |

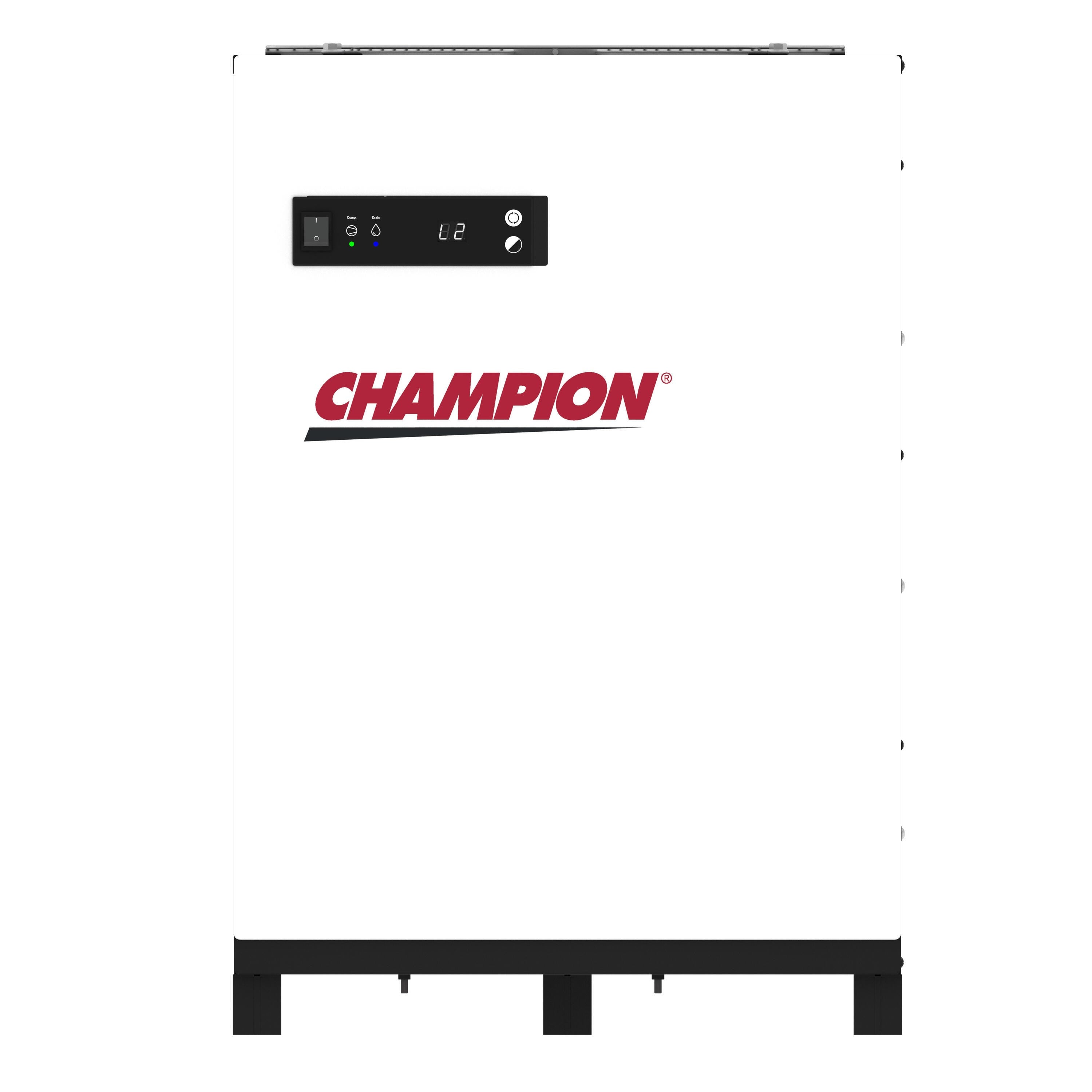

| CGDA600A4 | 600 | 460/3/60 | 2" NPT | 3.01 | R513A | 26.1 × 48.7 × 38.5 | 467 |
| CGDA800A4 | 800 | 460/3/60 | 3" FLG | 4.18 | R513A | 34.9 × 49.2 × 64.6 | 836 |
| CGDA1000A4 | 1000 | 460/3/60 | 4" FLG | 5.73 | R513A | 34.9 × 49.2 × 68.9 | 889 |

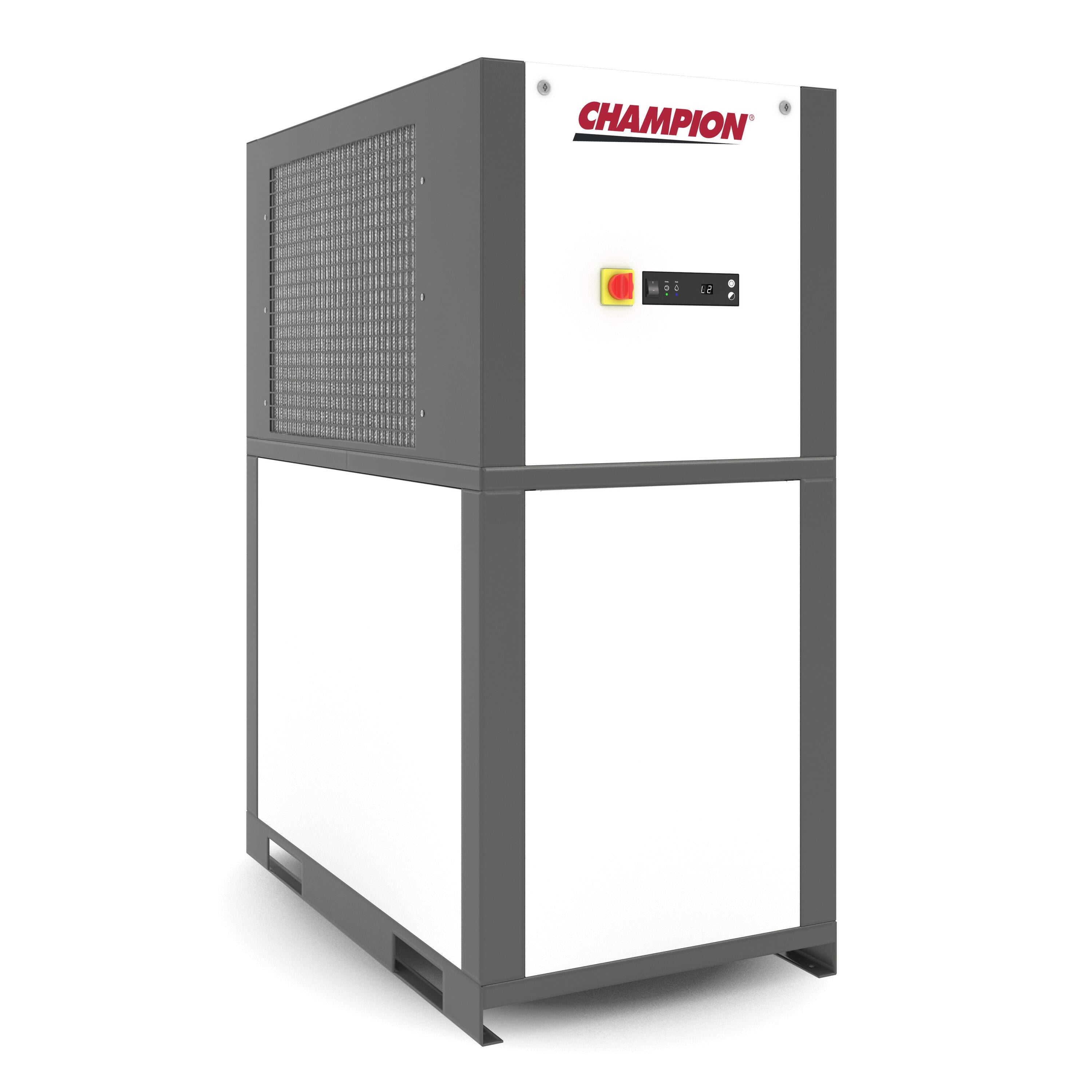

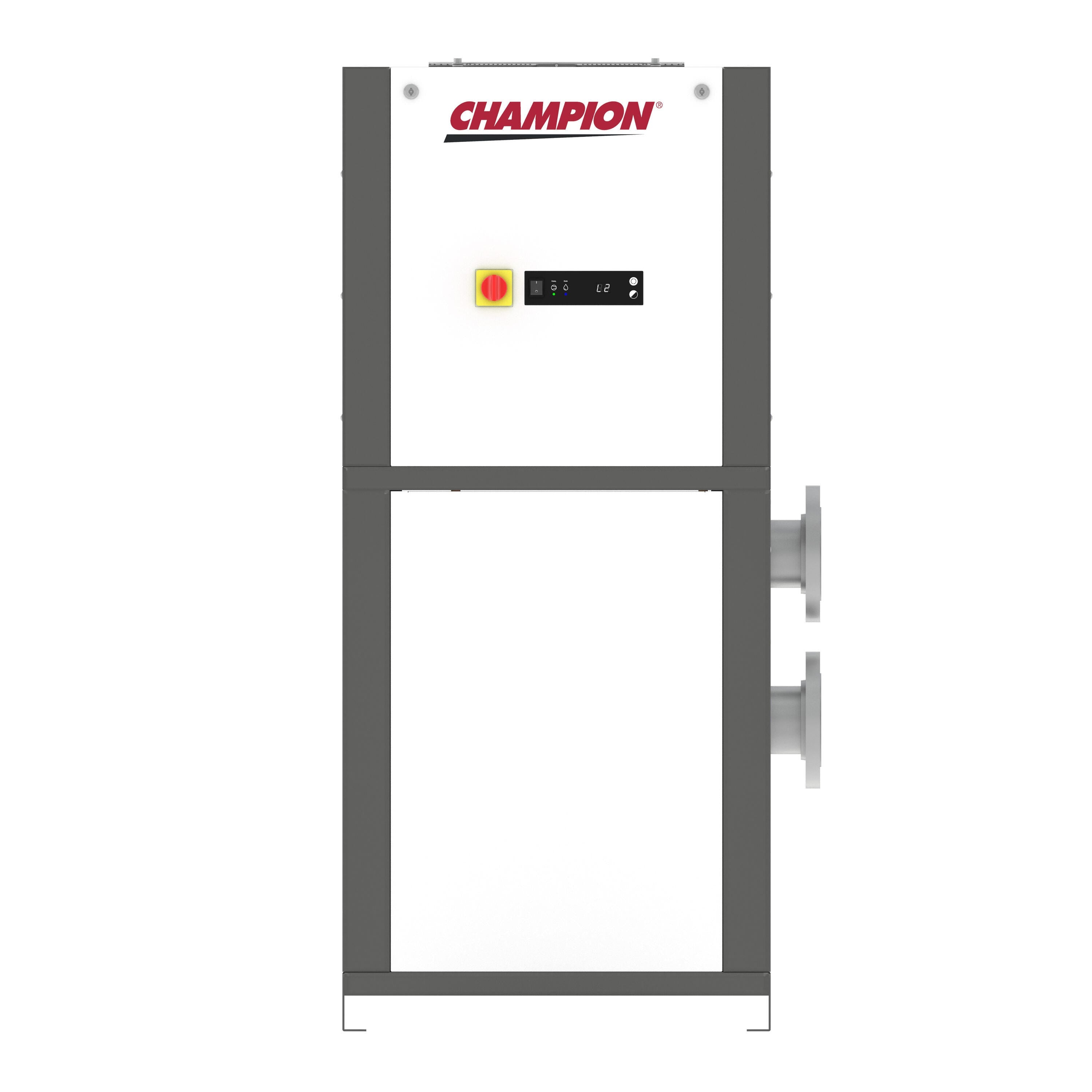

| CGDA1200A4 | 1200 | 460/3/60 | 4" FLG | 6.69 | R513A | 34.9 × 53.1 × 68.9 | 961 |
Typical applications
Ideal for protecting reciprocating and rotary screw compressed air systems in manufacturing, automotive service, woodworking, machine shops, packaging, food and beverage, and general plant air — anywhere clean, dry air is needed to prevent rust, freeze-ups, and contamination in air tools, cylinders, valves, and instrumentation.
Backed by Champion Pneumatic's century of compressed-air engineering, the CGDA Series pairs proven refrigerated-drying technology with modern low-GWP refrigerants. Select your inlet flow above; every model ships ready to install with factory settings for reliable, low-maintenance moisture control.
NOTE: Actual product may be different from pictured!
