Genuine OEM Champion ChampLub Mineral ISO 100 Reciprocating Compressor Oil (30W)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Champion
|
 SKU |
P13796A
|
| Dimensions | |
 Weight |
2.0 lb
|
Dimension |
|

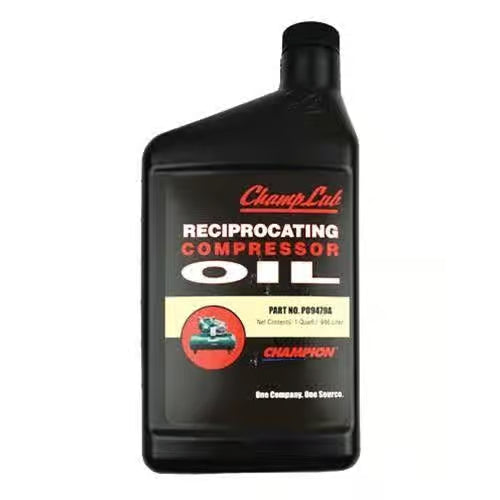

Genuine OEM Champion ChampLub Mineral ISO 100 is the factory-fill lubricant for Champion R-Series, RV-Series and Advantage reciprocating (piston) air compressors. It is a premium non-detergent ISO 100 / SAE 30W mineral compressor oil formulated to reduce valve deposits, resist carbon build-up on discharge valves and rings, and protect bearings and cylinder walls in splash-lubricated and pressure-lubricated Champion pumps. Purchased directly from Champion, not an aftermarket substitute.
Available Pack Sizes
| Pack Size | Champion Part No. | Volume | Best For |
|---|---|---|---|
| 1 Quart | P13796A | 1 qt (0.946 L) | Top-offs and single small pumps |
| Case of 12 Quarts | P09479A | 12 qt (3 gal) | Routine changes for a busy shop |
| Case of 4 x 1 Gallon | P08909A | 4 gal | Mid-size fleets |
| 5 Gallon Pail | P08908A | 5 gal | Larger pumps and frequent service |
| 55 Gallon Drum | P08907A | 55 gal | High-volume operations |
Technical Specifications
| Lubricant Type | Mineral, non-detergent |
| Viscosity Grade | ISO 100 (SAE 30W) |
| Application | Reciprocating / piston air compressors |
| Compatible Pumps | Champion R-Series, RV-Series and Advantage, including R-10, R-15, R-30, R-40, R-70, PL and RV equivalents |
| Country of Origin | United States |
Typical Crankcase Capacities
Use these figures as a starting point and always confirm the final level on the sight glass or dipstick with the compressor stopped and cool:
- R-10 / R-15 pumps: approximately 2 quarts
- R-30 pump: approximately 4 quarts
- R-70 pump (25 HP two-stage, four cylinder): approximately 6-1/3 quarts, so plan on 7 quarts for a complete change
Service Guidance
- Change the oil after the first 100 hours on a new or rebuilt pump, then every 500 operating hours or every three months, whichever comes first.
- Drain warm so the oil carries suspended carbon and moisture out with it.
- Do not mix mineral and synthetic lubricants. Switching between them calls for a full drain and refill.
- Never substitute automotive motor oil. Detergent additives hold carbon in suspension and deposit it on valves and rings.
- Change the intake filter element at the same interval so the fresh charge is not immediately contaminated.
ChampLub Mineral ISO 100 is for reciprocating compressors only; rotary screw machines take Champion RotorLub. ISO 100 corresponds to SAE 30, but this is a compressor-specific formulation with an additive package built for high discharge temperatures and carbon control, not a general purpose SAE 30. Mineral is the standard factory fill on the 500 hour interval; Champion synthetic extends that interval and runs cooler. Do not mix the two.
Running the oil Champion engineered for your compressor preserves warranty coverage and keeps compression efficient. Stay on the recommended change interval with genuine ChampLub to get the longest life from your reciprocating pump.
NOTE: Actual product may be different from pictured!
