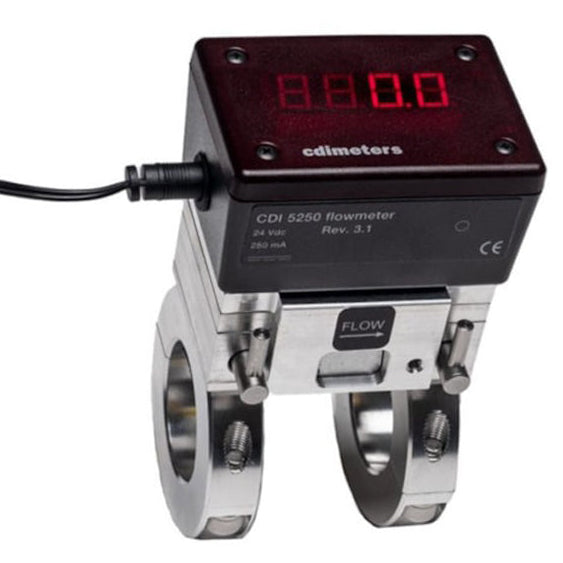

CDI Meters 5250 Series Hot-Tap Flow Meter
CDI Meters 5250 Series Hot-Tap Flow Meter
Regular price
$995.00
Sale price
$995.00
Regular price
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
CDI
|
 SKU |
5250-05S
|
| Dimensions | |
 Weight |
3.0 kg
|
S for Sch. 40 Steel
C for Type L Copper
M for Metric Aluminum
The CDI 5250 is a modified version of the 5200 model that allows installation under pressure. It incorporates two valves through which the probes pass and a muffler that collects chips from the drilling process. It takes an equal amount of installation time as our standard meters and requires no shutdown of the compressed-air system. $995 – $1165.
Features
- No system shutdown required
- Installs in minutes
- Weather resistant and surge protected
- Milliamp output
- Pulse output convertible to threshold output
- User-configurable scaling, filtering and units of measure
- Optional wired outputs for networking
Technical Specs
Number of Rings |
2 Rings |
Type of Pipe |
Metric Aluminum, Sch. 40 Steel, Type L Copper |
Nominal Pipe Sizes |
1/2 in. – 1-1/2 in., 25 mm – 40 mm, DN15 – DN40 |
Accuracy |
5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit |
Fluids |
Compressed Air, Nitrogen |
Operating Pressure |
130 psig maximum |
Input Power |
250 mA at 24 Vdc |
Output Resistance |
600 Ohms max. |
Exposed Materials |
Stainless steel, gold, thermal epoxy and Viton (seal) |
Ring Material |
Aluminum |
Display |
Four digit LED display |
Response Time |
One second to 63 percent of change in value at flows above 30 percent of range. |
NOTE: Actual product may be different from pictured!
