CDI Meters 5200 Series Flow Meter
CDI Meters 5200 Series Flow Meter
Regular price
$555.00
Sale price
$555.00
Regular price
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
CDI
|
 SKU |
5200-05S
|
| Dimensions | |
 Weight |
3.0 kg
|
S for Sch. 40 Steel
C for Type L Copper
M for Metric Aluminum

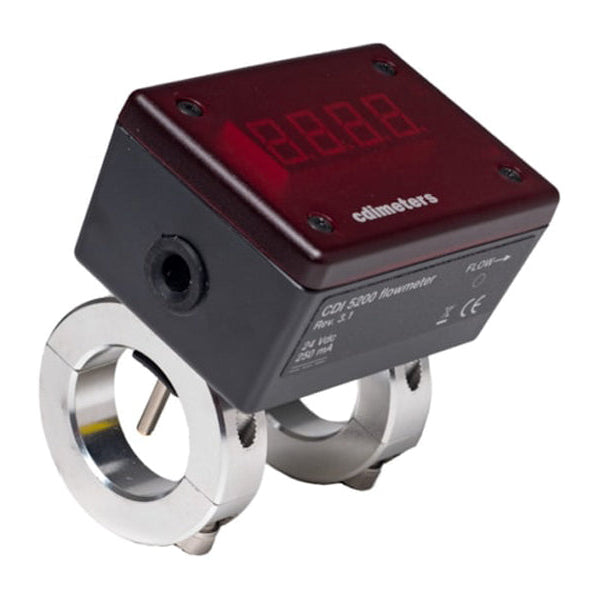

The CDI 5200 clamps onto a pipe, with two flow-sensing probes projecting into the pipe through 3/16-in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flowmeter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment. $555 – $685.
Features
- Easy to install
- No moving parts
- Weather resistant and surge protected
- Milliamp output
- Pulse output convertible to threshold output
- User-configurable scaling, filtering and units of measure
- Optional wired outputs for networking
The CDI 5200 meters are commonly used for point-of-use monitoring of compressed air in textile mills, food packaging plants, groundwater remediation, printing plants and bottling plants; they are also widely used for branch-line monitoring.
The display can be configured to show flow in scfm, m3/min and m3/hr; it can also be configured to display daily usage or cumulative usage rather than current flow.
Technical Specs
Number of Rings |
2 Rings |
Type of Pipe |
Sch. 40 Steel, Type L Copper |
Nominal Pipe Sizes |
1/2 in. – 1-1/2 in., DN15 – DN40 |
Accuracy |
5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit |
Fluids |
Compressed Air, Nitrogen |
Operating Pressure |
200 psig maximum on Sch. 40 steel and on Type L Copper; consult CDI for other materials and higher pressures. |
Input Power |
250 mA at 24 Vdc |
Output Resistance |
600 Ohms max. |
Exposed Materials |
Stainless steel, gold, thermal epoxy and Viton (seal) |
Ring Material |
Aluminum |
Display |
Four digit LED display |
Response Time |
One second to 63 percent of change in value at flows above 30 percent of range. |
NOTE: Actual product may be different from pictured!
