Cast Iron B-Section (5L) 3-Groove V-Belt Sheave — Takes SD Bushing
| Specifications (As Configured) | |
|---|---|
 Vendor |
MasterDrive
|
 SKU |
3B52-SD
|

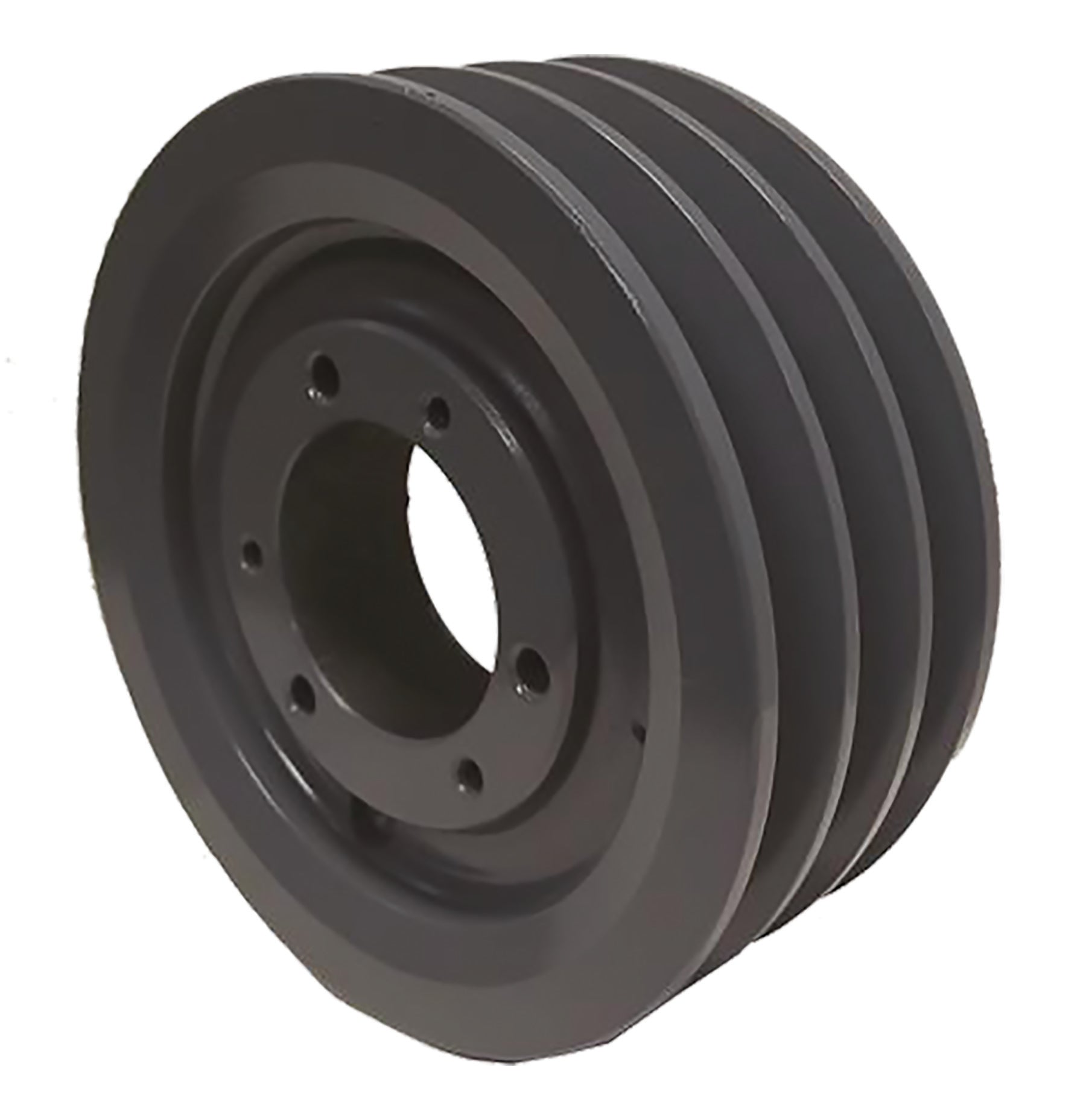

A three-groove, B-section cast iron V-belt sheave built as a two-piece bushed sheave. It accepts a standard SD-series QD-style taper bushing (sold separately), letting you match one sheave to a range of shaft sizes for a secure, concentric, easily serviced mount. Ideal for triple-belt drives that need extra load capacity on air compressors, pumps, fans, and other industrial equipment.
Key specifications
- Grooves: 3 (triple-belt)
- Belt section: B / 5L (5/8" top width); also compatible with A / 4L belts
- Material: cast iron, machined and balanced for smooth running
- Bushing: takes an SD-series QD-type taper bushing — sold separately
- Outer diameter: 5.55" to 7.15" (select below)
Typical applications
Reciprocating and rotary air compressors, centrifugal and positive-displacement pumps, blowers and fans, conveyors, and general industrial power-transmission drives where a multi-belt B-section sheave is specified.
Choose the outer diameter that matches your drive ratio, then add the correct SD bushing for your shaft. This 3-groove B-section cast iron sheave delivers reliable, high-capacity V-belt power transmission for demanding compressor and industrial duty.
NOTE: Actual product may be different from pictured!
