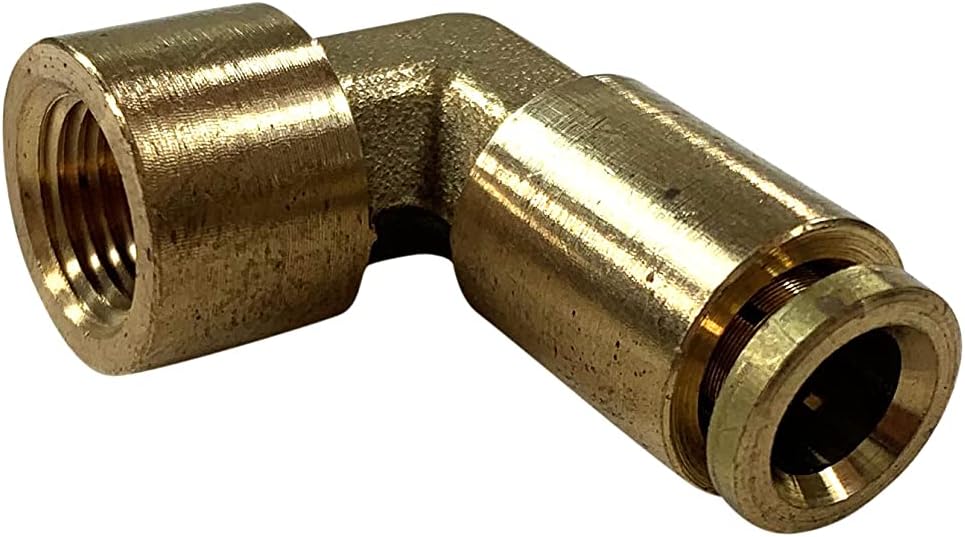

Brass Push-to-Connect 90° Female Elbow — Tube OD × FNPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
THB
|
 SKU |
PLDV-192
|
The Brass Push-to-Connect 90° Female Elbow makes a clean right-angle transition from push-in tubing to a female NPT-threaded port. Just push the tube in for an instant, leak-tight seal — no wrenching and no thread tape on the tube side. Machined from nickel-plated brass for corrosion resistance and long service life in compressed air and pneumatic lines.
Key specifications
- Configuration: 90° elbow, push-to-connect tube × female NPT (FNPT)
- Body material: nickel-plated brass with collet grip and O-ring seal
- Working pressure: 0–150 PSI (0–990 kPa)
- Vacuum rating: to -29.5 in. Hg
- Operating temperature: 32–140°F (0–60°C)
- Recommended tubing: nylon or polyurethane
- Tube OD sizes: 1/8", 5/32", 1/4", 3/8"
- Thread sizes: 1/8" FNPT, 1/4" FNPT
Typical applications
Ideal for shop air lines, pneumatic tools and actuators, instrumentation, and connecting tubing to valves, cylinders, filters, and regulators where a fixed right-angle connection saves space and prevents tube kinking.
Available variants & SKUs
- 1/8" Tube OD × 1/8" FNPT — SKU PLDV-192
- 5/32" Tube OD × 1/8" FNPT — SKU PLDV-094
- 1/4" Tube OD × 1/8" FNPT — SKU PLDV-089
- 1/4" Tube OD × 1/4" FNPT — SKU PLDV-090
- 3/8" Tube OD × 1/4" FNPT — SKU PLDV-091
The brass push-to-connect 90° female elbow delivers fast, tool-free installation and reliable, leak-free performance for compressed air and pneumatic systems — a durable brass fitting for tight, right-angle tube-to-thread connections.
NOTE: Actual product may be different from pictured!
