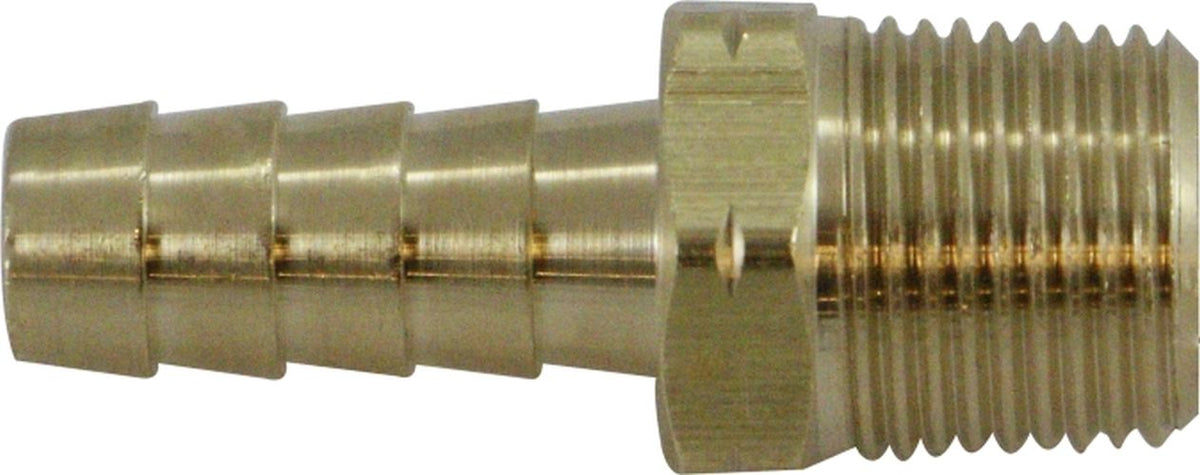

Midland Brass Hose Barb Rigid Male BSPT Adapter Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
Midland Metal
|
 SKU |
BBCC-450
|
The Midland Brass Hose Barb Rigid Male BSPT Adapter connects a push-on or clamped air, water, coolant, or low-pressure fluid hose to a male BSPT (British Standard Pipe Taper) threaded port in a single, one-piece fitting. Machined from solid CA360 brass for corrosion resistance and long service life, the barbed stem grips the inside of the hose while the tapered BSPT thread seals into the mating port.
Key Specifications
- Material: Solid CA360 brass (barstock)
- Connection: Hose barb × rigid male BSPT (tapered) thread
- Maximum working pressure: 150 PSI
- Temperature range: -40°F to +160°F
- Barb sizes: 1/4", 3/8", 1/2", 3/4", and 1"
- BSPT thread sizes: 1/8", 1/4", 3/8", 1/2", 3/4", and 1"
- Retention: For use with a hose clamp, similar clamp, or crimped ferrule
Applications
Ideal for compressed-air lines, pneumatic tools, coolant and washdown lines, low-pressure fuel and fluid transfer, and any BSPT-threaded system common in imported and international equipment. The rigid (non-swivel) body provides a solid, permanent hose-to-pipe connection.
Installation
Cut the hose cleanly and squarely to length, slide the clamp onto the hose, lightly lubricate, and push the hose onto the barb until it bottoms against the hex. Position the clamp behind the barbs and tighten to secure.
Solid brass construction makes the Midland rigid male BSPT hose barb adapter a durable, leak-resistant choice for connecting flexible hose to BSPT-threaded ports in air, water, and industrial fluid systems. Choose your barb and thread size below.
NOTE: Actual product may be different from pictured!
