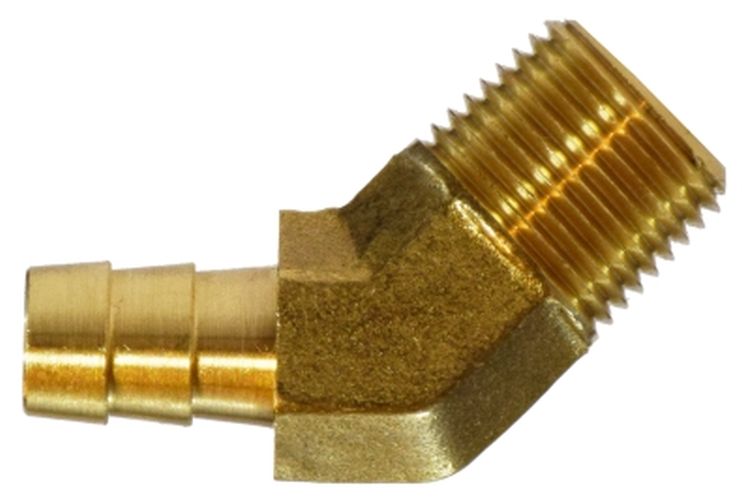

Brass Hose Barb 45° Male NPT Elbow Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
BBCC-110
|
Brass 45° male-elbow hose barb fittings turn an air or fluid line 45 degrees where a straight run won't fit. Each is machined from solid CA360 brass with a barbed stem that pushes into a compatible-ID hose — secured with a hose clamp or crimp ferrule — and a male NPT end that threads into any female NPT port. The 45° bend relieves strain on the hose and routes lines cleanly around obstructions.
Key specifications
- Body material: CA360 free-cutting brass, corrosion resistant
- Configuration: 45° male elbow, hose barb × male NPT
- Barb sizes: 1/4" through 3/4" hose ID
- Thread: male NPT, 1/8" through 1/2"
- Integral hex flats for wrench tightening
- Barbed end for use with a hose clamp or crimp ferrule
- Suited to low-to-moderate pressure air, water, coolant, fuel and oil service
Typical applications
Shop air lines and compressor plumbing, coolant and washdown lines, fuel and oil transfer, and any hose-to-pipe connection that needs a 45° change of direction. Choose the size whose barb matches your hose inner diameter and whose NPT matches your threaded port.
Available in 10 barb-and-thread combinations from 1/4" to 3/4" barb, these solid brass 45° male NPT elbow hose barb fittings give you a compact, leak-resistant hose-to-pipe connection for compressed air and fluid systems.
NOTE: Actual product may be different from pictured!
