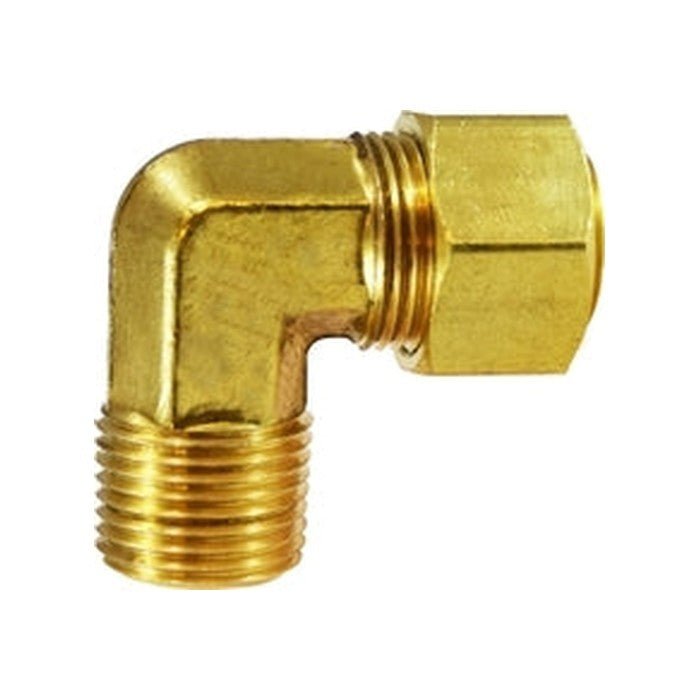

Warthog Brass Captive Sleeve 90° Elbow — Tube OD × Male NPT
The Warthog Brass Captive Sleeve 90° Elbow makes a leak-tight, right-angle turn from tubing to a male NPT port. The sleeve (ferrule) is captured inside the nut, so it can't fall out or get lost during assembly — making installation faster and more reliable in tight spaces on air lines, control lines, and instrumentation runs.
Key specifications
- Material: solid brass body, nut, and captive sleeve
- Configuration: 90° elbow, tube OD compression × male NPT (MNPT)
- Compatible tubing: copper, aluminum, and thermoplastic/poly tube (use a tube insert with soft plastic tubing)
- Temperature range: approximately -65°F to +250°F
- Best suited to low- and medium-pressure connections without excessive vibration or tube movement
- Available sizes: 1/8"–1/2" tube OD combined with 1/8", 1/4", 3/8", or 1/2" male NPT
Typical applications
Pneumatic control and signal lines, shop air drops, compressor accessory plumbing, gauges and instrumentation, and general low-pressure fluid or air connections where a serviceable, tool-friendly compression joint is needed to change direction.
Brass captive sleeve compression elbows give you a durable, corrosion-resistant tube-to-male-NPT connection with a retained sleeve for quick, repeatable assembly — a dependable choice for air compressor and pneumatic systems.
NOTE: Actual product may be different from pictured!
NOTE: Actual product may be different from pictured!
