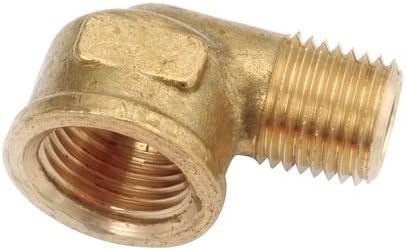

Brass 90° Reducing Street Elbow — FNPT × MNPT Pipe Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
BFCC-260
|
The Brass 90° Reducing Street Elbow makes a tight right-angle turn while also stepping between two pipe sizes in a single fitting. One end is female NPT (FNPT) and the opposite end is a reduced male NPT (MNPT), so you can change direction and change size in one connection — no separate bushing or nipple required.
Forged from solid brass for strength and corrosion resistance, it threads directly into pumps, manifolds, gauges, and air, water, or light fuel lines. Brass stands up to compressed-air moisture far better than steel and won't seize the way galvanized fittings can.
Key specifications
- Fitting: 90° reducing street elbow
- Connections: Female NPT (FNPT) × reduced Male NPT (MNPT)
- Material: Forged brass
- Thread standard: NPT (ANSI/ASME B1.20.1)
- Temperature range: approx. −20°F to 400°F
- Available sizes: six 1/8"–1/2" FNPT × MNPT combinations
Typical applications
Compressed-air plumbing, air-compressor discharge and tank manifolds, pneumatic tools, instrumentation and gauge ports, water lines, and general industrial pipe work where a size change and a 90° turn meet at the same point.
Select your exact FNPT × MNPT size combination from the drop-down. Built from durable forged brass, this reducing street elbow is a compact, leak-resistant way to route and resize threaded lines in tight spaces.
NOTE: Actual product may be different from pictured!
