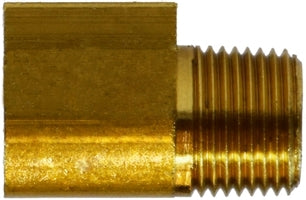

Brass 90° Inverted Flare Elbow Adapter — Inverted Flare × Male NPT
A brass 90° elbow adapter that turns an inverted-flare tube line a full 90 degrees into a male NPT port. The SAE 45° inverted-flare design forms a metal-to-metal seal that holds up under high pressure and vibration, making it a dependable choice for air, fuel, brake, and gas lines. Available in a full range of tube-to-thread sizes.
Key specifications
- Style: 90° elbow adapter, inverted flare × male NPT
- Material: CA360 brass — corrosion resistant, high machinability
- Seal: SAE 45° inverted-flare metal-to-metal seal
- Temperature range: -65°F to +250°F (-53°C to +121°C)
- Standards: meets applicable SAE, ASA, ASME, and military (MS) specifications
- Sizes: 1/8" through 1" inverted flare, with 1/8", 1/4", 3/8", 1/2", 3/4", and 1" male NPT ends
Typical applications
Compressed-air and pneumatic lines, fuel and oil lines, hydraulic brake and power-steering lines, LP and natural-gas systems, and transmission cooler lines — anywhere a tube must make a 90° turn into a threaded port.
Choose the brass 90° inverted flare elbow adapter that matches your tube OD and NPT port size from the size options above. Machined from durable brass with internal, protected seats and threads for long, reusable service in demanding air, fuel, and fluid-line applications.
NOTE: Actual product may be different from pictured!
