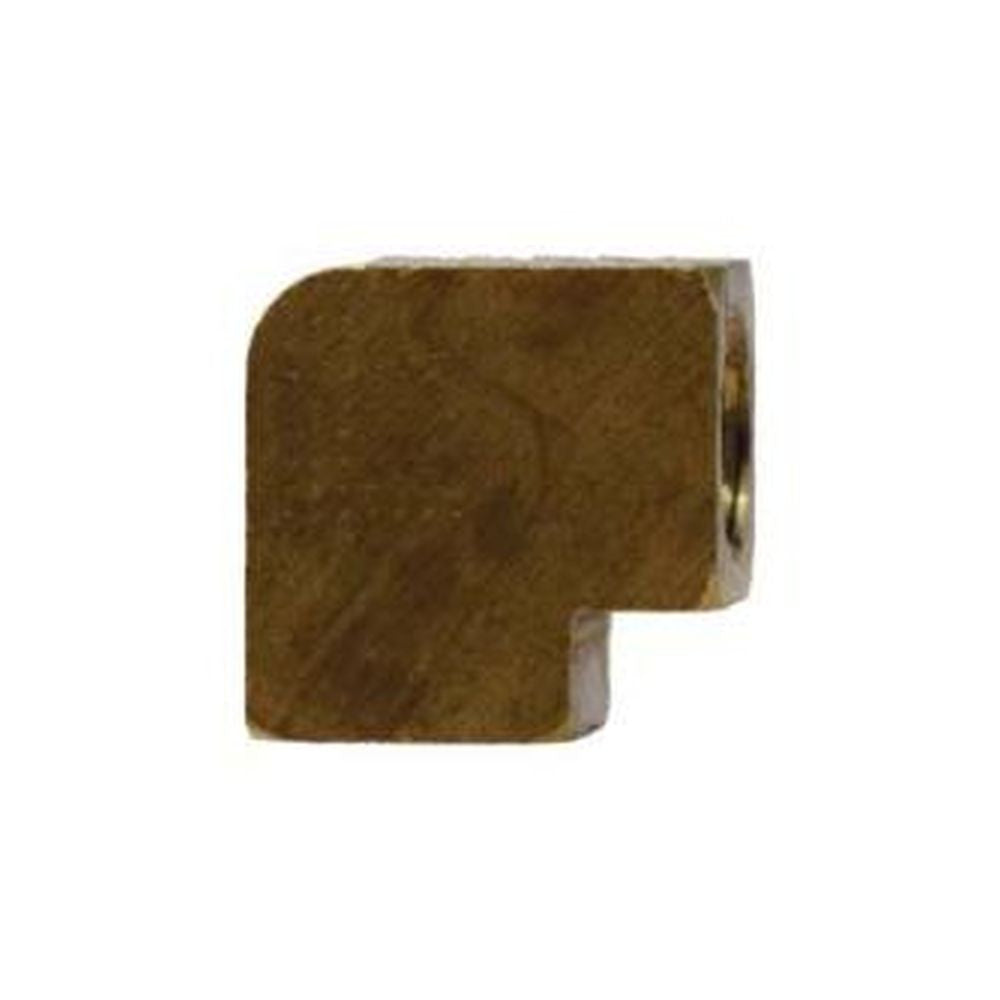

Brass 90° Inverted Flare Elbow Adapter — Female Flare × Female NPT
The Brass 90° Inverted Flare Elbow Adapter turns a run of flared tubing a full quarter turn while adapting it to a female NPT port. Machined from solid brass with internal, protected seats and threads, it delivers a leak-tight, reusable connection with excellent vibration resistance in a compact body that allows very close tube bends.
Key specifications
- Configuration: 90° elbow, female inverted flare × female NPT (FNPT)
- Material: solid brass construction
- Working pressure: up to 1,400 PSI (varies with tubing type and size)
- Temperature range: -65°F to +250°F
- Standards: meets functional requirements of SAE J530 and J531
- For use with copper, brass, aluminum, and steel tubing that can be flared
- Reusable design with excellent vibration life
Available sizes
- 1/4" inverted flare × 1/8" FNPT
- 5/16" inverted flare × 1/8" FNPT
- 3/8" inverted flare × 1/4" FNPT
Typical applications
Ideal for hydraulic brake lines, power steering, fuel lines, transmission cooler lines, and LP and natural gas connections where a compact, reusable 90° brass fitting is required.
This brass 90° inverted flare female elbow adapter provides a dependable, corrosion-resistant transition between flared tubing and a female NPT port, rated to 1,400 PSI and built to SAE J530/J531 for demanding automotive, fluid-power, and gas-line service.
NOTE: Actual product may be different from pictured!
