Brass 90° Elbow Compression Fitting — Tube OD × Female NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
BCC-251
|

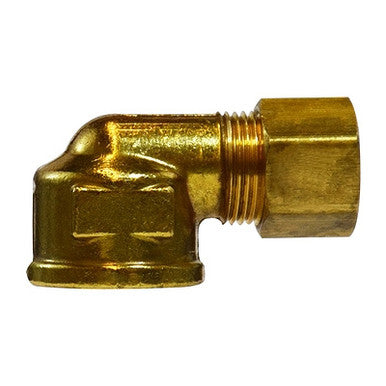

The Brass 90° Elbow Compression Fitting makes a clean, leak-free right-angle turn between tubing and a threaded port. The tube end is a three-piece brass compression connection (nut, sleeve, and body) and the opposite end is a female NPT (FNPT) thread, so you can branch, redirect, or terminate a tubing run without soldering or flaring — and take it apart and remake the joint whenever you need to.
Key specifications
- Style: 90° elbow, tube OD compression × female NPT (FNPT)
- Material: solid brass, three-piece compression design (nut, sleeve/ferrule, body)
- Tube sizes: 1/8" to 3/4" OD
- Thread sizes: 1/8" to 3/4" FNPT
- Compatible tubing: copper, aluminum, and thermoplastic/poly tubing (use a brass insert with soft tubing)
- Temperature range: −65°F to +250°F
- Suitable media: compressed air, water, gas, oil, and vacuum lines
Typical applications
Ideal for compressed-air plumbing, instrumentation and gauge lines, pneumatic controls, lubrication and fuel-oil lines, and coolant or water runs where a tight right-angle connection is needed in low- to medium-pressure service.
Choose your exact tube-OD-by-FNPT combination from the size menu. Each Warthog brass 90° compression elbow is machined from solid brass for corrosion resistance and reliable, reusable sealing across air, water, oil, and gas systems.
NOTE: Actual product may be different from pictured!
