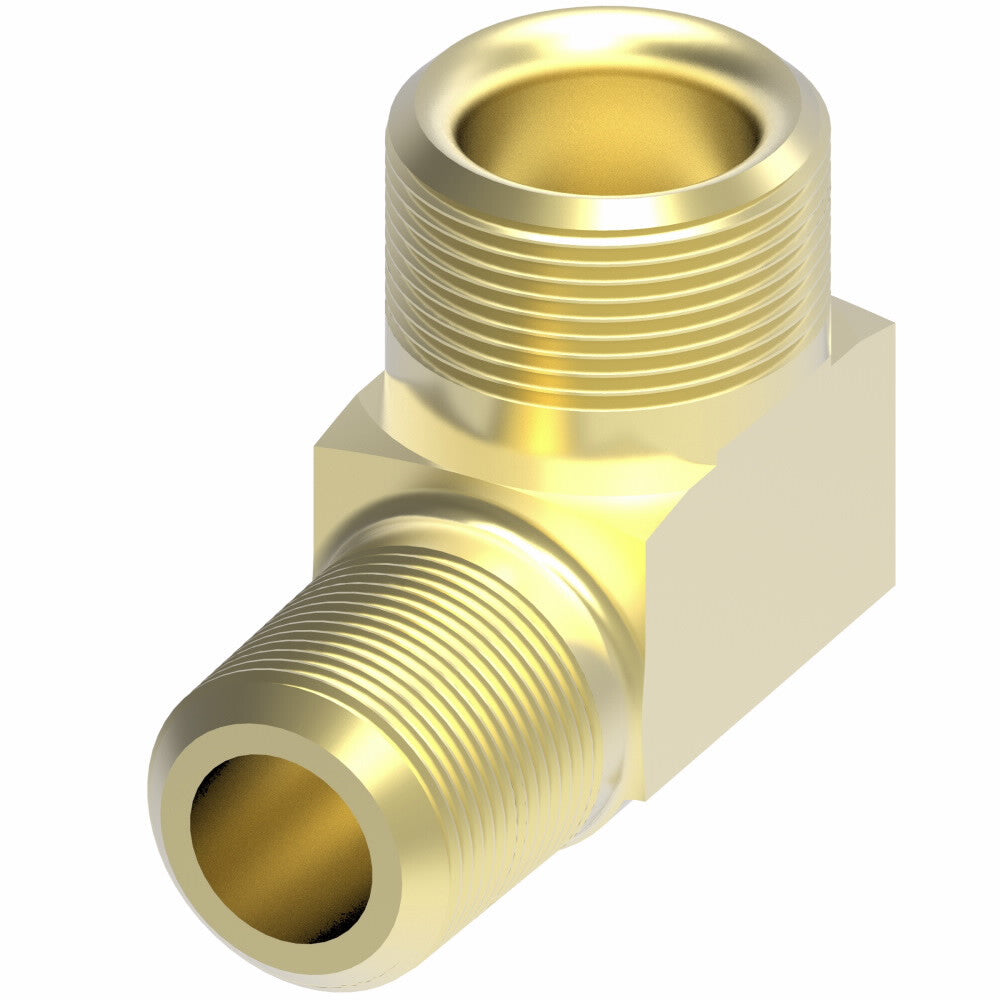

Brass 90° Compression Elbow — Tube × Male NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
BCC-219
|
The Brass 90° Compression Elbow makes a clean, leak-free right-angle turn while connecting tube to a male NPT port. It uses a flareless compression connection — a brass sleeve (ferrule) and nut grip the tube as the nut is tightened — so no flaring, soldering, or special tools are needed. Machined from solid brass for corrosion resistance and long service life, it's a dependable choice for compressed-air lines, instrumentation, and low- to medium-pressure fluid runs.
Key specifications
- Configuration: 90° elbow, tube OD compression × male NPT (MNPT)
- Material: solid brass, flareless compression design
- Tube sizes: 1/8" through 7/8" OD (28 tube × thread combinations)
- Thread sizes: 1/16", 1/8", 1/4", 3/8", 1/2", 3/4" MNPT
- Compatible tubing: copper, aluminum, and thermoplastic/poly tubing (not for steel tubing)
- Typical working pressure: up to ~200 PSI (varies by tube size)
- Temperature range: approximately -65°F to +250°F
Typical applications
Ideal for compressed-air drops and shop air plumbing, pneumatic controls and instrumentation lines, lubrication and coolant lines, and general low- to medium-pressure fluid connections where a compact right-angle turn is needed. Best suited to installations without excessive vibration or tube movement.
Select your exact tube OD and male NPT size from the drop-down. This forged brass 90° compression elbow delivers a reliable flareless, tube-to-male-NPT connection for copper, aluminum, and poly tubing across 28 sizes.
NOTE: Actual product may be different from pictured!
