Baldor-Reliance L1408TM 3 HP Single-Phase Open Motor, 184T Frame, 1725 RPM, 115/230V

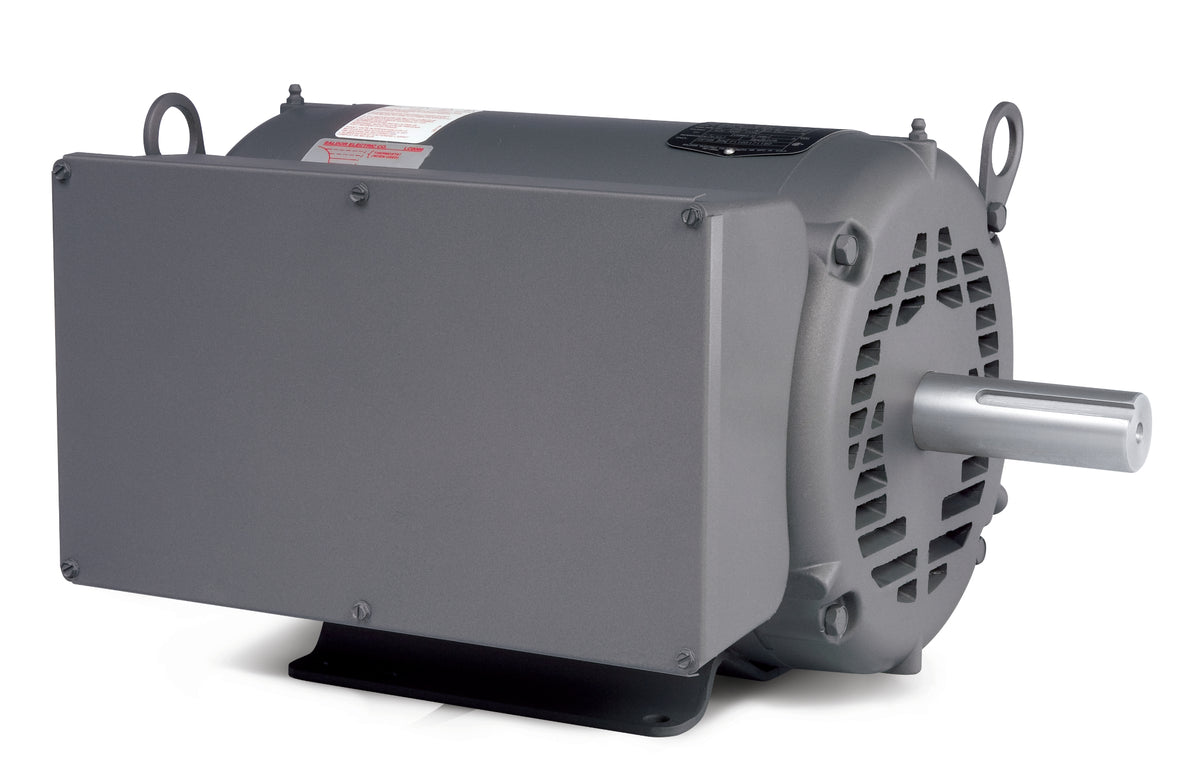

Baldor-Reliance L1408TM single-phase motor, 3 HP at 1725 RPM on a 184T frame, wired for 115 or 230 volts. The TM suffix means the winding carries a manual reset thermal overload protector. Open enclosure, rigid base mount, 1-1/8 in. shaft.
Key specifications
- Catalog number: L1408TM
- Output: 3 HP at 60 Hz
- Speed: 1725 RPM, 4 pole
- Frame: 184T
- Enclosure: open (Baldor enclosure code OPEN)
- Voltage: 115/230V, single phase, 60 Hz
- Full load amps: 32 at 115V, 16 at 230V
- Service factor: 1.15
- Shaft diameter: 1.125 in.
- Mounting: F1 rigid base
- Winding protection: manual thermal overload
- Insulation class: F, continuous duty, 40 C ambient
- Motor type 3634LC, NEMA design code L
- Full load torque 9 lb-ft, locked rotor torque 30.8 lb-ft, breakdown torque 21 lb-ft
- Bearings: 6206 drive end, 6205 opposite drive end
- Agency: C UR US (UL Recognized Component, US and Canada)
- Ship weight: 74 lb
Typical applications
A 3 HP 184T single-phase motor covers mid size reciprocating compressor pumps, pressure washer pumps, transfer pumps and shop equipment. Baldor lists this motor in its General Purpose family, and several distributors merchandise it specifically as a pressure washer motor. It is not a manufacturer designated compressor duty motor, so confirm full load amps, service factor and starting current against your load before fitting it to a compressor.
Starting current is 107 A, which matters when sizing the branch circuit and starter on a 115 volt supply. Specifications above are taken from the Baldor-Reliance catalog data for L1408TM. This motor ships by freight.
NOTE: Actual product may be different from pictured!
