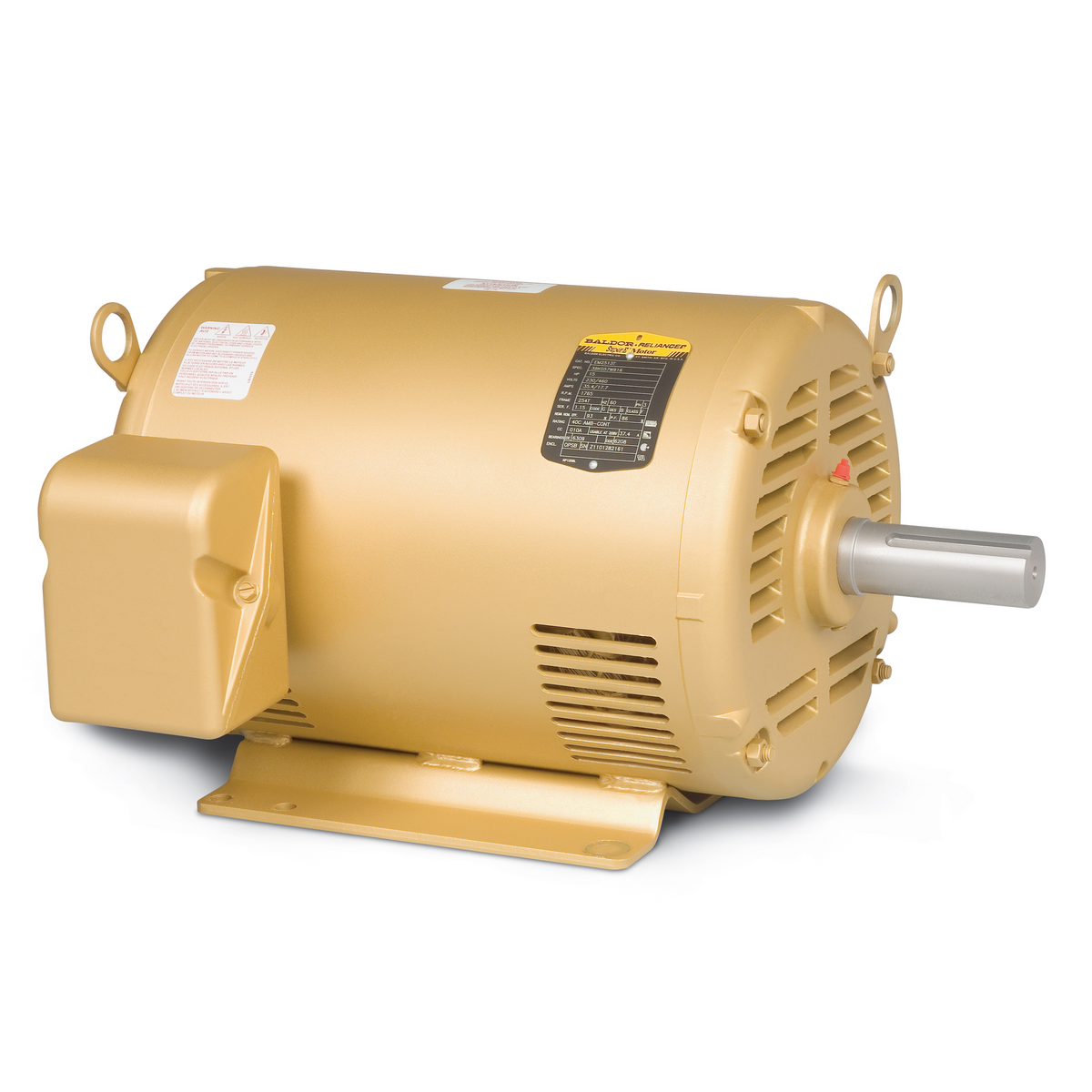

Baldor-Reliance EM3116T 1 HP Three-Phase Open Drip-Proof Motor, 143T Frame, NEMA Premium
Baldor-Reliance EM3116T three-phase motor, 1 HP on a 143T steel frame, four pole, open drip-proof. This is Baldor's NEMA Premium efficiency Super-E line in its smallest T frame, with a 1.15 service factor, Class F insulation and a rigid steel base. Choose 230/460V for a standard three-phase supply or the 200V winding below.
Key specifications
- Catalog numbers: EM3116T (230/460V) and EM3116T-8 (200V)
- Output: 1 HP at 60 Hz, three phase
- Frame: 143T, steel
- Poles: 4, 1800 RPM synchronous
- Full load speed: 1770 RPM on EM3116T, 1775 RPM on EM3116T-8
- Full load amps: 3.2 at 230V, 1.6 at 460V, 3.6 at 200V
- Enclosure: Baldor code OPSB, open drip-proof construction
- Efficiency: 85.5 percent NEMA nominal, NEMA Premium
- Service factor: 1.15
- Power factor: 69 on EM3116T, 67 on EM3116T-8
- Shaft diameter: 0.875 in.
- Mounting: F1 rigid base, reversible, pulley end shaft
- Insulation class: F, continuous duty, 40 C ambient
- NEMA design code B, KVA code N, motor type 3520M
- Bearing lubricant: Polyrex EM
- Flying leads with knockout conduit box
- Inverter ready, VPWM, constant torque 30 to 60 Hz, variable torque 3 to 60 Hz
- Agency: C UR US, EEV, NEMA Premium
- Ship weight: 34 lb
- RoHS compliant
Enclosure and duty
Baldor prints the enclosure on this motor as code OPSB and does not spell the code out. It is an open construction: the data sheet lists no drip cover and no rodent screen, and distributors commonly describe it as open drip proof. If you need a totally enclosed fan cooled motor instead, that is Baldor's C prefix line, a different catalog number.
Baldor lists the EM3116T in its General Purpose product family. It is not a manufacturer designated compressor duty motor. It is widely used on compressor packages, but check full load amps and service factor against your load before specifying it.
Typical applications
One horsepower three phase at 1800 RPM synchronous is the standard drive on small reciprocating air compressors, pumps, fans, blowers, conveyors and machine tools. The NEMA Premium efficiency rating pays back on anything that runs long hours, and the 200V winding covers plants on a 200 volt three-phase service where a standard 230/460V motor would be undersized on voltage.
The Baldor-Reliance EM3116T gives you a 1 HP three-phase NEMA Premium open drip-proof motor on a 143T frame with a 1.15 service factor, in 230/460V and 200V windings. Specifications above are taken from Baldor's published catalog data and nameplate data for EM3116T and EM3116T-8.
NOTE: Actual product may be different from pictured!
