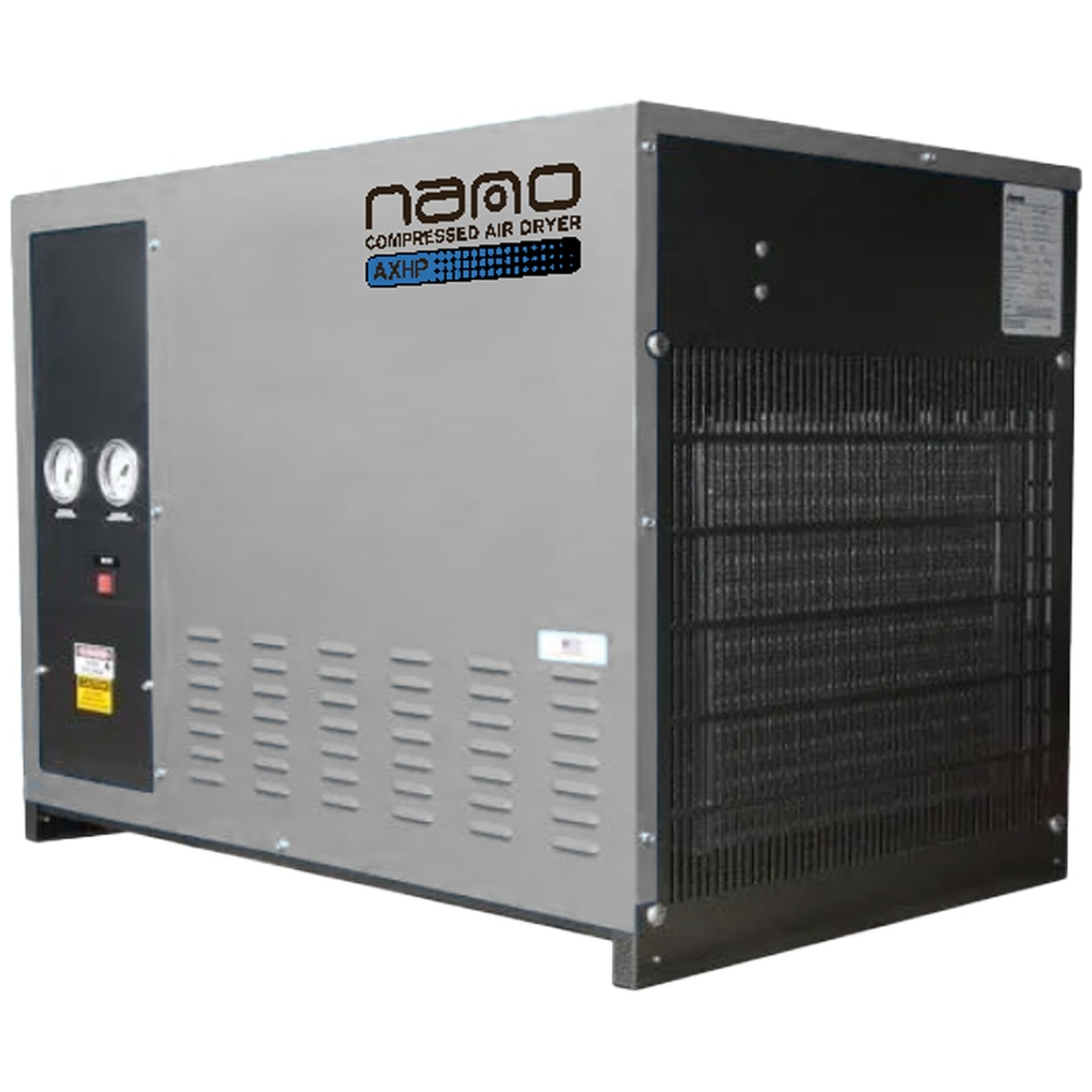

AXHP High-Pressure Refrigerated Air Dryer By Nano
| Specifications (As Configured) | |
|---|---|
 Vendor |
Nano
|
 SKU |
8102452900
|
The nano AXHP high-pressure refrigerated air dryer (Aircel R3 series) removes moisture from compressed air in systems that run far above normal shop pressure, with models rated up to 6000 psig and flows from 20 to 275 SCFM. A stainless steel tube-in-tube heat exchanger and all-stainless air-side components stand up to high-pressure duty for long, reliable service.
How to select your AXHP
- Choose your flow from 20 to 275 SCFM to match your compressor output.
- Choose your maximum working pressure: 1200, 3625, 5000, or 6000 psig.
- Install the fully packaged, plug-and-play unit; its compact footprint fits tight spaces.
Built for high pressure
- Rated up to 6000 psig across four pressure classes
- Stainless steel tube-in-tube heat exchanger for durability and longevity
- All stainless steel air-side components
- Fully packaged, plug-and-play compact design
How the AXHP compares
A standard refrigerated dryer is built for roughly 150 to 230 psig shop air and is not rated for high-pressure service. The AXHP is engineered specifically for 1200 to 6000 psig systems, so it can dry the air from high-pressure compressors and boosters without the safety and reliability compromises of pushing a standard dryer beyond its rating.
Specifications
- Flow rate: 20 – 275 SCFM
- Maximum pressure: 1200, 3625, 5000, or 6000 psig (by model)
- Connection: ½" NPT
- Heat exchanger: stainless steel tube-in-tube
- Air-side components: all stainless steel
- Series: nano Aircel AXHP (R3)
Ideal applications
- Injection and blow molding, including PET
- Component and leak testing
- Naval and military systems
- Any high-pressure compressed air or booster application that needs dry air
Frequently asked questions
What pressures does the AXHP support?
Choose 1200, 3625, 5000, or 6000 psig depending on your system, with a maximum capability of 6000 psig.
Why not use a standard refrigerated dryer?
Standard refrigerated dryers are rated for roughly 150 to 230 psig. The AXHP's stainless high-pressure heat exchanger is built for 1200 to 6000 psig service.
How do I pick the right model?
Match the flow to your compressor output and the pressure class to your system's working pressure. Send us your details and we will confirm the exact model.
What dew point will I get?
The AXHP provides refrigerated-level dew point control; refer to the model datasheet for the rated dew point at your flow and pressure.
NOTE: Actual product may be different from pictured!
