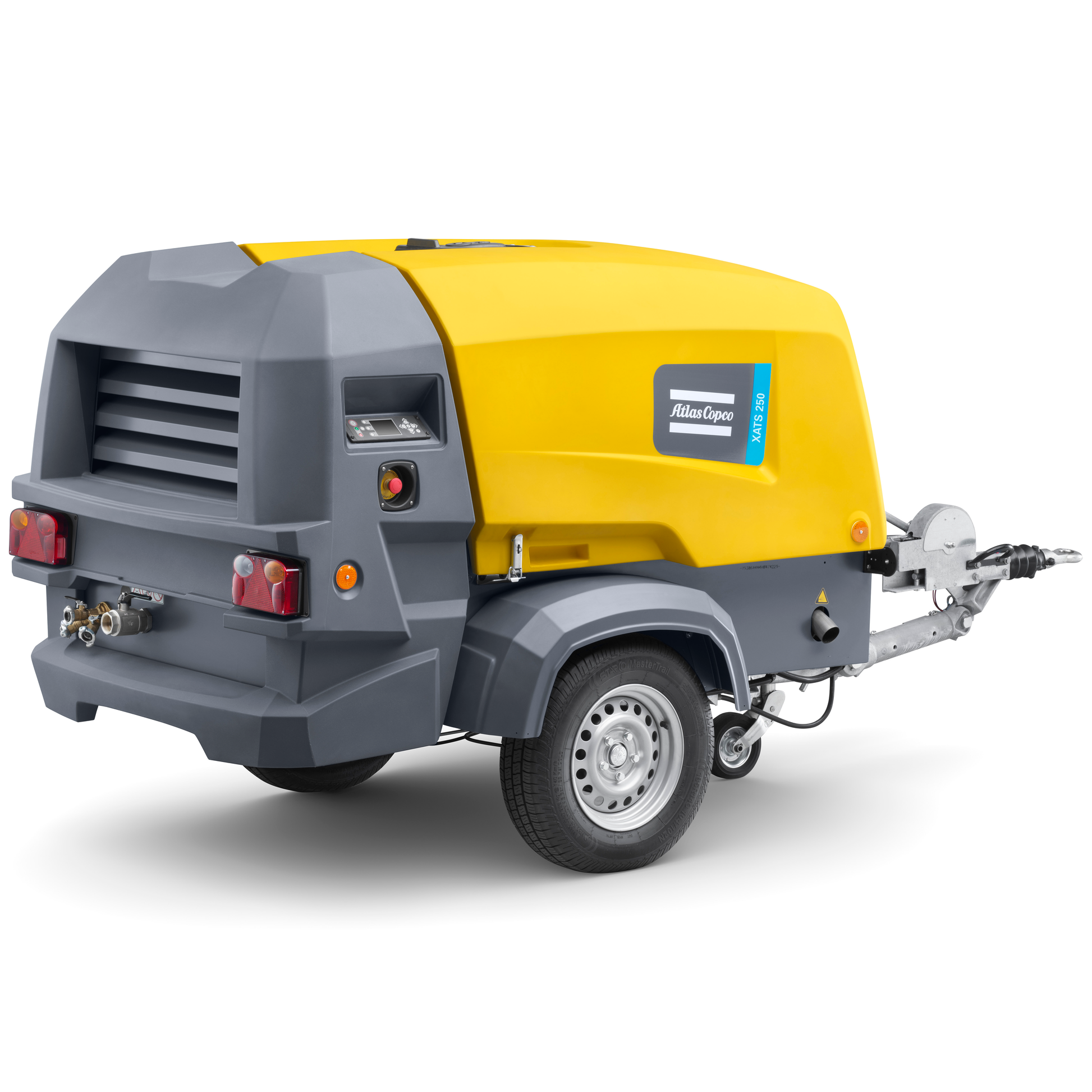

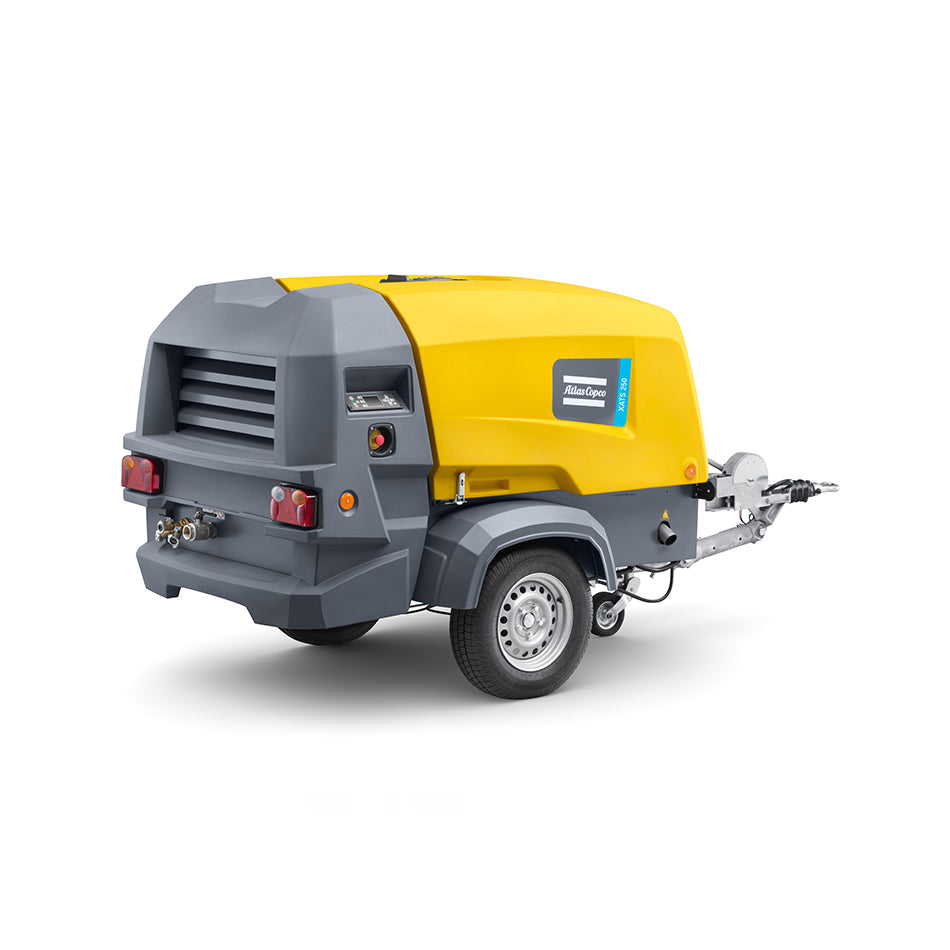

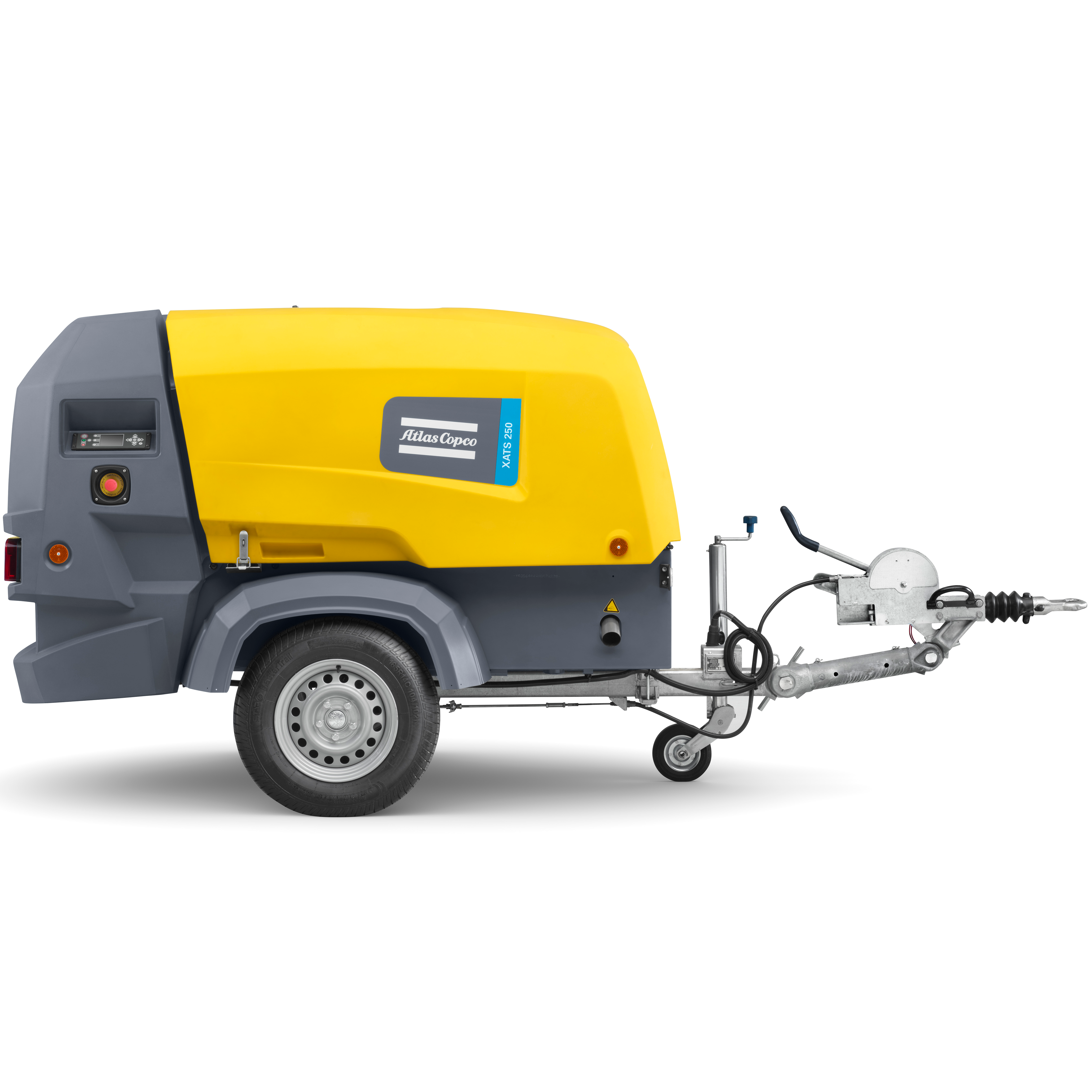

Atlas Copco XATS 250 KD8 Towable Air Compressor

The Atlas Copco XATS 250 KD8 Towable Air Compressor is a Tier 4 Final, Kubota-powered rotary screw compressor built for contractors, rental fleets, utility crews, and blasting outfits that need serious air in a compact tow-behind package. With factory-rated output in the 189–250 cfm range and an adjustable pressure band up to 150 psi, it covers everything from pavement breaking and blasting to backup plant air in a single mobile unit. This is the towable version, purpose-built on a DOT-approved trailer for easy transport between jobsites.

Key specifications at a glance

• Model: Atlas Copco XATS 250 KD8 T4F towable air compressor
• Air delivery: Approximately 189–250 cfm, depending on pressure setting
• Pressure range: Adjustable, roughly 58–150 psi via PACE electronic control
• Engine: Kubota V2403T Tier 4 Final, turbocharged diesel, around 66 hp
• Emissions: DOC/DPF after-treatment and no DEF required
• Fuel tank: Sized for a full workday at typical loads
• Undercarriage: Single-axle towable chassis with torsion axle
• Environmental protection: 110% spill-free containment with remote drains
• Cold-weather equipment: Engine block heater and cold-start package

This combination gives you a high-output tow-behind compressor that is still easy to haul with a standard work truck.

Flexible air performance with PACE

A standout feature of the XATS 250 KD8 towable air compressor is its PACE (Pressure Adjusted thru Cognitive Electronics) system. Instead of being locked into a single pressure, you set what you need on the controller and the compressor automatically adjusts output.

Key advantages of PACE:

• Set working pressure in small increments directly from the digital controller
• Quickly change between stored pressure presets for different tools or tasks
• The system optimizes engine speed and compressor load, helping reduce fuel consumption at partial load
• Gives one trailer-mounted compressor the flexibility to cover multiple applications and tool requirements

For contractors who move between demolition, sandblasting, and utility work, this effectively turns one tow-behind compressor into a multi-role machine.

Towable, compact, and jobsite ready

The XATS 250 KD8 is built as a towable compressor from the ground up. The single-axle, low-profile trailer keeps overall weight manageable while maintaining stability and maneuverability on rough terrain and tight access roads.

Tow-focused details include:

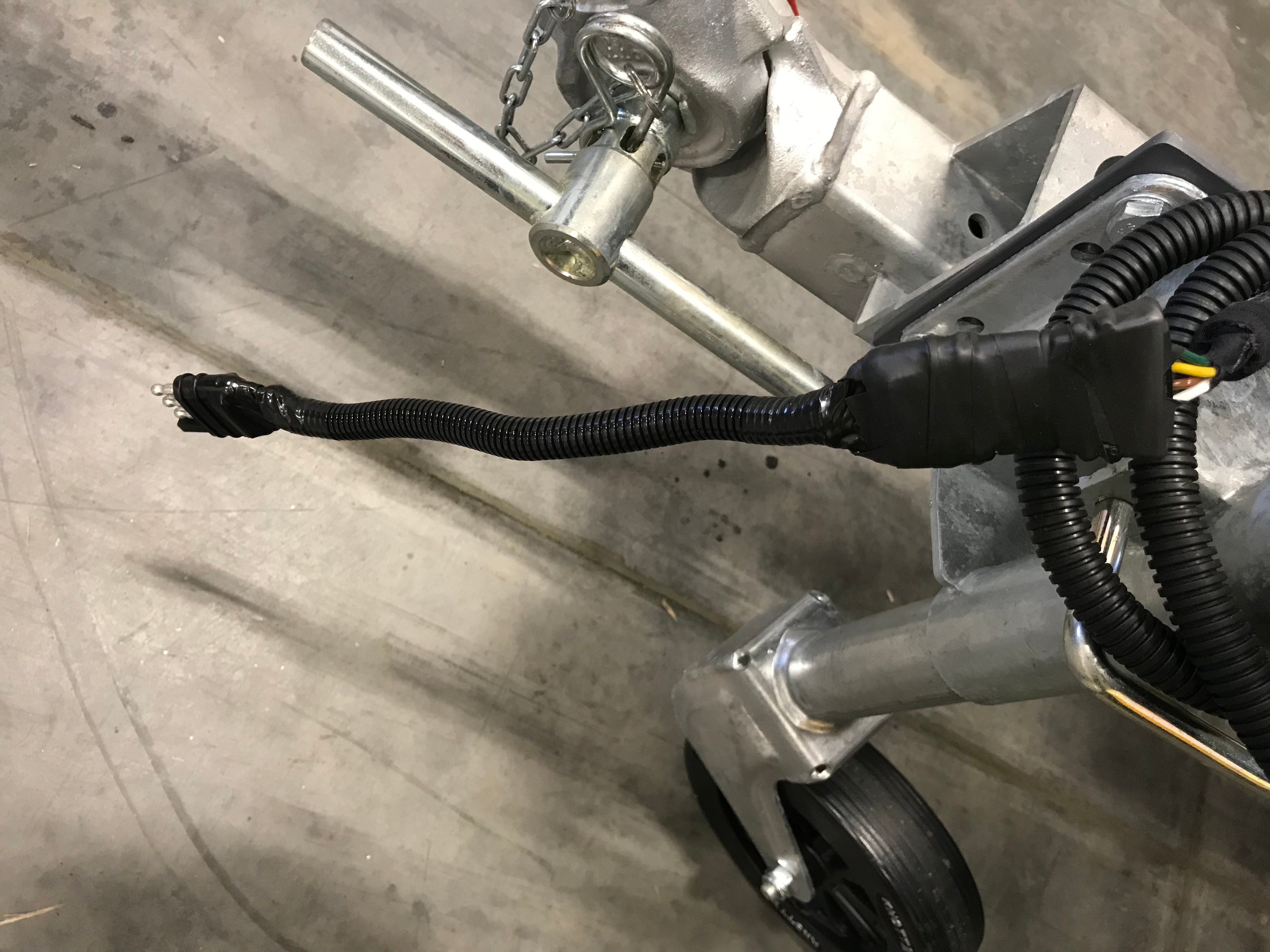

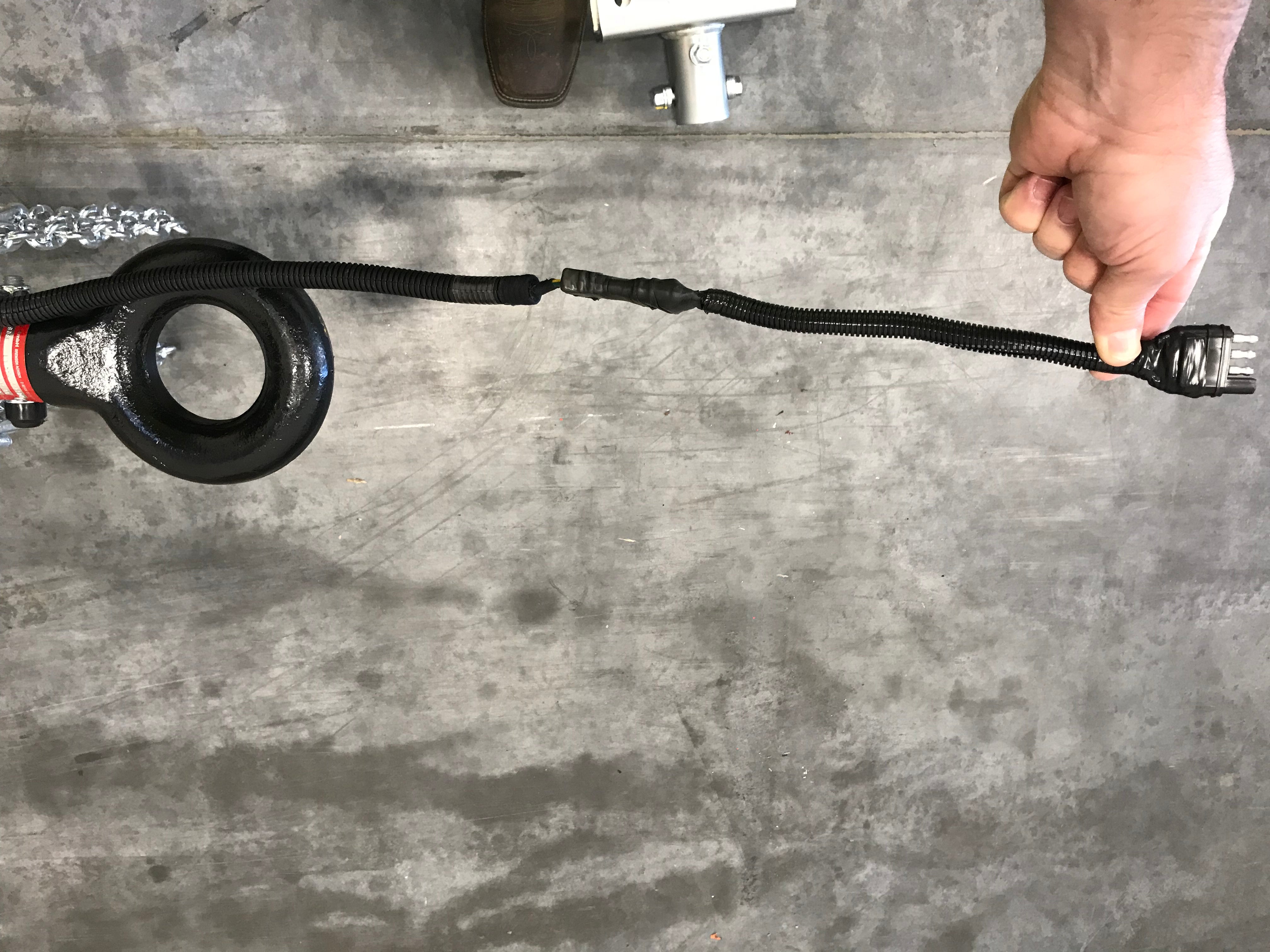

• DOT lighting with a standard 4-way flat plug

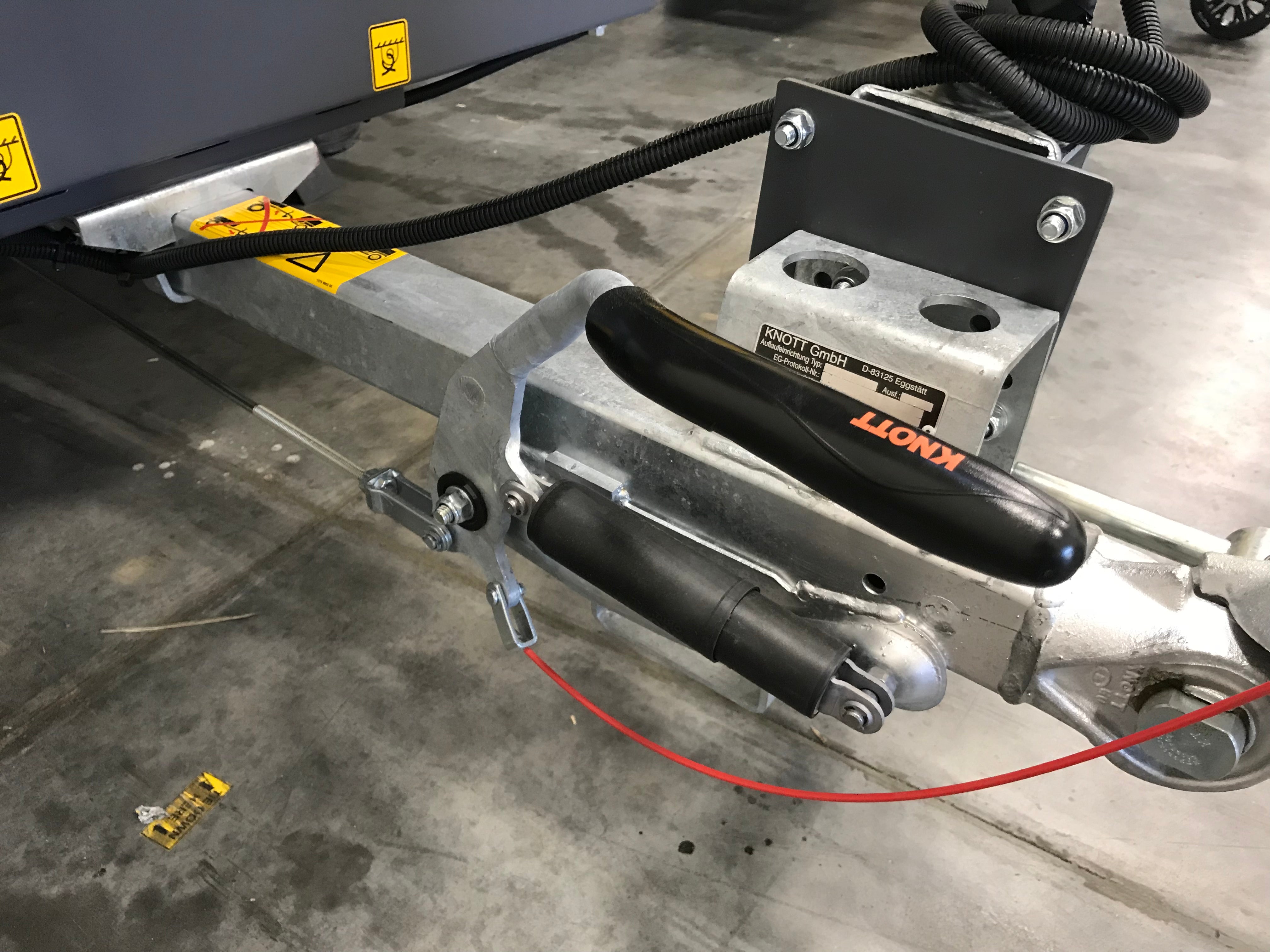

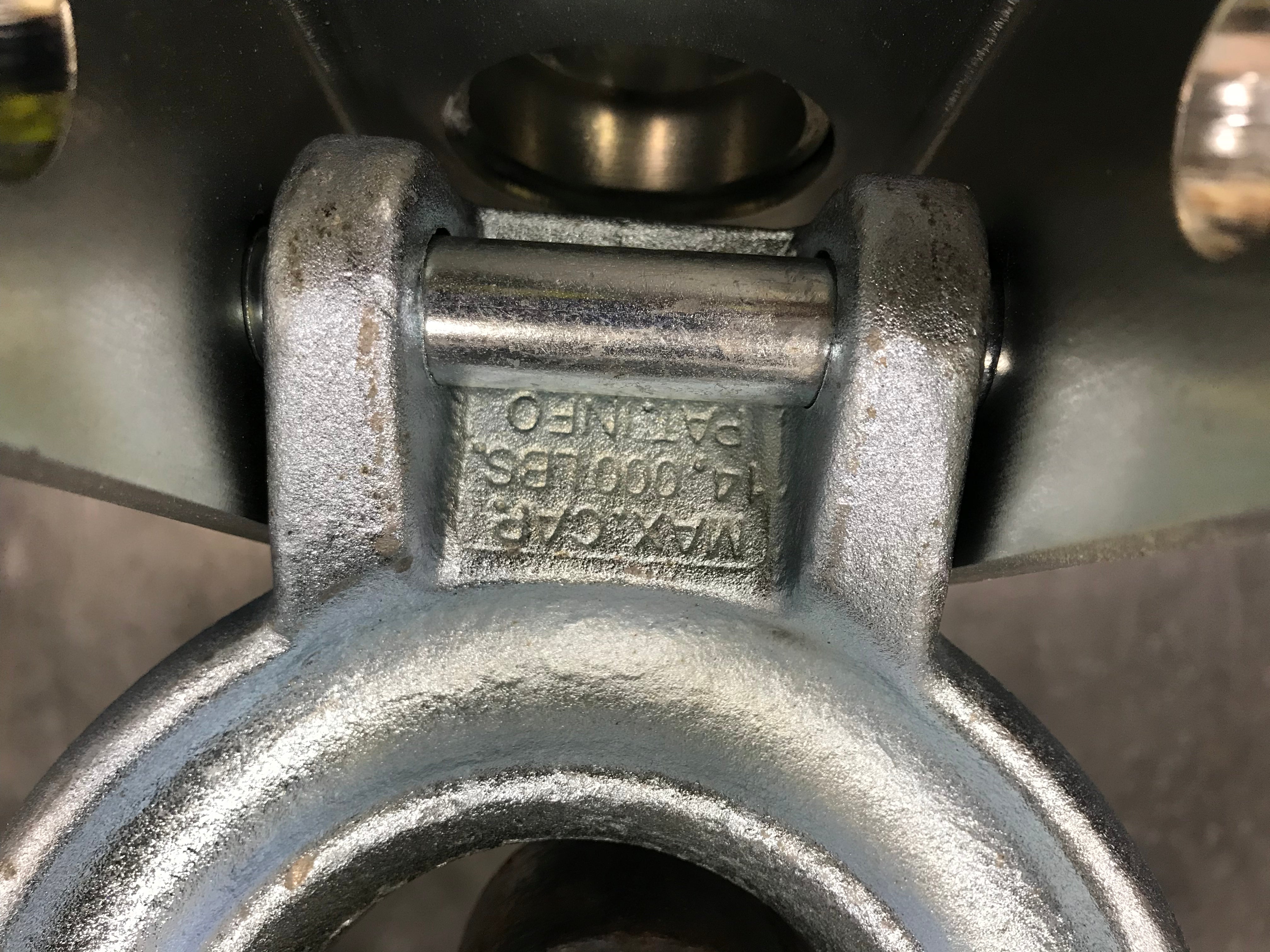

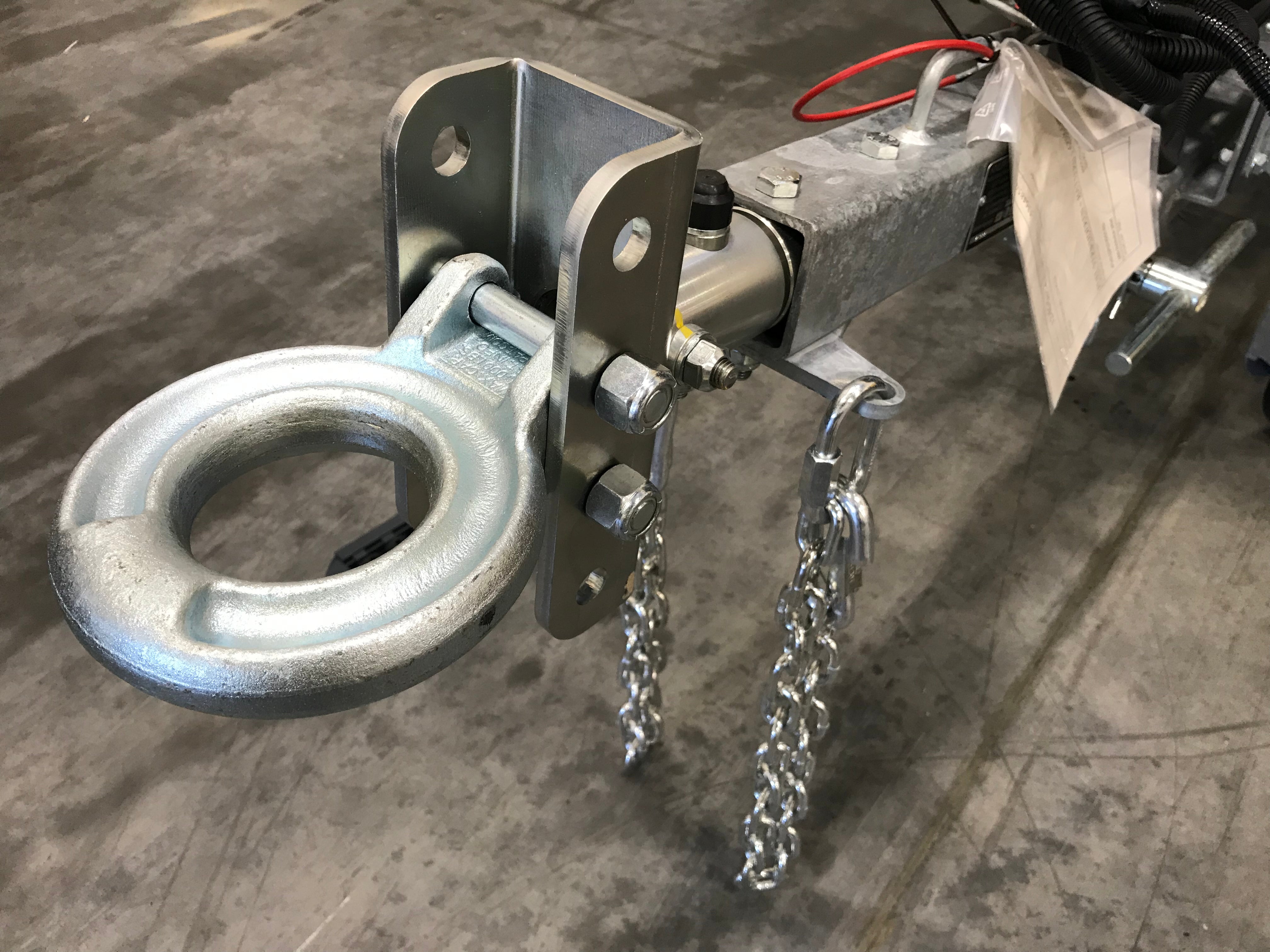

• Adjustable 3" pintle hitch to level the drawbar for different truck heights
• Torsion axle for a smoother, more durable ride than leaf-spring setups

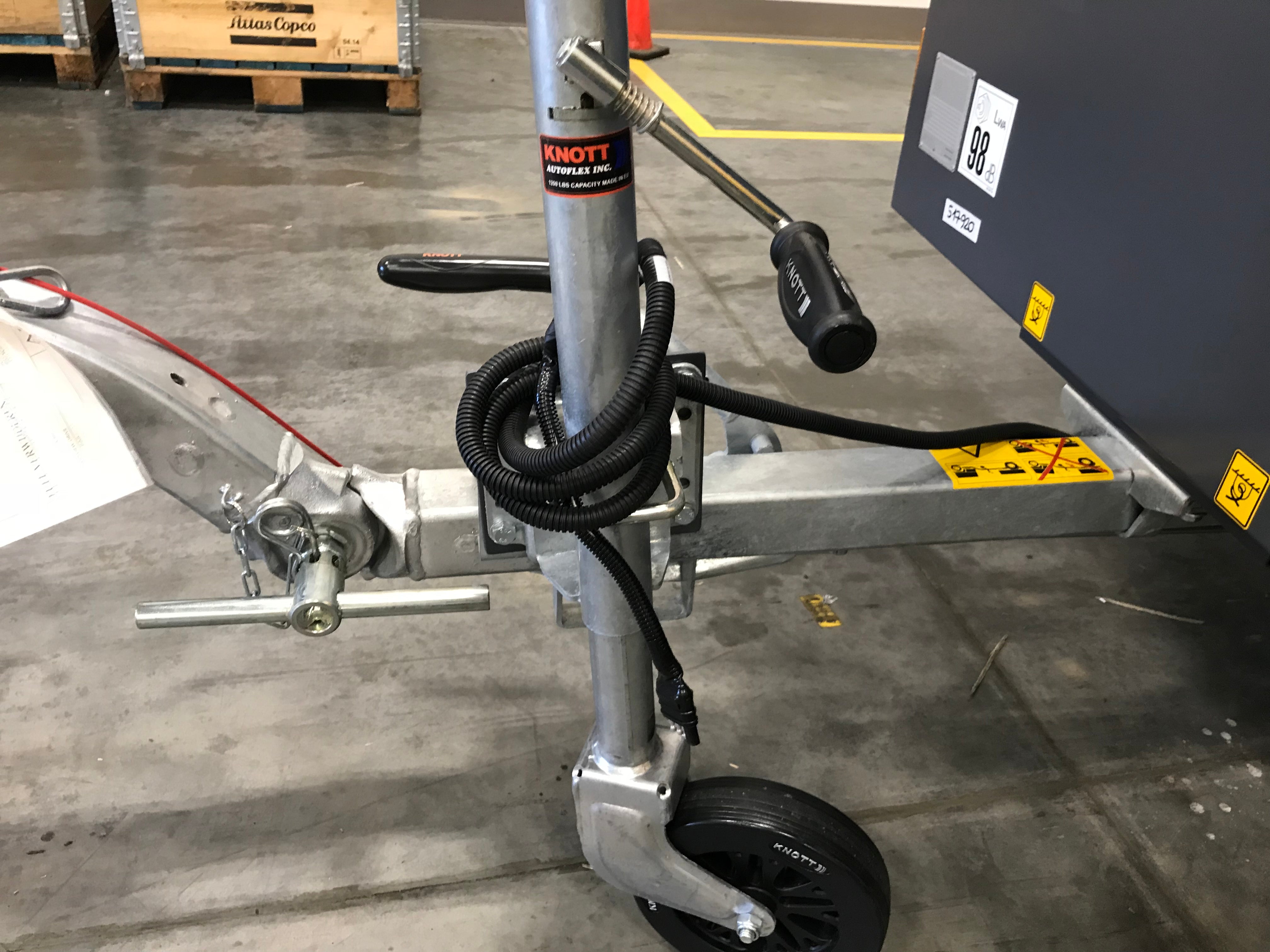

• Front jack stand for easy hitching, unhitching, and stable running when parked

The compressor is enclosed in a rugged polyethylene canopy designed for heavy-duty applications. It resists dents and corrosion and protects the core components from the elements. Underneath, the base frame receives a multi-layer anti-corrosion paint system to help the machine hold its appearance and resale value over years of hard use.

Engine, emissions, and fuel efficiency

At the heart of the XATS 250 KD8 towable air compressor is the Kubota V2403T Tier 4 Final diesel engine. This four-cylinder, turbocharged industrial engine is matched to Atlas Copco’s screw element to deliver reliable power under varying loads.

Key engine and emissions benefits:

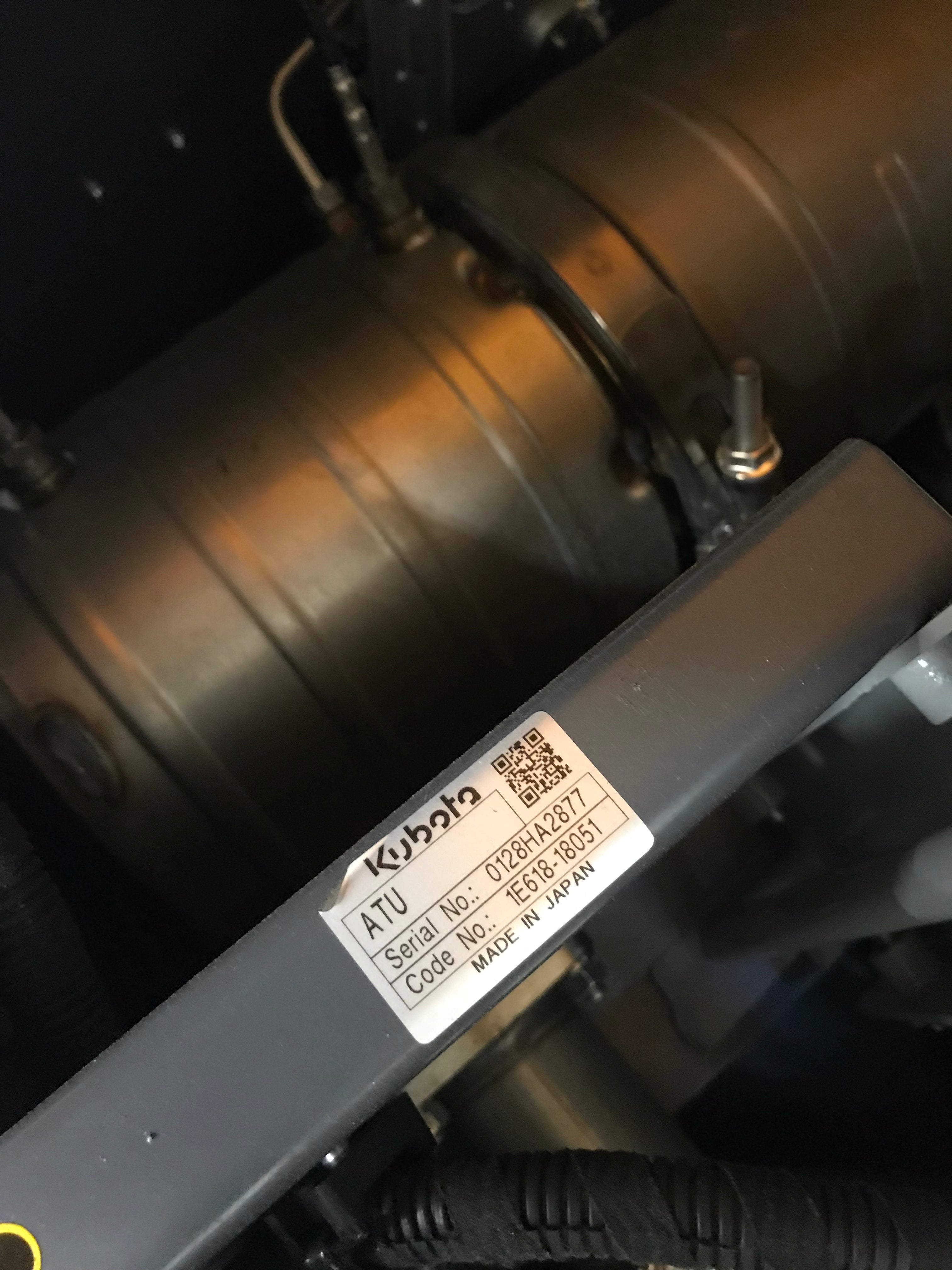

• Tier 4 Final compliance using only DOC/DPF after-treatment
• No diesel exhaust fluid (DEF) tank, no urea to manage, and fewer emission components to maintain
• Designed for continuous duty at high ambient temperatures with correctly sized cooling packages
• Fuel burn optimized by the electronic controller and PACE system, especially at partial load

For fleet managers and owner-operators, that translates into lower running costs and fewer emissions-related headaches than more complex systems.

Built for uptime and low cost of ownership

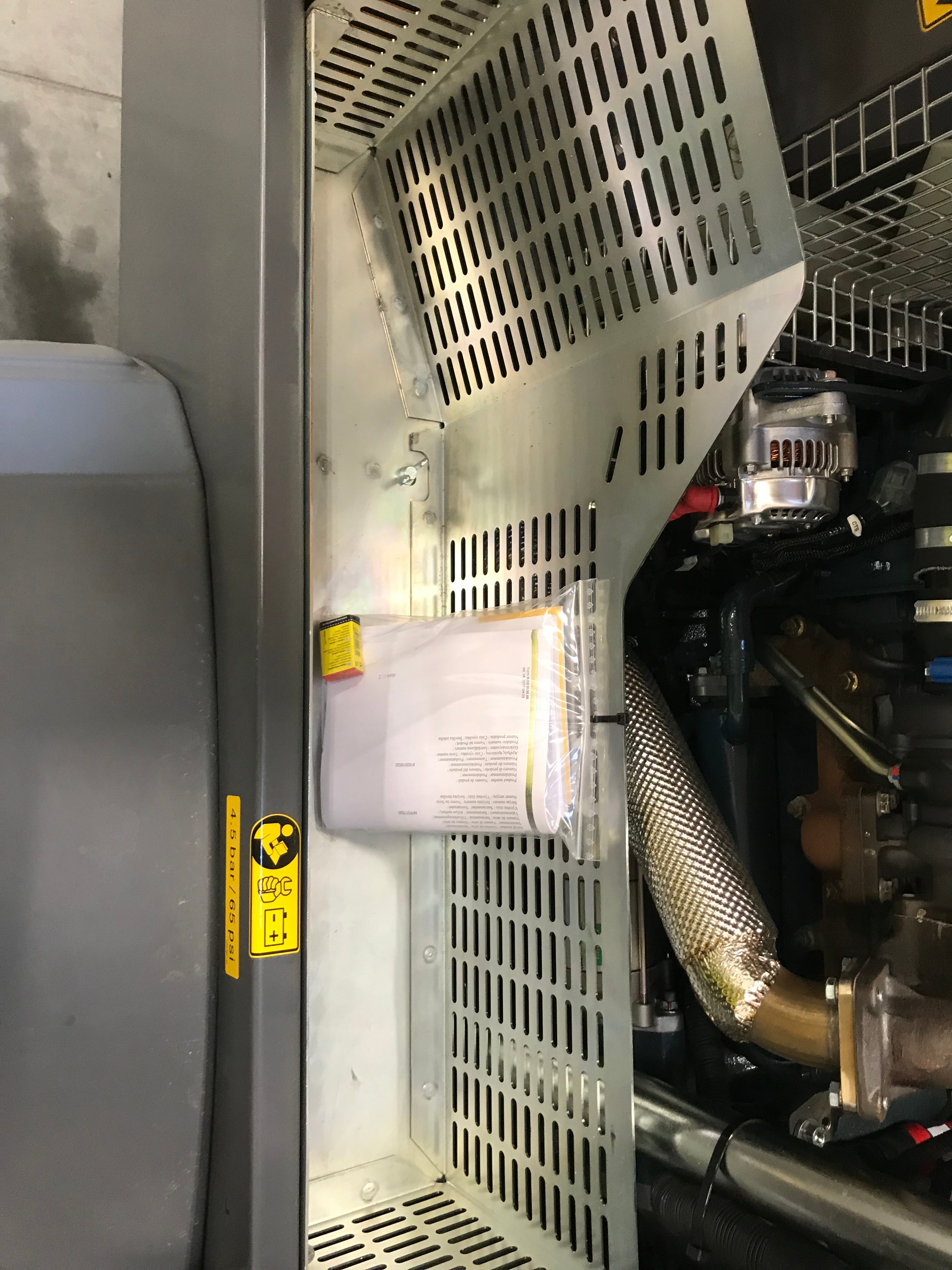

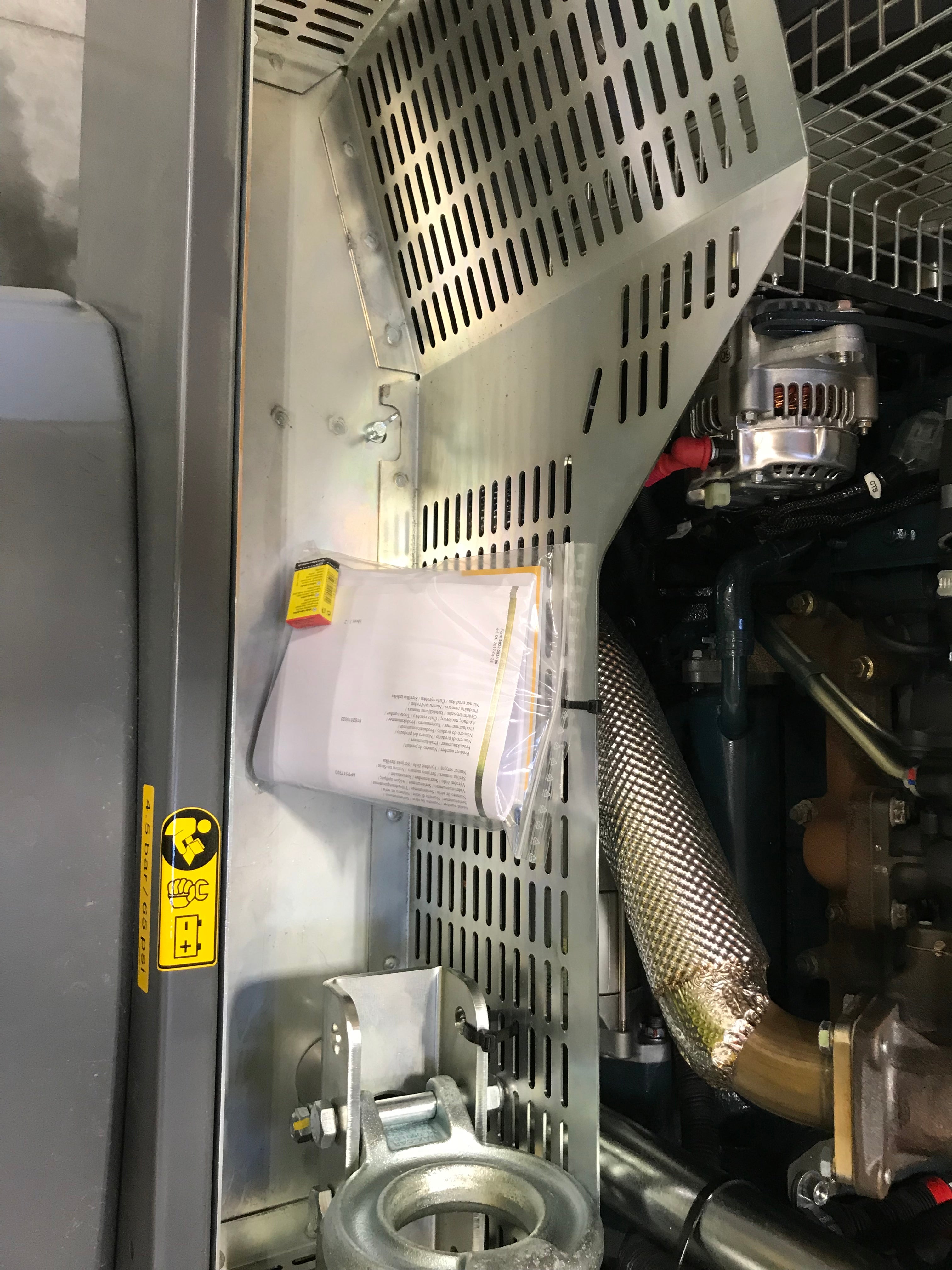

The XATS 250 KD8 towable compressor is engineered to keep service times and downtime as low as possible. The large-opening canopy gives wide access to all critical service points, letting technicians complete routine tasks quickly.

Service-friendly design features:

• Spin-on separator and oil filters to simplify change-outs
• Grouped service points so daily checks—oil, coolant, filters, and drains—are all accessible from one side
• Clear routing and labeling of drain lines and service items
• Routine maintenance designed to be completed in under one hour with basic tools

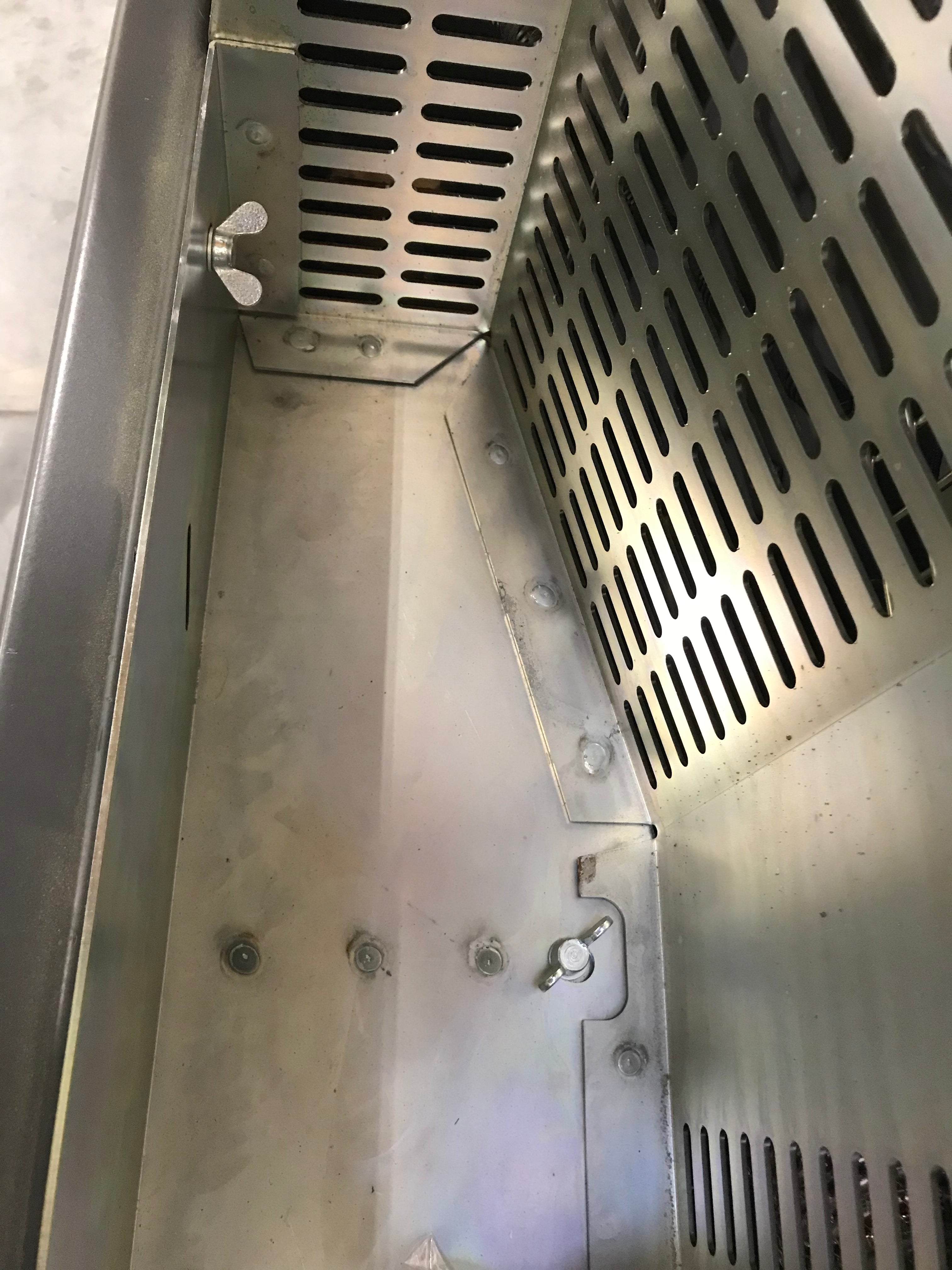

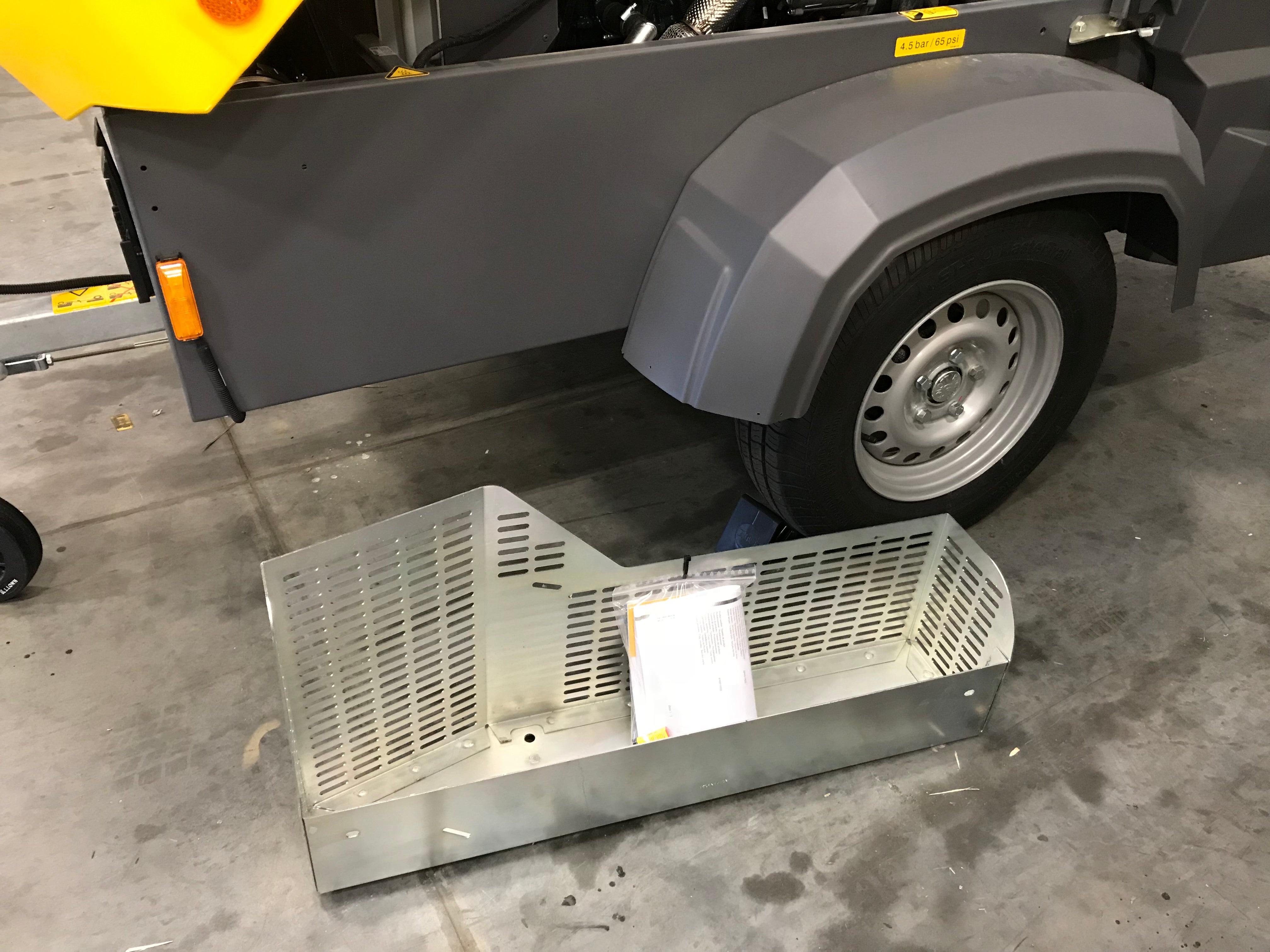

The 110% spill-free containment frame with remote drains is also a major advantage when it comes to environmental compliance and cleanup. Any fluid leaks or spills remain within the frame, and the remote drains let you pull oil, coolant, and condensate into containers without crawling under the machine. That’s safer, cleaner, and often necessary on environmentally sensitive or regulated jobsites.

Cold-weather reliability

For crews working in colder climates, the XATS 250 KD8 towable air compressor is available with a cold-start package, including an engine block heater and cold-weather provisions. This helps ensure reliable starts and stable operation in low ambient temperatures, reducing morning startup delays and minimizing the risk of cold-related engine wear.

Cold-weather benefits include:

• Easier starting in freezing conditions
• Faster warm-up to proper operating temperature
• More consistent oil flow and component protection

Typical applications for the XATS 250 KD8 towable air compressor

1. Construction and civil work

• Pavement breaking and demolition
• Rock drilling and anchoring
• Chipping, sanders, and other pneumatic hand tools

2. Abrasive blasting and surface preparation

• Steel and tank blasting
• Bridge and structural steel cleaning
• Concrete surface prep and coating removal

3. Pipeline, utility, and municipal work

• Line drying, purging, and leak testing
• Valve exercising and maintenance support
• General pneumatic tool operation in the field

4. Industrial backup and temporary air

• Short-term replacement during plant compressor outages
• Supplemental capacity during high-demand periods
• Emergency and disaster-response air supply

5. Rental and equipment fleets

• One machine that can be dispatched to a wide range of jobs
• Easy towing and quick hookups for different customers
• Simple controls, clear display, and robust design to handle varied operators

If you need a tow-behind diesel air compressor that delivers serious cfm, adjustable pressure, rugged construction, and low operating hassle, the Atlas Copco XATS 250 KD8 Towable Air Compressor is built to show up, hook up, and get straight to work.
