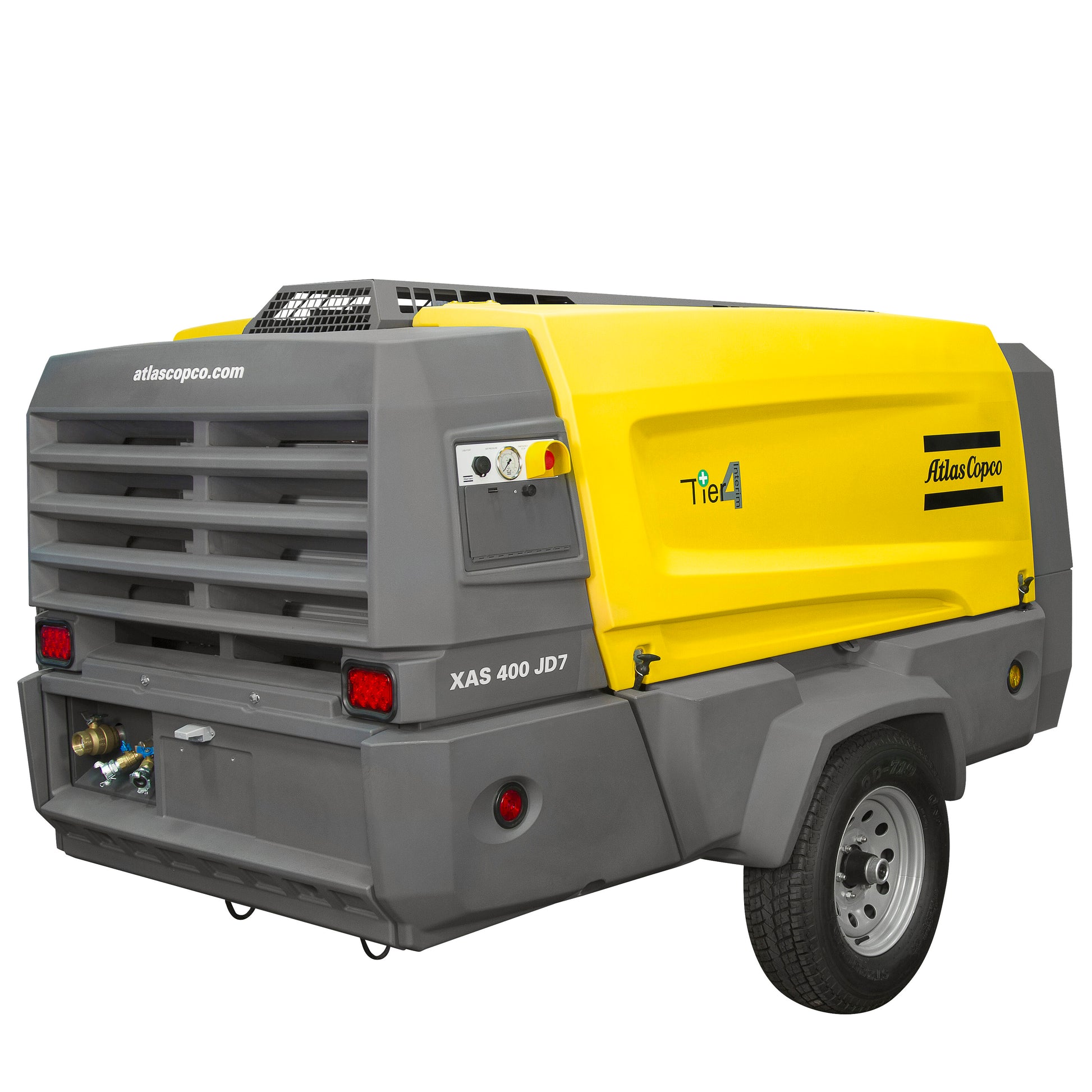

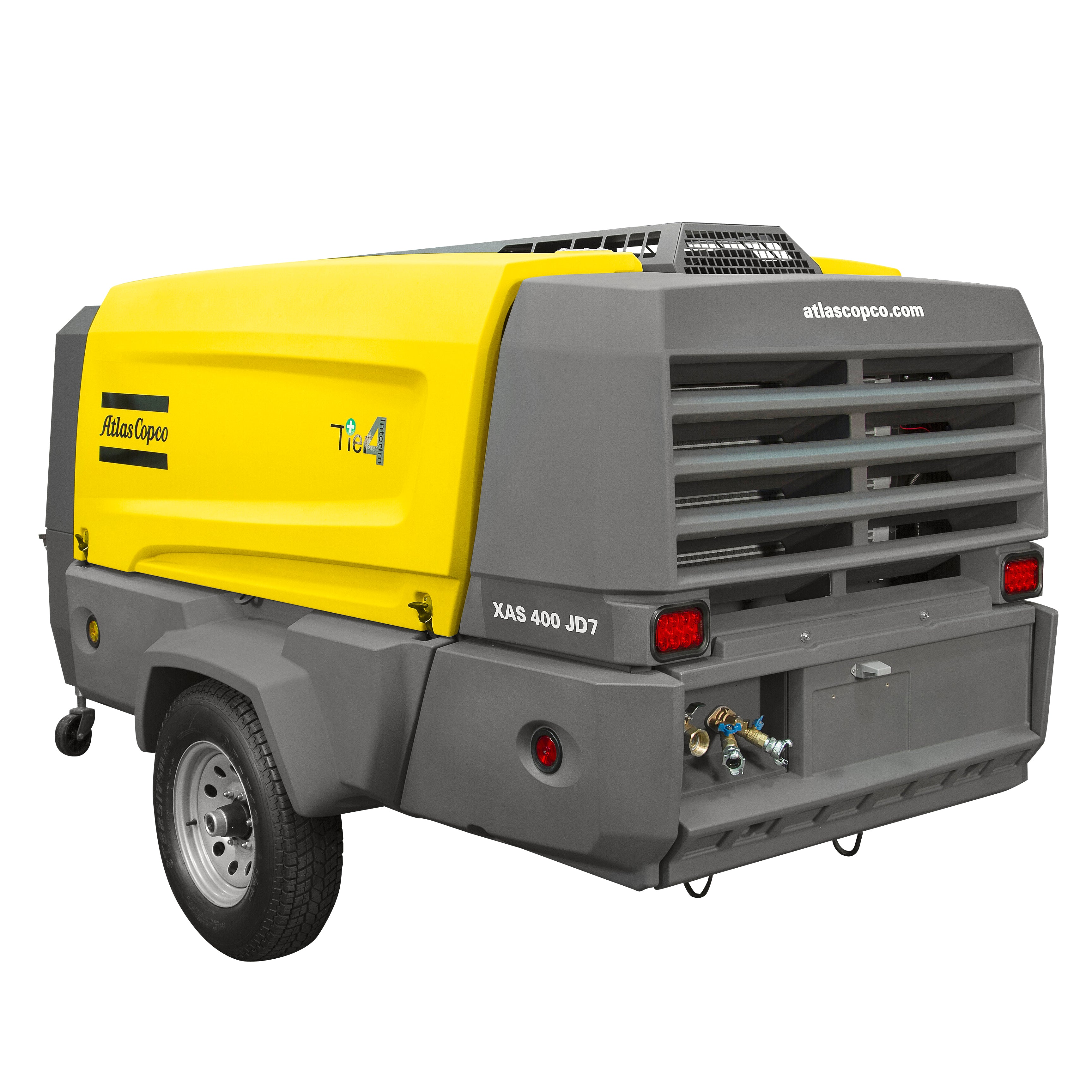

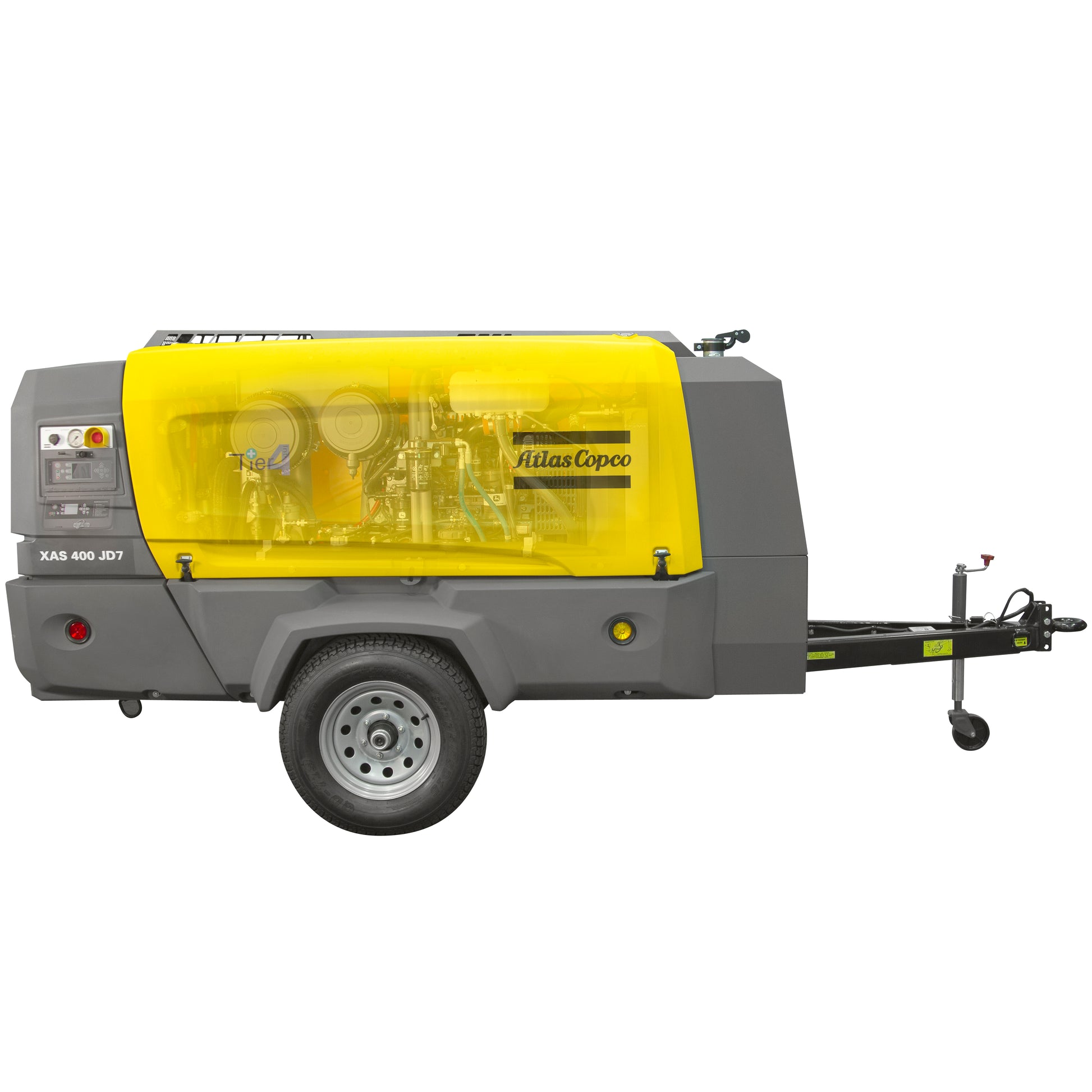

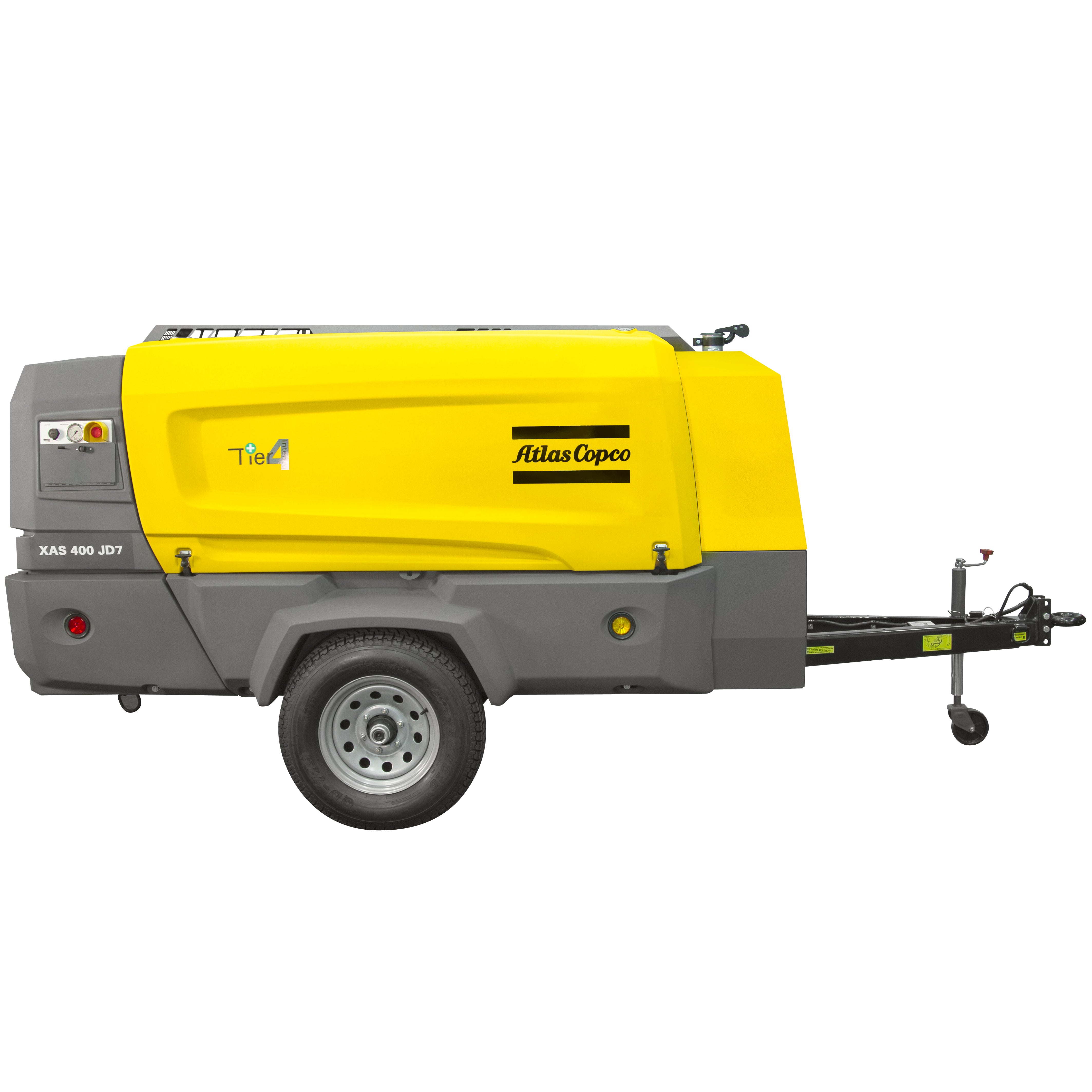

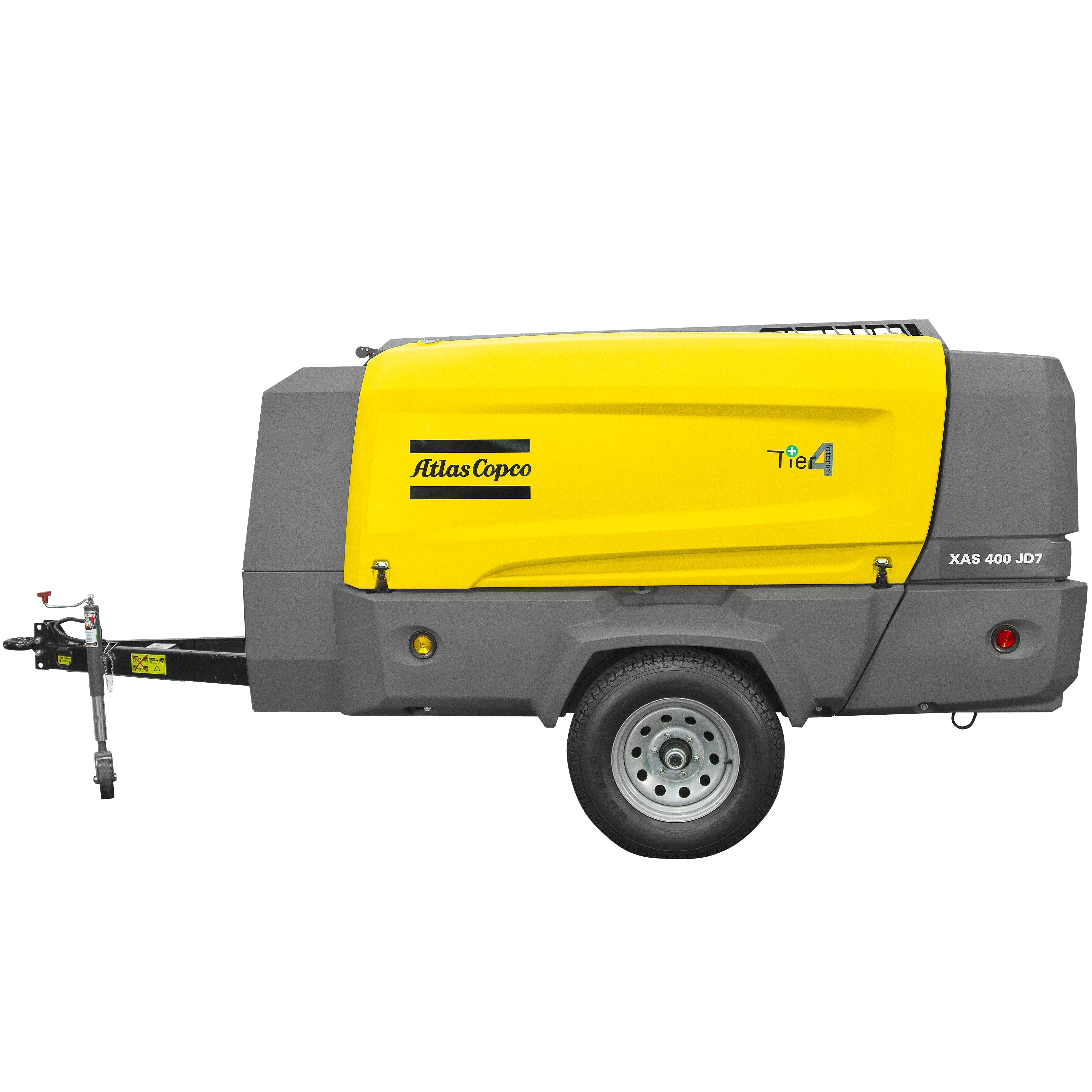

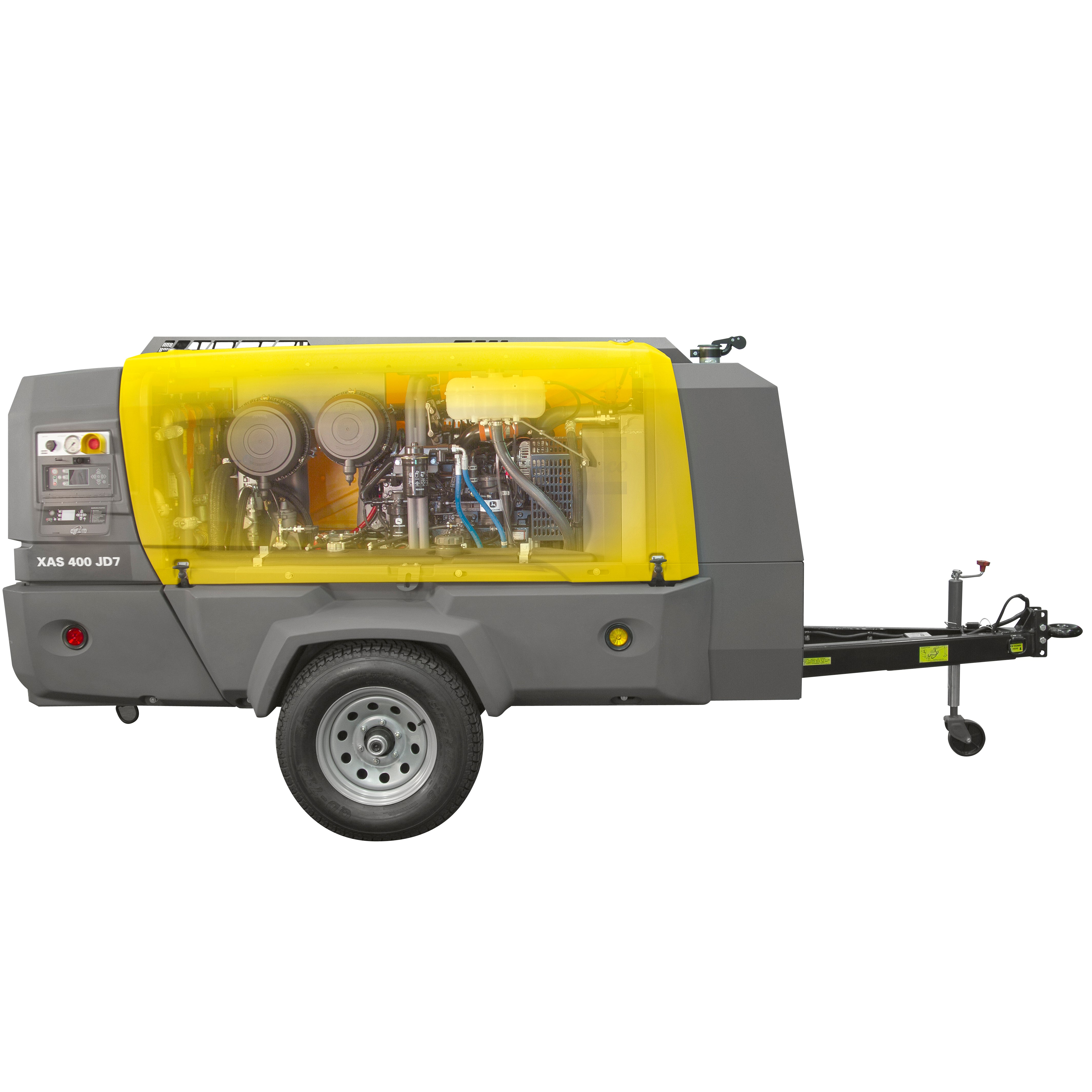

Atlas Copco XAS 400-150 PACE JD Towable Air Compressor

Atlas Copco XAS 400-150 PACE JD Towable Air Compressor – 410 CFM Portable Power for Demanding Jobsites

The Atlas Copco XAS 400-150 PACE JD Towable Air Compressor is built for contractors and industrial crews who need serious, reliable air in a mobile package. Delivering up to 410 CFM at 100 psi and 400 CFM at 150 psi, this trailer-mounted diesel compressor is ideal for abrasive blasting, drilling, heavy pneumatic tools, pipeline work, and demanding utility jobs where uptime, fuel efficiency, and flexibility actually matter.

Key performance highlights

• 410 CFM @ 100 psi, 400 CFM @ 150 psi
• Adjustable working pressure with PACE™ electronic control
• John Deere 4045EWL Tier 4 Final diesel with DOC/SCR only (No DPF)
• 5-year limited engine warranty from John Deere
• Thermostatic bypass valve on compressor oil system
• Synthetic compressor oil standard
• XC2003 controller with full monitoring and protection
• 2 × ¾" and 1 × 1½" compressed-air outlets for flexible hose setups
• Towable single-axle undercarriage with electric brakes and 15" wheels
• 120V / 1000 W engine block heater for cold-weather starts

This is the towable version of the XAS 400-150 PACE JD, configured from the ground up for road transport and regular moves between jobsites.

PACE™ technology – one towable unit, multiple pressure settings

The “PACE” system (Pressure Adjusted through Cognitive Electronics) turns the XAS 400-150 into a multi-pressure, multi-flow workhorse. Instead of being locked into a single pressure range, operators can configure the compressor to match the exact requirements of the tools on the hose.

How PACE works for you:

1. Set the working pressure at the controller
   Use the XC2003 interface to choose your setpoint in a few quick steps. No manual tweaking or guessing.
2. Fine-tune in small increments
   Pressure can be adjusted in tight steps (e.g., 2 psi increments), letting you dial in exactly what your application needs instead of wasting fuel running higher than necessary.
3. Switch tasks without changing machines
   Move from blasting to heavy tools or general air use with the same towable compressor, simply by changing the pressure setting on the controller.

Result: one trailer-mounted machine can cover the work of multiple single-pressure compressors, improving fleet utilization and cutting capital cost.

John Deere 4045EWL Tier 4 Final – strong, clean, and proven

Power comes from a John Deere 4045EWL Tier 4 Final diesel engine, using DOC/SCR aftertreatment with no DPF. That means:

• No particulate filter regeneration cycles
• Less complexity for operators
• Reduced risk of unplanned downtime from DPF issues

Key engine-side benefits:

• 5-year limited John Deere warranty for added peace of mind
• Heavy-duty battery for consistent starting performance
• Thermostatic bypass valve on the compressor oil system to maintain proper oil temperature and lubrication
• 120V 1000 W block heater to ensure smooth starting in cold climates

The combination of the John Deere engine and Atlas Copco screw element is optimized for low fuel burn at both part-load and full-load, reducing cost per hour of compressed air.

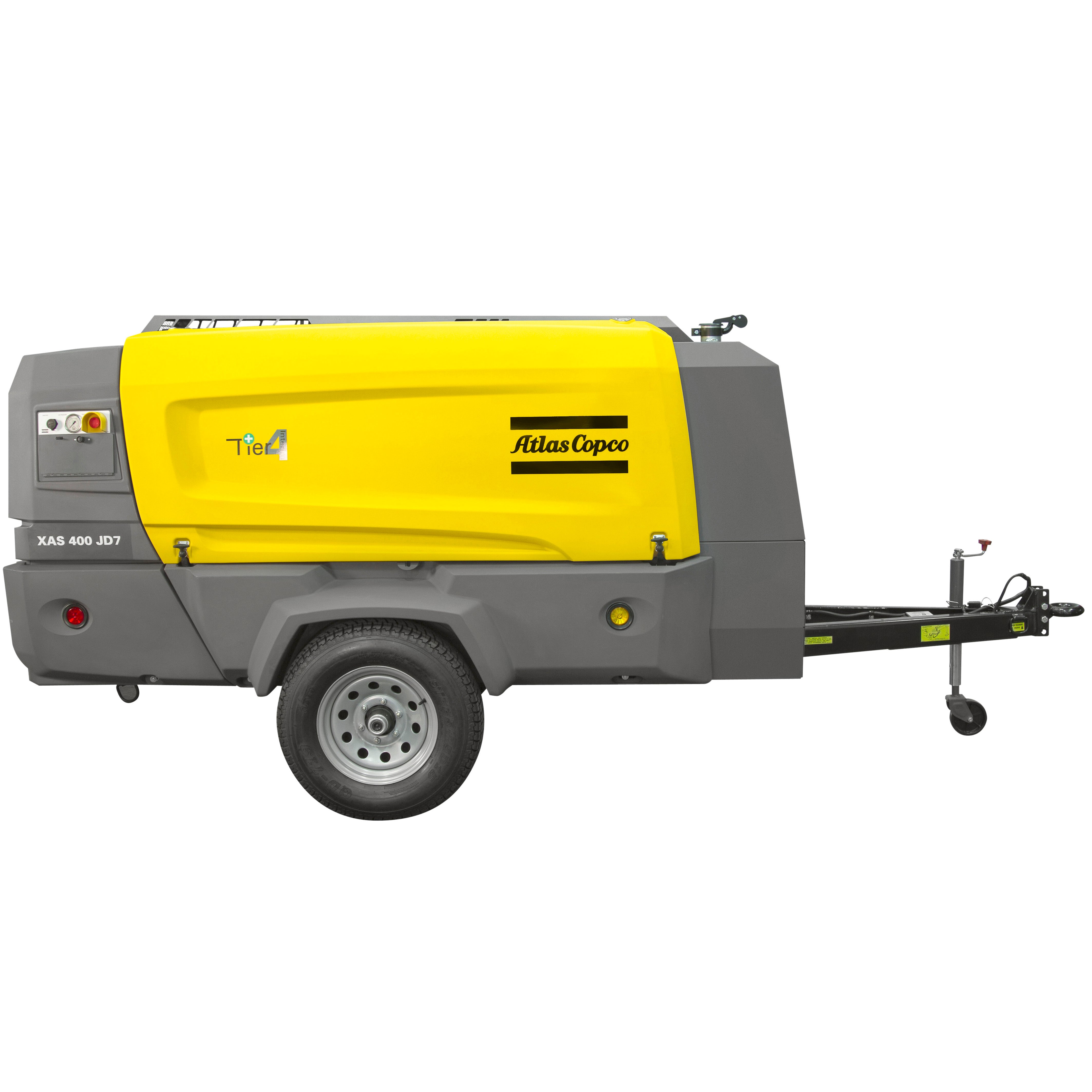

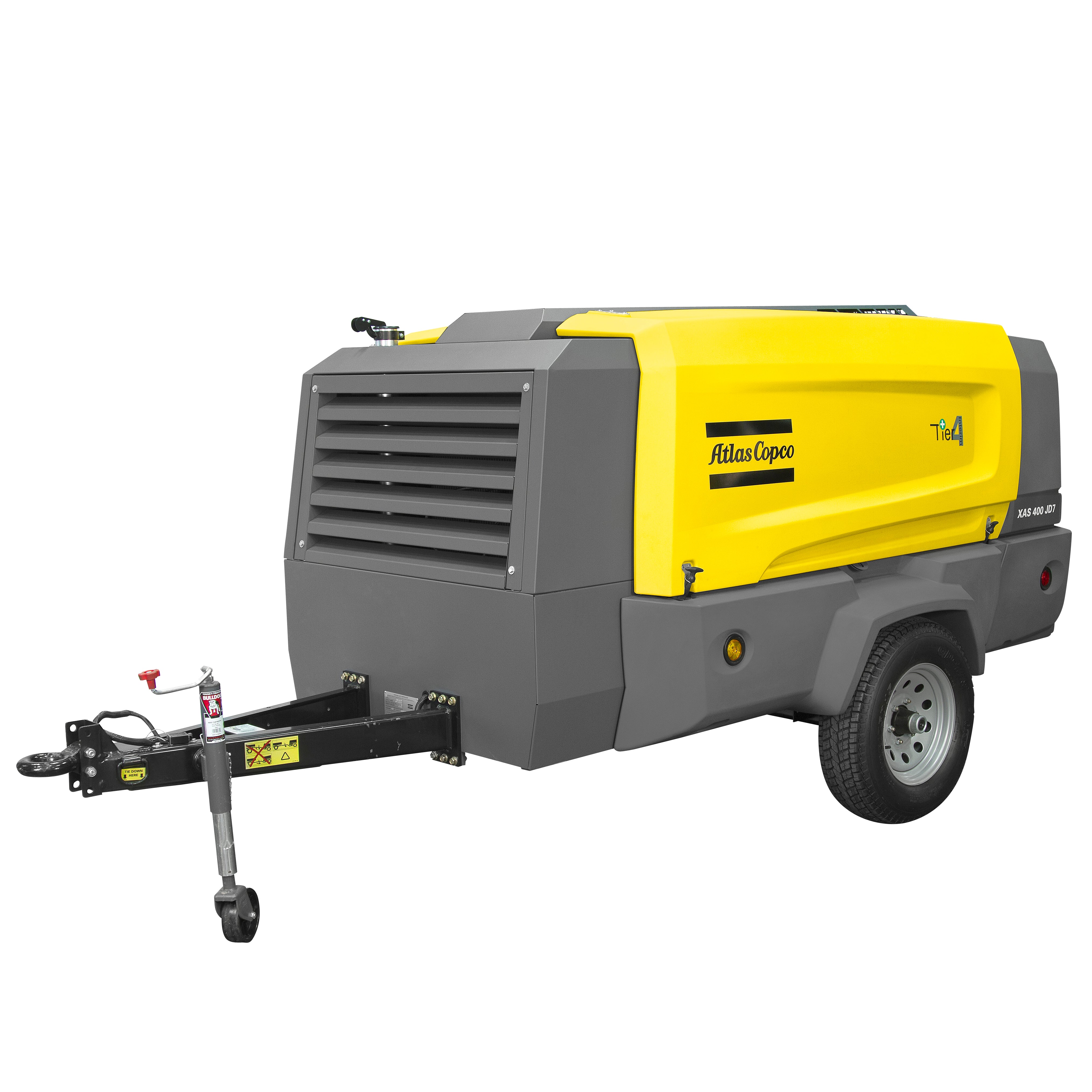

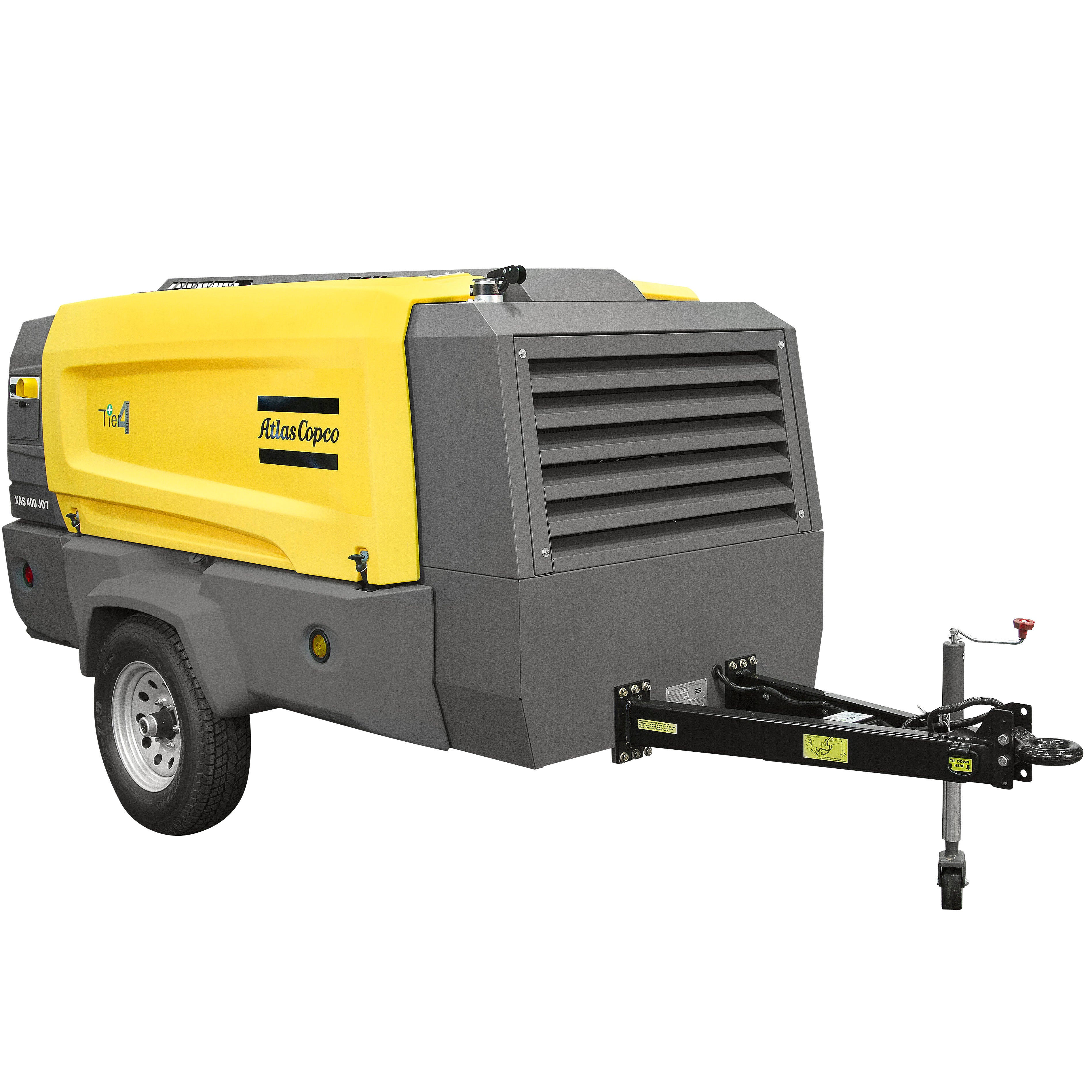

Trailer-mounted, jobsite-ready mobility

This description applies only to the towable configuration of the XAS 400-150 PACE JD, not the deck-mounted version.

The tow package is designed to be fully road-legal and easy to move:

• DOT-approved towing setup
• Road lights with 7-pin RV style plug
• Adjustable 3" pintle towing hitch to fit common tow vehicles
• 15" wheels on a torsion axle for controlled, stable towing
• Electric brakes for confident stopping with a loaded trailer
• Support leg / jack to stabilize the unit when uncoupled
• A-frame drawbar for strength and predictable tracking

The overall package provides a stable, maneuverable trailer that can be moved between jobsites daily without drama.

110% fluid containment and rugged construction

On industrial and environmentally sensitive sites, fluid containment is non-negotiable. The XAS 400-150 PACE JD towable unit includes:

• Spill-free frame kit engineered for 110% fluid containment
• Containment for engine oil, compressor oil, coolant, fuel, and DEF in the event of a leak

Combined with synthetic compressor oil as standard, the unit is ready for jobsites with strict environmental requirements, helping you stay within regulations and avoid fines.

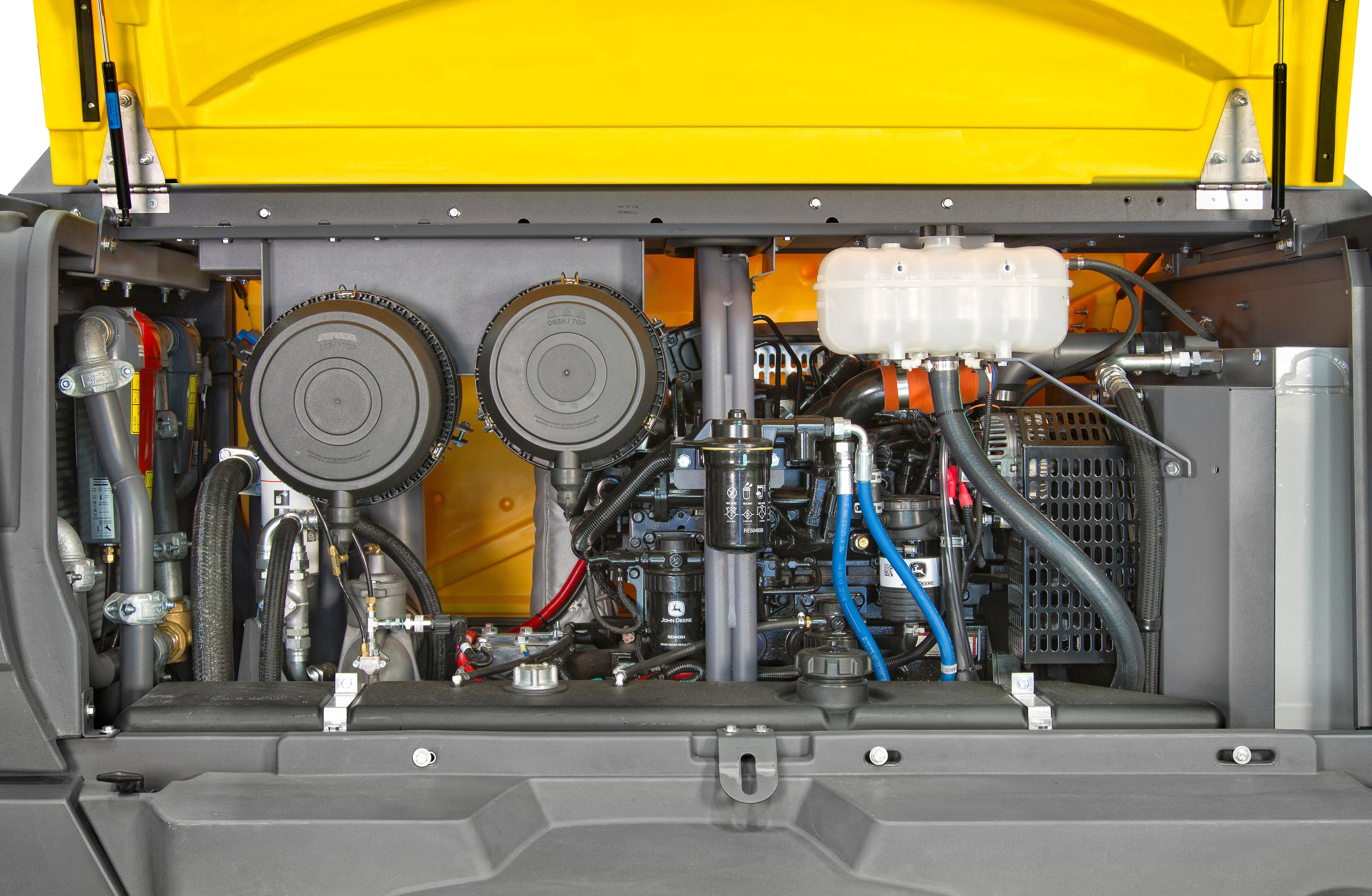

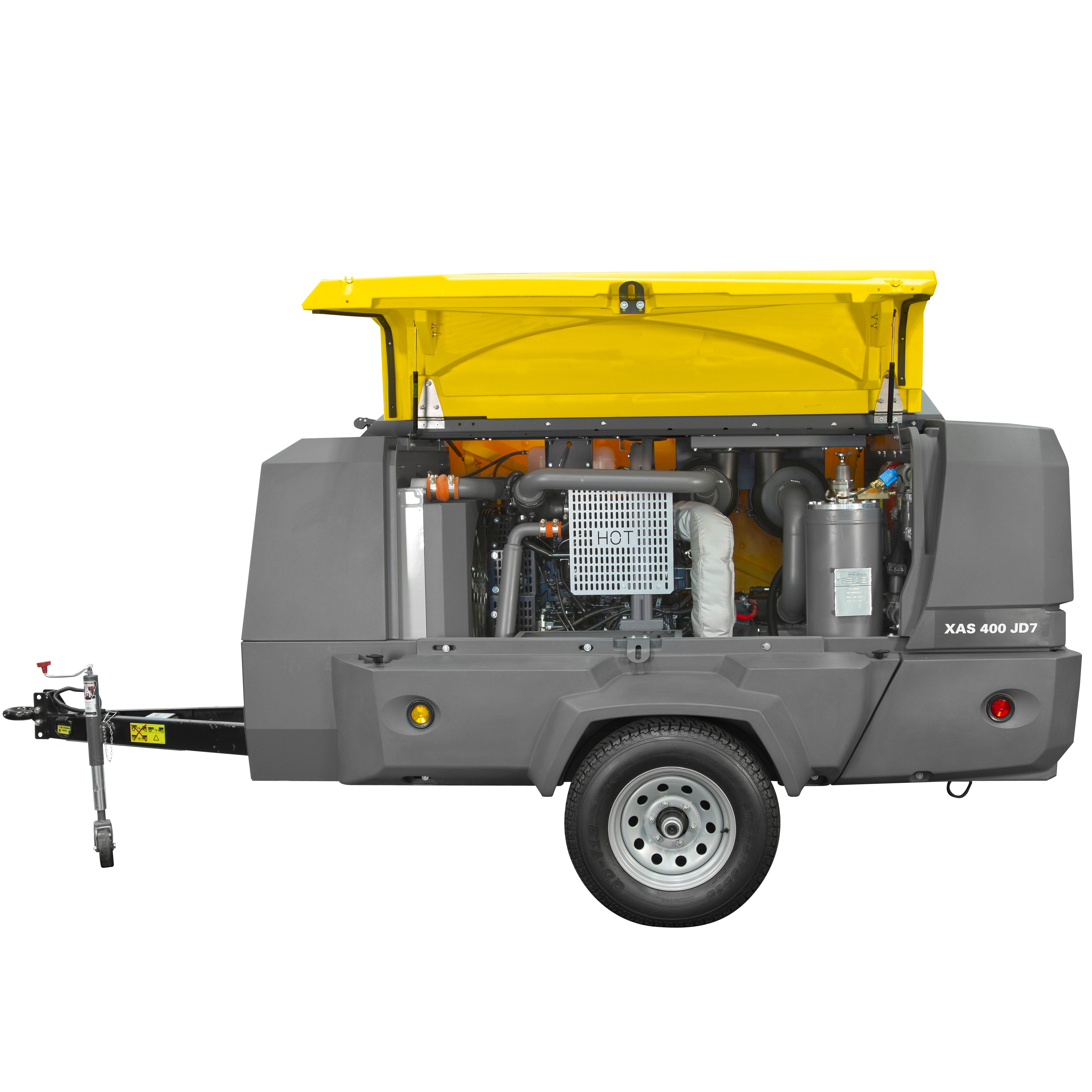

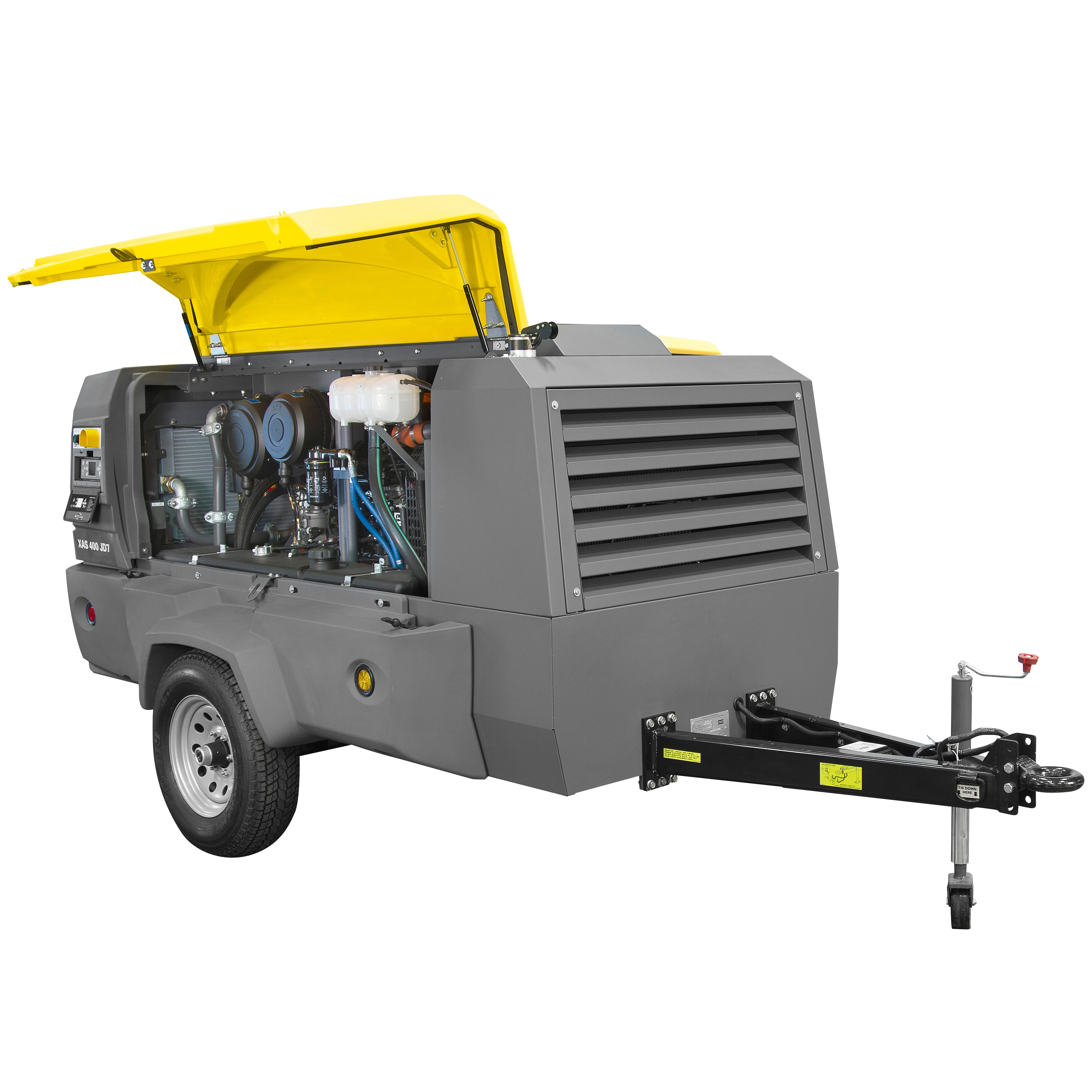

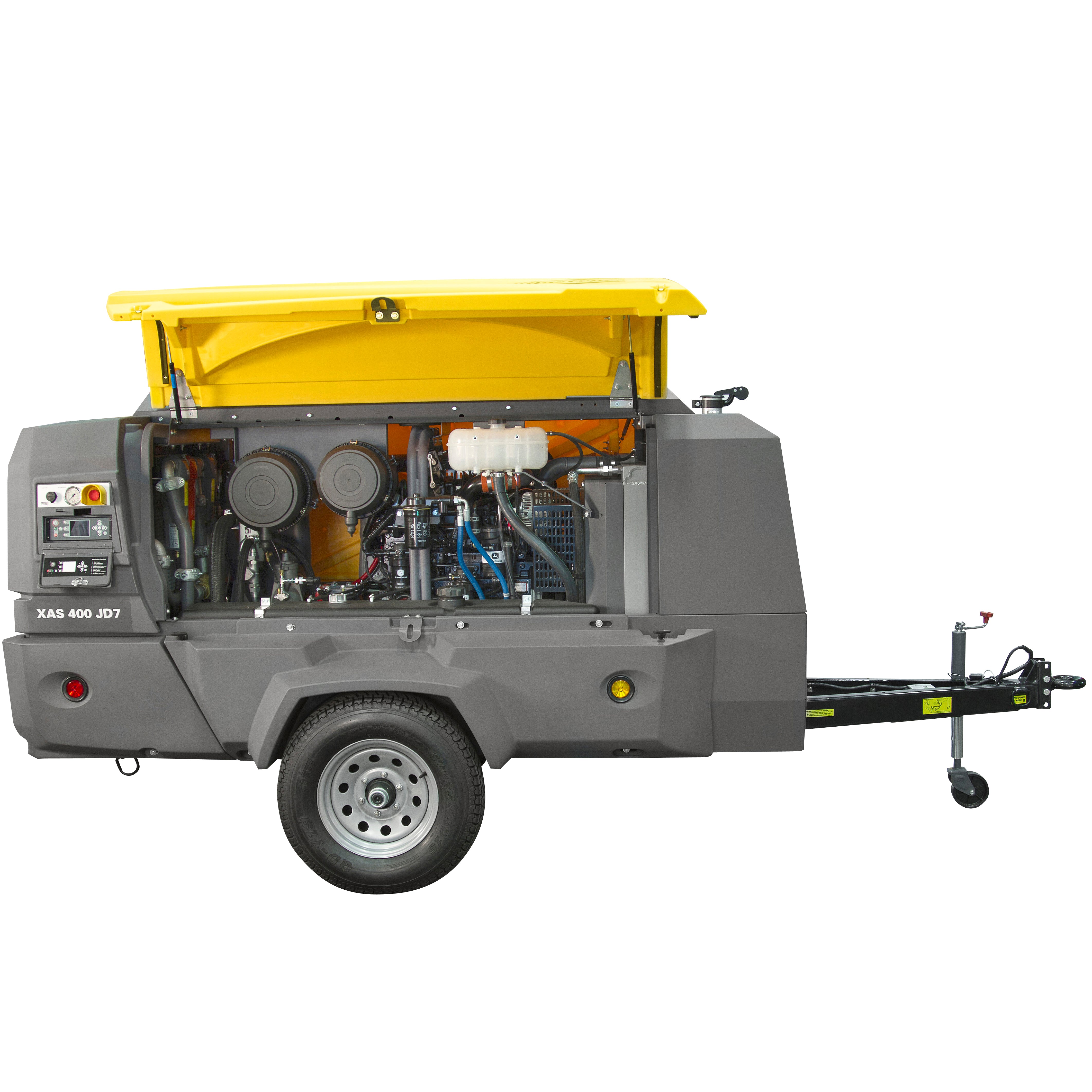

The frame and canopy are designed for real-world abuse: impacts, weather, and rough handling. Large service doors give access while still protecting internal components from damage.

Smart control and simplified maintenance

The XC2003 controller is the operator’s interface and the compressor’s safety net. It continuously monitors key operating parameters and alarms or shuts down the unit when necessary to prevent damage.

Operator and technician advantages:

• Clear display of pressure, engine parameters, operating hours, and warnings
• Built-in diagnostics to help trace issues quickly
• Logical menu system to adjust PACE pressure settings and view machine status
• Grouped service points on one side for faster preventive maintenance
• Spin-on style filtration and accessible components to keep service time low

Less time spent working on the machine means more time charging for air on the hose.

Built for tough conditions

The towable XAS 400-150 PACE JD is designed to keep working in harsh environments:

• Robust undercarriage and frame for rough, uneven ground
• Protected outlet manifold and controls to avoid damage during transport
• High ground clearance to reduce the risk of dragging or getting hung up
• Noise levels engineered to meet typical construction and urban site requirements

Whether it’s a blasting yard, pipeline spread, refinery turnaround, or general construction site, this compressor is built to live outdoors and be towed from job to job.

Ideal applications for the XAS 400-150 PACE JD Towable

• Abrasive blasting and surface preparation
• Medium to heavy rock drilling and utility work
• Large impact wrenches, demolition tools, and breakers
• Industrial plant maintenance and general compressed-air supply
• Rental fleets needing a versatile 400 CFM towable compressor

If you’re looking for a towable 400+ CFM diesel air compressor that can adapt to multiple pressure requirements, hold up to serious jobsite abuse, and stay efficient over long shifts, the Atlas Copco XAS 400-150 PACE JD Towable Air Compressor is built for exactly that.
