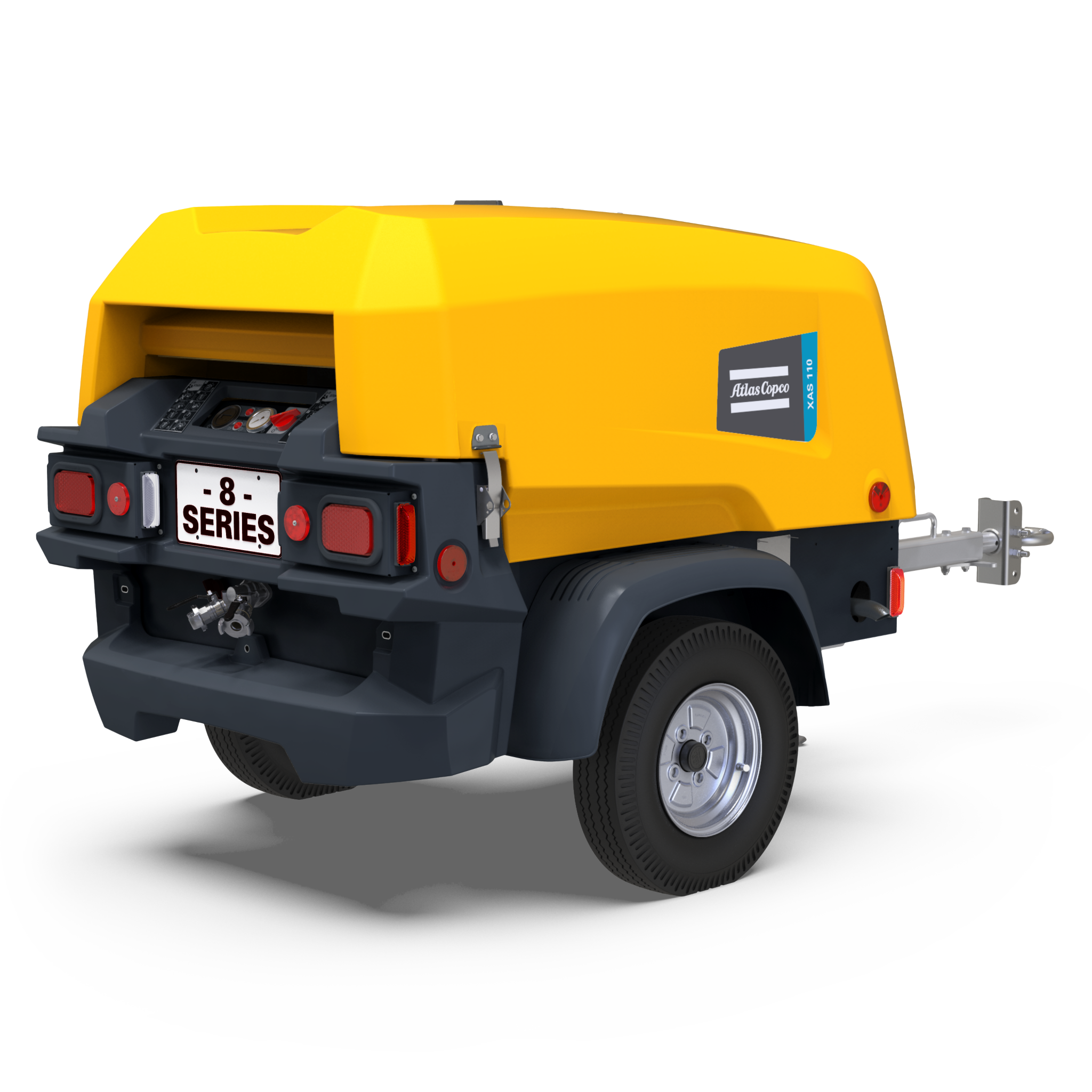

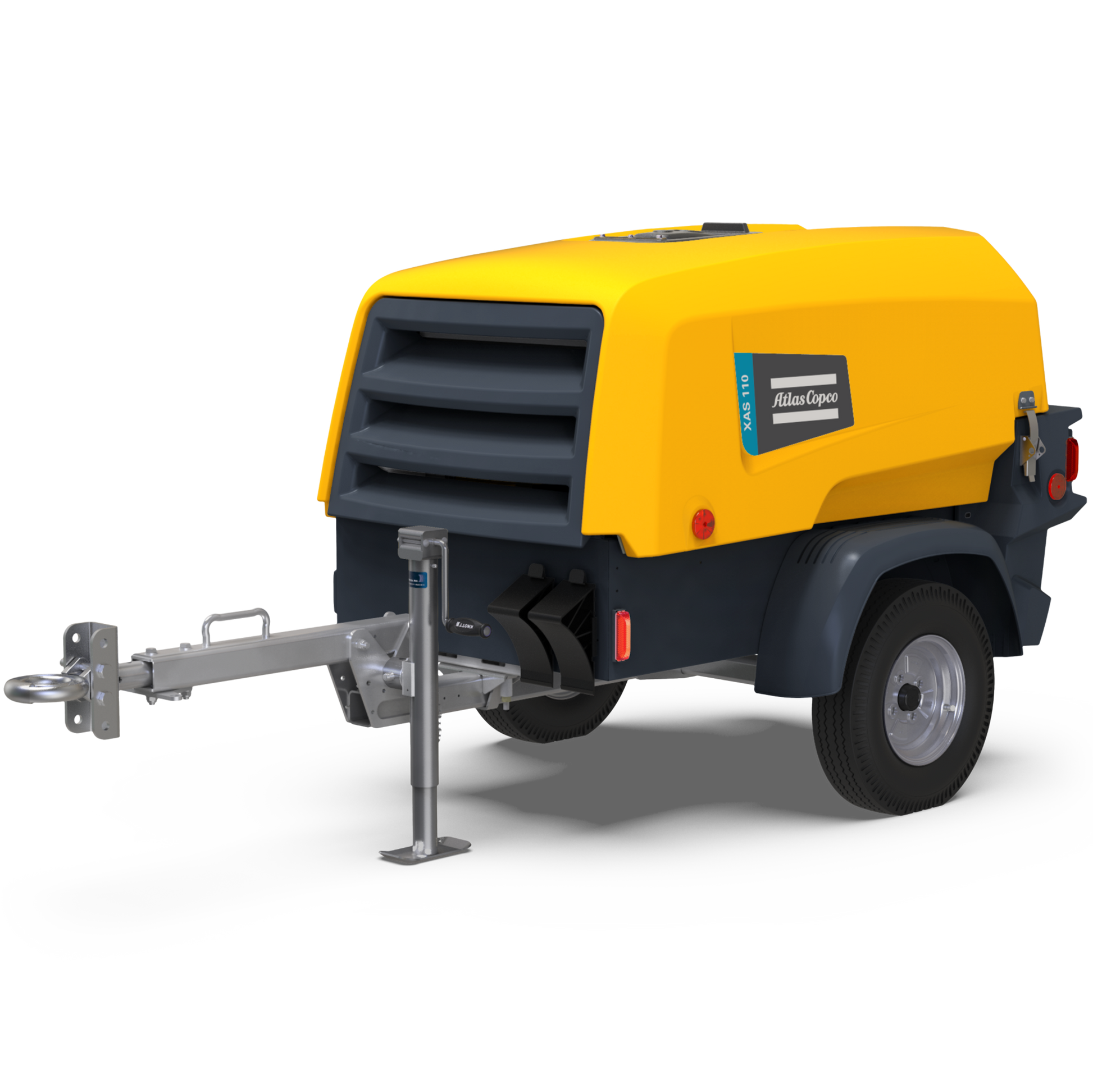

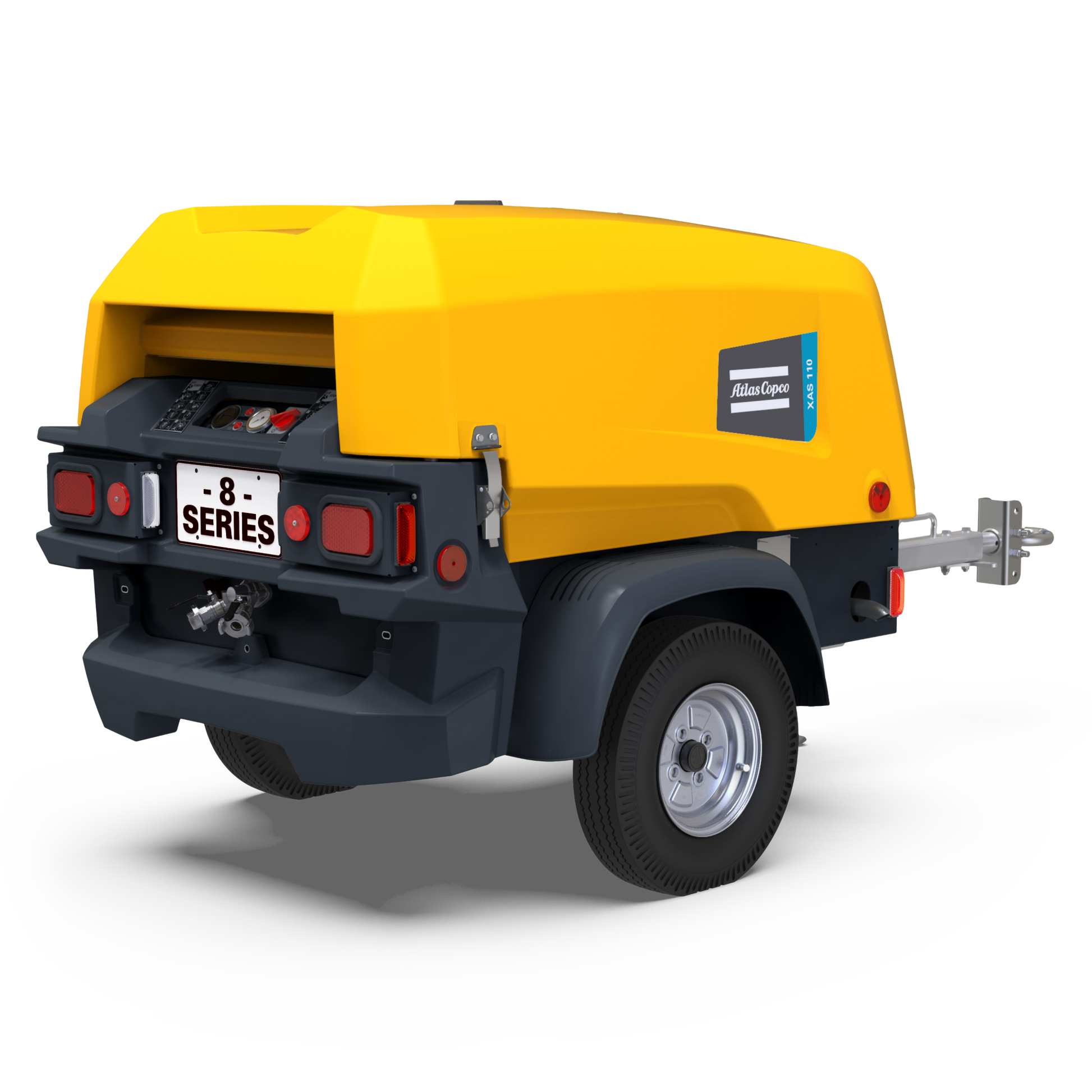

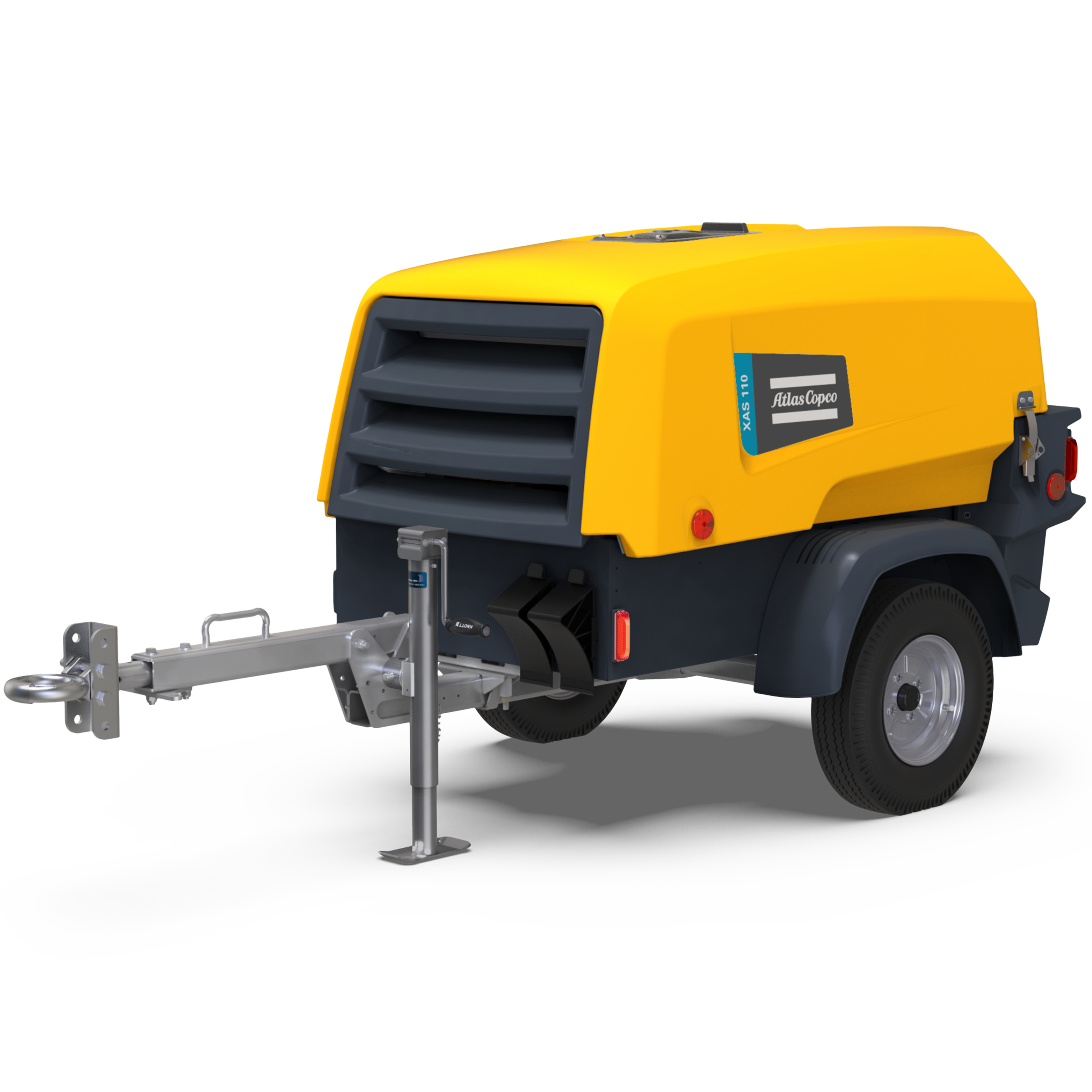

Atlas Copco XAS 110 KD8 Towable Air Compressor

Atlas Copco XAS 110 KD8 Towable Air Compressor – Compact Power, Jobsite Ready

The Atlas Copco XAS 110 KD8 is a towable, single-stage, oil-injected rotary screw air compressor engineered for contractors who need reliable 110 CFM air on the move. Powered by the proven Kubota D902 Tier 4 Final 25 hp diesel, this compact unit delivers 100 PSI working pressure (adjustable across a broad range) in a footprint light enough for everyday towing behind a standard work truck.

Designed around Atlas Copco’s C67 screw element, the XAS 110 KD8 combines high air output with low fuel burn, translating to lower operating cost per shift and less time spent refueling on site.

Key Performance Specs at a Glance

• Free air delivery: up to 110 CFM at 100 PSI, with an operating range roughly 58–125 PSI for flexible tool compatibility.
• Engine: Kubota D902, 3-cylinder, Tier 4 Final, ~25 hp mechanical diesel, designed for durability and easy service.
• Fuel tank capacity: approximately 7+ gallons, sized for a full workday at typical load.
• Noise level: around 70 dBA class at 7 m, helping meet strict urban and industrial sound requirements.
• Weight & size: roughly 1,100 lb wet, with a compact footprint that’s easy to maneuver and store.

Spill-Free, Jobsite-Safe Design

The XAS 110 KD8 is built around a 110% spillage-free containment frame with remote drains, so oil, coolant and fuel stay inside the machine and off the ground, even in the event of a leak. That helps protect soil, simplify environmental compliance, and keep you in good standing on sensitive industrial or municipal sites.

A rugged polyethylene HardHat® canopy shrugs off impacts, corrosion and jobsite abuse while keeping noise down and critical components protected. Underneath, a heavy-duty undercarriage made from a single sheet of steel with a three-layer anti-corrosion paint system resists rust and extends useful life, preserving resale value.

Add in a fail-safe lifting beam tested to multiple times machine weight, heavy-duty tires and a thermostatic bypass valve to maintain correct operating temperature, and you get a towable compressor that’s ready for real-world abuse, not just spec sheets.

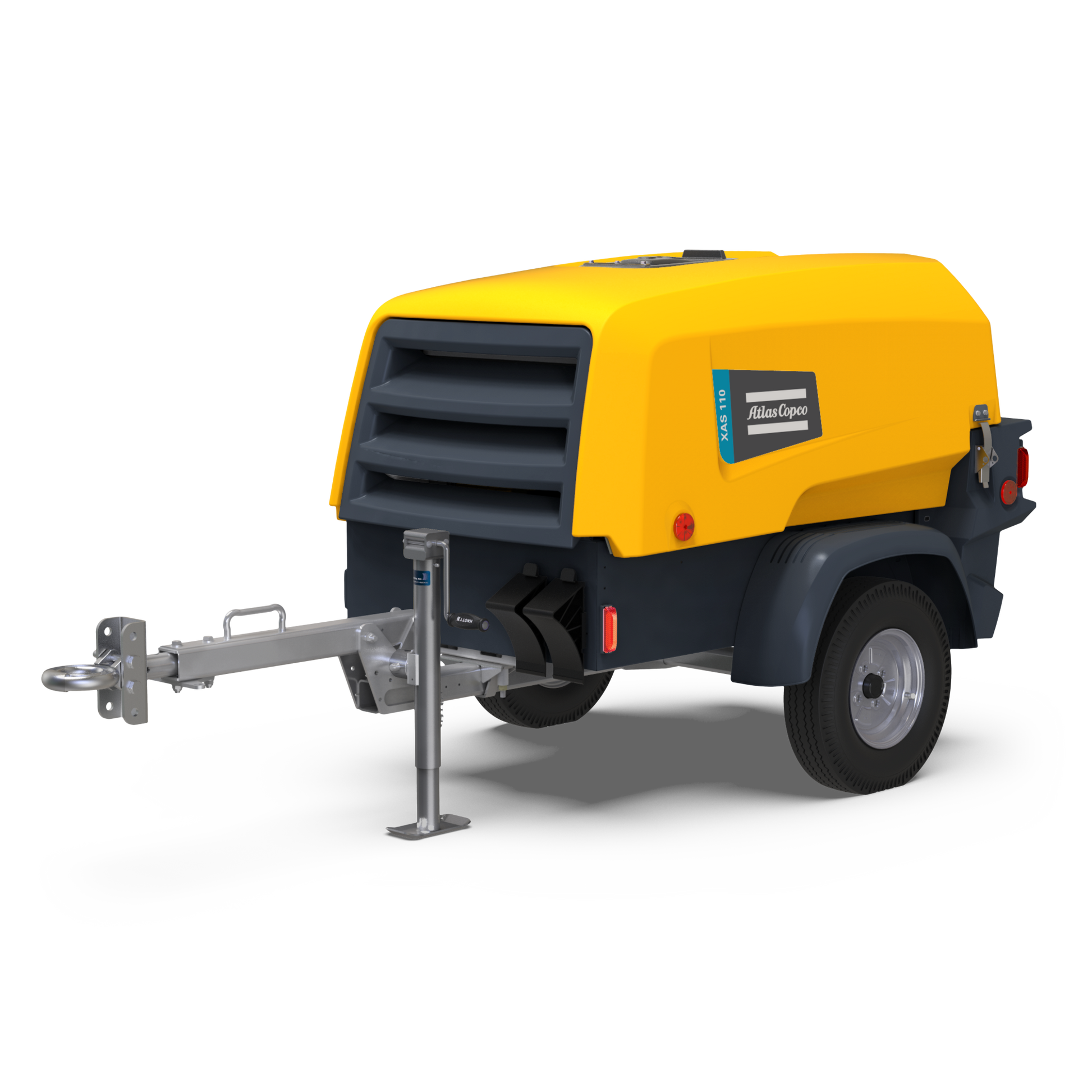

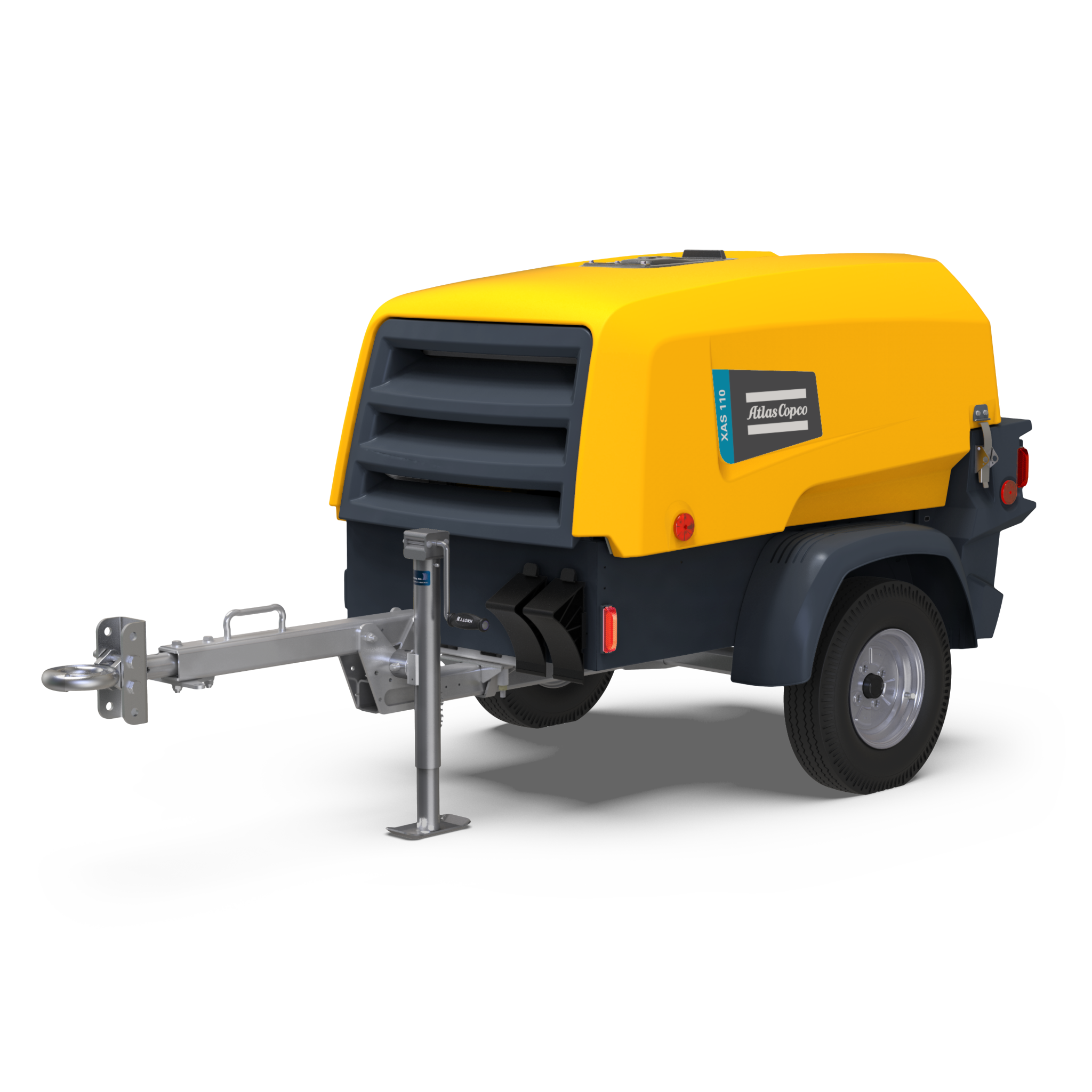

DOT-Approved Tow Package

Every XAS 110 KD8 ships with a North-American-spec DOT towing setup, so it’s ready to hook up and go:

• 3" pintle towing hitch with fixed towbar designed around standard work trucks
• Heavy-duty torsion axle for stable towing at highway speeds
• VIN tag and adjustable jack stand
• Road-legal lighting with 4-way flat plug
• No-brake configuration for simple, low-maintenance operation

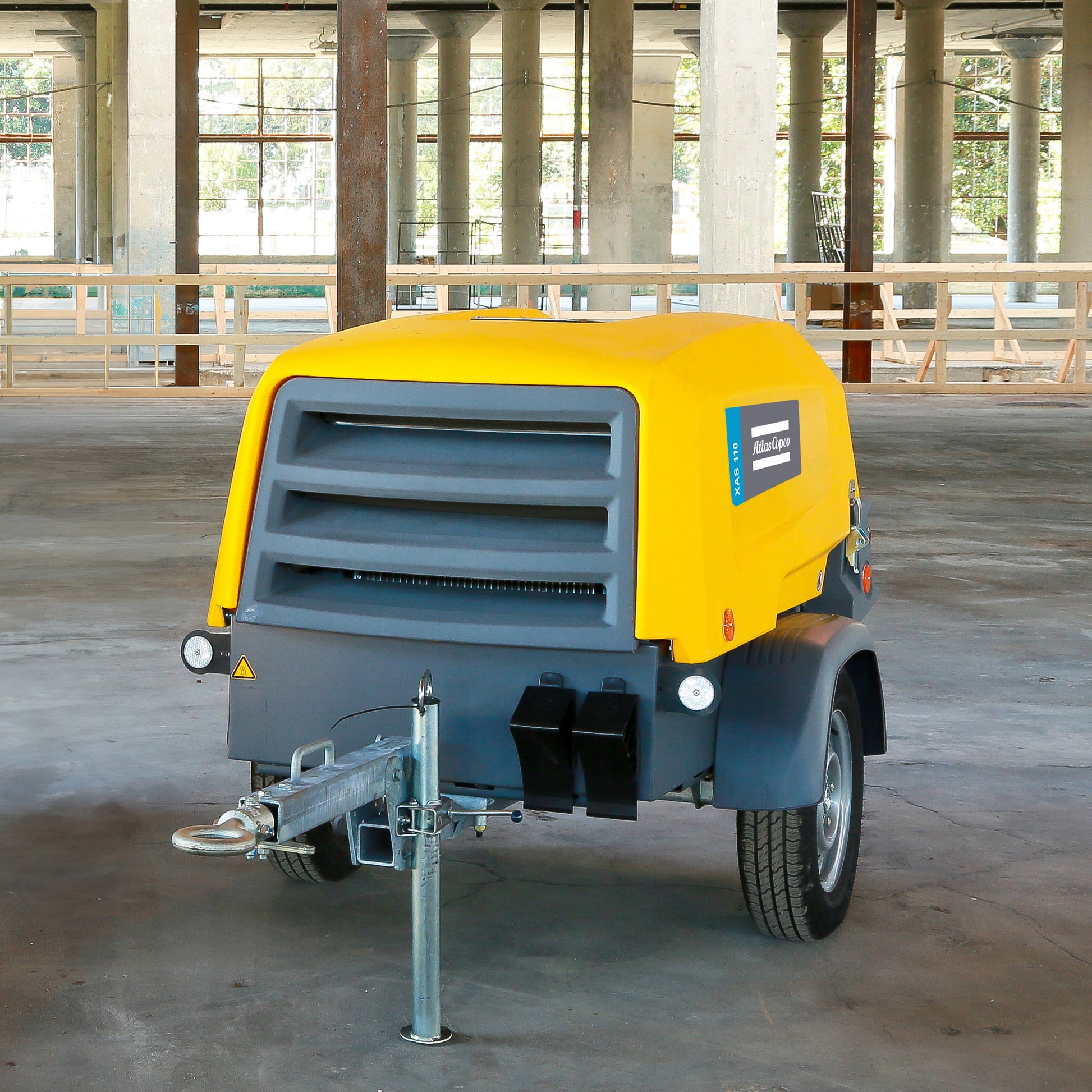

This small towable compressor is easy to maneuver into alleys, plant yards and tight industrial spaces while still giving you the air you need for serious tools.

Fast, No-Drama Starting and Intelligent Protection

Downtime kills profitability, so the XAS 110 KD8 is engineered to fire up and stay running:

• Anti-airlock fuel system helps guarantee reliable starting even after filter changes or when fuel has been run low.
• Starter motor protection system and electrical shut-off/lock-out switch help prevent accidental damage from improper cranking or unauthorized use.
• Engine and compressor are protected by monitored temperature and pressure systems designed to shut the unit down safely if anything goes out of range.

Simple Service – Lower Cost of Ownership

The XAS 110 KD8 is laid out so one tech can service it quickly with basic tools. The centralized draining point and remote drains give easy access to all fluids, letting you safely drain oil, coolant, and fuel from a single area.

Key serviceability features include:

• Spin-on compressor oil filter, engine oil filter and separator element
• Easy-clip engine and compressor air filters
• Wide-opening canopy for full access to the C67 air end and Kubota engine
• Clearly grouped filters and fill points to minimize mistakes and speed preventative maintenance

All of this means faster 250- and 500-hour services, less time in the shop, and more billable hours on the job.

Top Applications for the XAS 110 KD8

This towable diesel compressor is sized perfectly for single-tool or tool + dust collector setups and general construction work.

Common uses include:

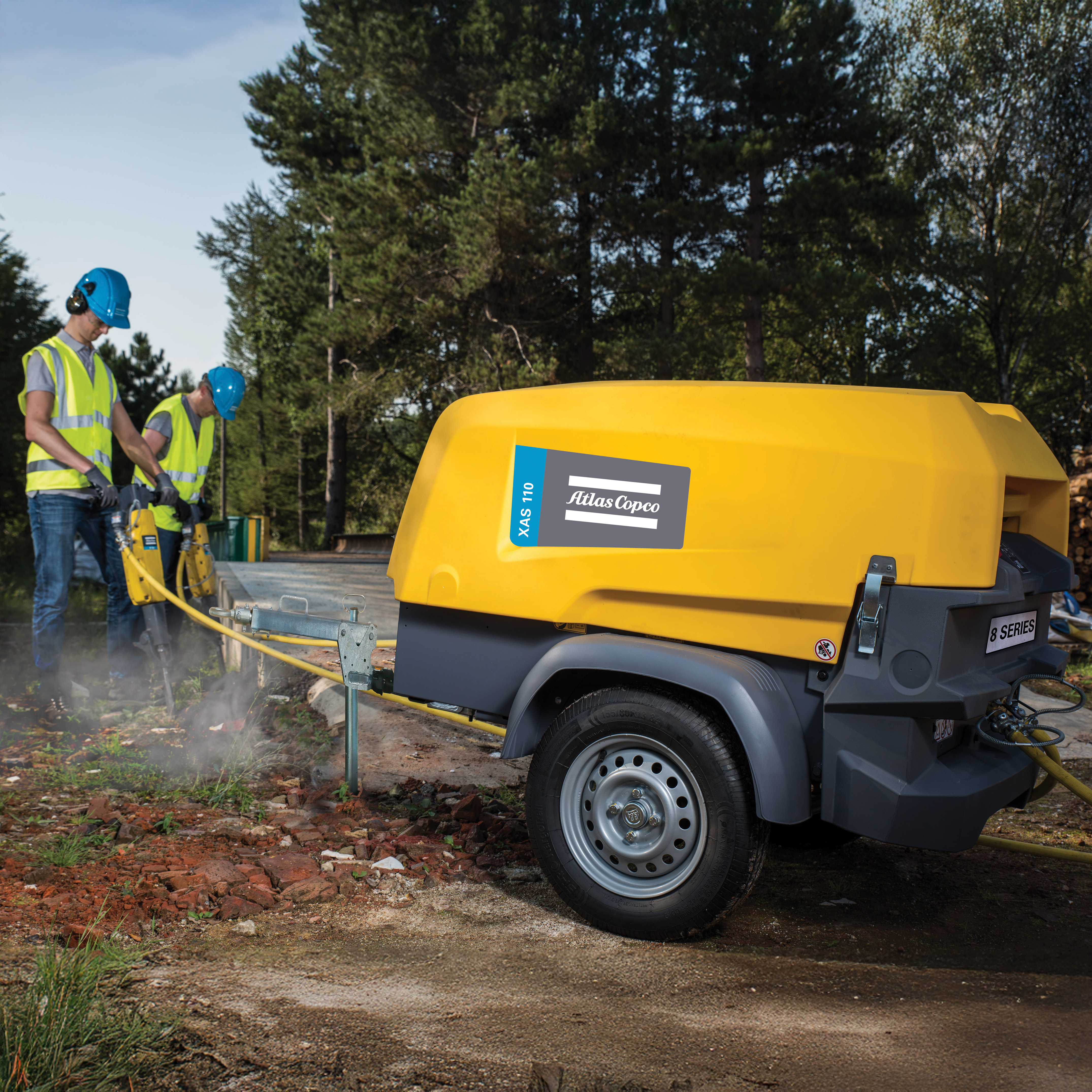

• Pavement breaking, chipping hammers and rock drills
• Sandblasting and surface prep, including silica-compliant blasting when paired with a suitable dust collector
• Industrial plant maintenance and pipeline work
• Utility, road and bridge maintenance crews
• Rental fleets needing a compact, easy-to-tow compressor that first-time renters can handle

Three Reasons Contractors Choose the XAS 110 KD8

1. Right-sized air output
   110 CFM at 100 PSI covers the majority of 90 lb breakers and sandblast pots without jumping to a heavier, thirstier compressor.
2. Real environmental protection
   110% spill-free containment and remote drains help keep sites clean and make it easier to comply with industrial and municipal regulations.
3. Low total cost of ownership
   A fuel-efficient Kubota diesel, long service intervals, spin-on filters and a corrosion-resistant HardHat canopy all work together to keep lifecycle costs down and resale value up.

If you need a compact, tow-behind rotary screw compressor that can handle serious tools, survive harsh jobsites, and stay economical to own, the Atlas Copco XAS 110 KD8 Towable Air Compressor is built to deliver.
