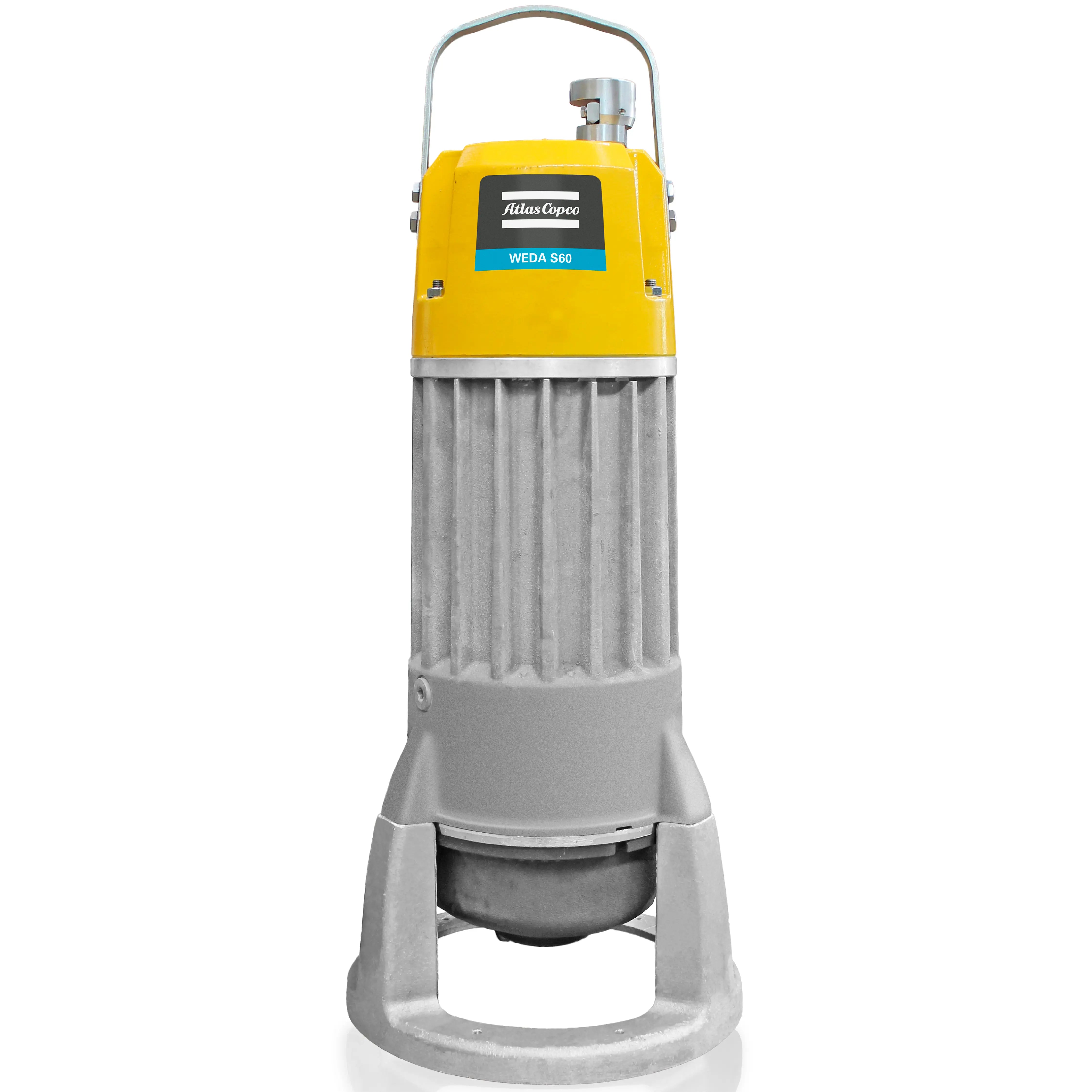

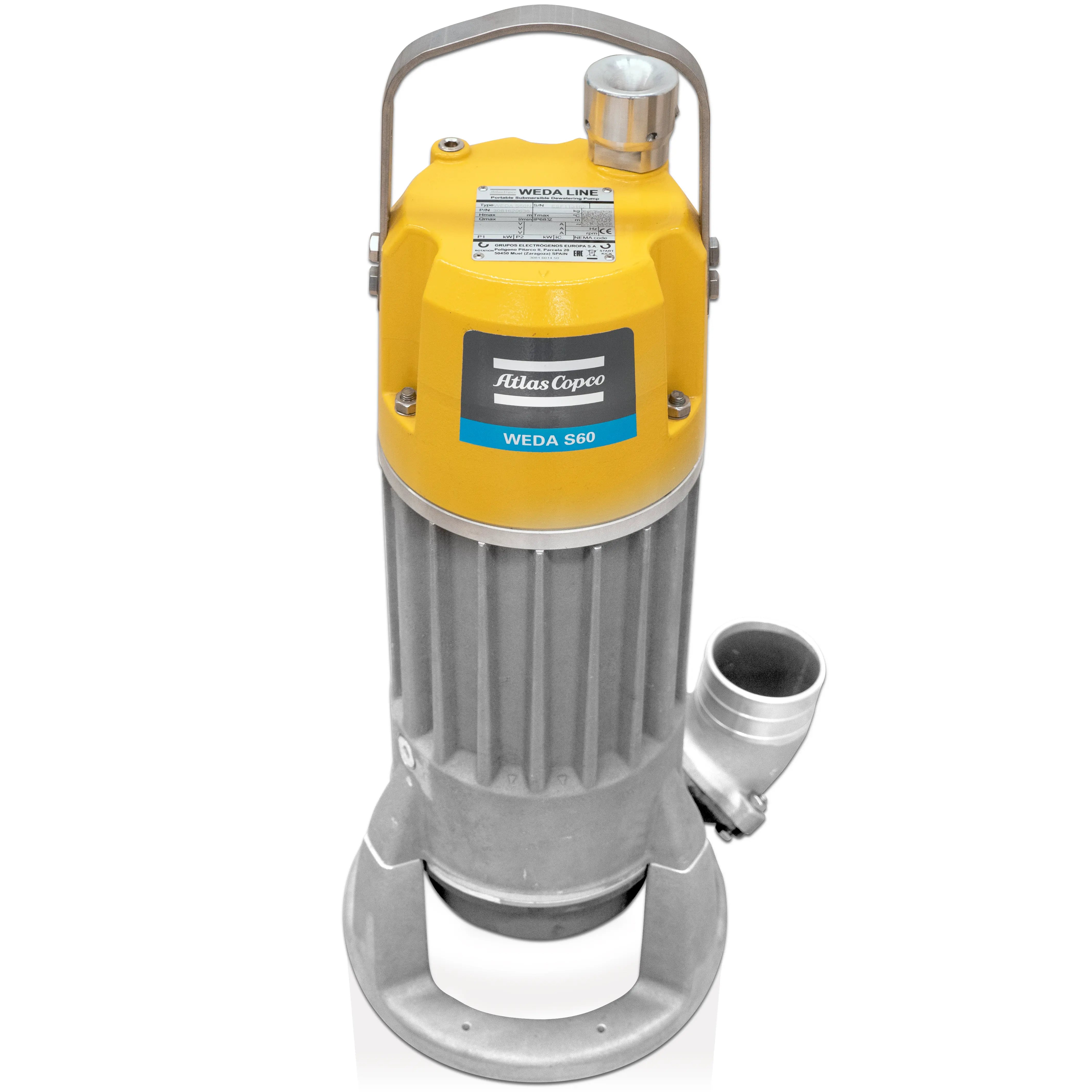

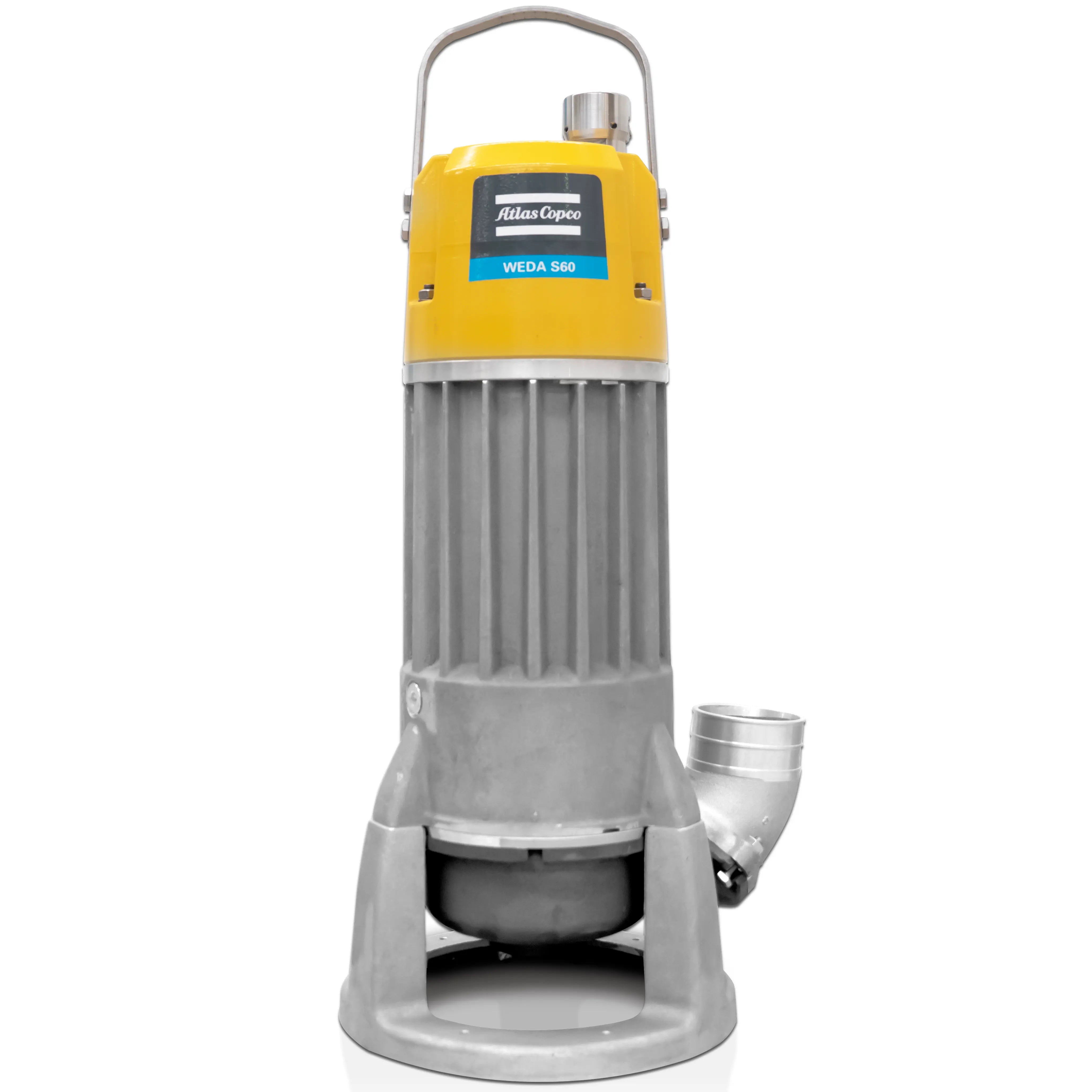

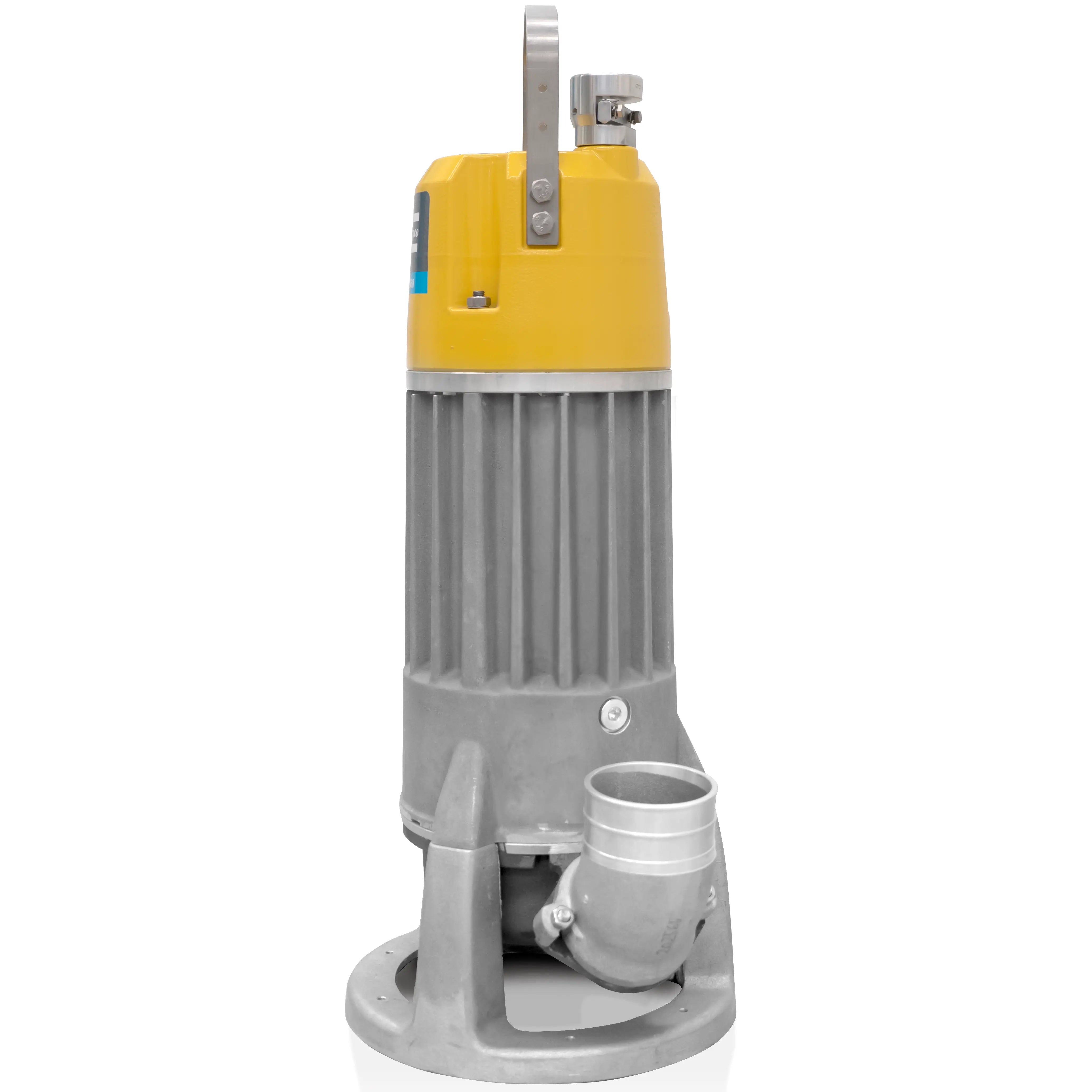

Atlas Copco WEDA S60N | Heavy-Duty Submersible Sludge Pump — 9.3 HP, 460V 3-Phase, 420 GPM, 4" Discharge

9.3 HP. 97 feet of head. 420 gallons per minute. 2-inch solids passage. The Atlas Copco WEDA S60N is the flagship of the WEDA Sludge family — the model you reach for when the application has outgrown a standard submersible dewatering pump but isn't quite large enough to justify the L-series slurry units. It's the most-installed industrial sludge pump in North American mining and heavy civil work, and for good reason: the hydraulic envelope covers an enormous range of real-world dewatering and sludge-transfer applications.

Specifications at a Glance

What 420 GPM Actually Means in Practice

To put 420 gpm in perspective: a single S60N can empty an Olympic-sized swimming pool of muddy water in under three hours. It can keep up with the inflow of most construction-grade trench dewatering jobs without needing a parallel backup. And because the impeller passes 2-inch solids, it doesn't care whether that water is clean, muddy, or carrying gravel and organic debris.

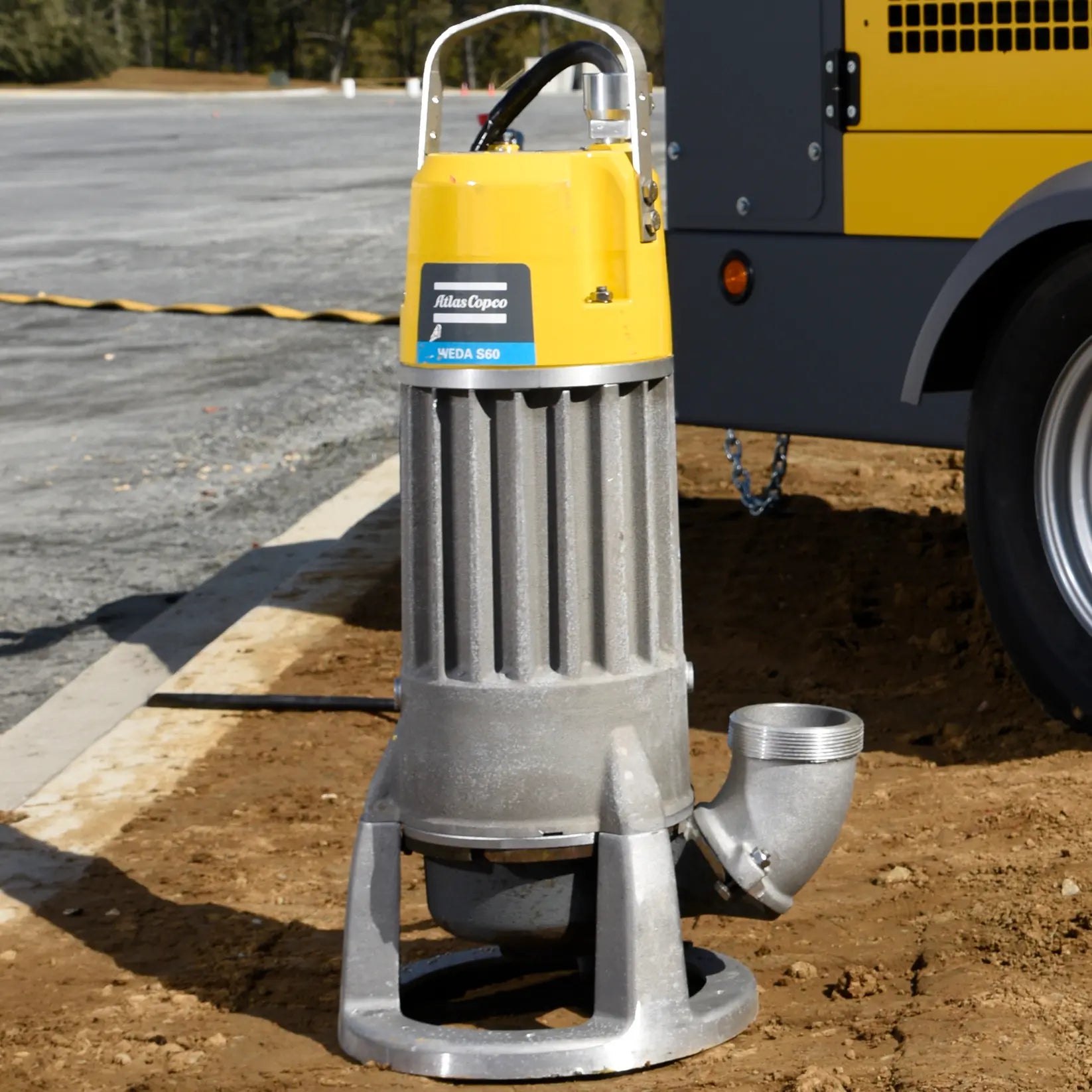

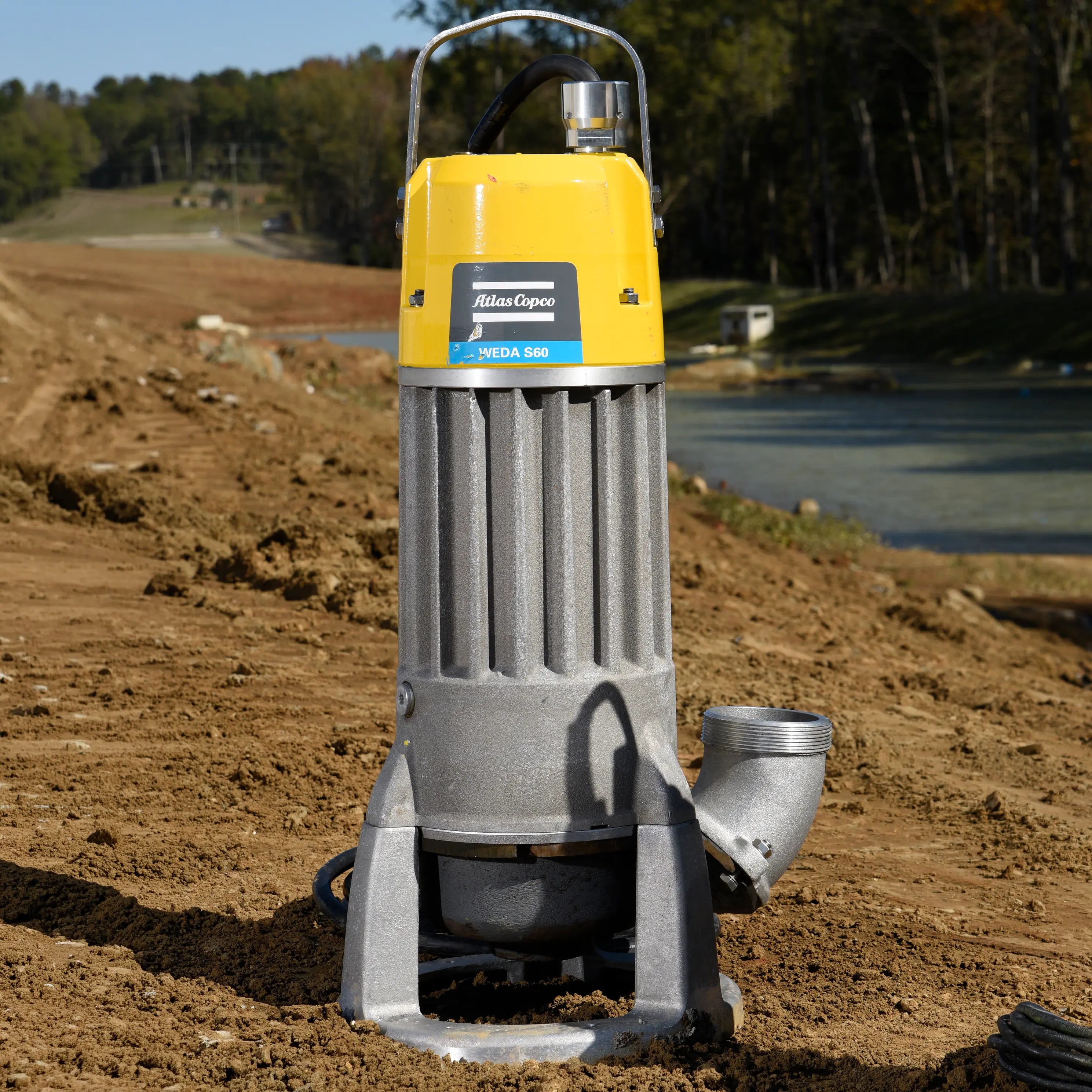

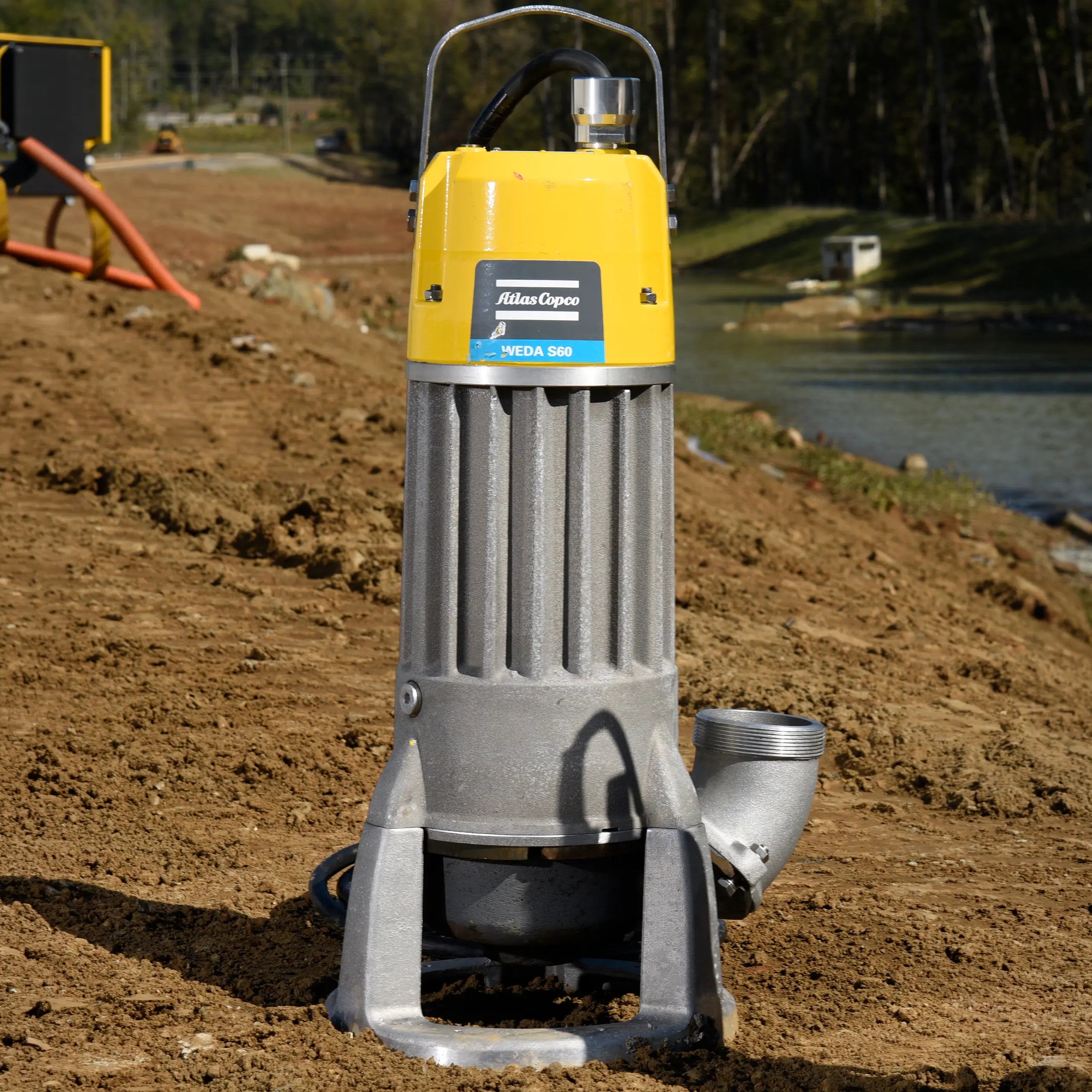

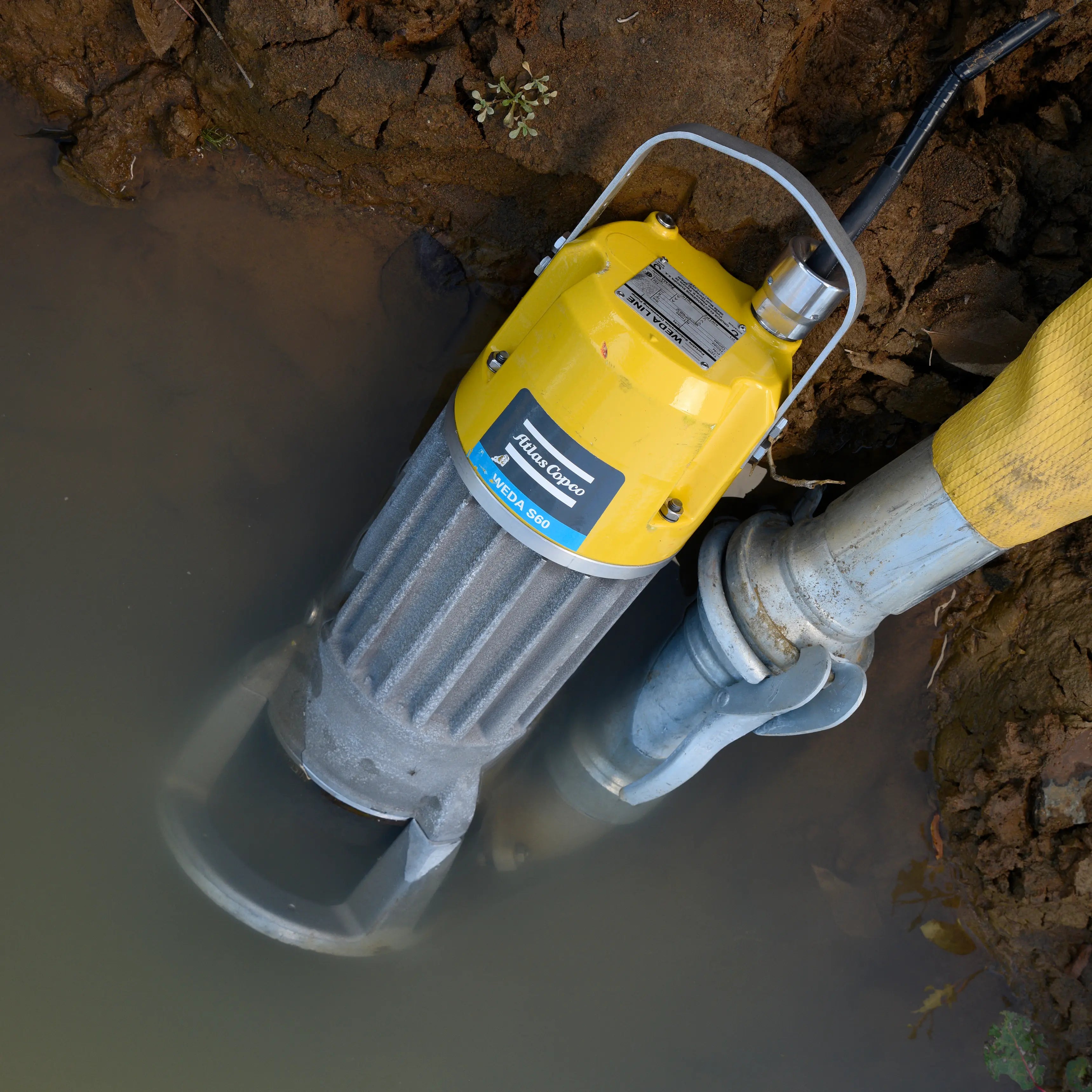

The S60N In Its Habitat

The S60N is engineered for continuous-duty operation in the heaviest sludge applications:

• Open-pit and underground mining — main shaft dewatering, pit sump service, tailings transfer between processing stages, and slurry handling at the mill
• Large-scale civil construction — deep foundation work, bridge cofferdams, dam construction, lock and dam maintenance
• Heavy industrial wastewater — refineries, steel mills, paper mills, chemical plants, power-plant ash and slag handling
• Tunneling and microtunneling — face dewatering, muck transfer, slurry-shield support pumping
• Municipal bypass on mid- to large-scale lift stations — 5–15 HP host pumps
• Aggregate, quarry, and sand operations — pit dewatering with high silica and sediment loading
• Emergency response and disaster recovery — when one large pump beats three small ones

Why the WEDA S60N, Not a Bigger Drainage Pump?

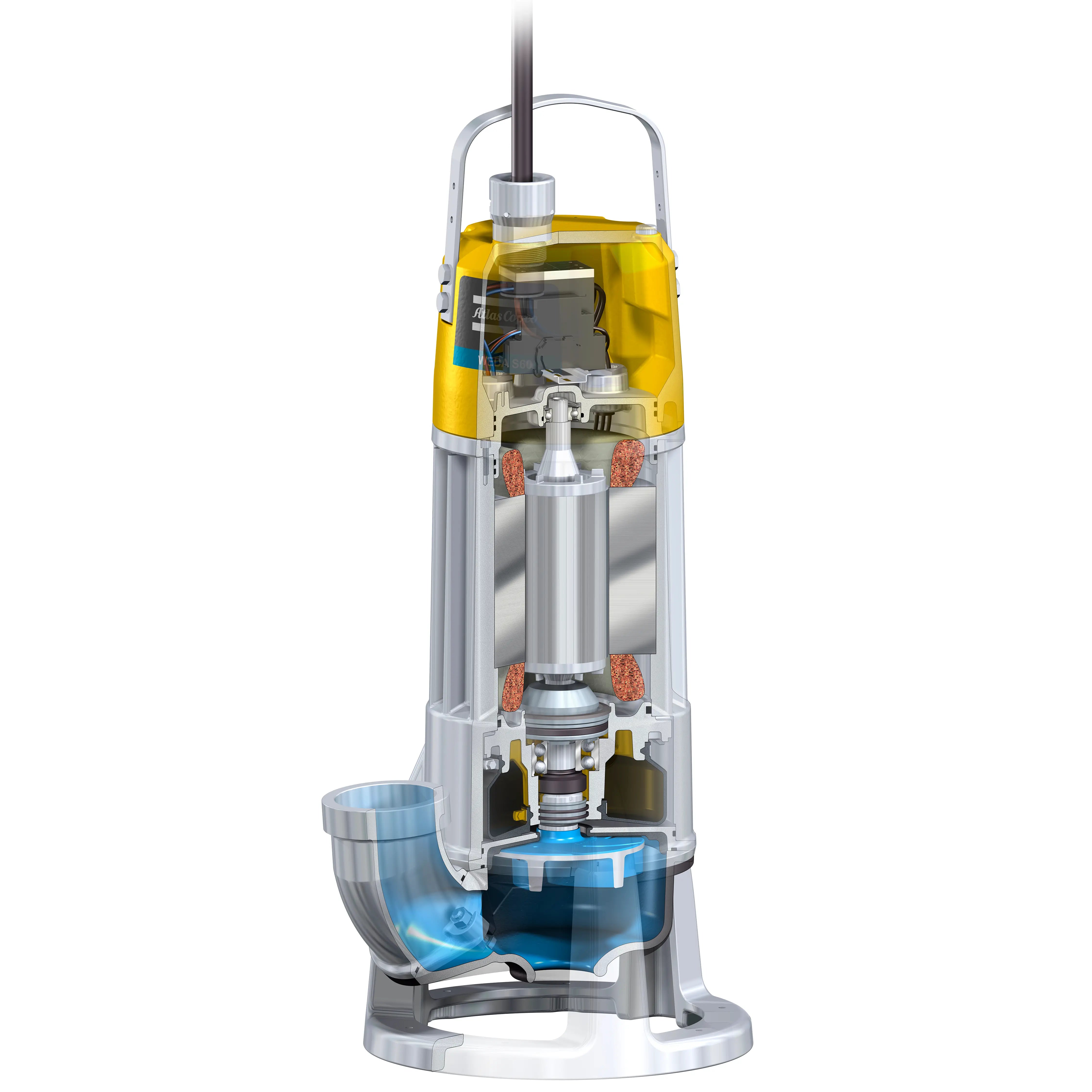

A common mistake is to upsize a drainage pump (the WEDA D-series, for example) when the application turns dirty, instead of moving to a sludge pump. Don't do that. Drainage impellers are built around hydraulic efficiency on clean water — they're more efficient than a sludge pump on the same horsepower, but they jam, abrade, and burn motors when the media turns viscous or solid-bearing. The S60N gives up 5–10% peak efficiency vs. a drainage pump at clean-water duty, but in exchange you get:

• 2-inch solids passage with no clog
• Abrasion-resistant high-chrome cast-iron impeller and wear ring
• Cartridge-style double mechanical seal with oil-bath isolation
• Vortex impeller geometry that minimizes wear on suspended grit
• Dry-running tolerance from oversized thermal jacket
• Service kits stocked for the exact wear pattern that sludge causes

Net result: the S60N runs for years where an over-spec'd drainage pump might run for months.

Built-In WEDA+ Protection

The S60N includes the full WEDA+ protection package as standard: rotation control (won't restart in reverse after a power interruption), phase-failure protection (immediate shutdown on dropped phase), and thermal switches in every winding (independent overtemp protection on each phase). All without requiring an external control panel — the pump can run direct off a contactor with no additional protective logic.

Service and Genuine Parts

The S60N is supported by Atlas Copco's North American dealer and service network. Service kits cover the seal cartridge, impeller and wear ring assembly, cable, and motor end-cap rebuild. Through the Power Connect portal, parts can be cross-referenced from a serial number, and remanufacture programs are available for high-hour units.

SKU 3081620396 · WEDA S60N · 460V 3-Phase Y-series · 4" NPT discharge · 2" solids handling · CSA certified · engineered for continuous industrial sludge duty.
