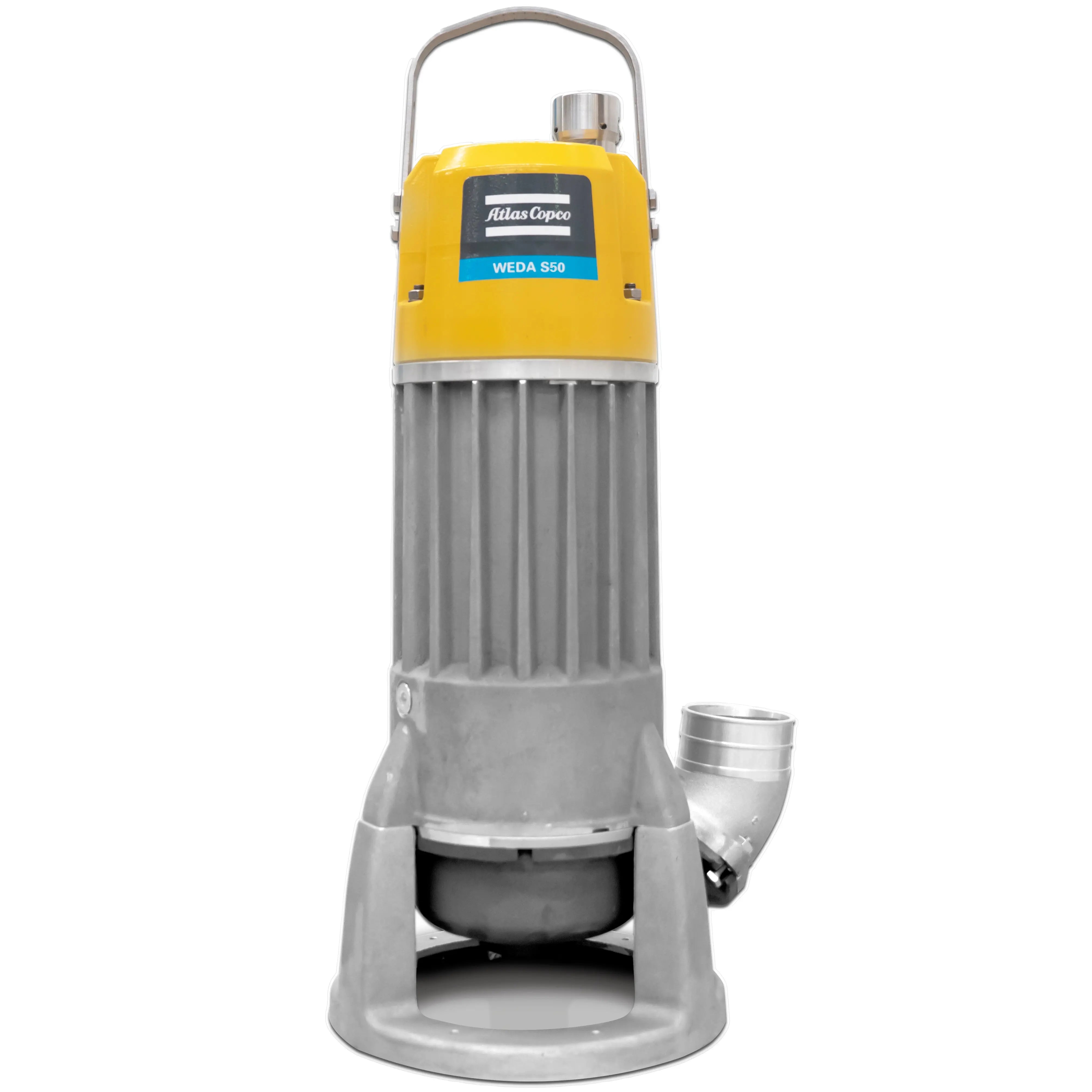

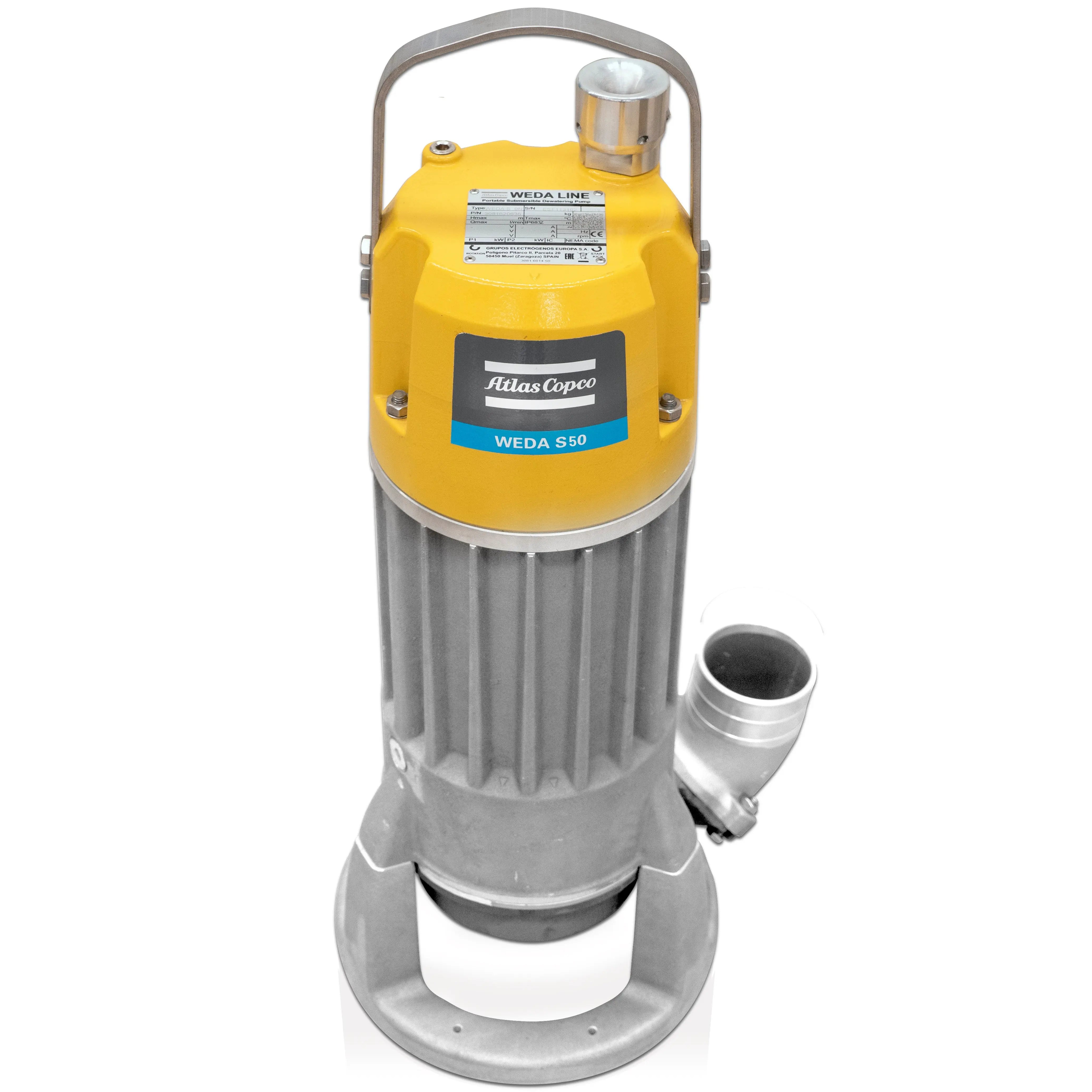

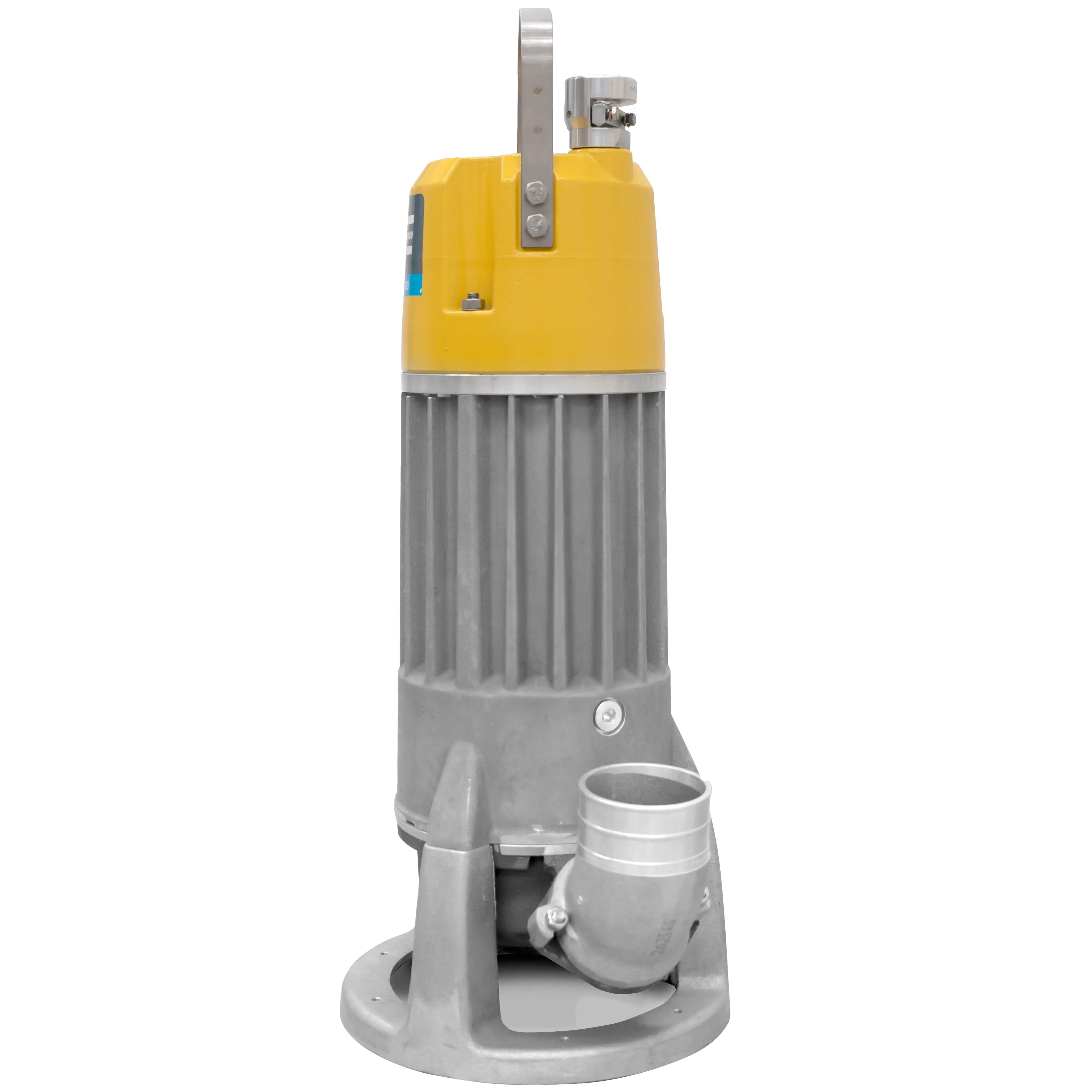

Atlas Copco WEDA S50N | Submersible Sludge Pump — 7 HP, 230V 3-Phase, 370 GPM, 4" Discharge

Built Where the Job Gets Ugly

The Atlas Copco WEDA S50N is the 7 HP / 230V 3-Phase sludge pump that fills the gap between the contractor-favored S30N and the industrial-scale S60N. It pushes up to 370 gpm at heads to 87 ft, handles 2-inch solids without choking, and is rated for the kind of continuous duty that defines mining, large-bore tunneling, and heavy industrial wastewater work.

Atlas Copco engineered the S50N specifically to plug a long-standing capacity gap in the WEDA Sludge family — it's the newest model in the lineup, with a hydraulic profile that lets one S50N replace situations that previously took two parallel S30Ns or a mid-sized rental dewatering pump.

Where the S50N Earns Its Keep

Full Specifications

• SKU / Part Number: 3081620755
• Rated Output: 7 HP (5.2 kW)
• Max. Power Input: 6.2 kW
• Max. Head: 87 ft (26.5 m)
• Max. Flow: 370 gpm (23 L/s)
• Max. Solids Handling: 2 in
• Discharge Connection: 4" NPT
• Shaft Speed: 3,500 RPM
• Power Supply: 230V 3-Phase 60 Hz
• Weight: 131 lb (59.4 kg)
• Dimensions (H × W × D): 31.9" × 17.7" × 13.8"
• Certification: CSA
• Warranty: 12 months from start-up / 18 months from receipt

The Atlas Copco WEDA Difference

What you're buying at the S50N price point isn't just a bigger motor — it's a thoroughly different engineering philosophy from commodity sludge pumps:

1. Hydraulic design optimized for two-phase flow. The vortex impeller doesn't impart momentum to solids the way a closed impeller does. Result: less wear, no clogging, predictable performance regardless of whether the medium is 5% solids or 25%.
2. Double mechanical seal in a stainless cartridge. The seal is the failure mode that ends most submersible pumps. WEDA's cartridge runs in an oil bath, with the cartridge itself replaceable as a unit — no on-site face lapping, no individual O-ring fitting.
3. Dry-running tolerance. The motor jacket is oversized for thermal mass; the rotor and stator are engineered to dissipate heat into the surrounding fluid or air. The S50N survives sump-out events that would catastrophically fail a competitor unit.
4. Modular WEDA family architecture. Service procedures, lifting points, hose connections, and float-switch wiring are common across the entire WEDA Sludge range. Crews trained on the S30N are productive on the S50N within minutes.
5. Heavy-chrome wear parts where it matters. Impeller and wear ring are abrasion-resistant alloy; non-wetted components use lighter aluminum. The result is service life biased toward where the pump actually wears.

About the Power Configuration

This 230V variant is wired for three-phase service. Phase-failure protection and rotation control are integrated into the WEDA+ protection package — the pump won't start running backward after a power blip, and it shuts down cleanly if a phase drops. For long cable runs and lower voltage drop, the 460V variant (P/N 3081620735) is the standard pick on industrial sites; the 230V version is preferred where contractor generators or smaller industrial services are the available power source.

Service, Parts, and Support

The S50N is supported by the same Atlas Copco North American service and parts network that supports the rest of the WEDA range. Service kits cover the wear ring, impeller, double-seal cartridge, cable assembly, and motor end caps. Field service and remanufacture programs are available through authorized dealers.

SKU 3081620755 · WEDA S50N · 230V 3-Phase · 4" NPT discharge · 2" solids handling · CSA listed · designed for continuous industrial duty.
