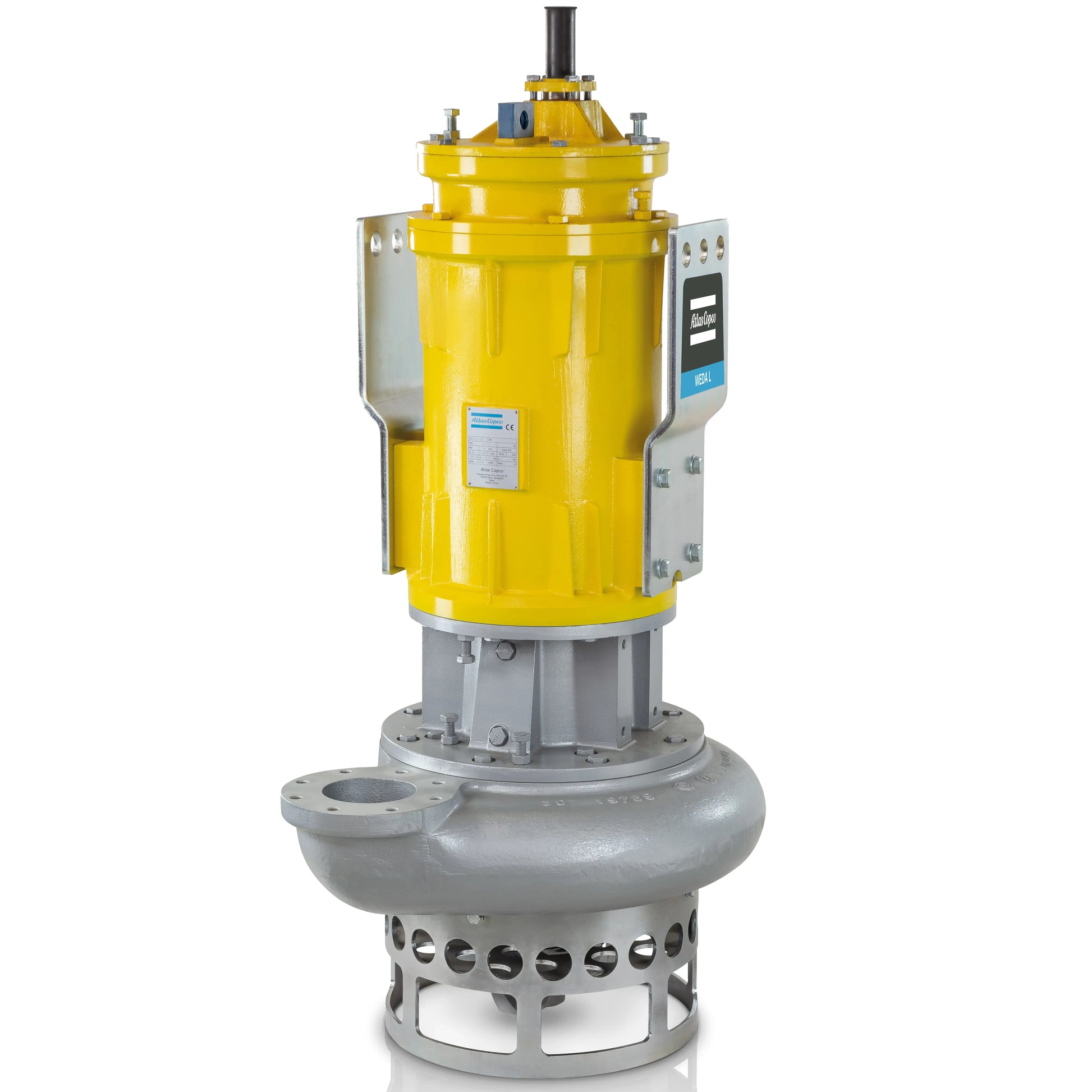

Atlas Copco WEDA L100N | High-Flow Industrial Submersible Slurry Pump — 60 HP, 460V 3-Phase, 2,600 GPM, 6" ANSI

Two thousand six hundred gallons per minute of slurry-rated flow. 2.4-inch solids passage. 60 HP of installed power running at 1,150 RPM for ultra-long wear life. The WEDA L100N is the high-flow specialist of Atlas Copco's industrial slurry family.

The Atlas Copco WEDA L100N sits in the high-flow / lower-head specialist position of Atlas Copco's slurry pump family. With 2,600 gpm of throughput at heads reaching 114 ft, a 6" ANSI flanged discharge, and the engineering DNA that's made the WEDA name standard issue at mines and quarries worldwide, the L100N is built for one job — moving abrasive, solids-laden water in conditions that destroy other pumps.

The Slurry Difference

Slurry pumps are not sludge pumps with bigger motors. The L-series uses a fundamentally different hydraulic design — semi-open multi-vane impeller, urethane-armored wear surfaces in the volute, and a hardened wear plate that's designed to be replaced as a wear part. The slurry L-series prioritizes survival under abrasion — pumping silica-laden water, dredging spoils, mineral process slurry, and quarry runoff for thousands of hours between rebuilds.

Specifications

Where the WEDA L100N Earns Its Keep

• Major dredging operations — port deepening, river maintenance, large reservoir sediment removal where massive volumes need to move
• Large mine tailings management — primary tailings line service, pond-to-pond transfer at high volume
• Coal and ore processing — primary slurry transfer at the mill or wash plant
• Sand and gravel super-plants — wash water recirculation at full throughput
• Phosphate, potash, gypsum — bulk slurry transfer in chemical processing
• Oil sands extraction — bulk slurry handling at industrial scale
• Power generation — large-scale ash sluicing and ash-pond cycle service

What's Different About a Slurry Pump's Hydraulic Path

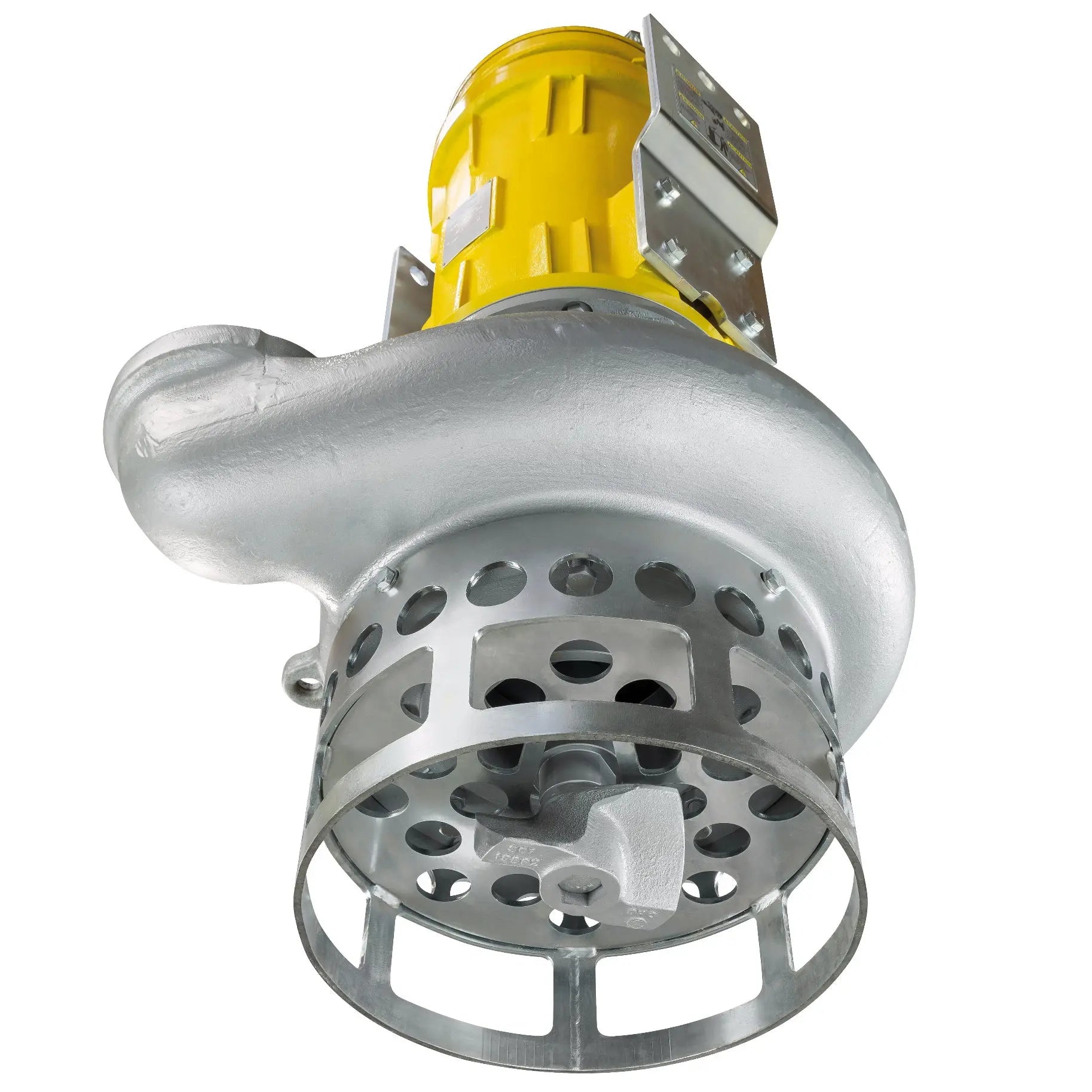

Inside the volute of the WEDA L100N, every wetted surface is engineered for sacrificial wear and easy replacement:

• Hardened wear plate at the impeller inlet — replaceable as a single part, sized for the typical wear pattern of mineral slurries
• High-chrome cast-iron impeller — multi-vane semi-open design, 65 HRC hardness, profile optimized for solids up to 2.4"
• Polyurethane-armored volute liner providing 3–10x the abrasion life of bare cast iron at the same wall thickness
• Class F motor insulation — operating temperature margin that keeps the pump alive through dry-run, hot-water, and overload moments
• Double mechanical seal in a stainless cartridge running in an oil bath — same field-proven seal architecture as the rest of the WEDA family

Operating Profile

The L100N runs at just 1,150 RPM — one of the slowest in the WEDA family. That's not a power limitation; it's a deliberate engineering choice. Slower shaft speed at high flow extends wear life dramatically and is the right architecture for the high-volume / moderate-head duty profile that defines large dredging and bulk slurry transfer applications.

Service Footprint

Atlas Copco supports the WEDA L-series with a global parts inventory, rebuild kits matched to typical wear, and dealer-based field-service for major overhauls.

SKU 8381070306 · WEDA L100N · 460V 3-Phase Y-series, 60 Hz · 6" ANSI flanged discharge · 2.4" max solids · CSA certified · engineered for high-flow industrial slurry duty.
