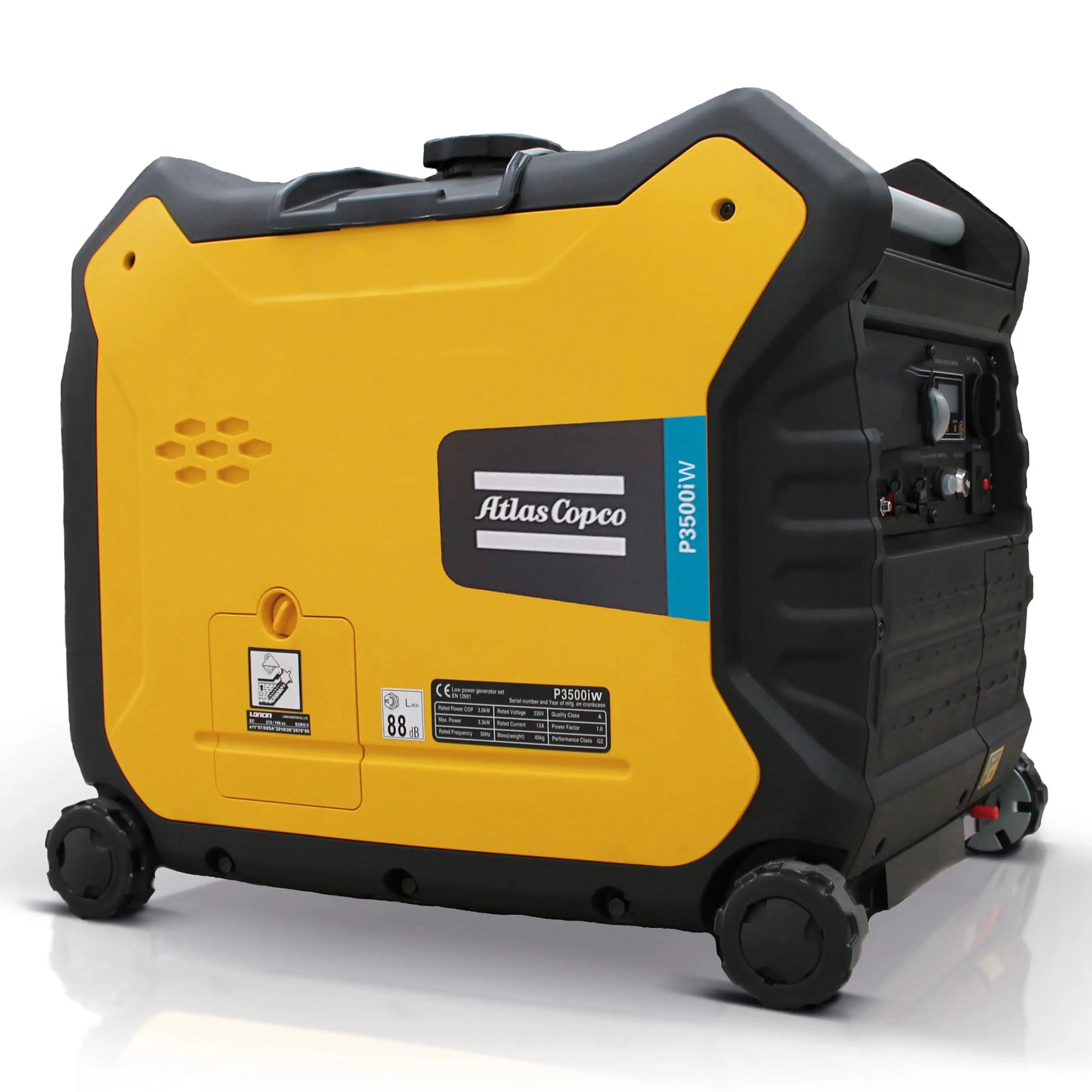

Atlas Copco P3500iW Inverter Generator | 3,300W, Electric Start
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
8170023015
|
Gallons |
|
 Voltage |
|
| Dimensions | |
 Weight |
99.2 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|
Atlas Copco P3500iW Inverter Generator: When You Need Inverter-Clean Power and 240V
The Atlas Copco P3500iW answers a question most generator buyers don't realize they're asking until they've already bought the wrong machine: can I get pure-sine inverter power and a 30-amp 240-volt outlet in the same generator?
For years, the answer was no — you either picked an inverter generator (quiet, clean, but 120V only and usually under 3,000 watts) or a conventional open-frame generator (loud, 240V capable, and so-so power quality). The P3500iW is one of a small number of inverter generators that gives you both: 3,300 surge watts of clean sine power, a NEMA L14-30R twist-lock outlet for 120/240V split-phase, 12V electric start, and a sound rating of just 63 dB(A). All in a soundproof, wheeled package.
Inverter vs. Conventional: A Side-by-Side
| Attribute | P3500iW (inverter) | P3000W (conventional) |
|---|---|---|
| Surge / rated watts | 3,300 / 3,000 W | 2,800 / 2,500 W |
| Sound level | 63 dB(A) — conversational | 73 dB(A) — vacuum cleaner |
| Engine speed | Variable rpm, load-following | Constant 3,600 rpm |
| Power waveform | True sine wave, <3% THD | AVR-regulated, higher THD |
| Safe for laptops/CPAP/electronics | Yes — designed for it | Generally yes, with caveats |
| 240V outlet | Yes (L14-30R) | Yes (L14-30R) |
| Start | Electric key + recoil | Recoil only |
| Runtime at rated load | 6 hours | 11 hours |
| Weight | 99 lb | 115 lb |
| Best for | Quiet jobsites, RVs, electronics, home backup | Long-runtime farm/jobsite work, simple backup |
Where the conventional P3000W wins is sheer runtime per gallon and a lower upfront cost. Where the P3500iW wins is quiet, clean, electronic-safe power that's still 240V-capable — the best of both worlds for buyers who need a one-generator solution. On load sizing, a typical 13,500 BTU RV air conditioner draws about 2,800 starting watts and 1,500 running watts, inside the 3,300 W surge and 3,000 W continuous rating.
What Makes the P3500iW Special
Electric key start
Twist the key and the 212 cc engine fires up — no pull-cord shoulder workout. A 12V battery is built in, with a recoil backup if the battery is dead. This is the smallest Atlas Copco inverter generator with electric start, and it makes a big difference on cold mornings or after long storage.
L14-30R 120/240V outlet
Most inverter generators stop at 120V outlets. The P3500iW adds a NEMA L14-30R twist-lock that delivers up to 30 amps of split-phase 120/240V — enough to wire into a manual transfer switch and feed your home's essential-loads panel during an outage, or to run a 240V well pump on a remote property. It pairs with a standard 30-amp gen-cord and is compatible with most residential manual transfer switches and interlock kits. Have a licensed electrician do the wiring.
Parallel operation
Need more than 3,300 watts? Pair two P3500iW units with the optional parallel kit for a combined ~6,000-watt output of pure sine power. That's enough for whole-essentials home backup or a serious construction setup — with the redundancy of two independent generators. The parallel kit is sold separately.
Variable-speed inverter technology
The 212 cc engine runs at variable rpm under digital control. The inverter rebuilds the output as a perfect 60 Hz sine wave. Less fuel burned at partial load. Less noise. Less wear on the engine. Safer power for everything you plug in.
Atlas Copco P3500iW Specifications
| Specification | Value |
|---|---|
| Peak / surge power | 3.3 kVA (~3,300 W) |
| Rated (continuous) power | 3.0 kVA (~3,000 W) |
| Voltage & frequency | 120V & 120/240V, 60 Hz |
| Waveform | True sine wave (inverter) |
| Engine | Atlas Copco AC170FD, 212 cc, OHV gasoline, variable speed |
| Engine output | 4.4 kW (~5.9 HP), EPA Tier 2 |
| Fuel tank | 2.6 US gal gasoline |
| Runtime at rated load | 6 hours (longer at partial load) |
| Sound level | 63 dB(A) @ 7 m / 23 ft |
| Receptacles | 2× NEMA 5-20R (120V, 20A) · 1× NEMA L14-30R (120/240V, 30A) |
| Start type | 12V electric key start + recoil backup |
| Parallel capability | Yes — pair two units with the optional kit (~6 kVA combined) |
| Voltage regulation | Digital inverter (true sine wave) |
| Protections | Engine oil guard, overload alarm, thermal overload protection, circuit breaker |
| Enclosure | Soundproof closed canopy with wheels |
| Dimensions (L × W × H) | 23″ × 17½″ × 20″ |
| Weight | 99.2 lb (45 kg) |
| Warranty | Atlas Copco Power Technique standard warranty (extendable) |
Add the Atlas Copco P3500iW to your cart below, or call our team for help comparing it against the conventional P3000W or the larger P6000iW inverter.
NOTE: Actual product may be different from pictured!
