Atlas Copco Mounting Flange for LZB14 Air Motors | 4430 0922 80
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
4430092280
|
 Model |
|
| Dimensions | |
 Weight |
0.27 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|
 Dimensional Drawing |
|
 Dimensional Drawing |
|
 Technical Data |
|
 Additional Information |
|

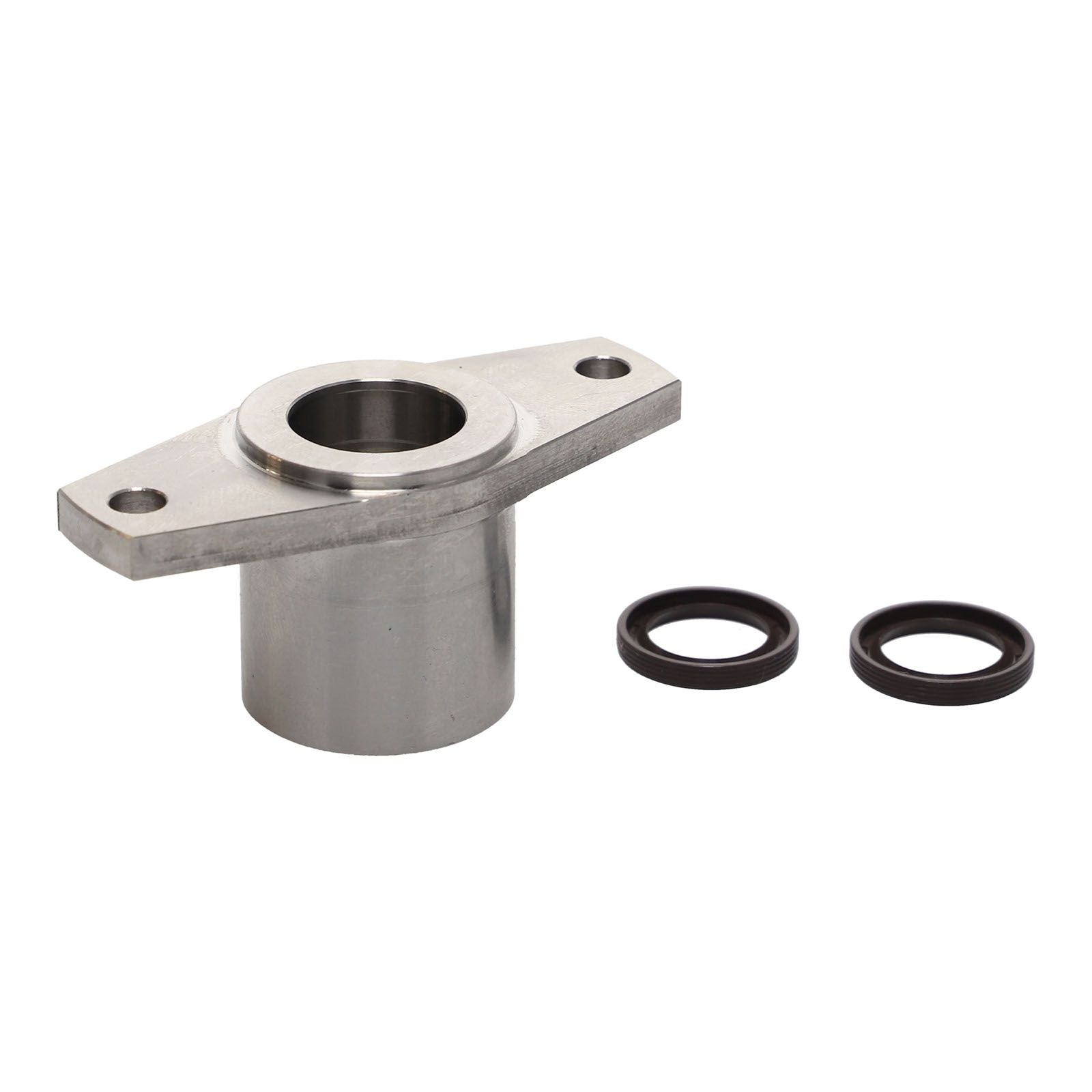

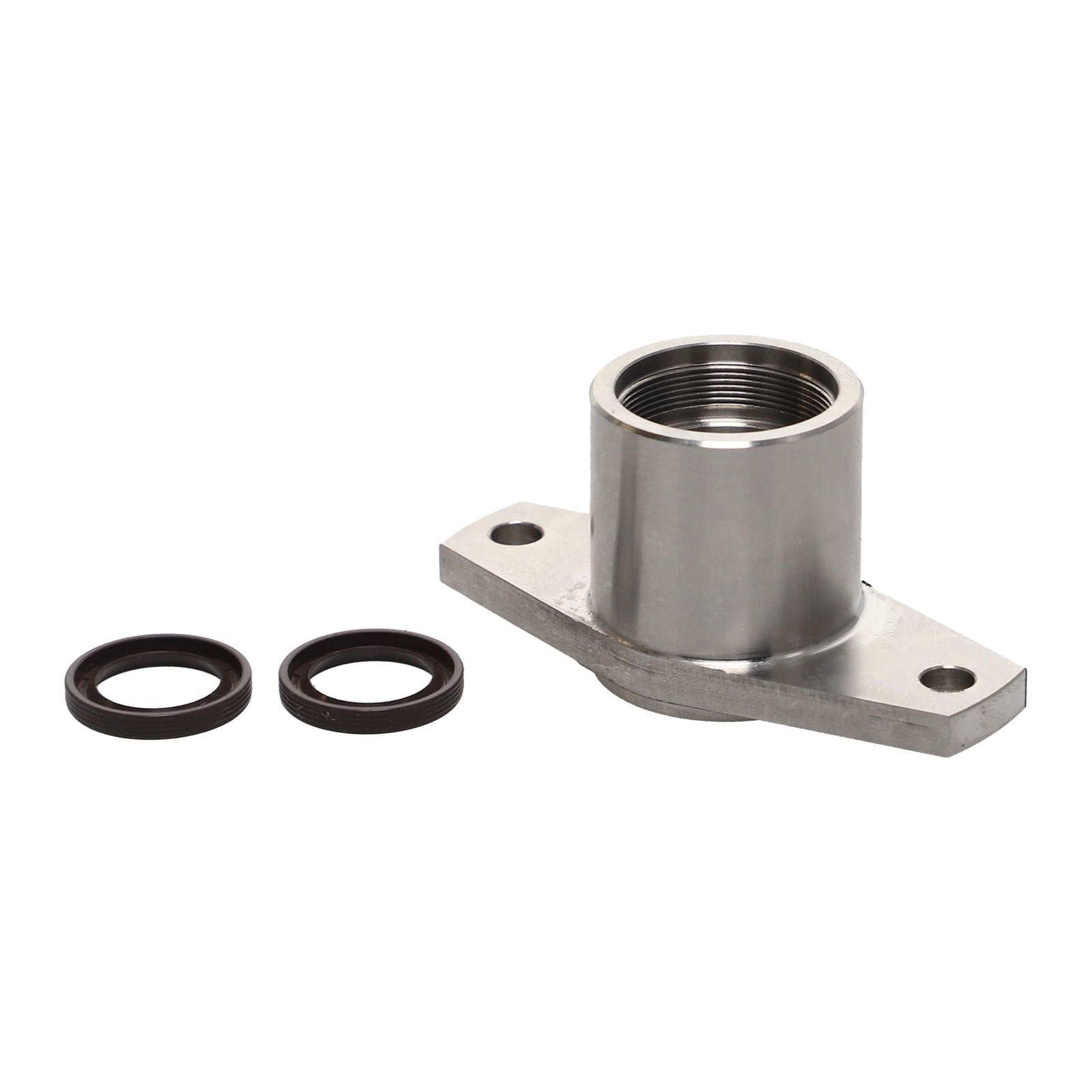

Bolt the motor down square and rigid. The Atlas Copco mounting flange 4430 0922 80 is the genuine flange for LZB14 series vane air motors. It fits the motor's front end and gives a machined, flat face with bolt holes for fixing the motor to a plate, bracket or machine frame.
Technical Specifications
| Part Number | 4430 0922 80 |
|---|---|
| Description | Flange |
| Product Type | Atlas Copco Air Motor Accessory, Mounting Flange |
| Fits | Atlas Copco LZB14 vane air motors |
| Application | Flange mounting of the motor to a fixture, machine frame or gearbox adapter |
| Package Dimensions | 12 x 5.5 x 5.5 cm (4.7 x 2.2 x 2.2 in) |
| Package Weight | 124 g (0.27 lb) |
| Country of Origin | Hungary (HU) |
Key Features
- Genuine Atlas Copco Part: Bore, bolt pattern and O-ring seat match the LZB motor housing exactly
- Rigid Mounting: Flat machined face keeps the motor axis square to the mounting plate so the output runs true
- Supplied with O-Ring: Comes with the sealing ring so the joint is air-tight and ready to assemble
- Compact: Adds very little length to the motor for tight installations
Fits
Atlas Copco lists 4430 0922 80 as an accessory for 10 models across the LZB14 vane air motor range. Fit depends on the exact motor configuration, so confirm your full motor part number before ordering, or contact us and we will check it against Atlas Copco's fitment list for you.
Part Number: 4430 0922 80 | Series: LZB14 | Genuine Atlas Copco accessory supplied through an authorized distributor.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Actual product may be different from pictured!
