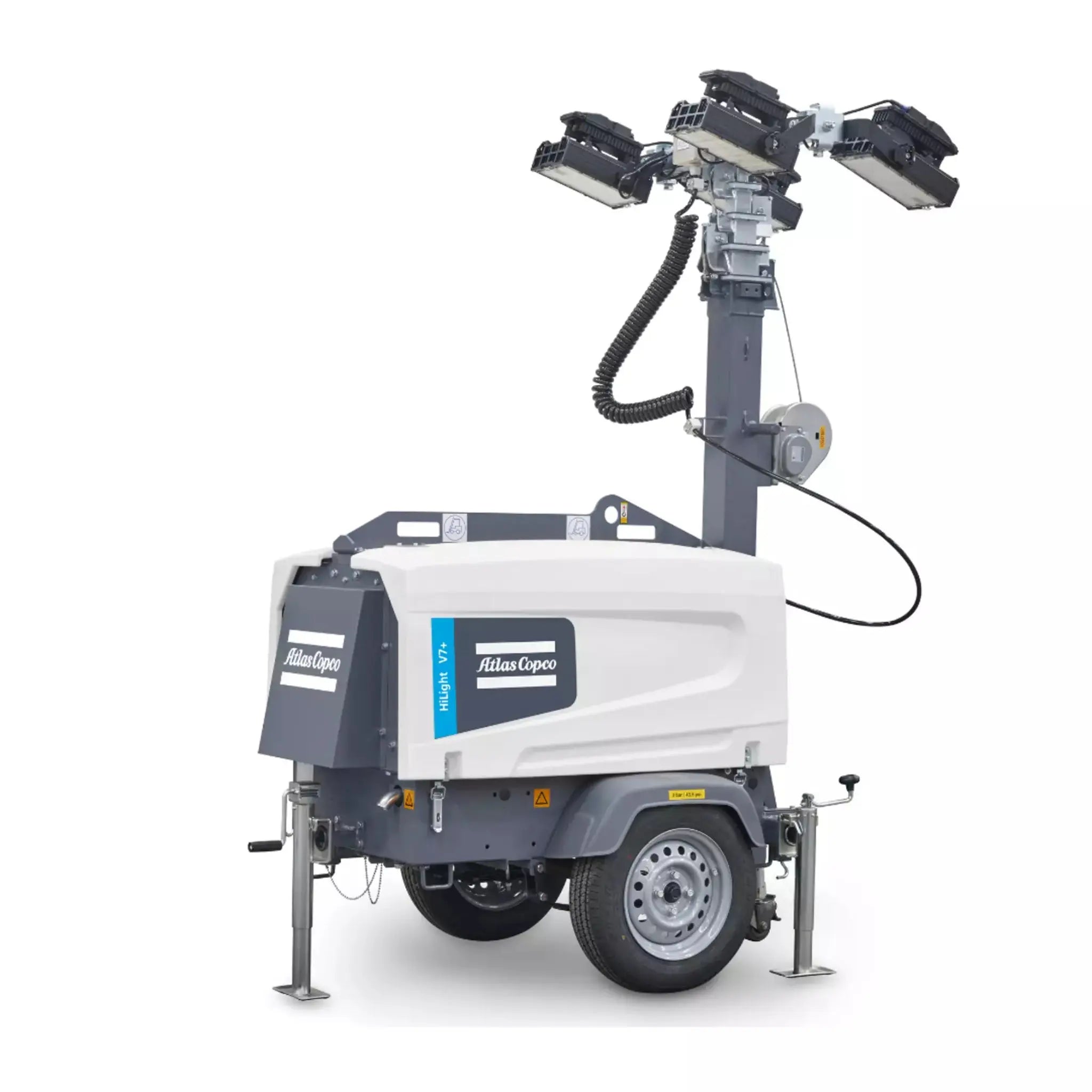

Atlas Copco HiLight V7+ | LED Light Tower — 4×350W LEDs, 75,000 sq ft Coverage, 142-Hour Run Time, T4F Diesel

Trusted by job-site superintendents and rental fleet operators alike, the Atlas Copco HiLight V7+ is a diesel-powered LED light tower built to flood a worksite with 75,000+ square feet of clean, glare-free illumination — and then keep doing it for up to 145 hours straight on a single tank. Standard configuration — manually controlled, ideal when operators are on-site at start of shift.

Why the HiLight V7+ Stands Out

Atlas Copco engineered the V7+ around three priorities that matter on real job sites: fuel economy, noise control, and packing efficiency. The result is a light tower that uses about 0.2 gallons of diesel per hour, sits below 65 dB(A) at 23 feet, and folds down small enough to fit 10 units on a 53-foot trailer. That's a different operating cost profile than legacy metal-halide towers — and a friendlier one for noise-restricted urban work, hospitals, residential adjacencies, and night-shift highway operations.

Quad 350W SMD LED Heads

Four 350-watt Surface-Mount Device LED floodlights deliver crisp, blue-white light that the eye reads as daylight, with 20% more coverage area than older COB LED designs. The vertical 25-foot mast rotates 340° on its base, so you can chase shadows around stockpiles, deep excavations, and crane swing zones without repositioning the trailer. Beam spread covers 75,000 sq ft at an average of 20 lux and reaches out to 130,000 sq ft at the 1-lux/75° threshold — usable light to roughly 24 yards beyond the tower in every direction.

Full Specifications

Designed for the Long Haul

The HardHat™ gull-wing canopy is roto-molded from impact-resistant polyethylene — it won't dent, rust, or chip the way sheet-metal enclosures do, and it shrugs off accidental forklift contact better than steel. A central lifting eye plus integrated forklift pockets make the unit easy to load, unload, and reposition. The wide 1,220 mm axle, torsion suspension, and DOT-compliant lighting package give the V7+ road-legal towing manners behind a half-ton truck.

Built-In Cold Weather Package

• 120V engine block heater for reliable starts down to -13°F
• Heavy-duty battery with cold-cranking margin
• Sealed electrical enclosures rated for sub-zero starts
• Spill containment frame standard — no separate purchase required

Where the HiLight V7+ Earns Its Keep

• Highway and DOT night work — long run-time means a full shift on a single fill
• Pipeline, well-site, and oil & gas pads — remote operation, low refueling burden
• Disaster response and emergency lighting — quick deploy, runs for nearly a week unattended
• Concerts, sporting events, and outdoor venues — quiet enough not to compete with the program
• Construction sites with night phases — concrete pours, bridge decks, paving, tunnel portals
• Mining and aggregate operations — handles 11,000 ft altitudes without derate
• Rental fleets — 10-on-a-trailer footprint plus low fuel burn = better unit economics

Aux Power for Site Tools

The 2.4 kW alternator drives auxiliary outlets on the panel — 120 VAC 20A, GFCI Duplex (NEMA 5-20R) — so the V7+ doubles as a small worksite power source for chargers, fans, small power tools, or trailer-mounted PA equipment. Smart load balancing keeps the LEDs prioritized when aux loads spike.

Service Footprint

Atlas Copco supports the HiLight range through a North American dealer network and the Power Connect parts portal. Service kits are available at 200-, 400-, and 800-hour intervals (P/N 3002607840 / 3002607850 / 3002607860). The Kubota Z482 engine block is one of the most widely serviced industrial diesels in the world — parts and tech support are available virtually everywhere you'd take the unit.

Model: HiLight V7+  |  SKU: 8162104893  |  List Price (MSRP): $14,307  |  Engine: Kohler KDW702 T4F  |  Run Time: 142 hrs. Spec sheet, brochure, and operator manuals available on request.
