Atlas Copco Foot Mounting Bracket Complete for LZB14 Air Motors | 4430 0189 80
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
4430018980
|
 Model |
|
| Dimensions | |
 Weight |
0.33 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|
 Dimensional Drawing |
|
 Dimensional Drawing |
|
 Technical Data |
|

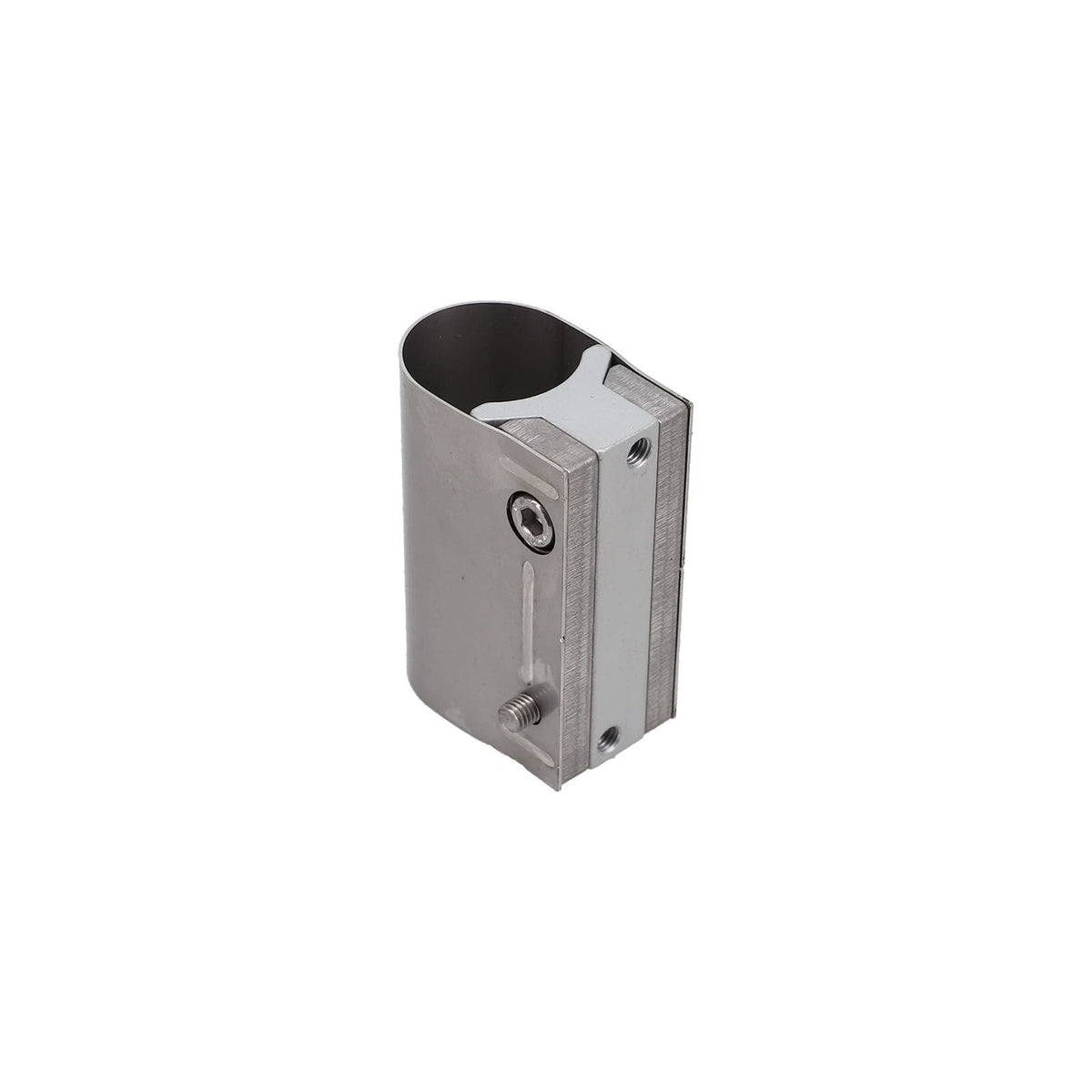

Mount the motor on its side, the way you would an electric motor. The Atlas Copco complete foot mount 4430 0189 80 is the genuine foot bracket for LZB14 series vane air motors. It clamps around the motor body and gives you a flat base with bolt holes for fixing the motor to a base plate or frame.
Technical Specifications
| Part Number | 4430 0189 80 |
|---|---|
| Description | Foot, compl. |
| Product Type | Atlas Copco Air Motor Accessory, Foot Mounting Bracket Complete |
| Fits | Atlas Copco LZB14 vane air motors |
| Application | Foot mounting of the motor to a base plate, sub-frame or conveyor structure |
| Package Dimensions | 7.8 x 9.3 x 3.4 cm (3.1 x 3.7 x 1.3 in) |
| Package Weight | 148 g (0.33 lb) |
| Country of Origin | Hungary (HU) |
Key Features
- Genuine Atlas Copco Part: Clamp shell is sized to the exact LZB housing diameter so the motor is held without distortion
- Horizontal Mounting: Puts the output shaft parallel to the base plate for belt, chain or direct-coupled drives
- Bolt-On Base: Flat foot with fixing holes, no drilling or welding on the motor
- Reposition Anywhere: Loosen the clamp screws to rotate or slide the motor, then re-tighten
Fits
Atlas Copco lists 4430 0189 80 as an accessory for 30 models across the LZB14 vane air motor range. Fit depends on the exact motor configuration, so confirm your full motor part number before ordering, or contact us and we will check it against Atlas Copco's fitment list for you.
Part Number: 4430 0189 80 | Series: LZB14 | Genuine Atlas Copco accessory supplied through an authorized distributor.
