Atlas Copco CR Cast-Iron Piston Industrial Series Air Compressor
Atlas Copco CR Cast-Iron Piston Industrial Series Air Compressor
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
CR5-CRS1-80V 200/3
|
 Model |
|
| Dimensions | |
 Weight |
561.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
Atlas Copco CR Industrial Series — Cast-Iron Two-Stage Piston Air Compressors (5–20 HP, 135–175 PSI)
Built for heavy, daily use, the CR Industrial Series combines a cast-iron, splash-lubricated pump with a balanced, counter-weighted crankshaft to deliver smooth operation and long service life. These two-stage units provide up to 175 PSI and are offered in simplex or duplex configurations, vertical or horizontal tanks, with upgrade paths for harsher environments.
Why shops choose the CR Industrial Series
- High output, low cost of ownership: two-stage compression for higher pressure and efficiency.
- Durable cast-iron design: oversized oil reservoir, industrial-class bearings, one-piece aluminum head for better heat dissipation.
- Reliability baked in: stainless-valve design and high-efficiency intercooler for strong volumetric efficiency.
- Low-maintenance layout: 2-piece connecting rods, oil pressure gauge, easy service access.
- Standard protection & control: magnetic starter, belt-guard aftercooler, electric auto drain, and low-oil level switch on all models.
- Smart load control: head unloaders on 10 and 15 HP models reduce startup load and wear.

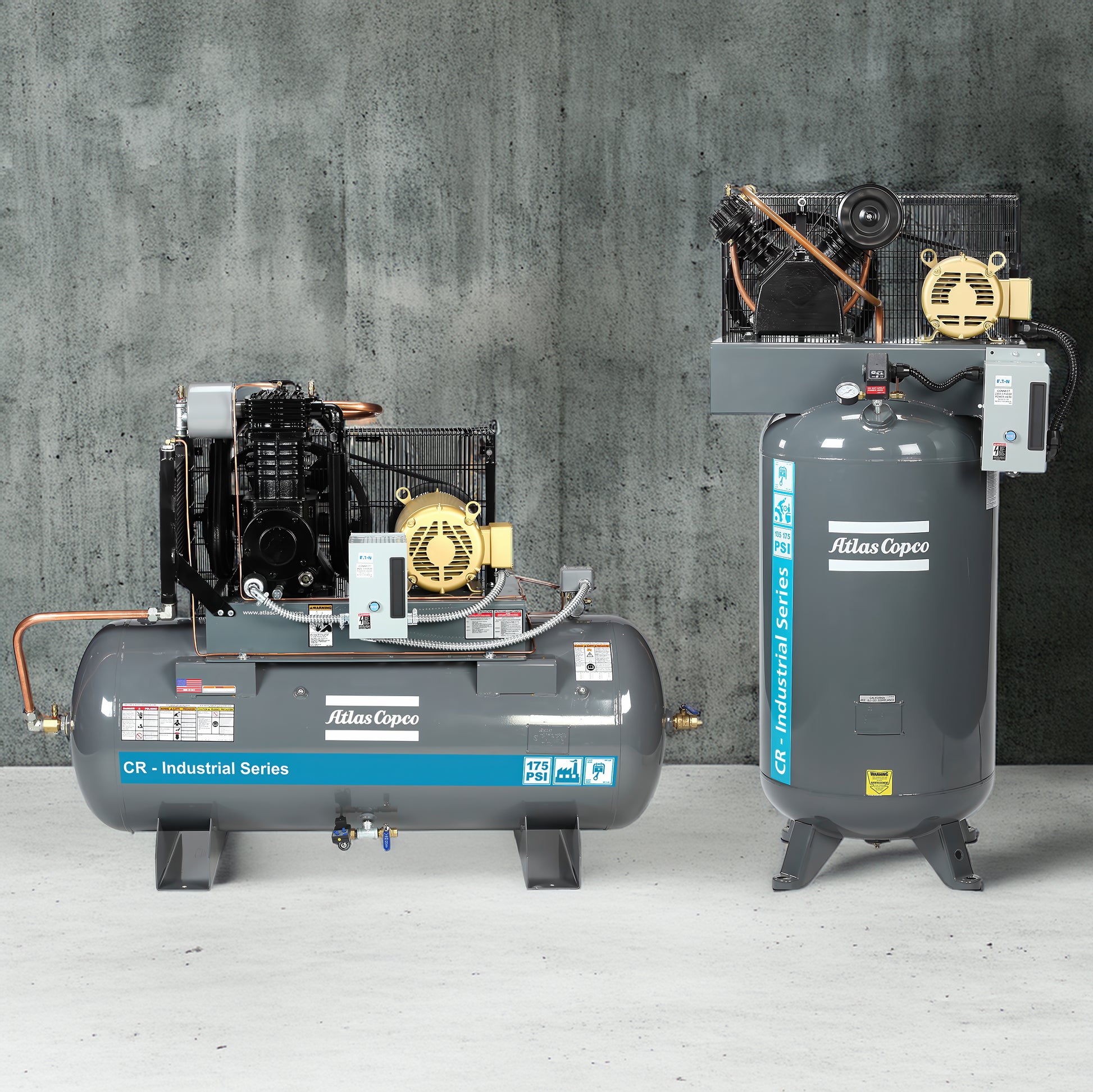

- Scalable configurations: simplex (single pump/motor) or duplex (twin pump/motor) for redundancy and added capacity.
Warranty
1-year bumper-to-bumper plus 5-year pump warranty when minor and major maintenance kits are purchased and used.
Simplex Models (Standard motor; TEFC motor + NEMA 4 controller available as “TN4” upgrade)
| Model | HP | Tank (gal / orient.) | ACFM @100 | ACFM @175 | L×W×H (in) | Weight (lb) |
|---|---|---|---|---|---|---|
| CR5-TS-80GV-IS (Std or TN4) | 5 | 80V | 17.9 | 17.2 | 32×26×75 | 554 |
| CR7.5-TS-80GV-IS (Std or TN4) | 7.5 | 80V | 23.8 | 22.6 | 32×26×75 | 599 |
| CR10-TS-120GV-IS (Std or TN4) | 10 | 120V | 35.9 | 35.0 | 40×30×77 | 845 |
| CR10-TS-120GH-IS (Std or TN4) | 10 | 120H | 35.9 | 35.0 | 72×28×54 | 845 |
| CR15-TS-120GH-IS (Std or TN4) | 15 | 120H | 54.4 | 51.0 | 40×30×77 | 845 |
Notes for buyers
-

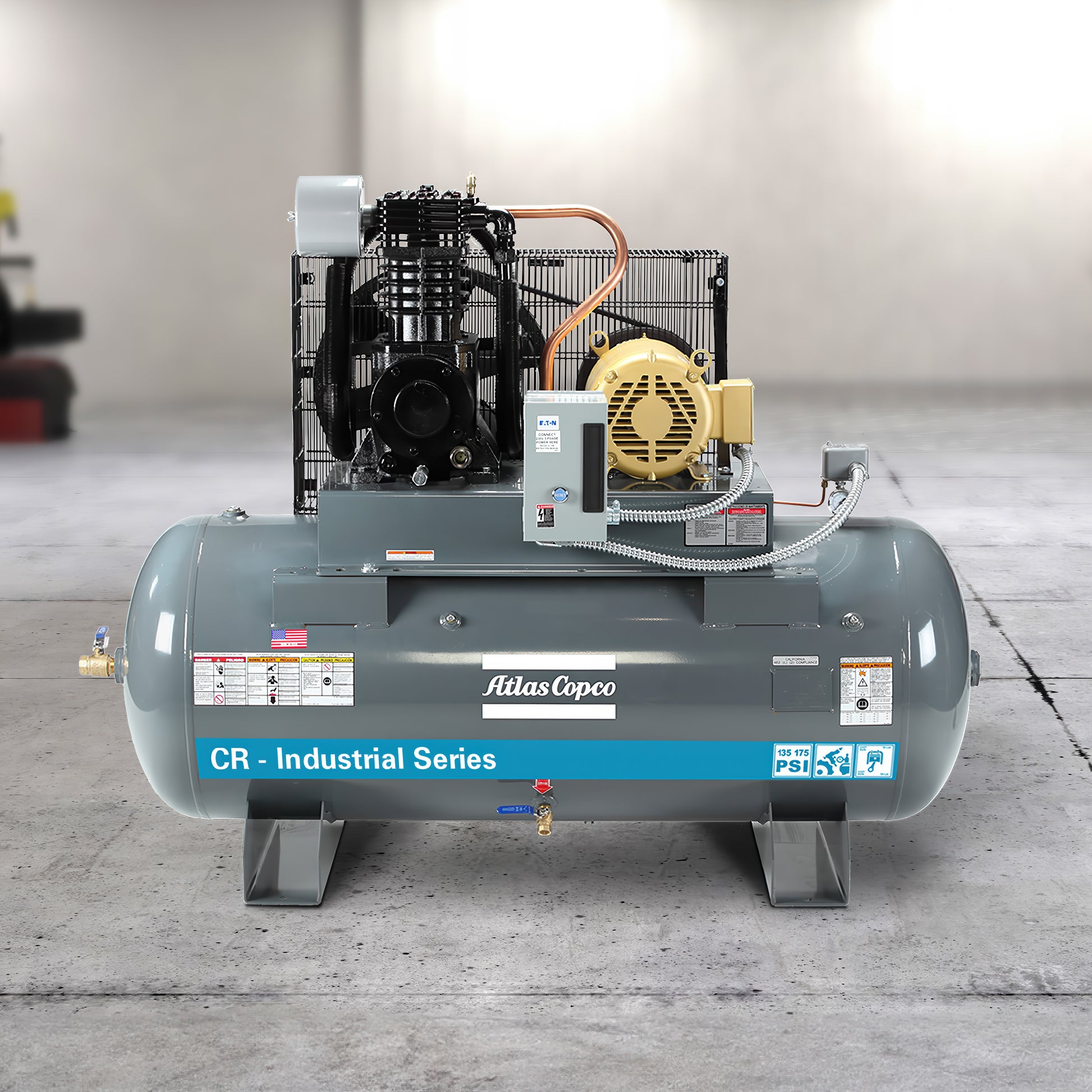

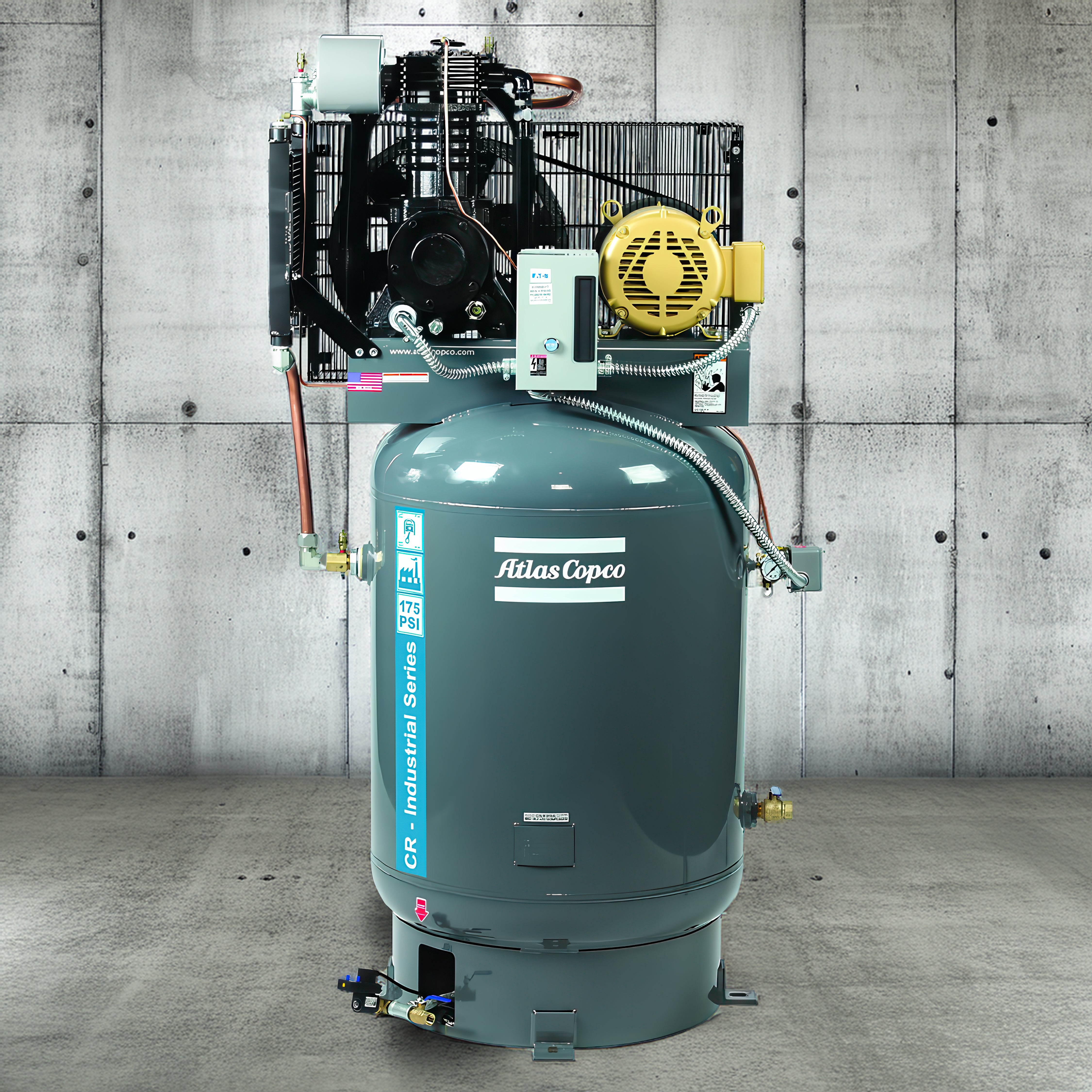

V/H: “V” = vertical tank, “H” = horizontal tank.
-
TN4 upgrade: adds a TEFC motor and NEMA 4 controller for tougher environments.
-
Pressure range: 135–175 PSI depending on model and setup.
-
Ideal for manufacturing, fabrication, automotive, and other industrial applications requiring dependable compressed air with minimal downtime.
NOTE: Actual product may be different from pictured!
