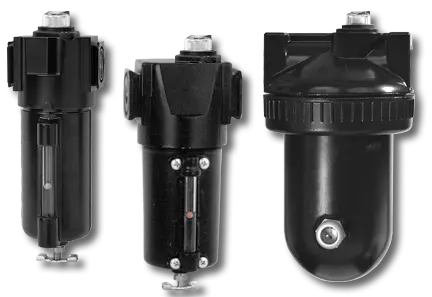

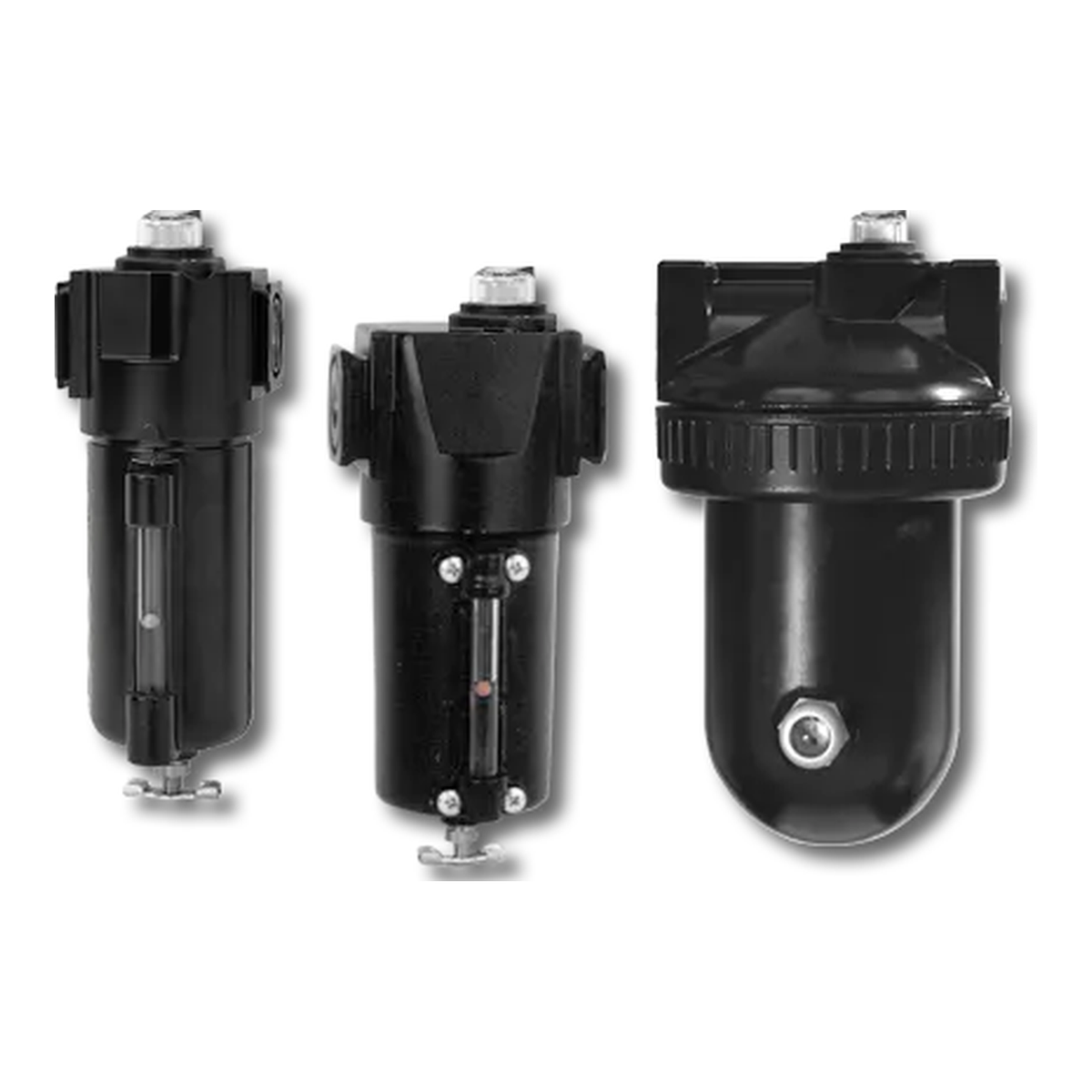

Arrow Pneumatics Standard Flow Charcoal Adsorber Filter — 6 oz Metal Bowl with Sight Glass, 250 PSI
The Arrow Pneumatics standard-flow charcoal adsorber filter removes oil vapors, hydrocarbons, and odors from compressed air, delivering clean, taste- and odor-free air for sensitive applications. Multi-wrapped layers of impregnated activated charcoal adsorb residual oil aerosols down to 0.01 micron / 0.003 ppm, making it the final-stage polishing filter after coalescing filtration.
Key specifications
- Media: multi-wrapped impregnated activated charcoal element
- Oil/odor removal: 0.01 micron, 0.003 ppm
- Bowl: 6 oz metal bowl with sight glass
- Maximum pressure: 250 PSIG
- Operating temperature: 40°F to 160°F
- Body: zinc, black E-coated; Buna-N seals
- Flow by port (at 100 PSIG, 2.5 PSI drop): 1/4" NPT — 24 SCFM; 3/8" NPT — 37 SCFM; 1/2" NPT — 37 SCFM
- Port sizes: 1/4", 3/8", 1/2" NPT
Typical applications
Ideal for paint spraying, food and beverage handling, breathing-air pre-treatment, electronics, laboratory air, and any process where oil vapor or odor must be removed from the compressed air stream. Install downstream of a coalescing filter for best results.
The Arrow Pneumatics standard-flow charcoal adsorber filter pairs a rugged metal bowl and sight glass with a high-capacity activated-carbon element to keep your compressed air clean, dry, and odor-free across 1/4", 3/8", and 1/2" NPT port sizes.
NOTE: Actual product may be different from pictured!
