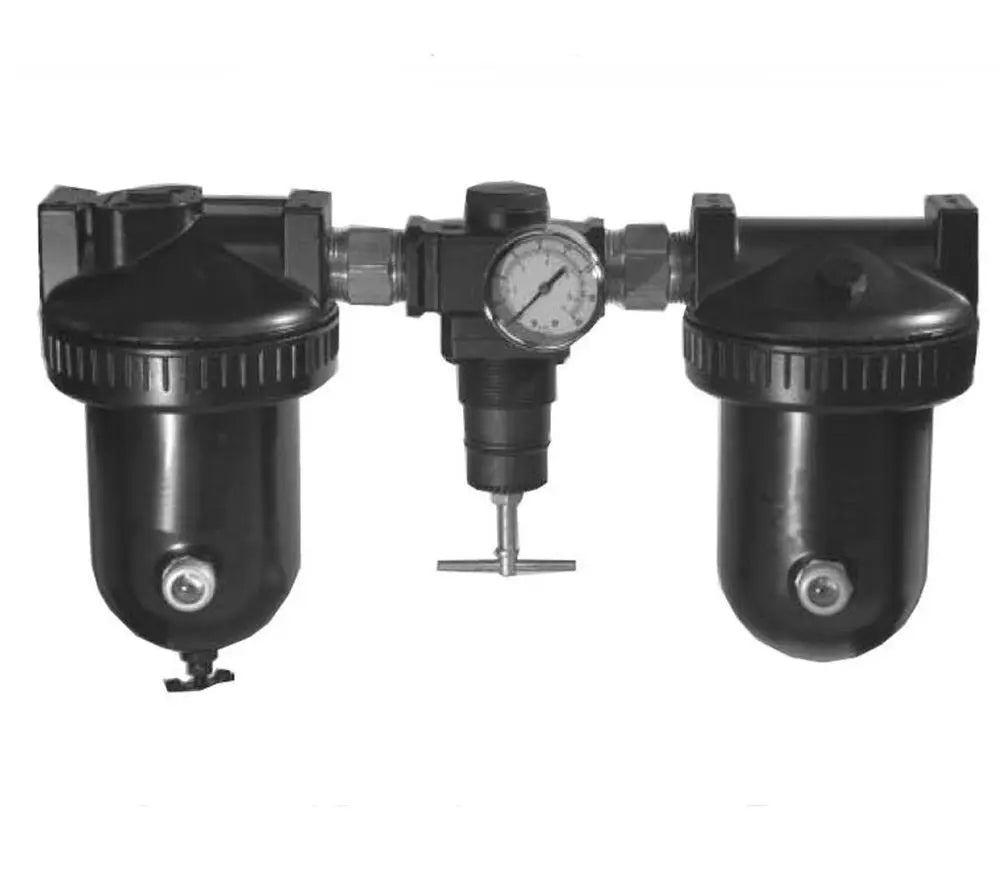

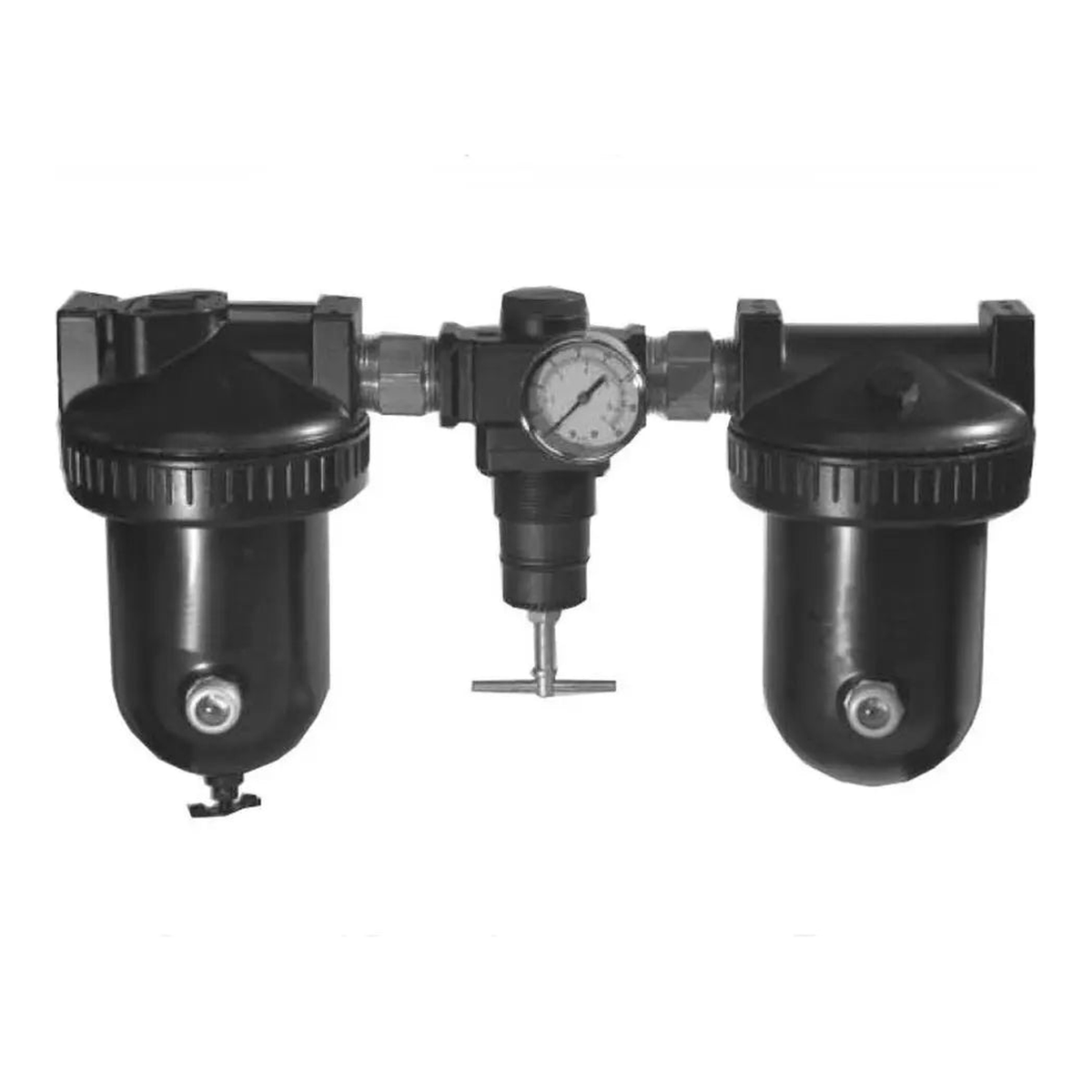

Arrow Pneumatics N3548 High Flow 3-Stage Filter/Regulator/Lubricator (FRL) — 1" NPT, 175 CFM, 29 oz Metal Bowl
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
N3548W
|
The Arrow Pneumatics N3548 High Flow FRL is a heavy-duty, three-stage air preparation assembly that filters, regulates, and lubricates compressed air in a single 1" NPT inline unit. Rated for 175 CFM, it is built for high-demand industrial air systems, large pneumatic tools, and main-line air conditioning where smaller modular FRLs can't keep up. Both the filter and lubricator use rugged 29 oz metal bowls with sight glasses, and an air gauge is included.
Key specifications
- Port size: 1" NPT
- Max flow: 175 CFM
- Stage 1 — Particulate filter: 40 micron sintered bronze element
- Stage 2 — Regulator: standard relieving, with pressure gauge included
- Stage 3 — Lubricator: oil-fog lubricator
- Bowls: 29 oz metal bowls with sight glass (both filter and lubricator)
- Tamper-resistant, three-position adjusting knobs
- Approx. dimensions: 15-7/8" W x 7-7/8" H
- Approx. weight: 11.8 lbs
- Optional mounting bracket: ACA-7 (qty 2 required)
Configurations
- Standard, Manual Drain (7-125 PSI) — twist/manual drain (SKU N3548W)
- Auto Drain (7-125 PSI) — automatic float drain for hands-free condensate removal (SKU N3548FW)
- High Pressure (10-250 PSI) — high-pressure regulator range, manual drain (SKU N3548HW)
Typical applications
Ideal for high-volume shop air systems, large air tools and impact equipment, paint and blast operations, production lines, and any application that needs clean, regulated, lubricated air at high flow. The 29 oz metal bowls and sight glasses suit demanding industrial duty where poly bowls are unsuitable.
The Arrow Pneumatics N3548 High Flow 3-stage Filter/Regulator/Lubricator delivers complete 1" NPT, 175 CFM air preparation — filtration, pressure regulation, and lubrication — in one durable metal-bowl assembly engineered for industrial compressed air systems.
NOTE: Actual product may be different from pictured!
