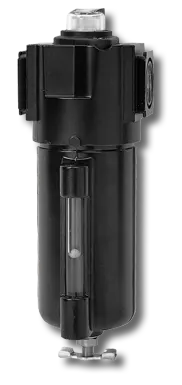

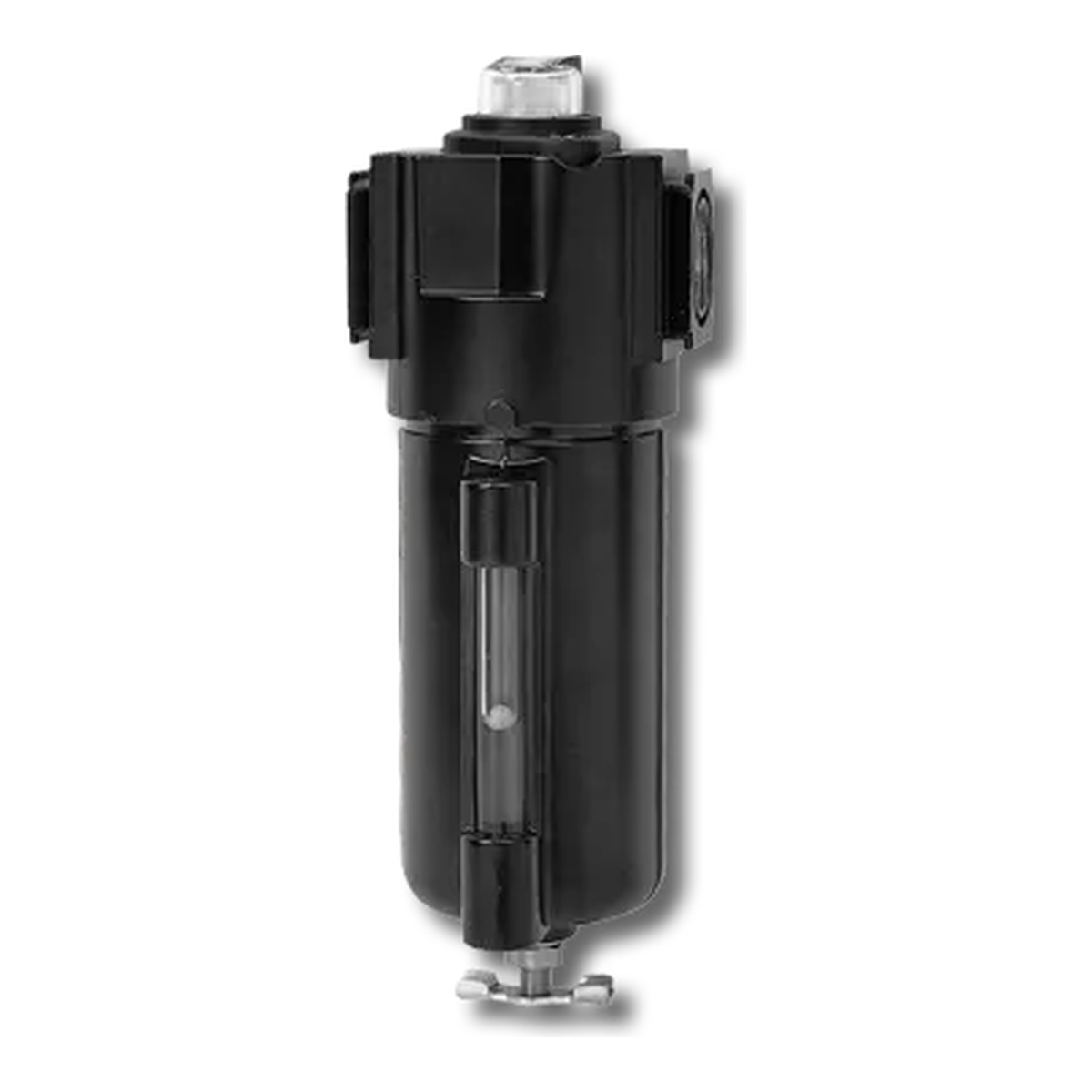

Arrow Pneumatics Mid-Flow Charcoal Adsorber Filter — 10 oz Metal Bowl, 250 PSIG
The Arrow Pneumatics Mid-Flow Charcoal Adsorber Filter protects downstream processes from gaseous oil contamination and rids compressed air of offensive oily odors. Its multi-wrapped, impregnated activated-charcoal element removes hydrocarbons and oil vapors, making it ideal for analytical instruments and other sensitive operations that require odor-free, contaminant-free air. Choose your pipe connection size below.
Key specifications
- Element: multi-wrapped layers of impregnated activated charcoal for oil-vapor and odor removal
- Bowl: 10 oz zinc, black E-coated metal bowl with liquid-level sight glass
- Housing: black E-coated aluminum body with Buna-N seals and plastic baffle
- Maximum pressure: 250 PSIG
- Operating temperature range: 40°F to 160°F
- Drain: manual 1/8" NPT twist drain
- Pop-up indicator signals abnormal conditions such as a plugged element or excessive flow
- Available port sizes / max flow: 1/2" NPT — 56 SCFM, 3/4" NPT — 60 SCFM, 1" NPT — 65 SCFM
Typical applications
Food and beverage plants, pharmaceutical production, and instrumentation air, where compressed air must be free of oil vapor and odors. For best results, install an Arrow F5-series coalescing pre-filter ahead of the adsorber, and a 3-micron particulate filter downstream for total system protection.
The Arrow Pneumatics Mid-Flow Charcoal Adsorber Filter delivers high-efficiency oil-vapor and odor removal with low pressure drop in a rugged 250 PSIG metal-bowl housing, available in 1/2", 3/4", and 1" NPT connections.
NOTE: Actual product may be different from pictured!
