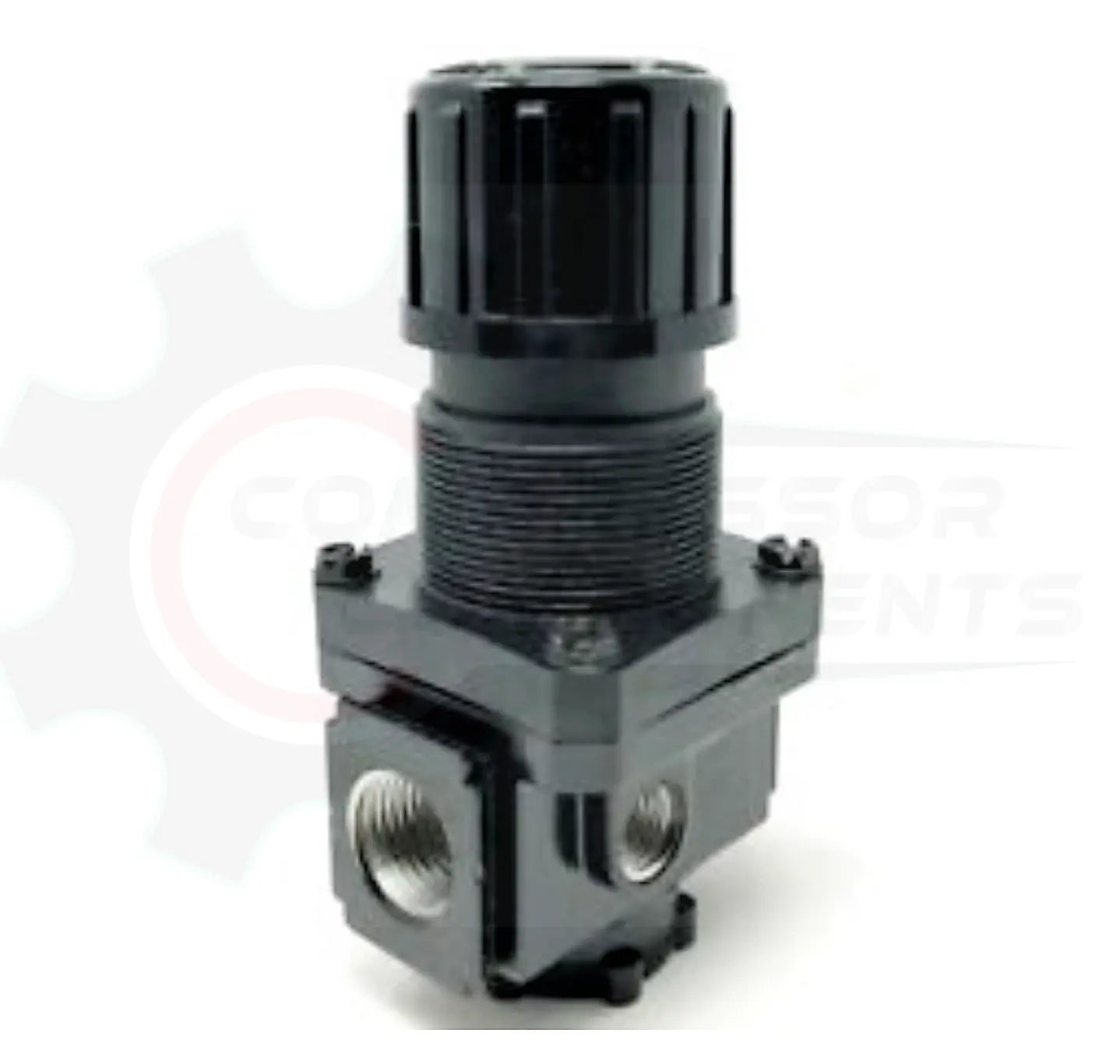

Arrow Pneumatics Light Duty Standard Flow Air Pressure Regulator — 5–125 PSI Adjustable
The Arrow Pneumatics light-duty standard-flow air pressure regulator delivers stable, repeatable downstream pressure for compressed-air systems, pneumatic tools, and production equipment. A relieving design with a micro-finished brass seat holds set pressure without creep, while efficient aspiration keeps pressure drop low even at full flow.
Key specifications
- Adjustable outlet pressure: 5–125 PSIG
- Maximum supply (inlet) pressure: 250 PSIG
- Operating temperature range: 40°F to 120°F
- Regulator type: relieving (self-relieving)
- Body: black E-coated aluminum; bonnet: glass-filled nylon
- Seat: micro-finished brass; seals: Buna-N elastomer
- Gauge ports: 1/4" full-flow (gauge sold separately)
- Three-position non-rising adjustment knob — push to lock, pull to adjust, detach for tamper resistance
- Port sizes: 1/4" NPT (35 CFM), 3/8" NPT (35 CFM), 1/2" NPT (40 CFM)
- Panel-mountable for in-line or modular installation
Typical applications
Ideal for air compressors, pneumatic tools, spray and blow-off stations, automation cells, and general industrial air lines where consistent regulated pressure protects downstream equipment and improves efficiency.
The Arrow Pneumatics standard-flow air pressure regulator combines a rugged aluminum body, relieving operation, and 5–125 PSI adjustment in 1/4", 3/8", and 1/2" NPT port sizes for dependable compressed-air pressure control across the shop.
NOTE: Actual product may be different from pictured!
