Arrow Pneumatics Hydraulic In-Line Filter, SAE Ports — 10 Micron, Viton Seals, 3000 PSI
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
9152V-10
|

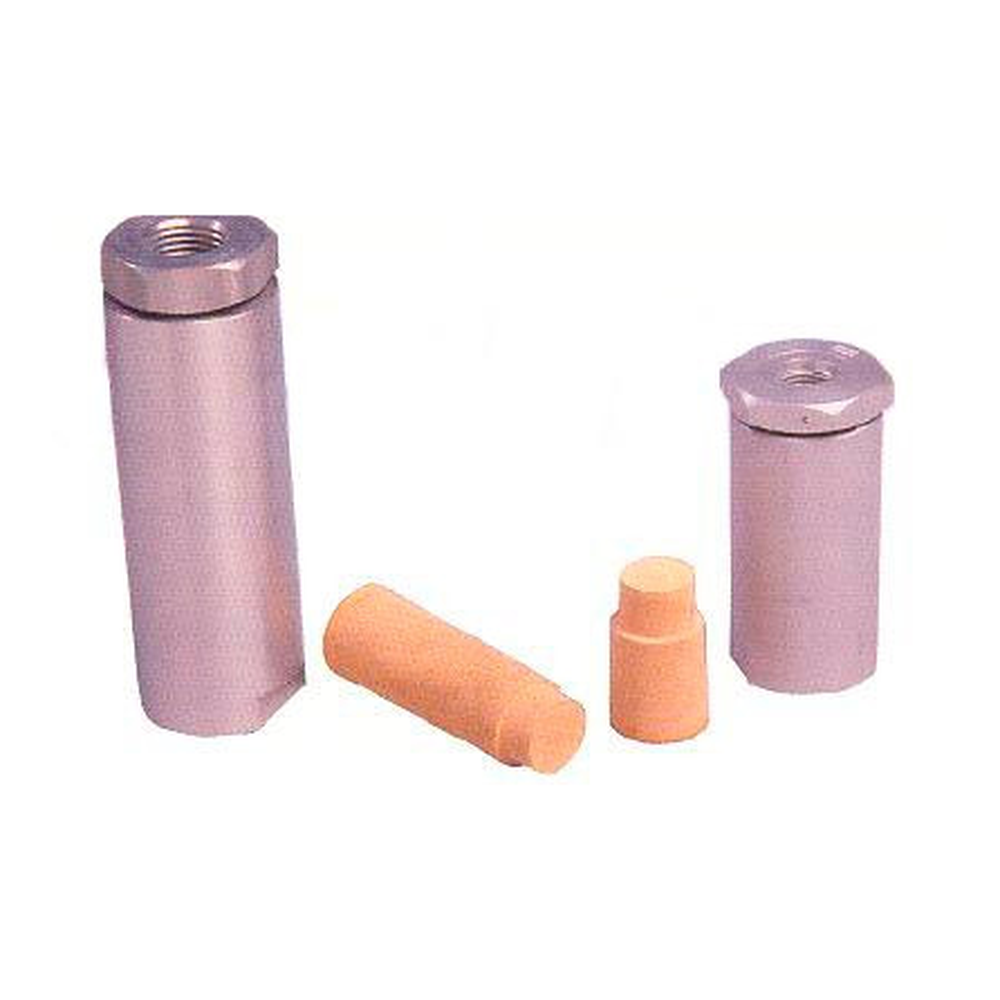

The Arrow Pneumatics hydraulic in-line filter protects downstream valving, pumps, and precision components by removing wear particles from hydraulic and lubrication circuits. This version uses Viton (FKM) O-rings for oil systems and fluids where chemical compatibility is a concern. A lightweight anodized-aluminum housing encloses a conically shaped sintered-bronze element held by a retaining spring, delivering true, uninterrupted axial flow with minimal pressure drop. Available with 9/16"-18 and 3/4"-16 SAE straight-thread ports.
Key specifications
- Filtration: 10 micron nominal, sintered bronze element
- Maximum operating pressure: 3,000 PSI
- Housing: anodized aluminum
- Ports: SAE straight thread — 9/16"-18 and 3/4"-16
- Seals: Viton (FKM) O-rings for oil and chemically aggressive fluids
- Element: cleanable and replaceable (Arrow EK9052 replacement element)
- Operating temperature: 35°F to 200°F
Typical applications
Hydraulic power units, oil lubrication lines, machine tools, and fluid systems requiring Viton seal compatibility.
Order the Arrow Pneumatics SAE hydraulic in-line filter with Viton seals for dependable 10-micron protection in oil and chemically demanding systems.
NOTE: Actual product may be different from pictured!
