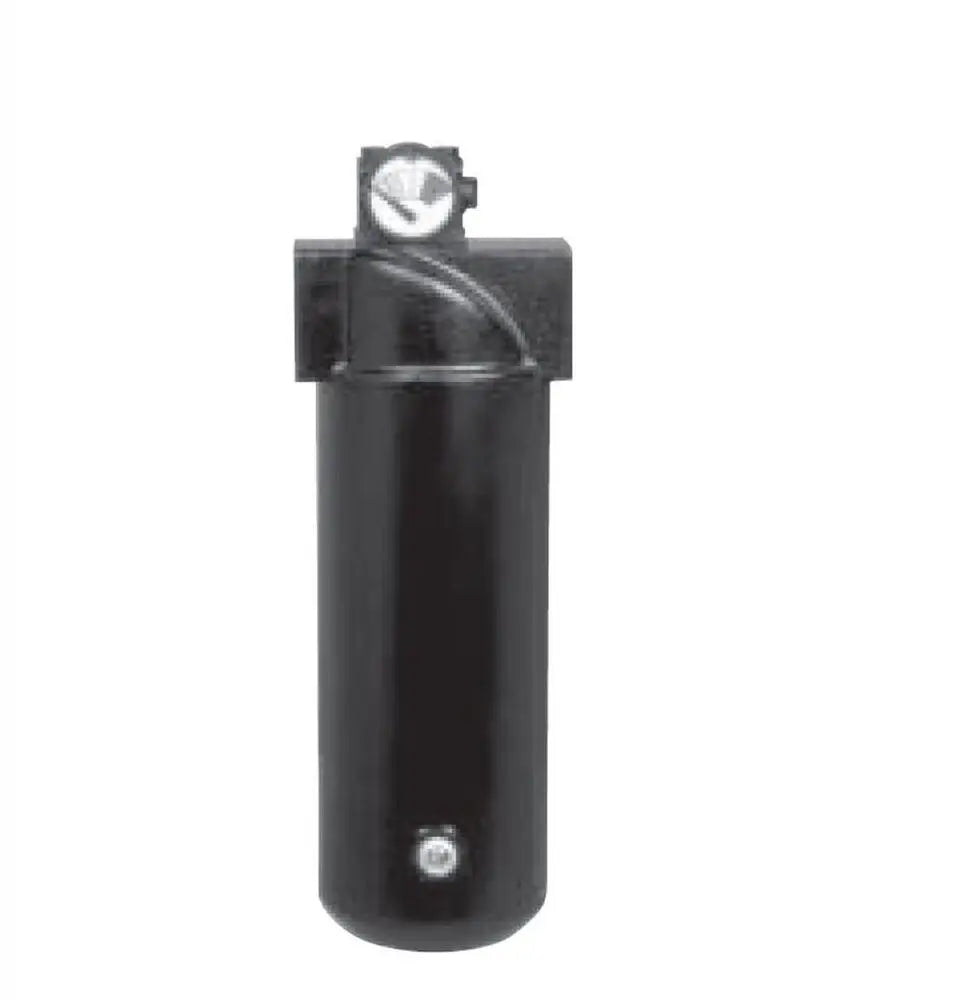

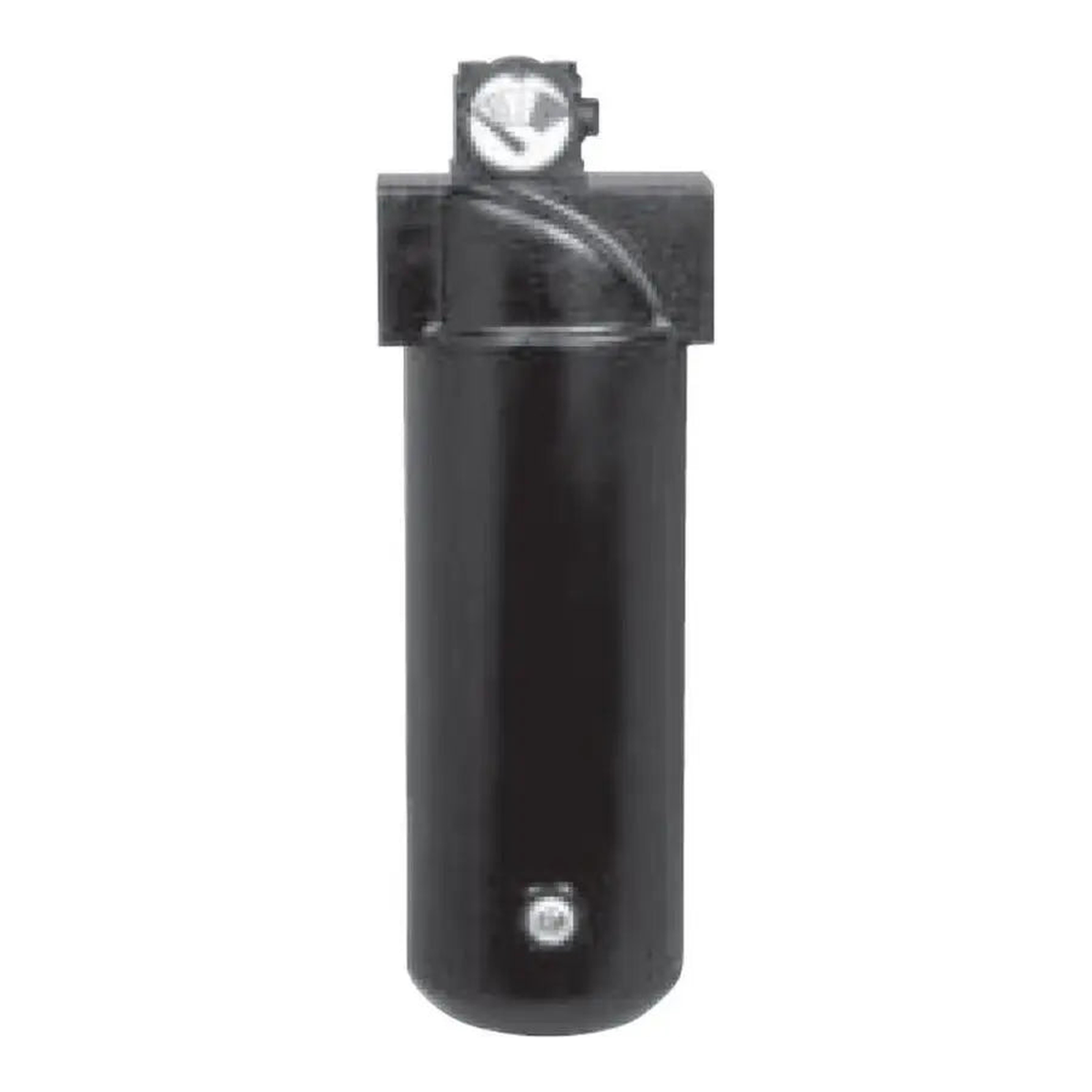

Arrow Pneumatics F610 Super High-Flow Charcoal Adsorber Filter — 100 oz Metal Bowl, Oil Vapor Removal
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
F610-10W
|
The Arrow Pneumatics F610 Super High-Flow Charcoal Adsorber Filter is the final-stage polishing filter for compressed air systems that cannot tolerate oil vapor, hydrocarbons, or odors. Its activated-carbon (charcoal-wrapped) element adsorbs residual oil aerosols and vapor that pass through upstream filtration, delivering air with oil concentrations as low as 0.01 PPM by weight. Built on a rugged 100 oz metal bowl, the F610 series handles large-volume lines with minimal pressure drop.
Key specifications
- Element: activated carbon / charcoal-wrapped adsorber
- Bowl: metal, 100 oz capacity
- Drain: manual twist drain
- Maximum operating pressure: 250 PSIG
- Operating temperature range: 40–160°F
- Outlet oil content: as low as 0.01 PPM by weight (with proper pre-filtration)
- Port sizes & flow (at 2.5 psi Δp, 100 psig inlet): 1-1/4" NPT — 420 SCFM; 1-1/2" NPT — 475 SCFM; 2" NPT — 475 SCFM

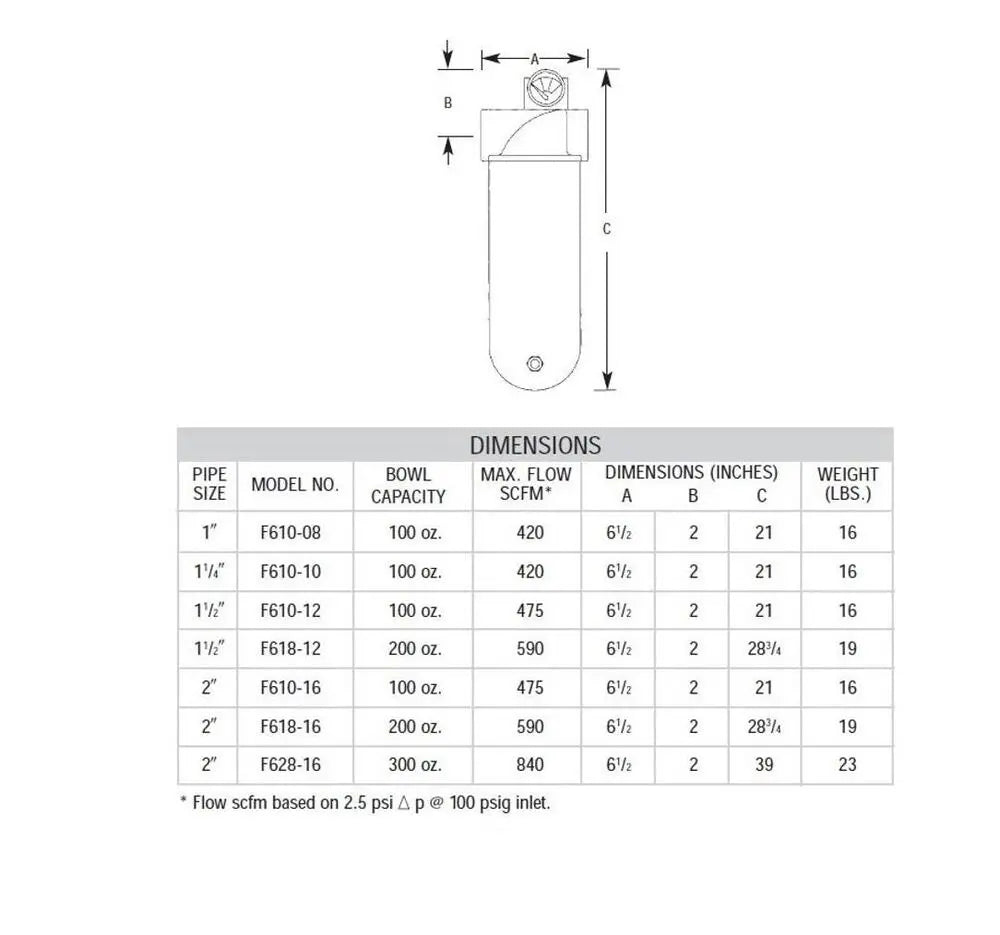

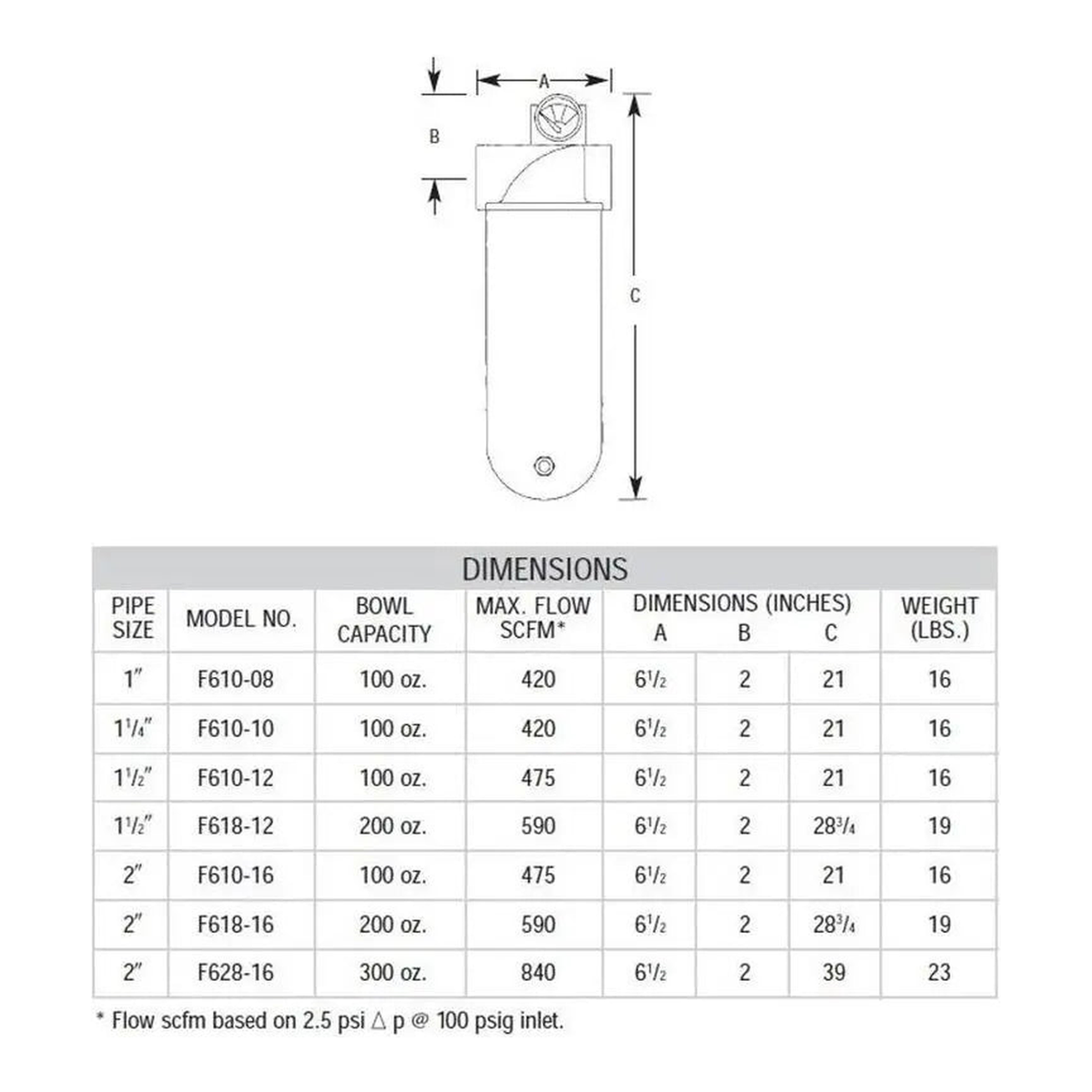

- Dimensions: A 6-1/2", B 2", C 21"; approx. weight 16 lb
Important — requires upstream pre-filtration
An adsorber filter is a polishing stage, not a primary filter. For rated performance, the F610 must be preceded by a refrigerated dryer and an Arrow F5-series coalescing / oil-removing filter. Without proper pre-filtration the activated-carbon element will load quickly and lose effectiveness.
Typical applications
Paint and powder-coat spraying, food and beverage packaging, pharmaceutical and laboratory air, electronics and instrument air, and any odor- or hydrocarbon-sensitive process requiring technically oil-free compressed air.
Choose the Arrow Pneumatics F610 super high-flow charcoal adsorber filter to remove oil vapor and odors from high-volume compressed air lines, available in 1-1/4", 1-1/2", and 2" NPT with a durable 100 oz metal bowl.
NOTE: Actual product may be different from pictured!
