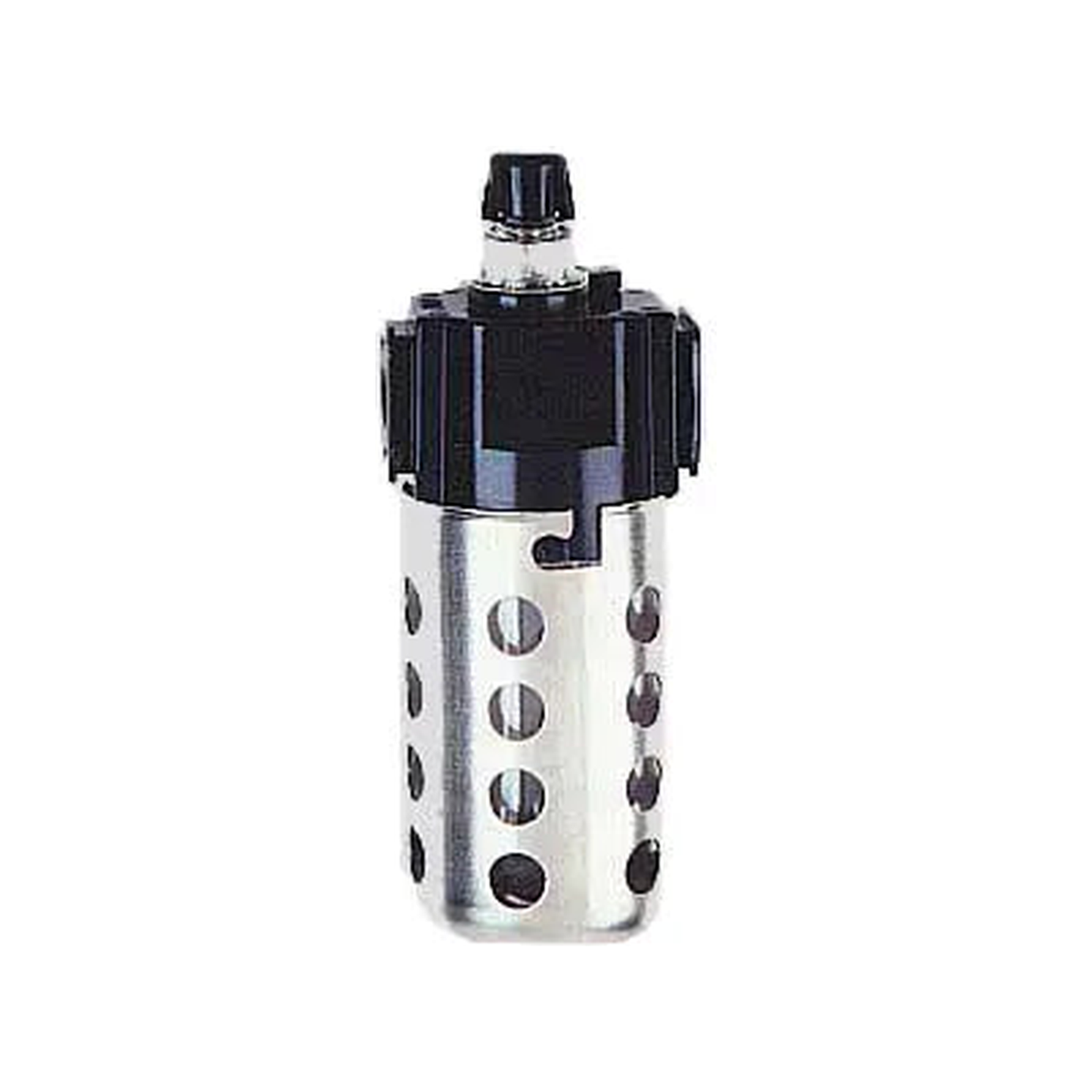

Arrow Pneumatics Arrowfog Standard-Flow Lubricator — 6 oz Metal Bowl with Sight, E-Coated Aluminum
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
L352W
|
The Arrow Pneumatics Arrowfog standard-flow lubricator injects a precise, adjustable mist of oil into your compressed air line, reducing friction and extending the life of air tools, cylinders, and valves. This metal-bowl model adds a rugged zinc, black E-coated bowl with a sight glass and a 200 psig pressure rating — ideal where polycarbonate isn't suitable or where line pressure runs high. A 3-position non-rising adjustment knob lets you dial in oil delivery, push to lock, or detach it for tamper resistance, and the 6 oz bowl can be refilled without shutting down the air line.
Key specifications
- 6 oz metal bowl with sight glass
- Bowl: zinc, black E-coated
- Body: black E-coated aluminum
- Maximum pressure: 200 psig (metal bowl)
- Operating temperature: 40°F to 160°F
- Oil delivery begins at low air flow (~2 SCFM)
- Atomized droplet size: ~2 micron average
- Recommended oil: SAE 10 or lighter
- 3-position non-rising adjustment knob (push to lock, pull to adjust, detach for tamper resistance)
- Field-convertible to an Ultrafog lubricator with interchangeable module RKL452
Available port sizes
- 1/4" NPT — 16 SCFM max flow (model L352W)
- 3/8" NPT — 82 SCFM max flow (model L353W)
- 1/2" NPT — 142 SCFM max flow (model L354W)
Max flow rated at 5.0 psi pressure drop @ 100 psig inlet.
Applications
Ideal for point-of-use lubrication of pneumatic tools, air motors, cylinders, and valves in workshops, automotive shops, and industrial compressed-air systems. The metal bowl resists impact and incompatible chemicals that can damage polycarbonate, and the sight glass makes oil level easy to check at a glance. Choose the port size that matches your line and required flow.
The Arrow Pneumatics Arrowfog metal-bowl lubricator pairs reliable, low-flow oil delivery with a durable E-coated aluminum body and zinc bowl, making it a dependable choice for keeping air tools and pneumatic equipment running smoothly in demanding compressed-air applications.
NOTE: Actual product may be different from pictured!
