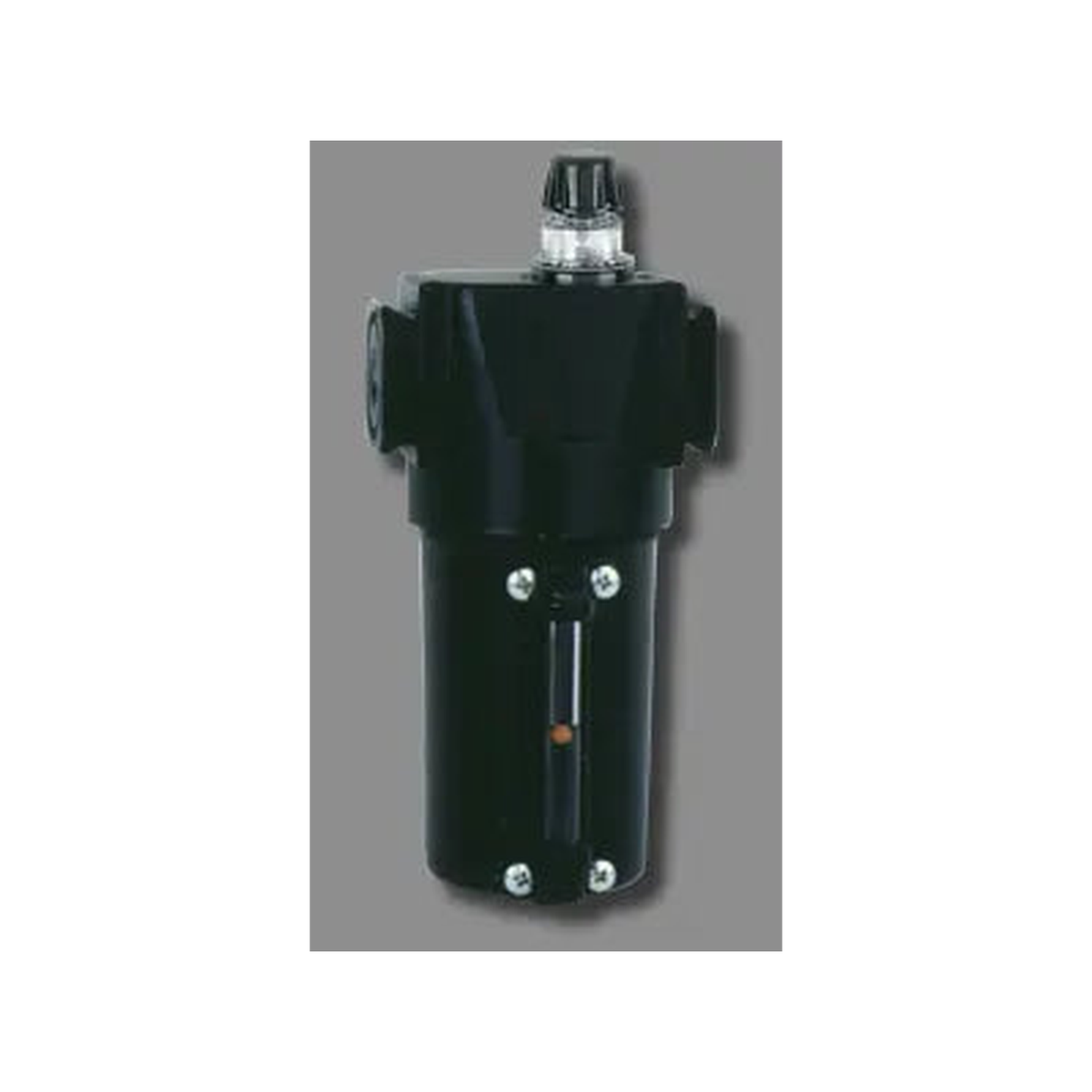

Arrow Pneumatics Arrowfog Mid-Flow Lubricator — 20 oz Metal Bowl with Sight, E-Coated Aluminum
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
L484W
|
The Arrow Pneumatics Arrowfog Mid-Flow Lubricator injects a precise, adjustable mist of oil into your compressed air line to cut friction and wear on air tools, cylinders, and pneumatic equipment. Its high-capacity 20 oz metal bowl with sight glass means longer run time between refills and easy visual oil-level checks — built for industrial-duty point-of-use air preparation rated to 142 SCFM.
Key specifications
- Flow capacity: 142 SCFM
- Bowl: 20 oz black E-coated metal bowl with sight glass
- Body: black E-coated aluminum
- Port size: 1/2" NPT or 3/4" NPT
- Max. pressure: 200 PSIG
- Operating temperature: 40°F to 160°F
- 3-position non-rising adjustment knob — push to lock, pull to adjust, detach for tamper resistance
- Refillable under pressure — no need to shut down the air line to top off oil
- Recommended oil: SAE 10 or lighter
Typical applications
Ideal for shops and plants running air tools, rock drills, impact wrenches, rotary equipment, and air cylinders that require continuous oil lubrication. The large 20 oz reservoir suits higher-demand mid-flow lines where frequent refilling of a standard 6 oz bowl would be impractical, while the sight glass lets operators monitor oil at a glance.
The Arrow Pneumatics Arrowfog Mid-Flow Lubricator pairs an E-coated aluminum body with a rugged 20 oz metal sight bowl and tamper-resistant adjustment for dependable, repeatable lubrication across industrial compressed-air systems — available in 1/2" and 3/4" NPT.
NOTE: Actual product may be different from pictured!
