Aluminum Female Tapping Flange by Prevost

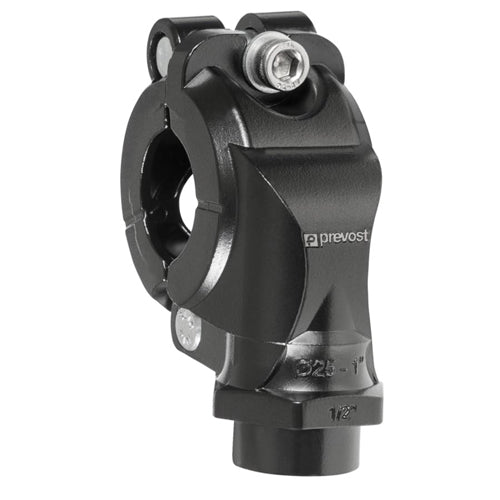

PPS1 BT – ALUMINIUM FEMALE THREAD TAPPING FLANGE
Technical specifications

• Technology :PPS Grip Concept
• Operating pressure :29 to 232 psi
• Vacuum capability :0.59 inHg (vacuum 98%)
• Temperature : 5 deg. F to158 deg. F
• Construction :Pipe and fittings: alu.
• Highlight :Scalable system
• Meets standards :ASME B31.3 REACH

Example Below illustrates how the Tapping Flange can be used on the header pipe with a Bend Link Pipe to bring the drop pipe back to the wall.

Example Below illustrates how the Tapping Flange can be used on the header pipe with a straight Pipe in an area without a wall.

For pipe OD (in) NPT female thread Reference 1″ 3/8″ FNPT PPS1 BT25202 1 1/2″ 1/2″ FNPT PPS1 BT40203 1″ 1/2″ FNPT PPS1 BT25203 1 1/4″ 1/2″ FNPT PPS1 BT32203 1 1/2″ 3/4″ FNPT PPS1 BT40204 1 1/2″ 1″ FNPT PPS1 BT40205 1 1/4″ 3/4″ FNPT PPS1 BT32204 2″ 1/2″ FNPT PPS1 BT50203 2″ 3/4″ FNPT PPS1 BT50204 2″ 1″ FNPT PPS1 BT50205 2 1/2″ 1/2″ FNPT PPS1 BT63203 2 1/2″ 3/4″ FNPT PPS1 BT63204 2 1/2″ 1″ FNPT PPS1 BT63205 3″ 1/2″ FNPT PPS1 BT80203 3″ 3/4″ FNPT PPS1 BT80204 3″ 1″ FNPT PPS1 BT80205

A (mm)	B (inch)	C (inch)	Reference
32	3.228	2.756	PPS1 BT25202
44	4.331	4.016	PPS1 BT40203
32	3.228	2.756	PPS1 BT25203
32	3.228	2.756	PPS1 BT32203
44	4.331	4.016	PPS1 BT40204
44	4.331	4.016	PPS1 BT40205
32	3.307	2.756	PPS1 BT32204
44	4.331	4.016	PPS1 BT50203
44	4.331	4.016	PPS1 BT50204
44	4.331	4.016	PPS1 BT50205
57	6.339	5.787	PPS1 BT63203
57	6.339	5.787	PPS1 BT63204
57	6.378	5.787	PPS1 BT63205
57	6.339	5.787	PPS1 BT80203
57	6.339	5.787	PPS1 BT80204
57	6.378	5.787	PPS1 BT80205
