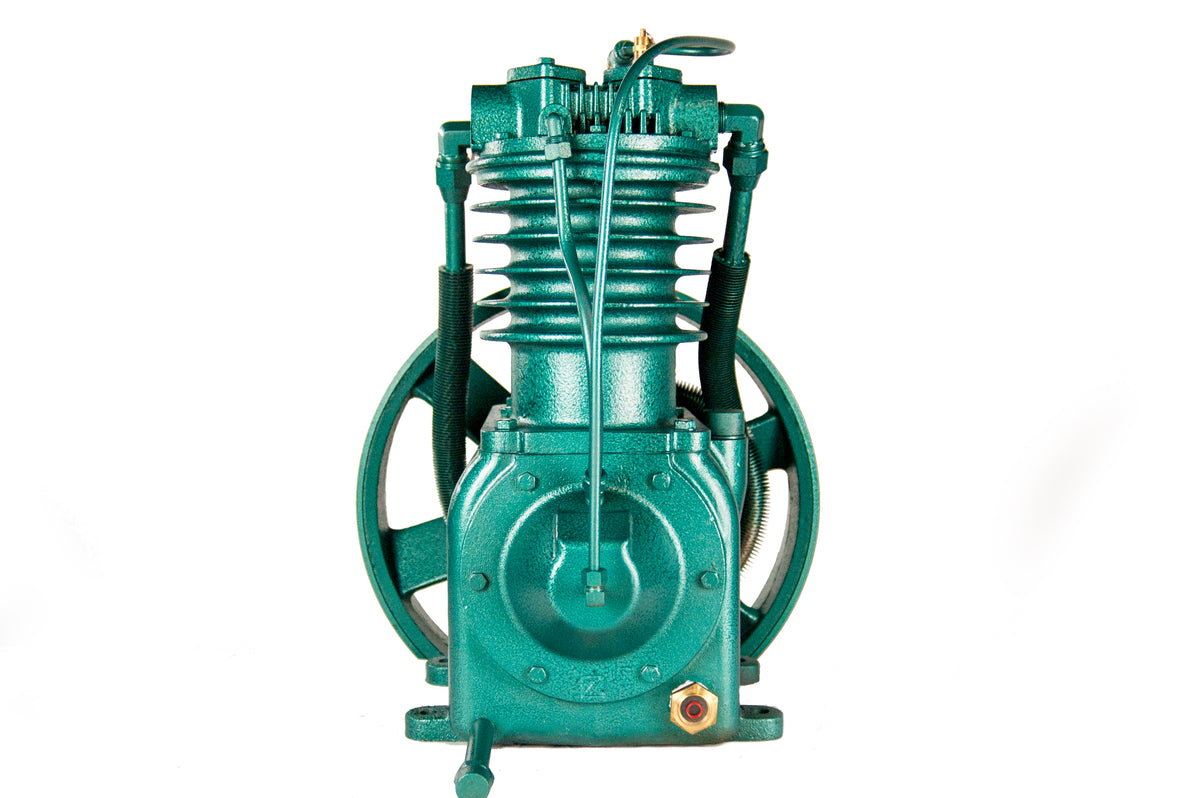

AirComParts Z332 Kellogg-American 331 / 332TV Replacement Pump, 3-7.5 HP Two-Stage
The AirComParts Z332 is a long-stroke, two-stage cast-iron bare pump built to replace the Kellogg-American 331 and 332TV. One pump covers 3, 5 and 7.5 HP service, delivering 17.2 CFM at 175 PSI on a 5 HP motor and 25 CFM at 175 PSI on a 7.5 HP motor. It ships complete with flywheel and air intake filter.
Key specifications
- Horsepower range: 3, 5 and 7.5 HP
- Stages: two-stage
- Cylinders: two, long-stroke design
- Delivery: 17.2 CFM at 175 PSI at 5 HP; 25 CFM at 175 PSI at 7.5 HP
- Maximum pressure: 175 PSI
- Construction: cast iron
- Lubrication: positive ring-fed
- Unloading: centrifugal, with optional head unloading
- Connecting rods: steel with automotive-type inserts and needle bearings at the wrist pins
- Supplier-listed pump weight: 240 lb
- Includes: flywheel and air intake filter
Fits and replaces
Supplied as a replacement for Kellogg-American 331, 332 and 332TV pumps. Confirm your flywheel diameter, belt count and mounting bolt pattern against the pump you are removing before ordering.
Typical applications
Two-stage shop and fleet compressors, automotive service bays, woodworking shops, small production air systems, and any 3 to 7.5 HP Kellogg-American package worth rebuilding.
The Z332 two-stage air compressor pump from AirComParts is a cast-iron Kellogg 332TV replacement that covers 3 through 7.5 HP, with positive ring-fed lubrication, long-stroke cylinders and a flywheel and intake filter included in the box.
NOTE: Actual product may be different from pictured!
