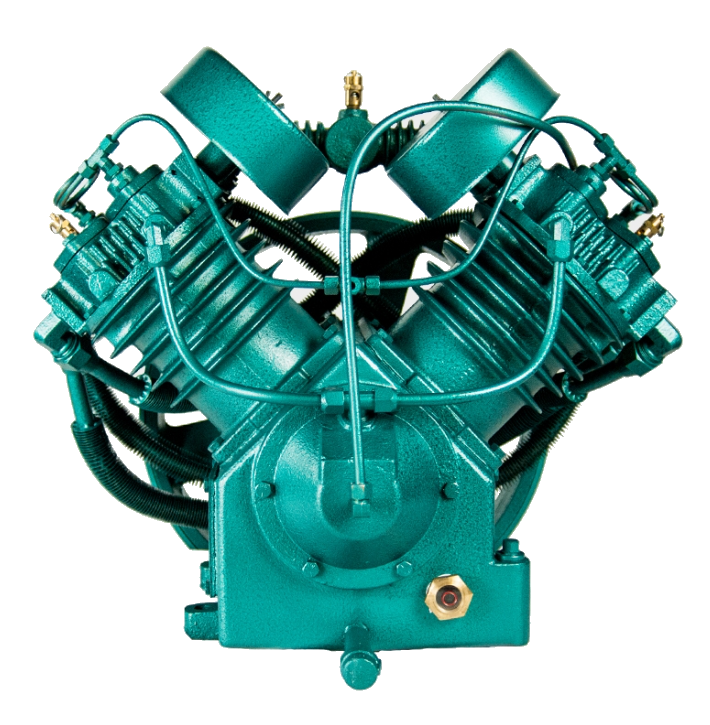

AirComParts R452HU Kellogg-American 452TVX Replacement Pump, 7.5-10 HP Two-Stage, 4-Cylinder
The AirComParts R452HU is a four-cylinder, two-stage cast-iron bare pump with head unloaders, built to replace the Kellogg-American 452 and 452TVX. It runs at 730 RPM and delivers 35.2 CFM at 175 PSI on a 10 HP motor. The four-cylinder V layout spreads the work across more pistons, which keeps discharge temperatures and vibration down.
Key specifications
- Horsepower range: 7.5 to 10 HP
- Stages: two-stage
- Cylinders: four
- Delivery: 35.2 CFM at 175 PSI at 10 HP
- Speed: 730 RPM
- Construction: cast iron
- Lubrication: positive ring-fed
- Unloading: head unloading plus centrifugal unloading
- Connecting rods: steel with automotive-type inserts and needle bearings at the wrist pins
- Supplier-listed pump weight: 310 lb
Fits and replaces
Supplied as a replacement for Kellogg-American 452, 452TV and 452TVX pumps. The Kellogg 452TVX platform uses a 4.75 inch low-pressure bore and 2.5 inch high-pressure bore on a 3 inch stroke with an 18 inch three-groove B flywheel. Confirm your flywheel, belt count, outlet size and mounting bolt pattern against the pump you are removing before ordering.
Typical applications
Two-stage industrial compressors, production and fabrication shops, fleet maintenance, paint and body work, and any 7.5 to 10 HP Kellogg-American package worth rebuilding.
The R452HU two-stage air compressor pump from AirComParts is the four-cylinder Kellogg 452TVX replacement rated 35.2 CFM at 175 PSI at 730 RPM, supplied with head unloaders and positive ring-fed lubrication.
NOTE: Actual product may be different from pictured!
