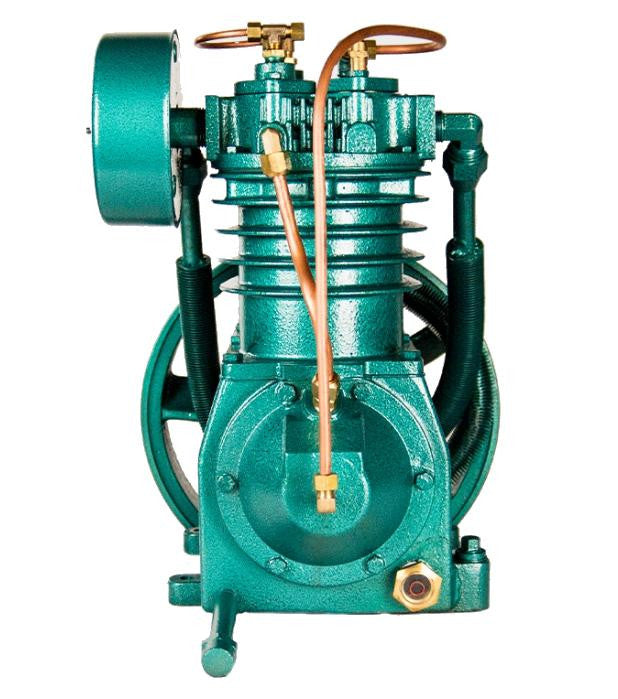

AirComParts R335HU Kellogg-American 335TVX Replacement Pump, 3-5 HP Two-Stage, 17.2 CFM at 175 PSI
The AirComParts R335HU is a slow-speed, two-stage cast-iron bare pump with head unloaders, built to replace the Kellogg-American 335TVX. Turning just 700 RPM, it delivers 17.2 CFM at 175 PSI on a 5 HP motor. Slow speed means lower heat, lower noise and longer life than a high-RPM pump of the same output.
Key specifications
- Horsepower range: 3 to 5 HP
- Stages: two-stage
- Cylinders: two
- Delivery: 17.2 CFM at 175 PSI at 5 HP
- Speed: 700 RPM
- Construction: cast iron
- Lubrication: positive ring-fed
- Unloading: head unloading plus centrifugal unloading
- Connecting rods: steel with automotive-type inserts and needle bearings at the wrist pins
- Supplier-listed pump weight: 220 lb
Fits and replaces
Supplied as a replacement for Kellogg-American 335, 335TV and 335TVX pumps. The Kellogg 335TVX platform uses a 4.75 inch low-pressure bore and 2.5 inch high-pressure bore on a 3 inch stroke with a 13-3/4 inch twin B-groove flywheel and a 3/4 inch FPT outlet. Confirm your flywheel, belt count and mounting bolt pattern against the pump you are removing before ordering.
Typical applications
Two-stage shop and automotive compressors, body shops, tire service, light manufacturing, and any 3 to 5 HP Kellogg-American package that needs 175 PSI restored.
The R335HU two-stage air compressor pump from AirComParts is the slow-speed, 700 RPM Kellogg 335TVX replacement rated 17.2 CFM at 175 PSI, supplied with head unloaders for constant-run control.
NOTE: Actual product may be different from pictured!
