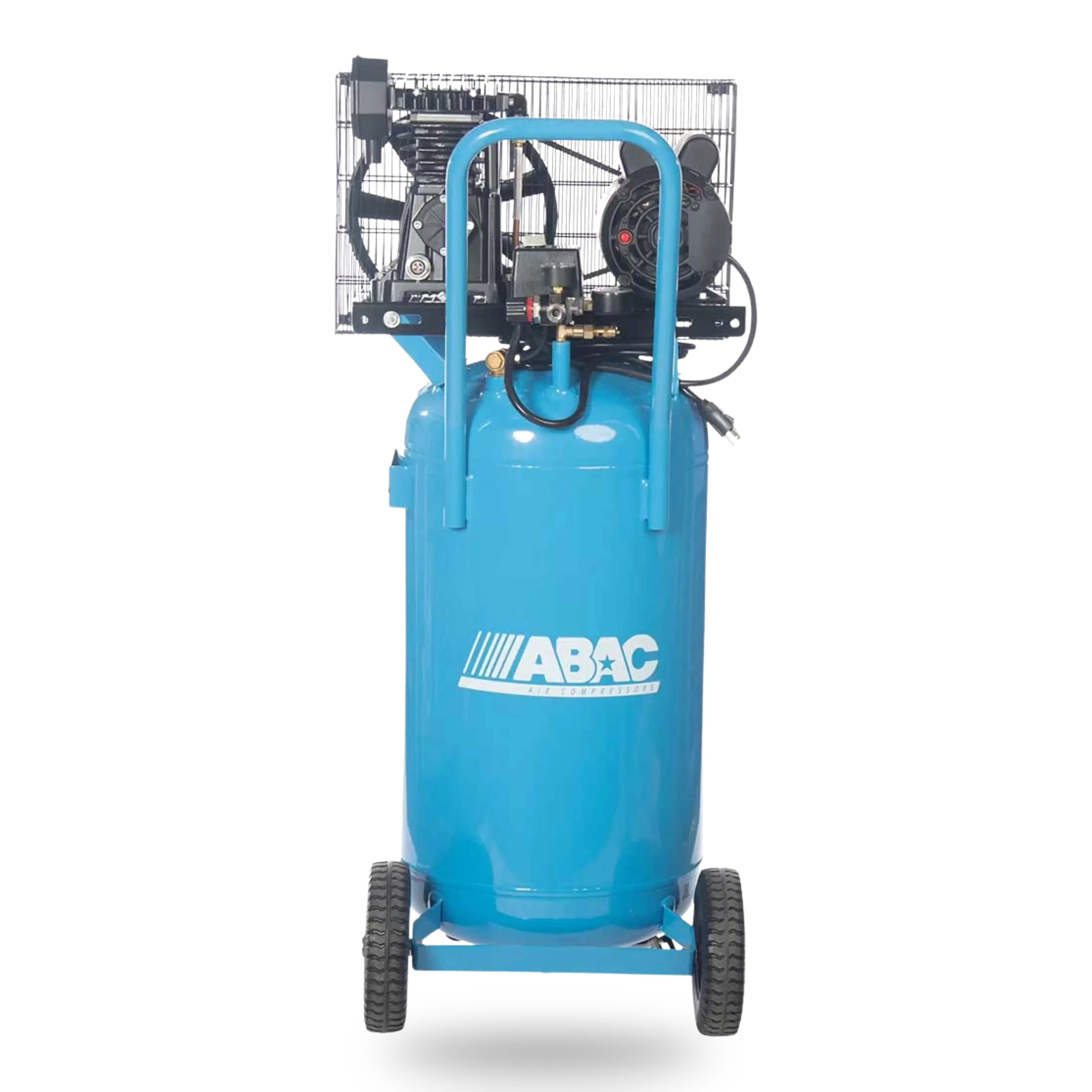

ABAC AB-224VP 2 HP Single-Stage Air Compressor - 24 Gallon Vertical, 145 PSI, 115V Convertible to 230V

The ABAC AB-224VP packs full-size shop performance into a portable, space-saving vertical package. A belt-driven PAT24 single-stage aluminum pump delivers 7 CFM at a maximum 145 PSI, backed by a 24 gallon vertical ASME tank on wheels so one person can roll it anywhere in the shop, garage, or job site. It ships wired for a standard 115V single-phase outlet and can be run on 230V single-phase, so it fits the power you already have and can move up later.

Key specifications

• Model: AB-224VP (part number 8975705105, formerly 1129741306)
• Motor: 2 HP, 115/1/60, can run on 230/1/60
• Pump: PAT24 belt-drive, single-stage aluminum pump
• Air delivery: 7 CFM at max pressure
• Maximum pressure: 145 PSI
• Tank: 24 gallon vertical, portable with wheels
• Controls: start/stop pressure switch, ASME-certified tank and safety valves
• Fully enclosed belt guard
• Manual tank drain and discharge valve
• Weight: 150 lbs | Dimensions: 22" x 19" x 47"
• Warranty: 1 year

What a belt-drive single stage gives you

Ambient air is drawn through the intake filter, compressed in one piston stroke, and pushed into the receiver before it reaches the tool. Belt drive is the reason the machine runs quieter and with less maintenance than a direct drive of the same size: the motor turns the pump through a belt rather than spinning it at motor speed, so the pump sees lower RPM and less heat. ABAC builds the pump in aluminum for fast heat dissipation and fits pressure-centered valves, and the fully enclosed belt guard keeps the drive covered without blocking cooling airflow. At 150 lbs on wheels this is still a machine one person moves, which is the whole point of the 24 gallon vertical format.

How it compares

Two other ABAC single-stage belt drive machines sit near it. The AB2-2160V1 uses the same 2 HP motor and the same PAT 24 pump on the same 115V supply, but puts them on a stationary 60 gallon vertical tank, so it stores far more air and stays where you set it. The AB3-2160V1 steps up to 3.5 HP and 12.35 CFM at a 135 PSI maximum on a 60 gallon tank, but it needs a 230V single-phase circuit and weighs 261 lbs. Choose the AB-224VP when the compressor has to move and the supply is 115V, and step up to a 60 gallon machine when the work is stationary and a tool keeps outrunning the tank.

Typical applications

ABAC positions the AB-224VP for tools that need a moderate, intermittent air supply: nail guns, staplers and brad nailers, small spray guns, tire inflation, blow-down and cleaning, and light sanding. It is at home in wood and metal workshops, auto body and repair bays, trim carpentry, home and hobby shops, and on-site work where the compressor moves between tasks. Size the tool to the 7 CFM rating rather than the motor: continuous-demand tools such as a dual-action sander or a sandblaster want a larger pump and a bigger receiver.

Built by ABAC, part of the Atlas Copco group, the AB-224VP pairs a rugged PAT24 belt-drive pump with dual-voltage flexibility, making it a dependable 24 gallon 2 HP compressor for shops that need reliable air without committing to a single supply voltage. See the rest of our 2 HP air compressors and the wider range of piston air compressors.
