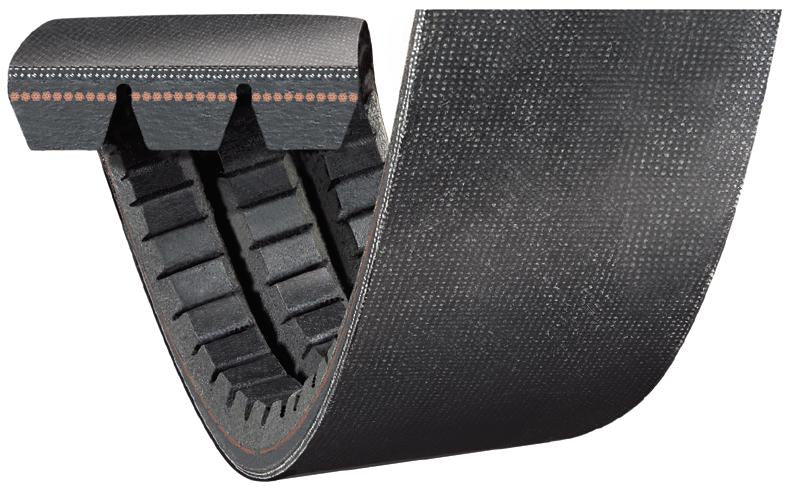

4-Band 5VX Banded Cogged Wedge V-Belt (5/8" Section)
The 4-Band 5VX banded cogged wedge V-belt combines four joined 5VX-section strands into a single, tie-banded unit engineered for high-horsepower, high-shock industrial drives. The banded construction keeps the strands tracking together to prevent belt whip, rollover, and turnover on heavily loaded or pulsating drives, while the molded cog (notch) profile lets each strand flex freely, run cooler, and transmit more power than a comparable smooth belt.
Key specifications
- Cross section: 5VX (narrow / wedge), 5/8" top width per strand
- Bands: 4 strands joined by a common tie band
- Overall top width: approx. 2.72" (4-band); belt depth approx. 0.61"
- Profile: cogged / notched (molded-notch) for flexibility and heat dissipation
- Effective lengths: 45" to 200" (see Length option)
- Length code: the number after 5VX is the belt length in tenths of an inch (e.g. 5VX450 = 45")
Typical applications
Ideal for heavy-duty, high-shock power transmission where single belts slip or roll over: industrial air compressors, large fans and blowers, pumps, crushers, mills, conveyors, and agricultural and HVAC equipment. The banded design excels on drives with shock loads, vibration, or uneven load distribution.
This 4-band 5VX banded cogged wedge V-belt is an industry-standard replacement, interchangeable with other manufacturers’ 4/5VX banded cogged belts of the same length, delivering dependable, high-capacity power transmission across a wide range of drive sizes.
NOTE: Actual product may be different from pictured!
