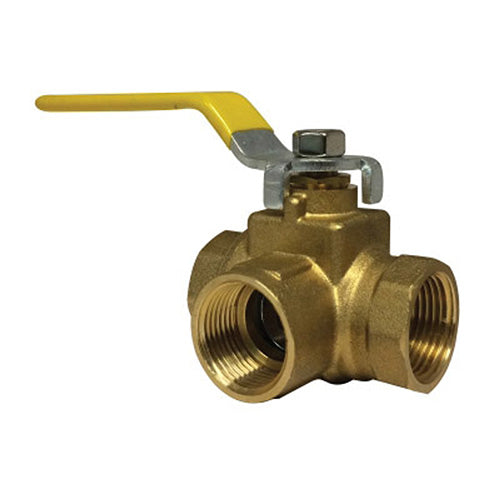

3-Way Side Outlet Brass Ball Valve — Full Port, 600 WOG (FNPT)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
FBV-464
|
| Dimensions | |
 Weight |
2.0 lb
|
The 3-Way Side Outlet Brass Ball Valve lets you divert, select, or shut off flow between three ports with a single quarter-turn of the lever handle. Its full-port forged-brass body delivers unrestricted flow, making it a rugged choice for air, water, oil, and gas service in the portable air compressor industry and general fluid-handling systems.
Key specifications
- Configuration: 3-way side outlet (L-port diverting)
- Body: Forged brass, full port
- Connections: Female NPT (FNPT)
- Pressure rating: 600 WOG / 150 SWP
- Temperature range: 0–230°F
- Stem: Blow-out proof with double O-ring stem packing
- Seats & seal: PTFE
- Operation: 1/4-turn lever handle
- Available sizes: 1/4", 3/8", 1/2", 3/4" FNPT
- Note: Made in China; not lead-free
Applications
Ideal for directing or isolating flow in compressed-air systems, tank manifolds, fluid-transfer lines, and any equipment that needs selectable porting. Common uses include air distribution, water and oil control, and gas service within rated limits.
Built for durability and easy operation, this full-port 3-way brass ball valve provides reliable, leak-resistant flow control wherever you need to switch between or combine multiple lines. Choose the FNPT size that matches your system for a secure, long-lasting fit.
NOTE: Actual product may be different from pictured!
