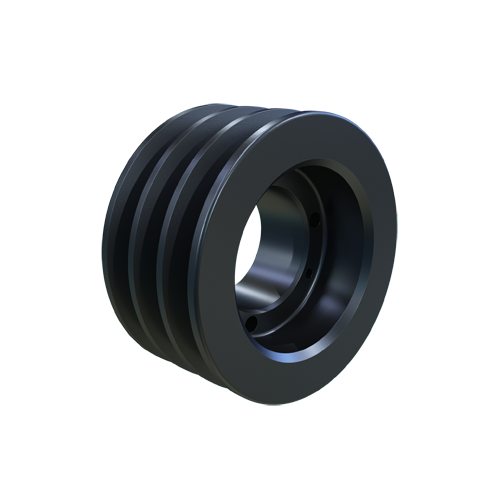

3-Groove B-Section Cast Iron V-Belt Sheave — SD Bushing Type (Bushing Sold Separately)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
3B46-SD
|
Three-groove B-section cast iron V-belt sheave built for the QD "SD" bushing system, delivering dependable, slip-free power transmission on air compressors, pumps, fans, blowers and other industrial drives. The tapered SD bushing (sold separately) locks the sheave to the shaft for a secure, concentric fit and fast installation or removal.
Key specifications
- Groove count: 3
- Belt section: A/B — accepts A, 4L, B and 5L V-belts
- Material: Class 30 gray cast iron, statically balanced
- Bushing: QD "SD" style, required and sold separately (bore is set by the bushing)
- Outside diameters available: 4.95", 5.15", 5.35"
- Finish: painted for corrosion resistance
Typical applications
Air compressor drives, pumps, fans and blowers, conveyors, and general industrial power-transmission systems that run multiple B-section belts.
This 3-groove B-section cast iron SD-bushed sheave pairs a rugged Class 30 gray-iron body with the versatile QD SD bushing system, so you can match the exact bore to your shaft while carrying three A/B V-belts for higher-torque drives.
NOTE: Actual product may be different from pictured!
